Destaco 865132-MR 2.0 in Bore 2-11/16 in Stroke Pneumatic Cylinder
Regular price
$152.89
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

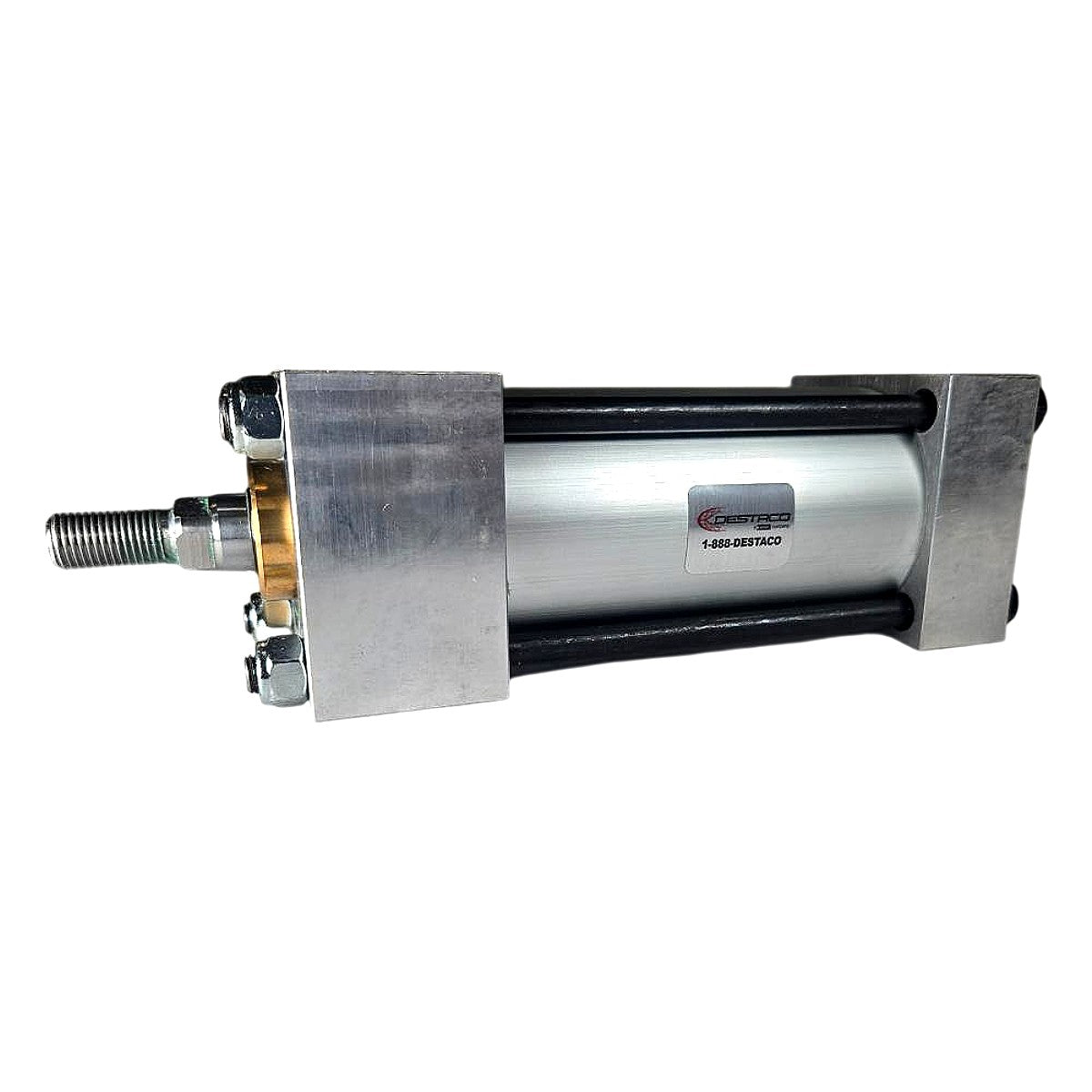

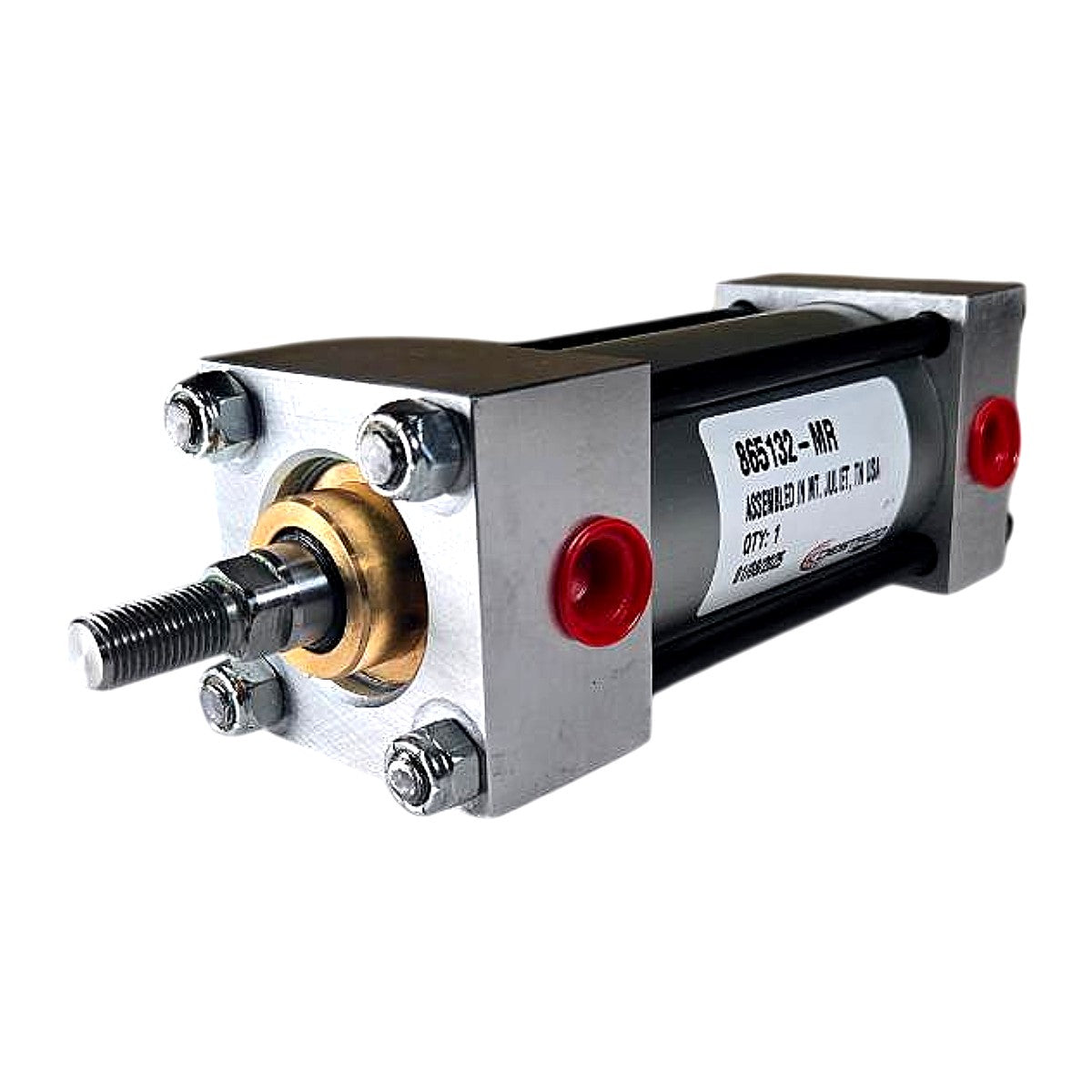

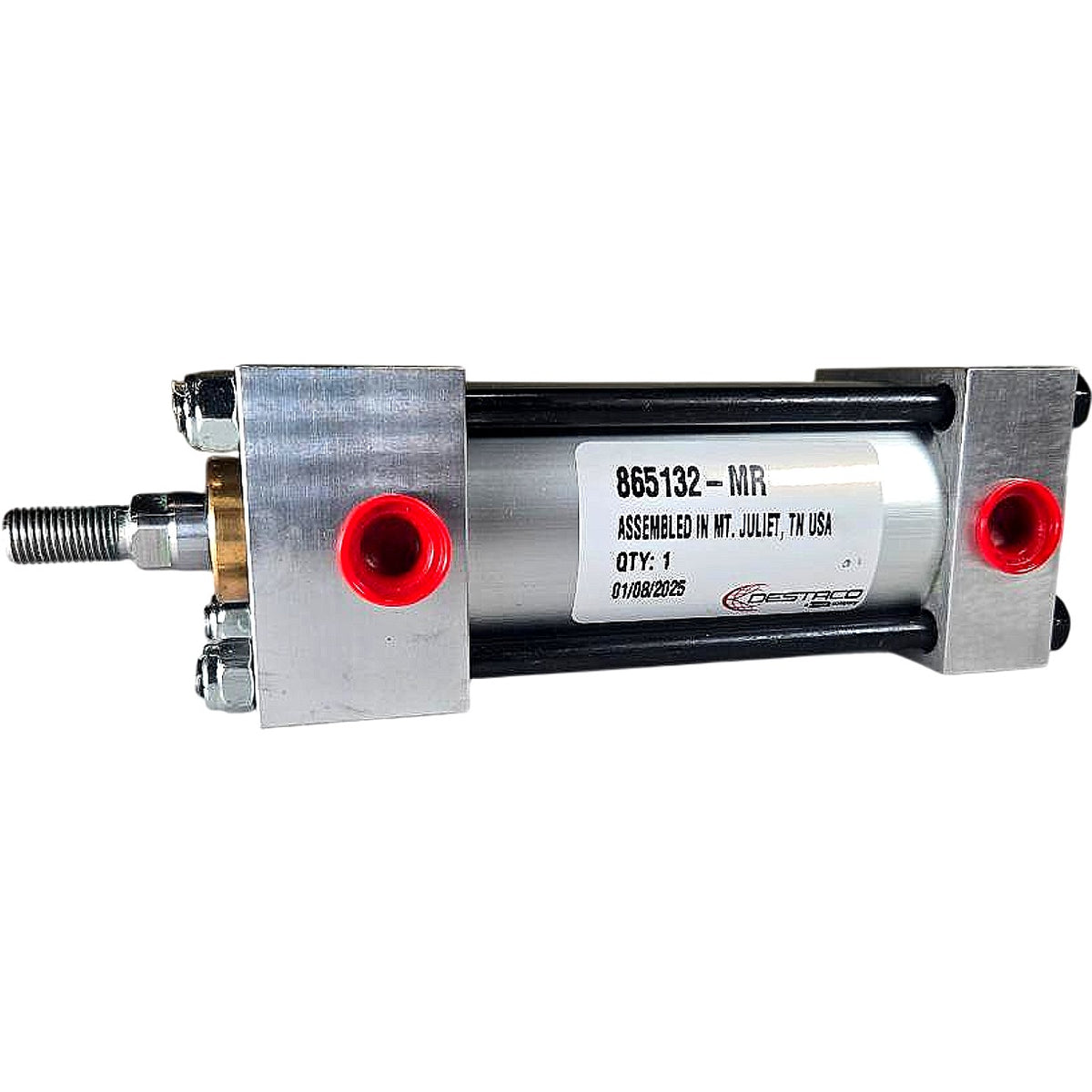

The Destaco 865132-MR is a tie-rod style pneumatic cylinder with a 2.0 in bore and a 2-11/16 in stroke, per the box label (CYL 2.0 B x 2-11/16 ST). It has an aluminum cylinder tube and square aluminum head and cap blocks held together by four black tie rods with hex nuts, and a bronze rod bushing at the rod end. The piston rod is externally threaded and fitted with a hex jam nut, and the head and cap each have a side port that is fitted with red protective plugs. This unit was assembled in Mt. Juliet, TN, USA by Destaco, a Dover company, and is offered new in its original box.
Product Specifications
| Brand | Destaco |
| MPN | 865132-MR |
| Bore Diameter | 2.0 in |
| Stroke Length | 2-11/16 in |
| Country of Origin | USA (Assembled in Mt. Juliet, TN) |
| Action | Double Acting |
| Cylinder Style | Tie Rod |
| Body Material | Aluminum |
| Rod Bushing Material | Bronze |
| Rod End Type | Male Threaded w/ Jam Nut |
| Number of Ports | 2 |
| Port Location | Side ports, head and cap |
| Tie Rod Count | 4 |
| Cylinder Tube Finish | Natural Aluminum |
| Tie Rod Finish | Black |
| Manufacturing Date | 01/08/2025 |
| Parent Company | Dover |
