Dijet ENMU100412ZER-PH JC8118 10mm Carbide Milling Insert (6 pcs)

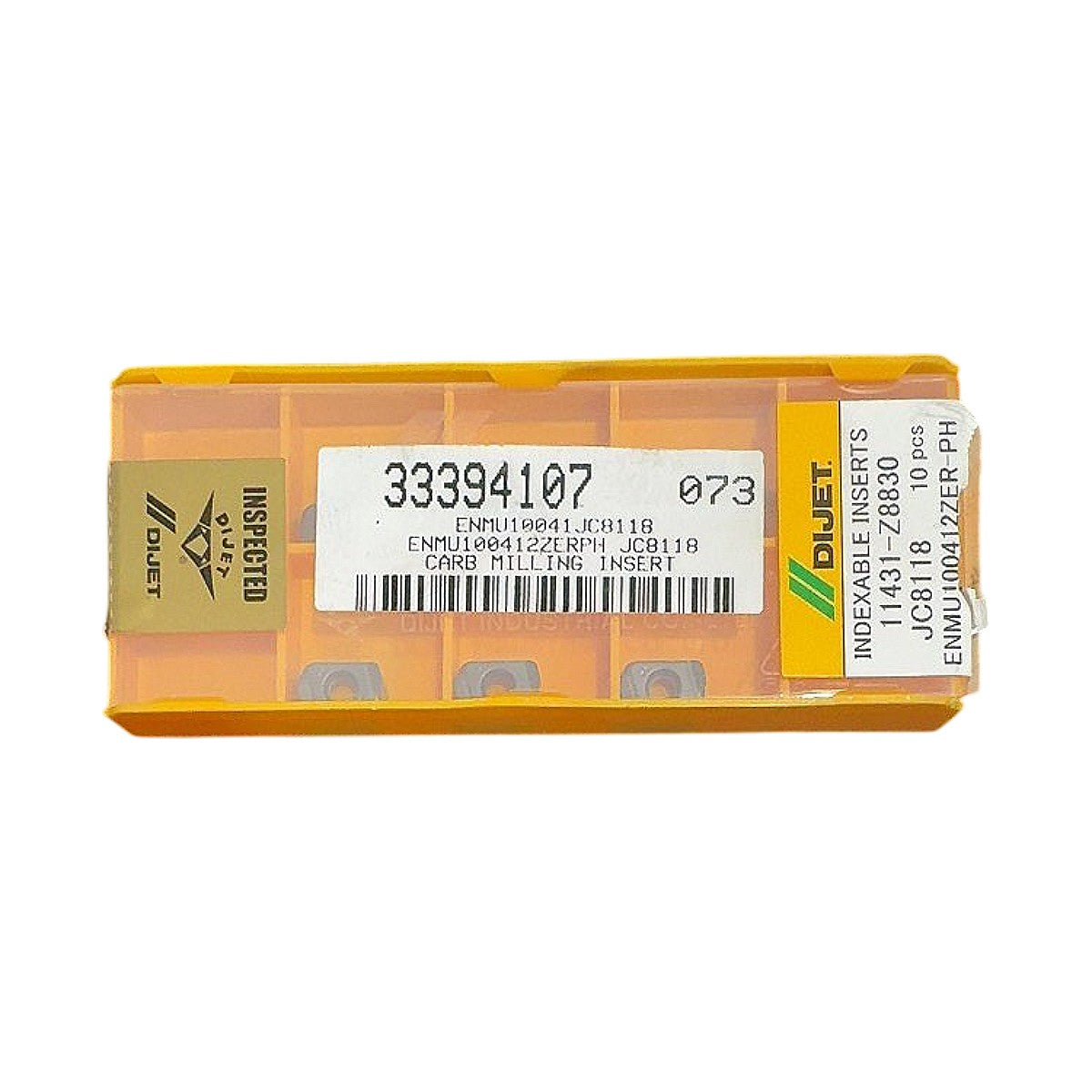

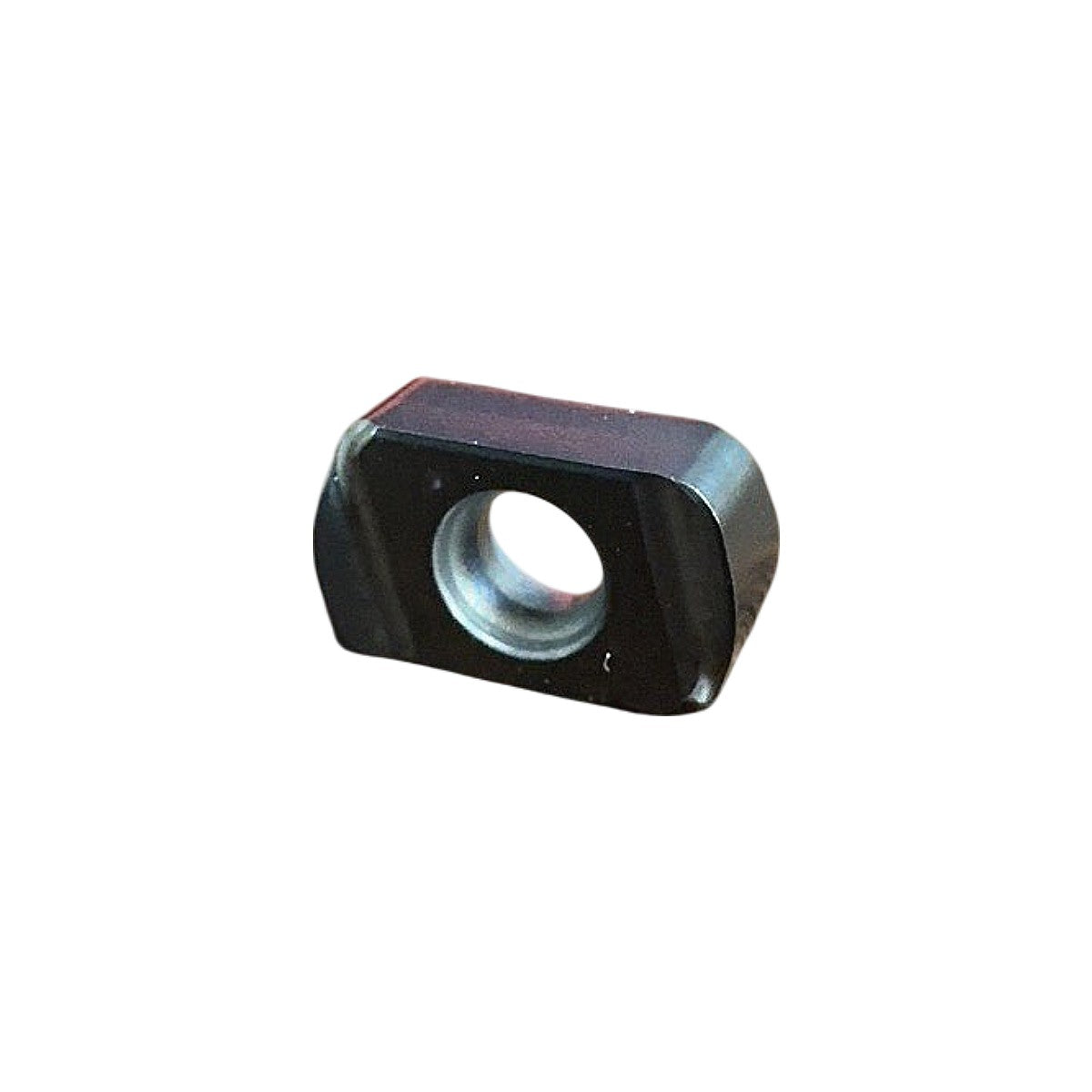

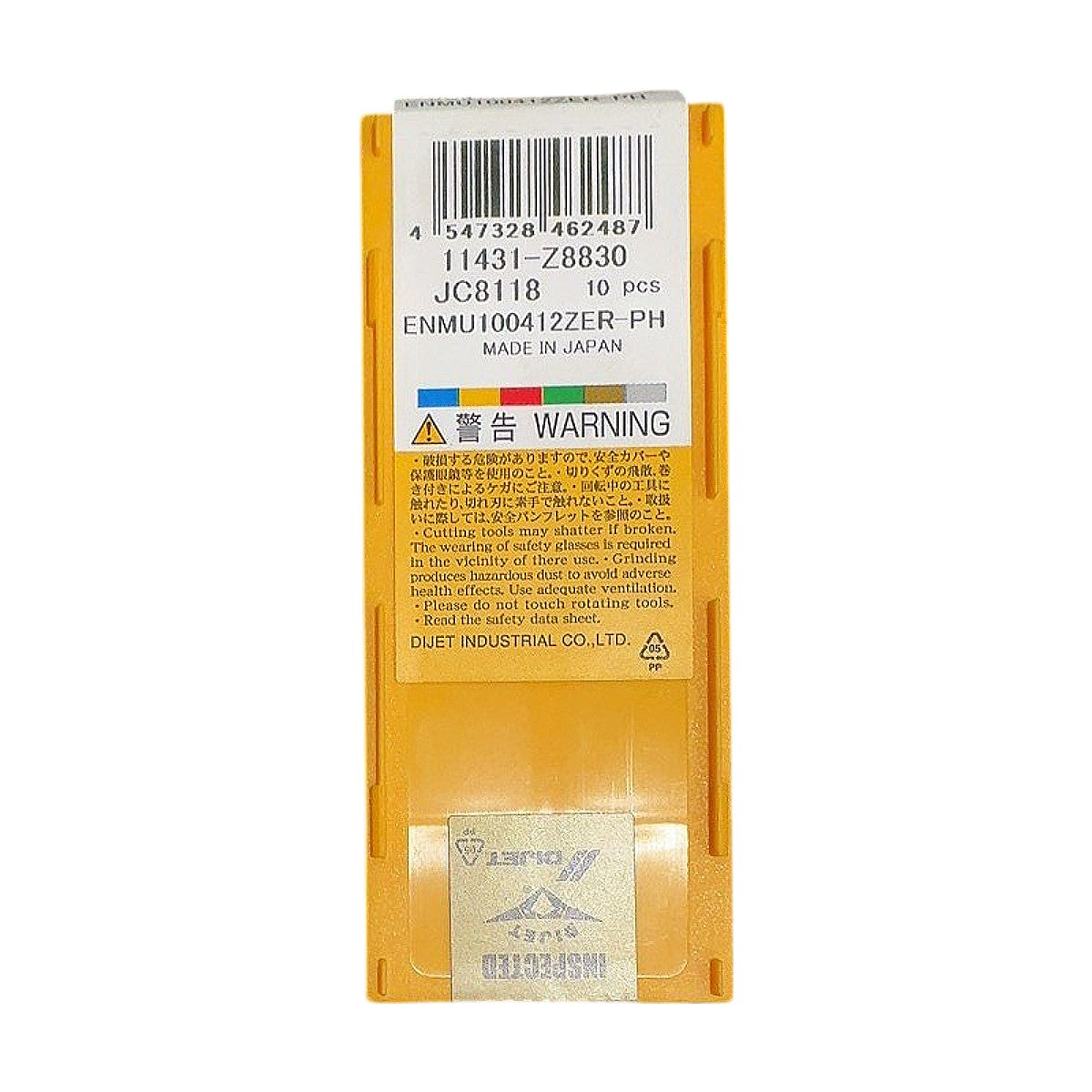

The Dijet ENMU100412ZER-PH is a new, indexable carbide milling insert in grade JC8118, a PVD-coated cemented carbide grade developed by Dijet Industrial Co., Ltd. (Japan) for high-performance face and shoulder milling. Decoding the ISO-style designation: EN = rectangular/oblong (elongated) insert shape; MU = positive rake, screw-on mounting; 10 = 10 mm inscribed circle / length; 04 = 4 mm thickness; 12 = 1.2 mm nose radius; ZER = right-hand cutting edge geometry with chip-former; PH = Dijet's positive helical chipbreaker geometry optimized for light-to-medium milling of steel and stainless steel. JC8118 is a PVD TiAlN-based coated grade suited for milling of carbon steels, alloy steels, and stainless steels at moderate-to-high cutting speeds with excellent wear resistance and toughness. Each factory-sealed box contains 10 inserts bearing Dijet's "INSPECTED" quality seal; Dijet part number 11431-Z8830 and barcode 4547328462487 are confirmed from the packaging. These inserts are designed for use in Dijet ENM-series milling cutters and compatible toolholders accepting ENMU10 pocket style. Product Specifications Brand DIJET MPN ENMU100412ZER-PH Insert Material Cemented Carbide Insert Type Milling Insert Alternate MPN ENMU10041JC8118 / ENMU100412ZERPH JC8118 Dijet Part Number 11431-Z8830 Grade JC8118 Coating PVD TiAlN-based Insert Shape Rectangular/Oblong (EN-style) Cutting Edge Hand Right-hand (ZER) Chipbreaker PH (positive helical) Inscribed Circle / Length 10 mm Thickness 4 mm Nose Radius 1.2 mm Mounting Style Screw-on (MU) Quantity per Package 6 pcs Country of Origin Japan Compatible Materials Carbon steel, alloy steel, stainless steel Application Face milling, shoulder milling
