Dijet MIC-2075-M10 20mm Boring Head Indexable Insert Holder

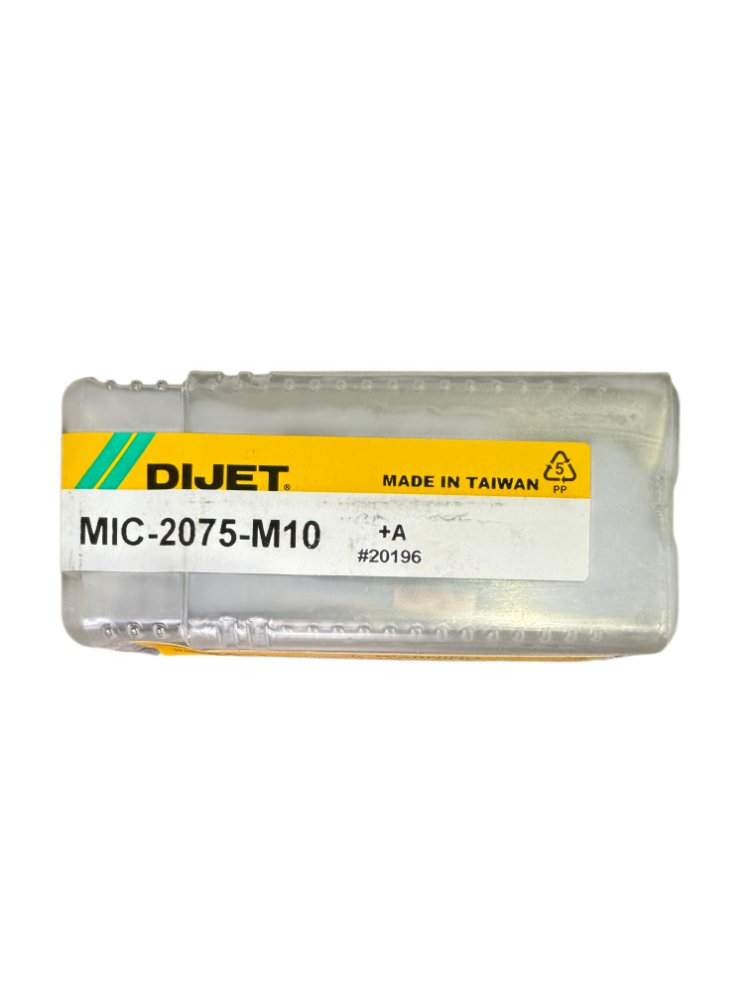

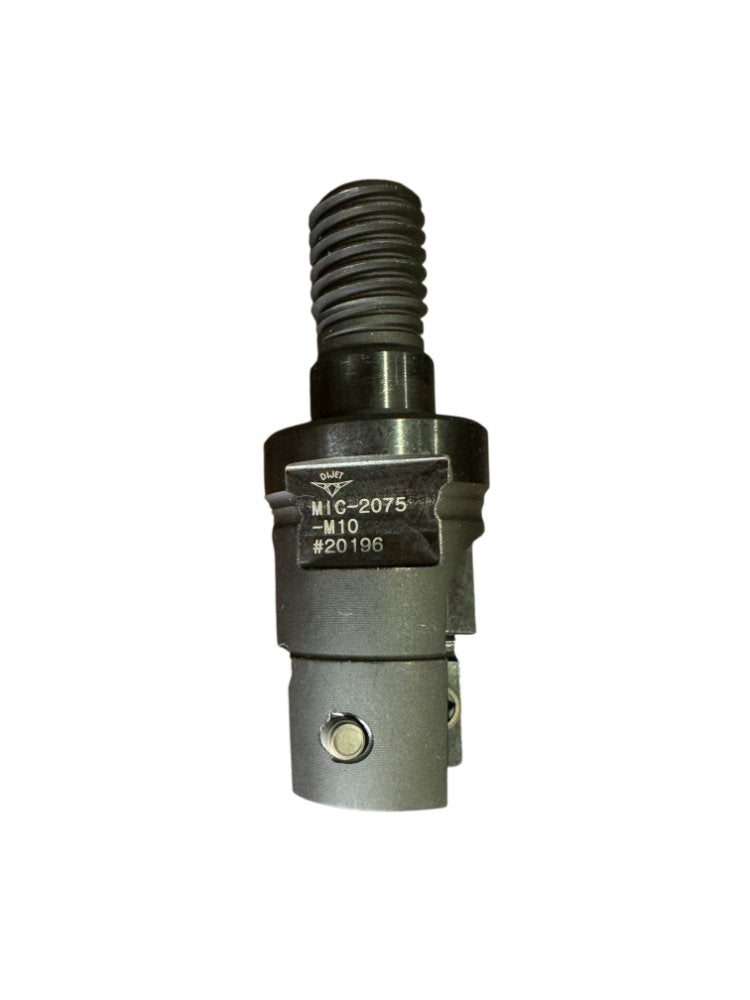

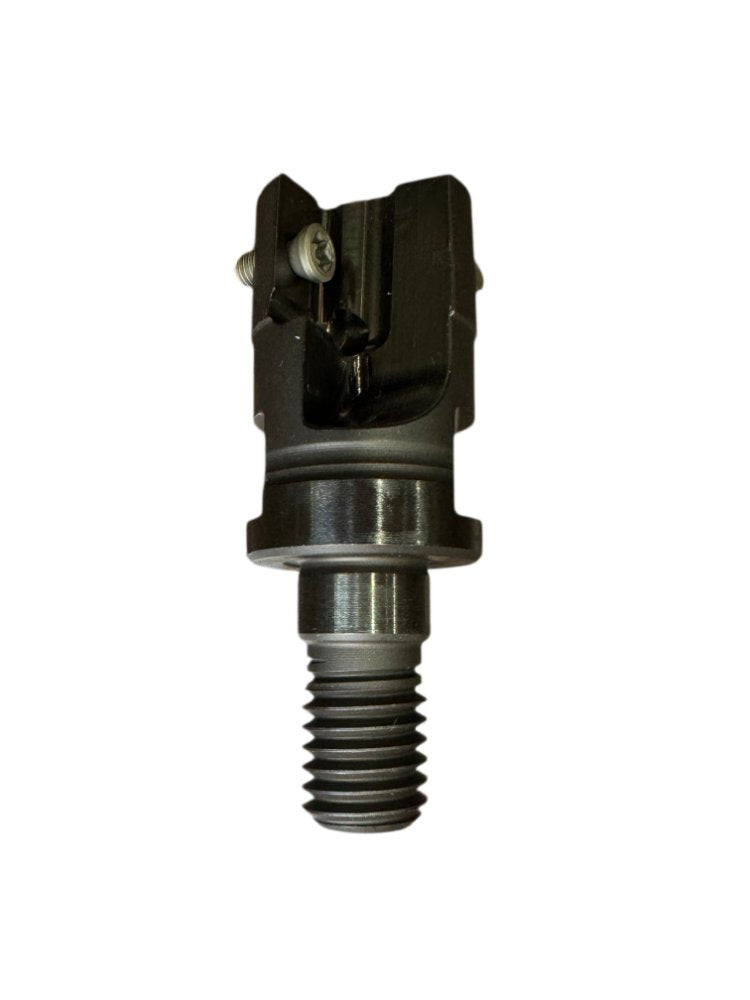

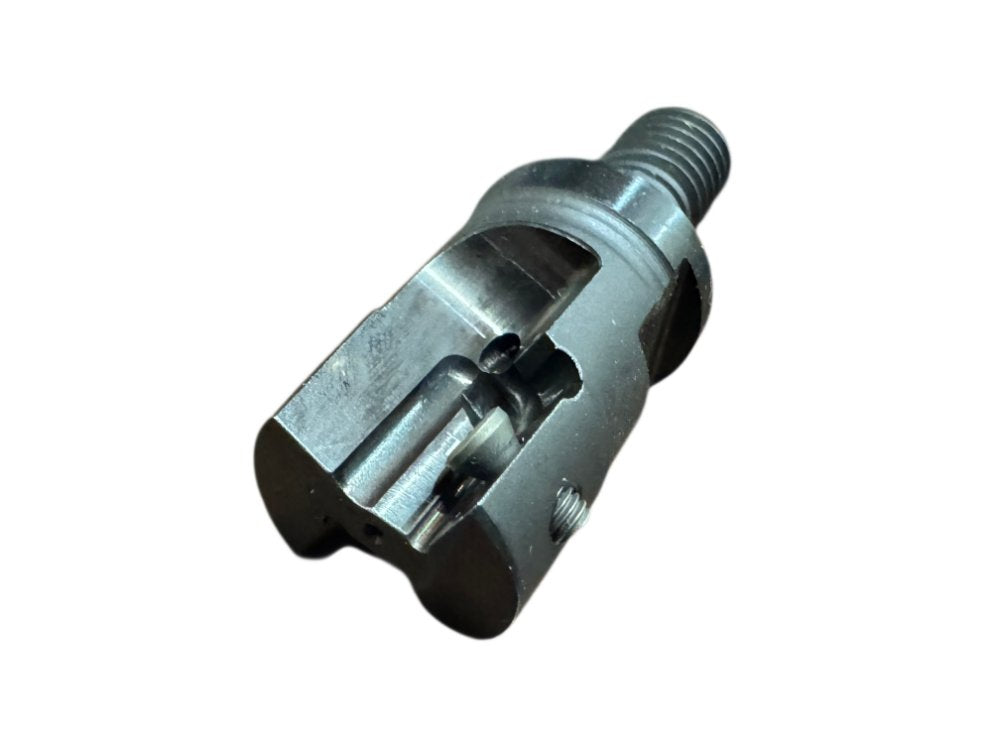

The Dijet MIC-2075-M10 is a new indexable micro boring head from Dijet's MIC series, designed for precision internal boring operations on machining centers and CNC lathes. The part number decodes as follows: MIC = Micro Indexable Cartridge boring system, 2075 = 20mm minimum bore diameter with 75° lead angle geometry, M10 = M10 threaded shank for connection to a modular boring bar or extension; the +A suffix visible on the packaging indicates a positive axial offset variant (#20196 is the catalog reference number). The tool body is constructed from hardened steel with a precision-ground cartridge seat that accepts a single indexable insert secured by a clamp screw, allowing fast insert changes without removing the head from the spindle. This head is compatible with Dijet MIC-series modular boring systems and is suited for finish boring of steel, cast iron, and non-ferrous alloys where tight diameter tolerances and fine surface finishes are required.

Product Specifications
