Dijet MXG-3075-M10 3/4 in 90° Modular Indexable Milling Cutter Head
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

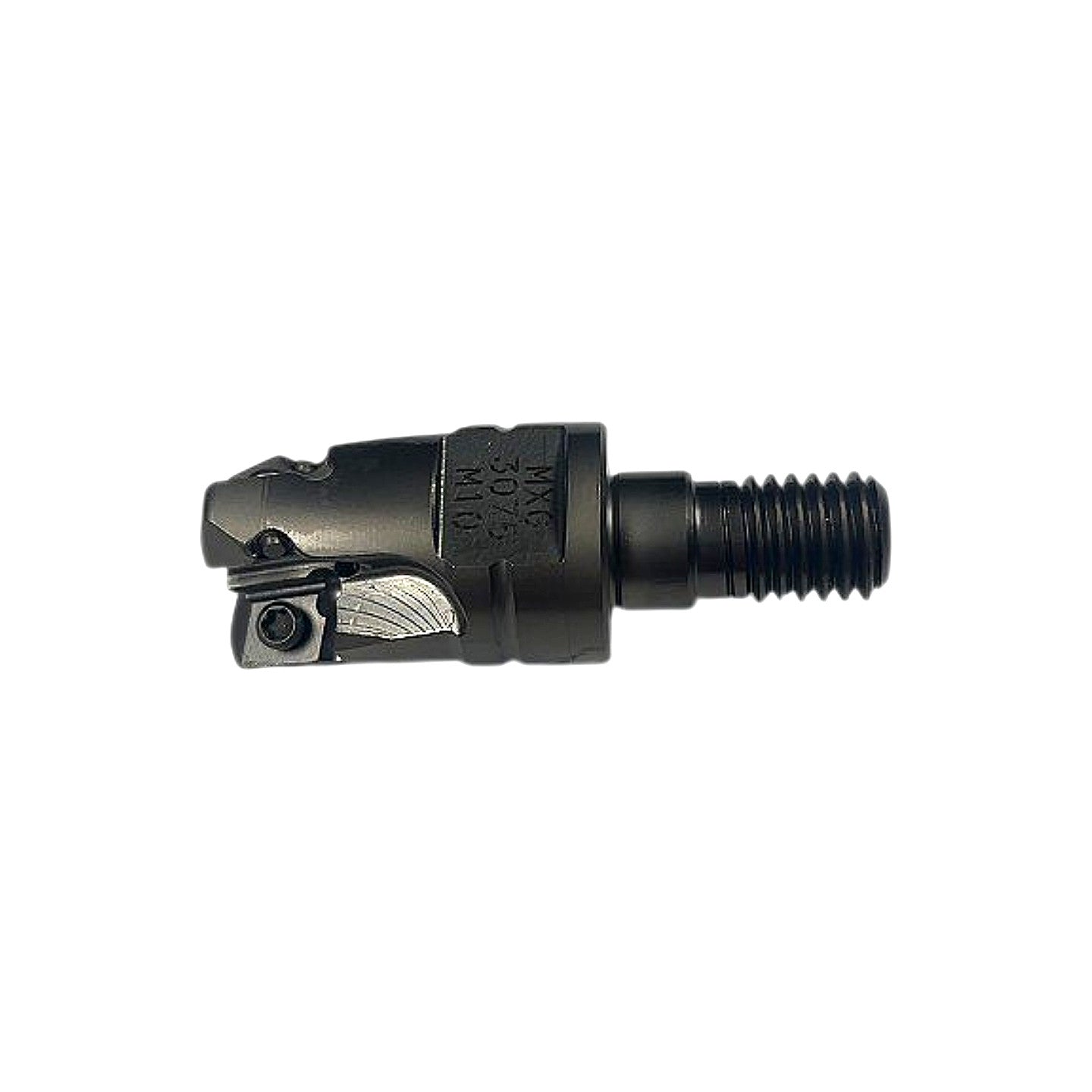

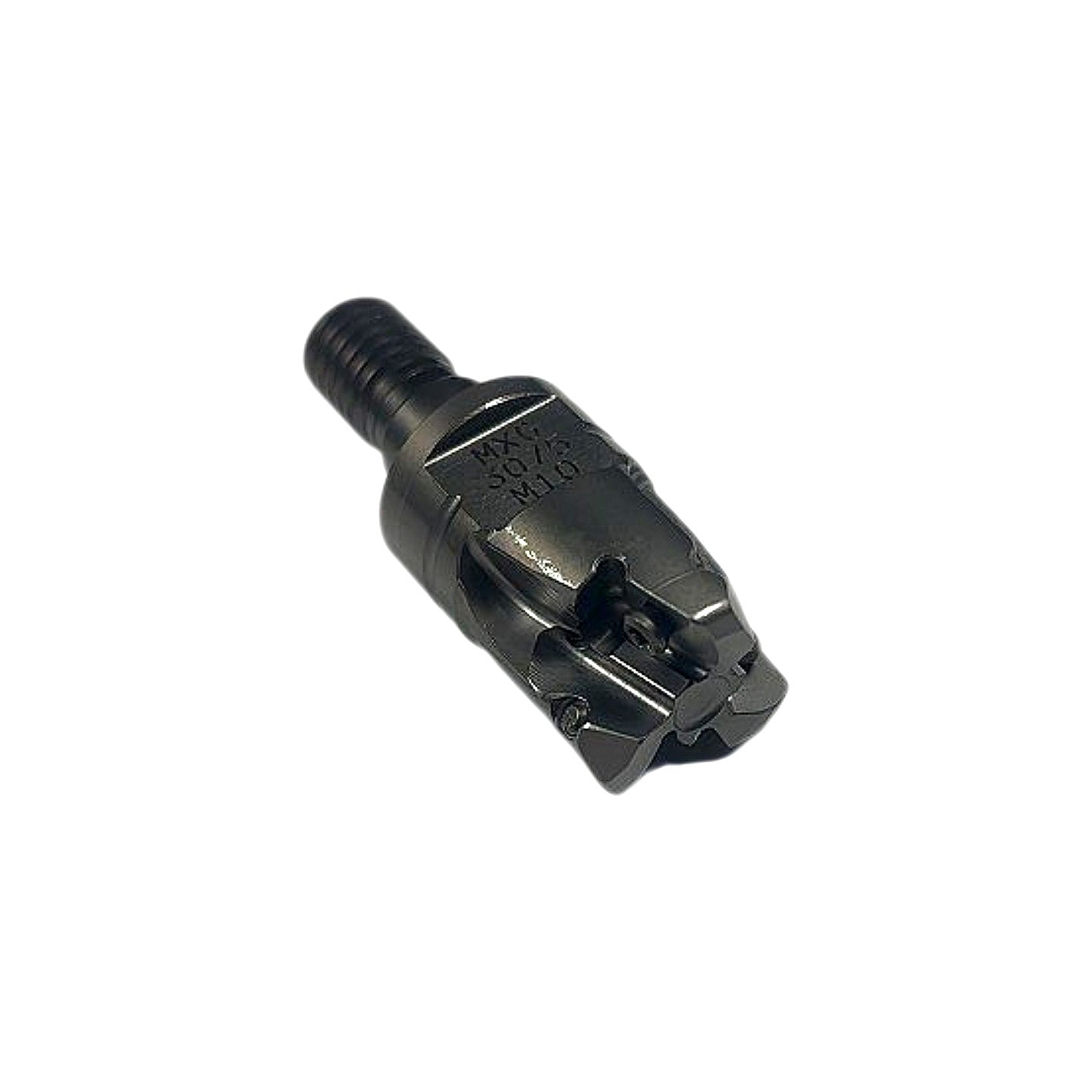

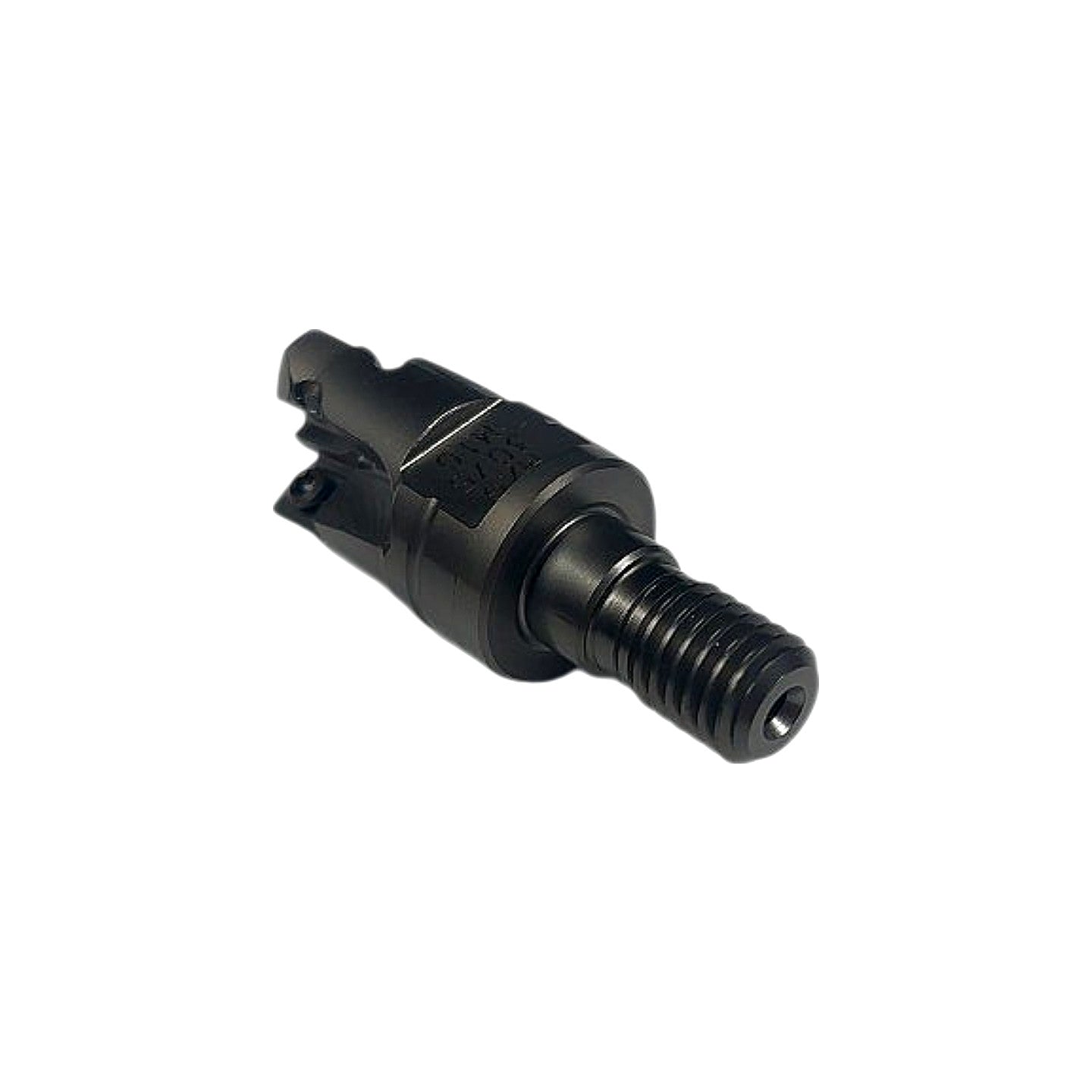

The Dijet MXG-3075-M10 is a new, indexable modular milling cutter head from Dijet's QM MAX G-Body series, designed for 90° shoulder milling operations. The part number decodes as follows: MXG = QM MAX modular head series (G-Body style); 3075 = 30 mm (approximately 3/4 in) cutting diameter; M10 = M10 threaded shank interface for mounting to compatible QM MAX modular extension bars, adapters, or holders. The G-Body designation indicates this is the cutter head body itself (without inserts), accepting Dijet XOEX-style double-sided tangential carbide inserts standard to the QM MAX platform. The M10 threaded connection provides a compact, rigid interface suitable for deep-reach milling, back-face milling, and multi-spindle setups; the cutter accepts coolant-through capability when paired with appropriate holders. Made in Japan to Dijet's precision manufacturing standards, this head is suited for milling steel, stainless steel, cast iron, and aluminum in CNC machining centers.
Product Specifications
| Brand | Dijet |
| MPN | MXG-3075-M10 |
| Series | QM MAX Modular Head System |
| Body Type | G-Body |
| Cutting Diameter | 30 mm (3/4 in) |
| Shank / Interface Thread | M10 |
| Lead Angle | 90° |
| Compatible Insert Style | XOEX (double-sided tangential) |
| Country of Origin | Japan |
| Condition | New |
| Dijet Catalog Reference | 32148-Z6323 |
