Dijet MXG-5125-M16LG 1-1/4" QM MAX G2 Indexable Milling Cutter Head
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

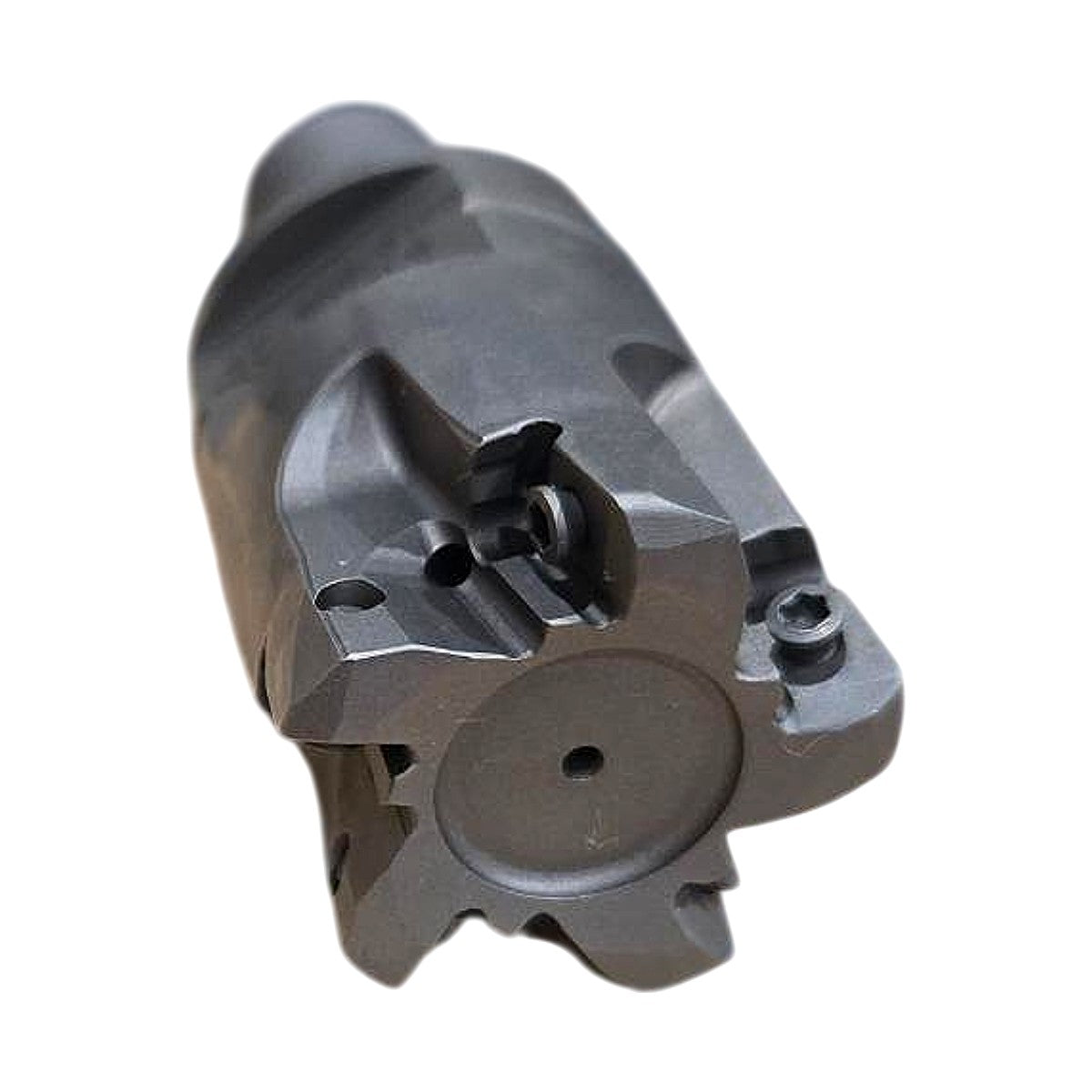

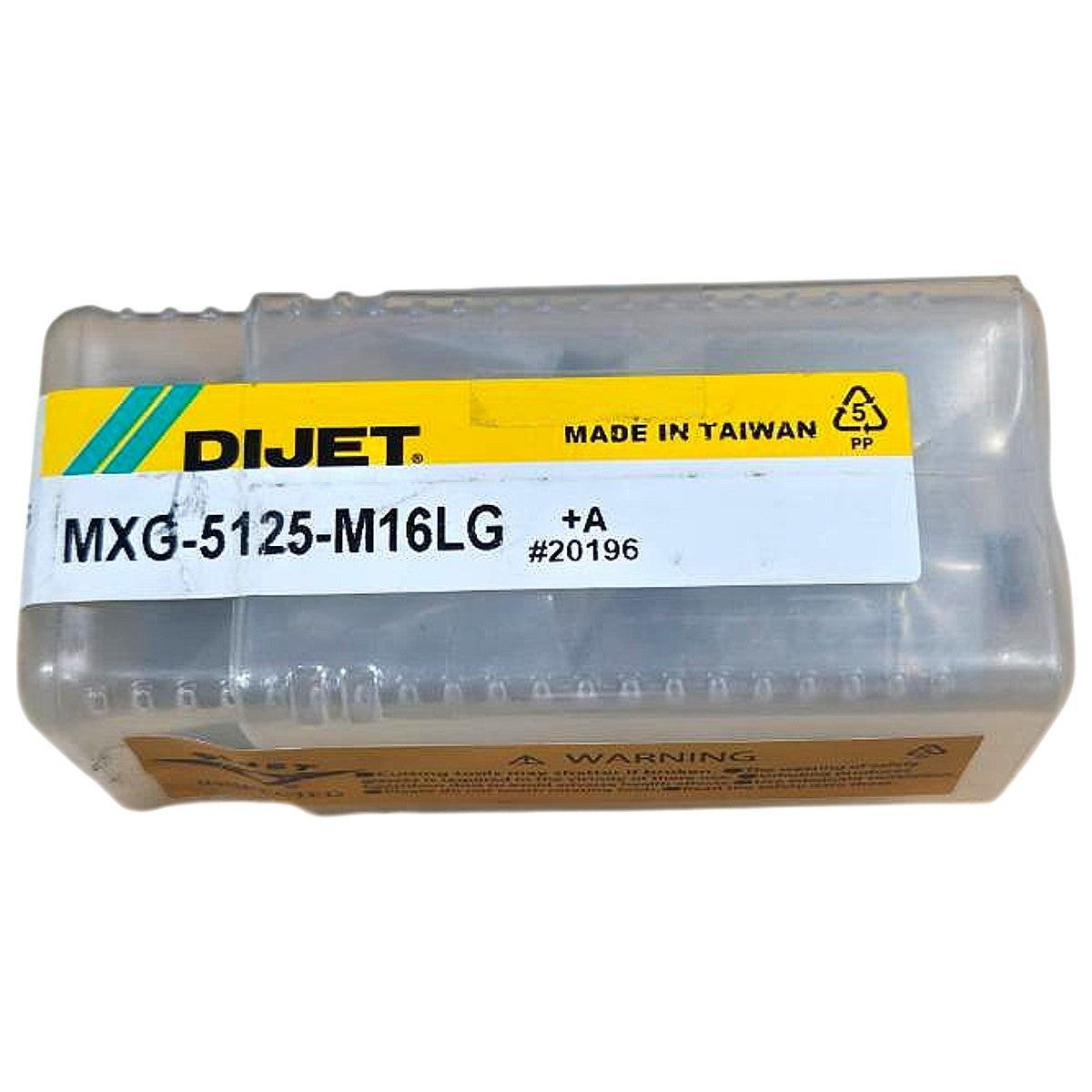

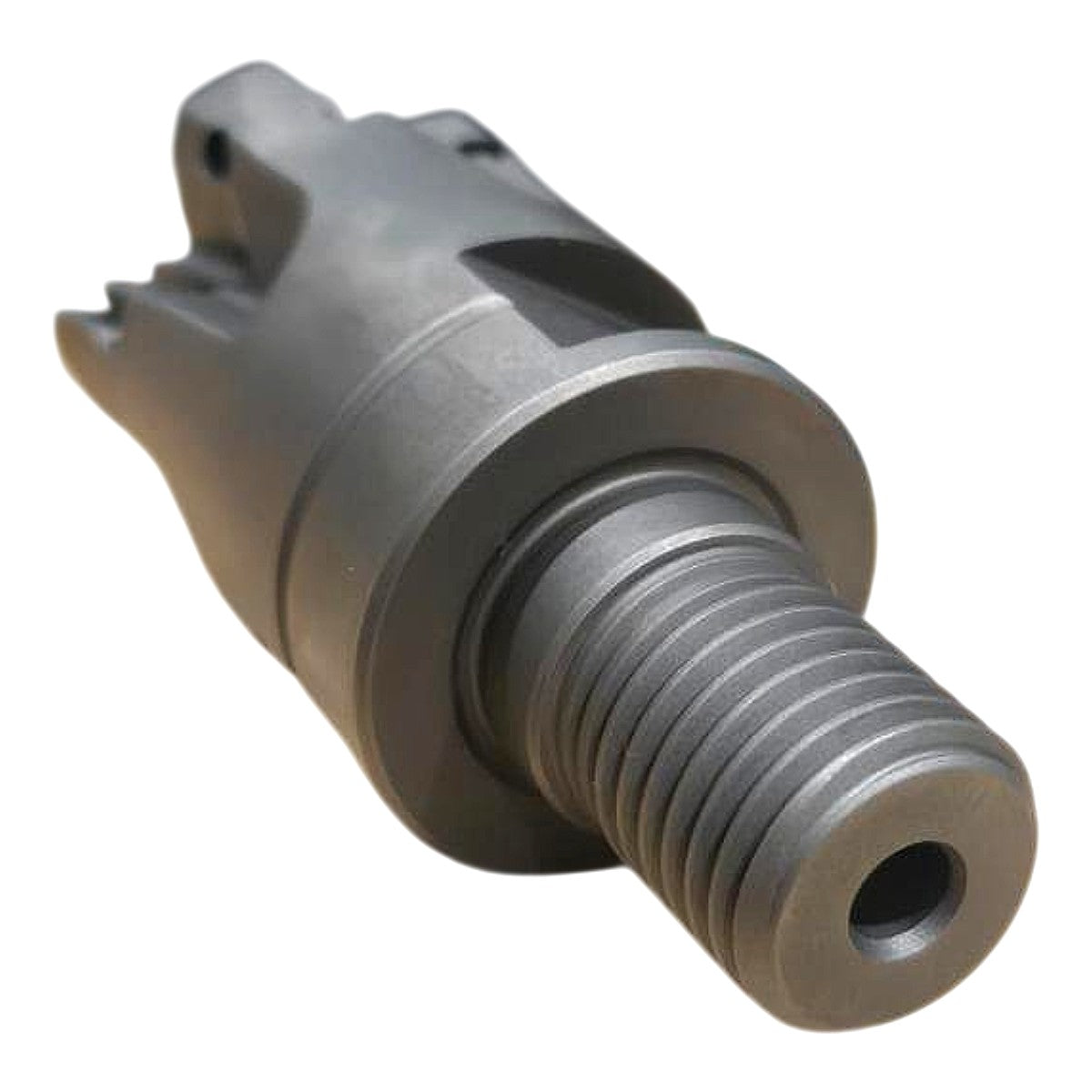

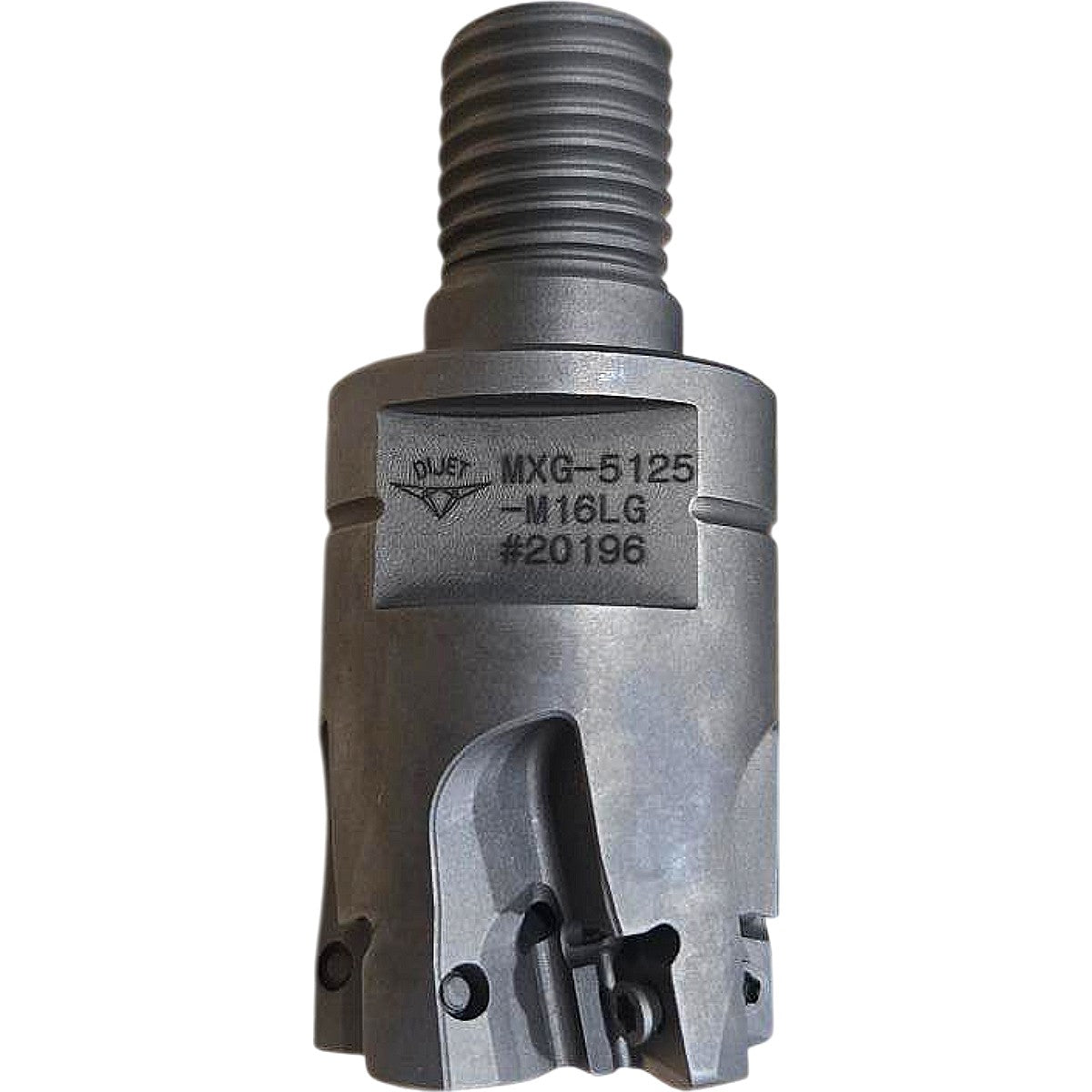

The Dijet MXG-5125-M16LG is a new, indexable milling cutter head from the QM MAX G2 series, designed for high-feed and general-purpose milling operations. The part number decodes as follows: MXG = QM MAX G2 series multi-flute milling head; 5125 = 1-1/4 in (approximately 31.75 mm) cutting diameter; M16 = M16 threaded shank interface for mounting to compatible Dijet modular tool bodies or arbors; LG = long gauge length variant. The cutter body accepts Dijet XDGT-type indexable carbide inserts secured via torx/hex clamping screws, and features through-coolant capability via the center bore visible in the photos, enabling both flood and high-pressure coolant delivery to the cutting zone. This tool head is suited for face milling, shoulder milling, and copy milling of steel, stainless steel, cast iron, and non-ferrous materials when paired with the appropriate insert grade, and is manufactured in Taiwan as indicated on the original packaging label.
Product Specifications
| Brand | Dijet |
| MPN | MXG-5125-M16LG |
| Series | QM MAX G2 |
| Cutting Diameter | 1-1/4 in (31.75 mm) |
| Shank / Mount Interface | M16 threaded modular |
| Gauge Length | Long (LG) |
| Through Coolant | Yes |
| Insert Type Compatibility | Dijet XDGT-series indexable carbide inserts |
| Cutter Body Material | Alloy steel |
| Country of Origin | Taiwan |
| Condition | New |
