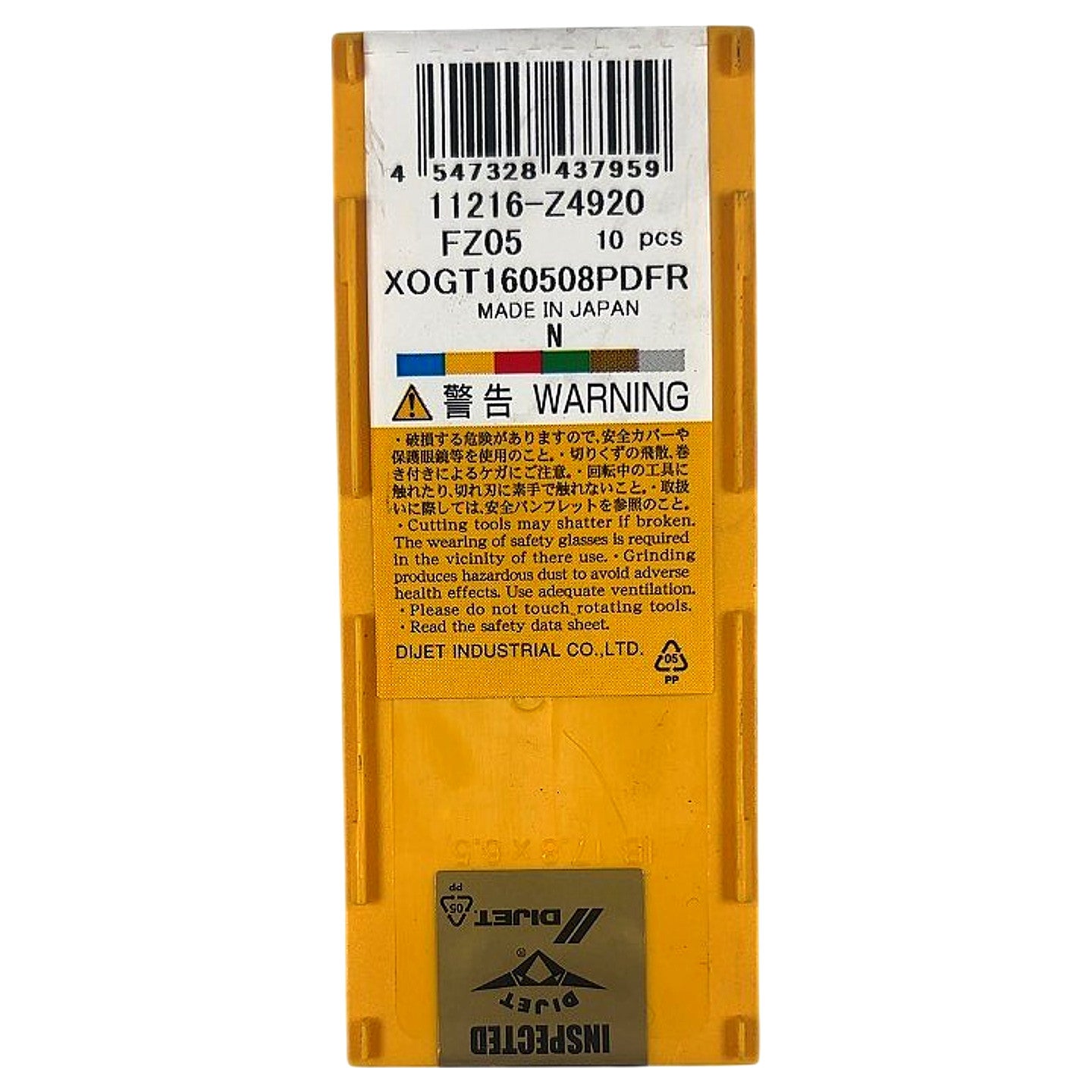

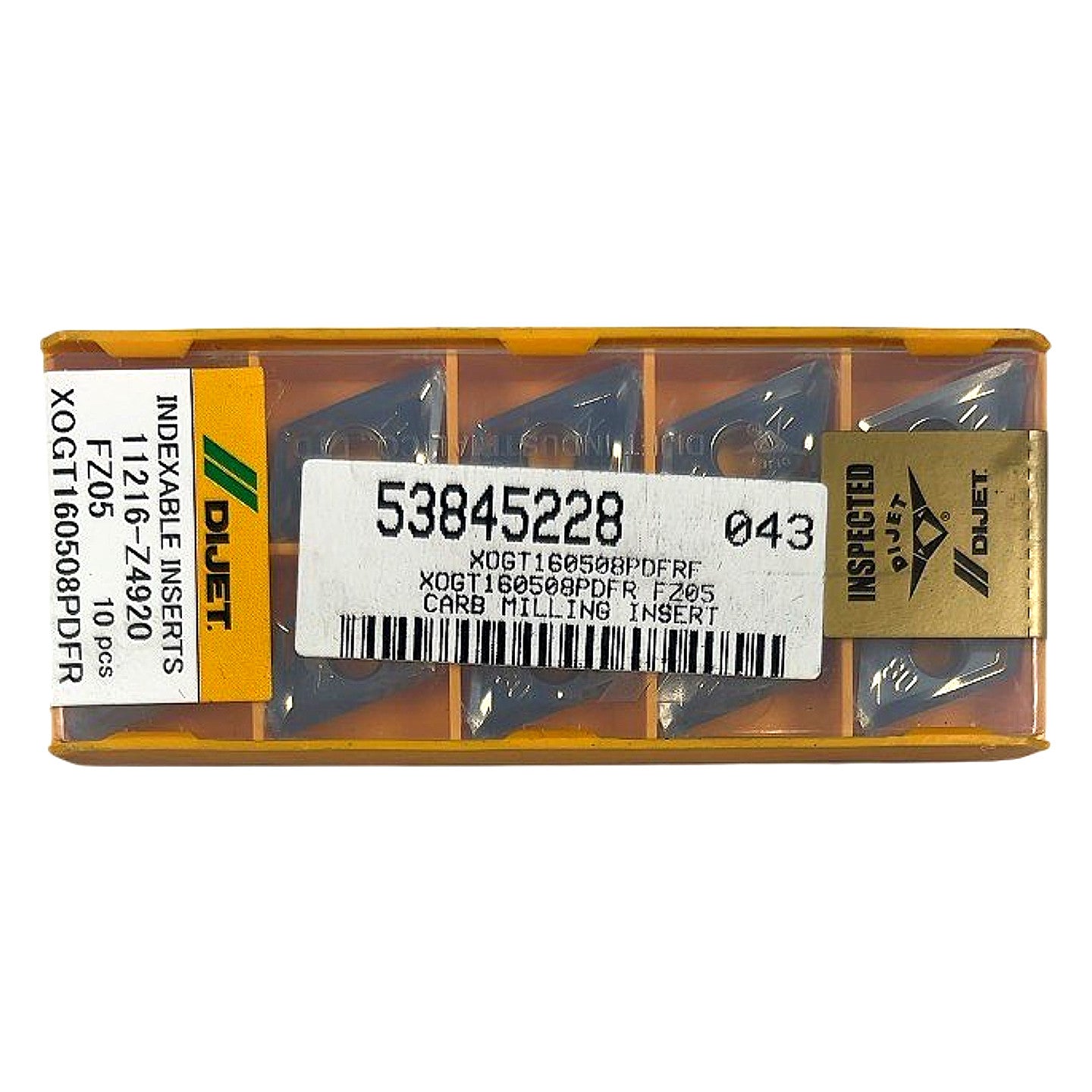

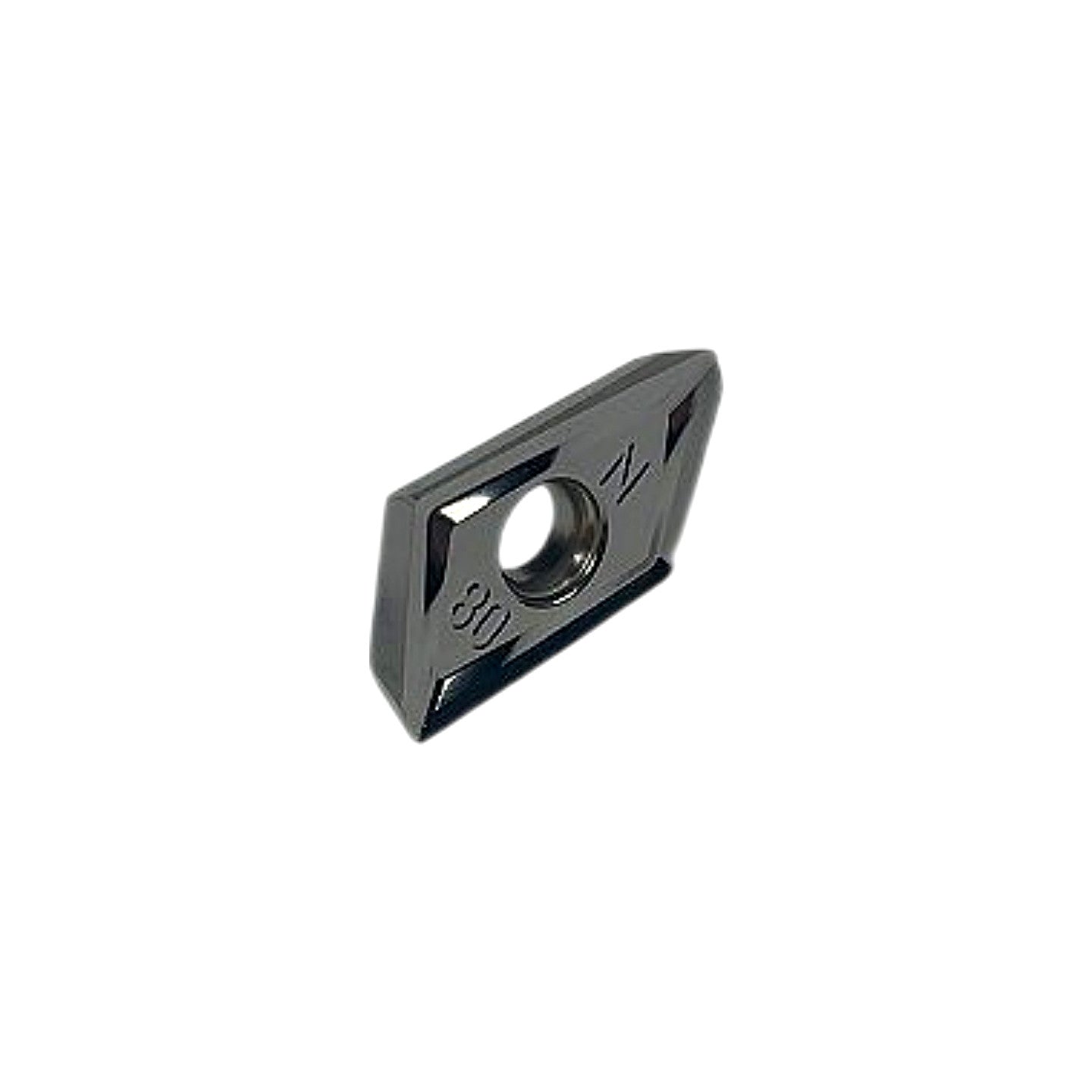

The Dijet XOGT160508PDFR is a new, indexable carbide milling insert in the XOGT (extra-oblique geometry trigon-style) family, supplied in a factory-sealed 10-piece tray (Dijet part 11216-Z4920). The insert is manufactured in Japan by Dijet Industrial Co., Ltd. and carries the FZ05 grade — a CVD-coated cemented carbide grade optimized for high-feed face milling of steel and cast iron, characterized by its dark PVD/CVD surface finish visible in the photos. Decoding the full ISO-style designation: XO = extra-oblique positive geometry, GT = ground top, 16 = 16 mm inscribed circle, 05 = 5.56 mm thickness, 08 = 0.8 mm nose radius, PDF = positive axial/radial rake double-sided chipbreaker geometry, R = right-hand cutting direction. This insert is designed for use in Dijet high-feed milling cutters compatible with the XOGT160508 seating pocket, delivering aggressive axial depths of cut with reduced cutting forces — suited for machining carbon steel, alloy steel, and gray/ductile cast iron.
Product Specifications
| Brand | Dijet |
| MPN | XOGT160508PDFR |
| Grade | FZ05 |
| Dijet Part Number | 11216-Z4920 |
| Insert Style | XOGT (extra-oblique positive, ground top) |
| Inscribed Circle (IC) | 16 mm |
| Thickness | 5.56 mm |
| Nose Radius | 0.8 mm |
| Cutting Direction | Right-hand (R) |
| Chipbreaker | |
| Coating | CVD (FZ05 grade) |
| Country of Origin | Japan |
| Application | Face milling, steel, alloy steel, cast iron |
| Quantity per Package | 10 pcs |
| Condition | New |
