Diversified Precision Products 250-267 6.45mm Solid Carbide Step Drill
Regular price
$43.70
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

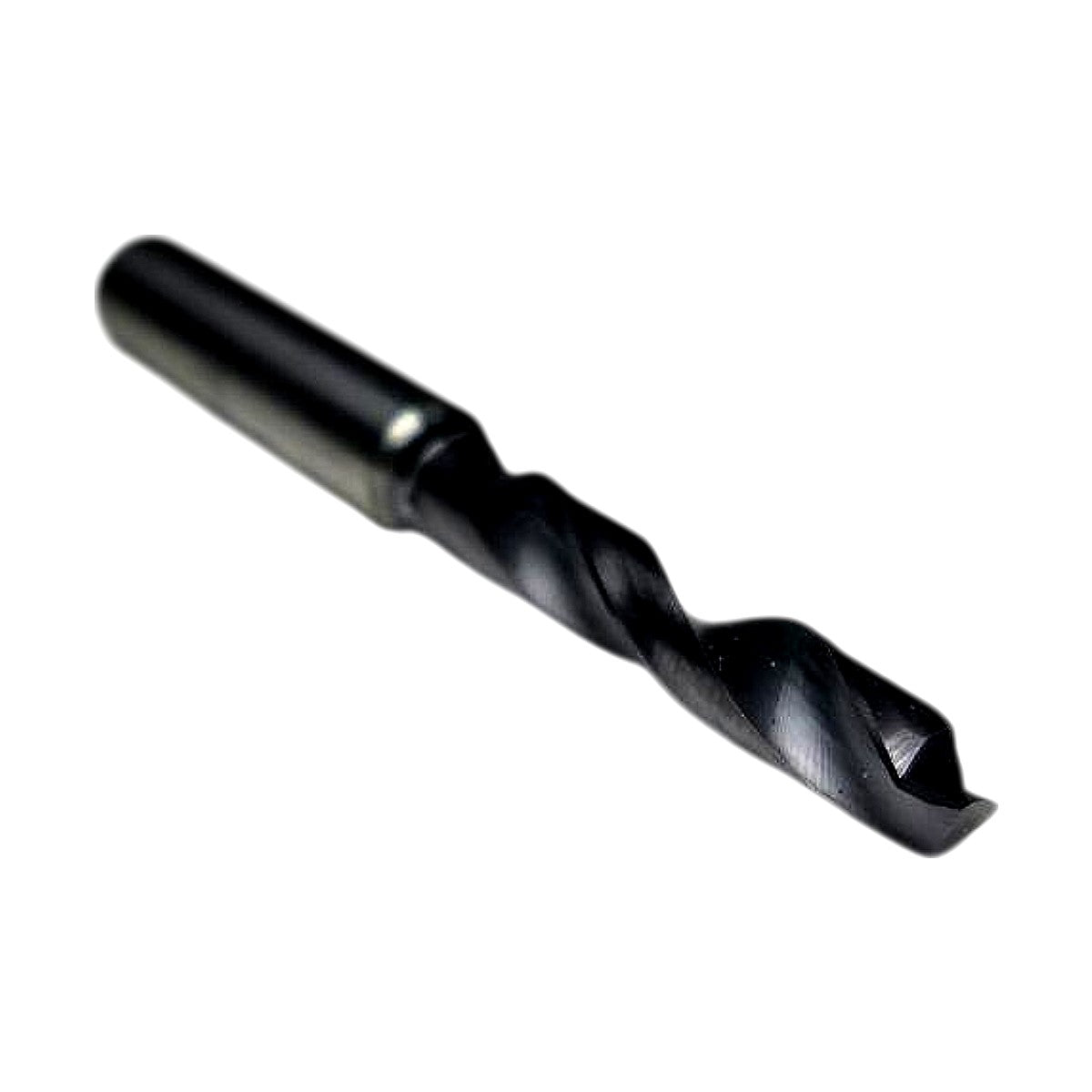

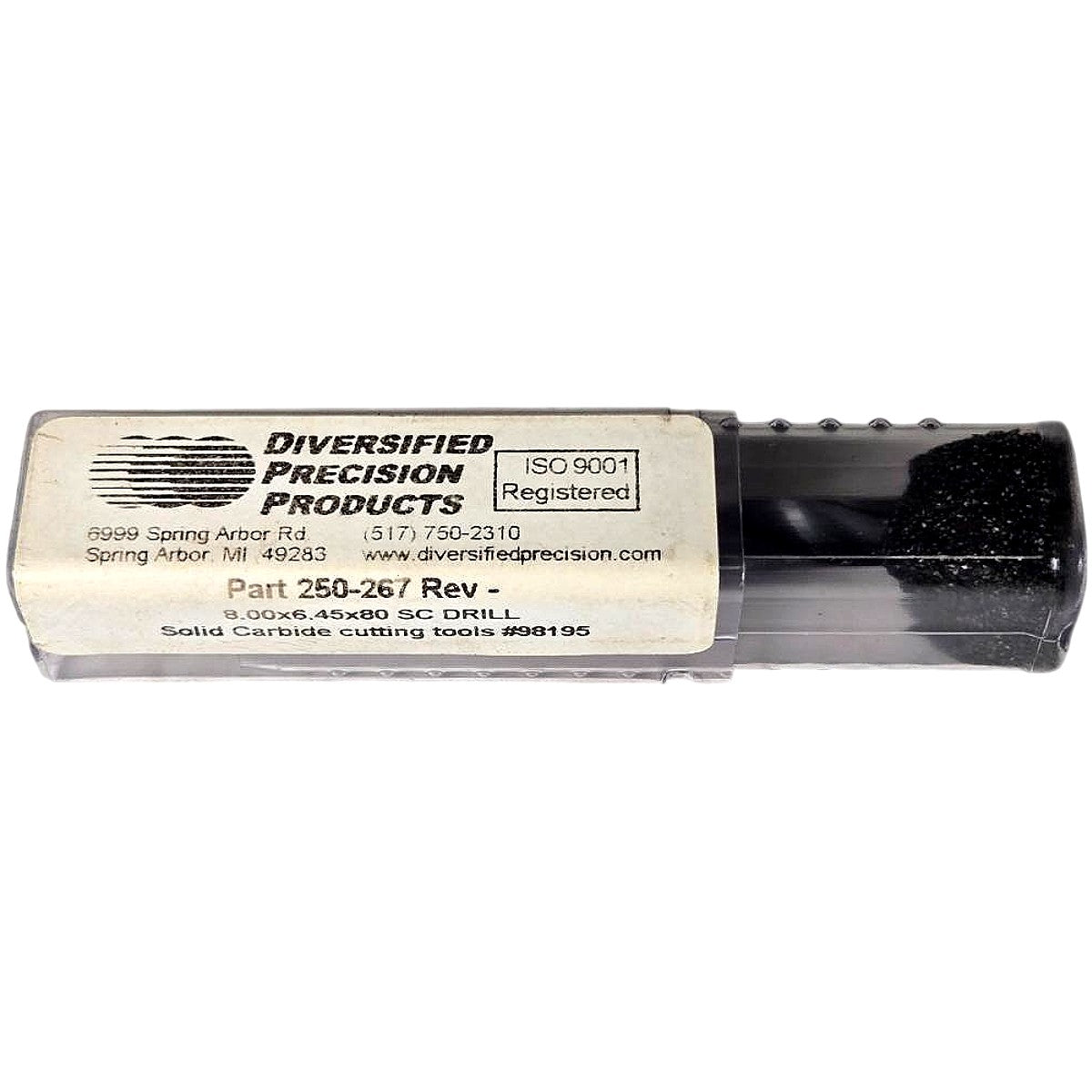

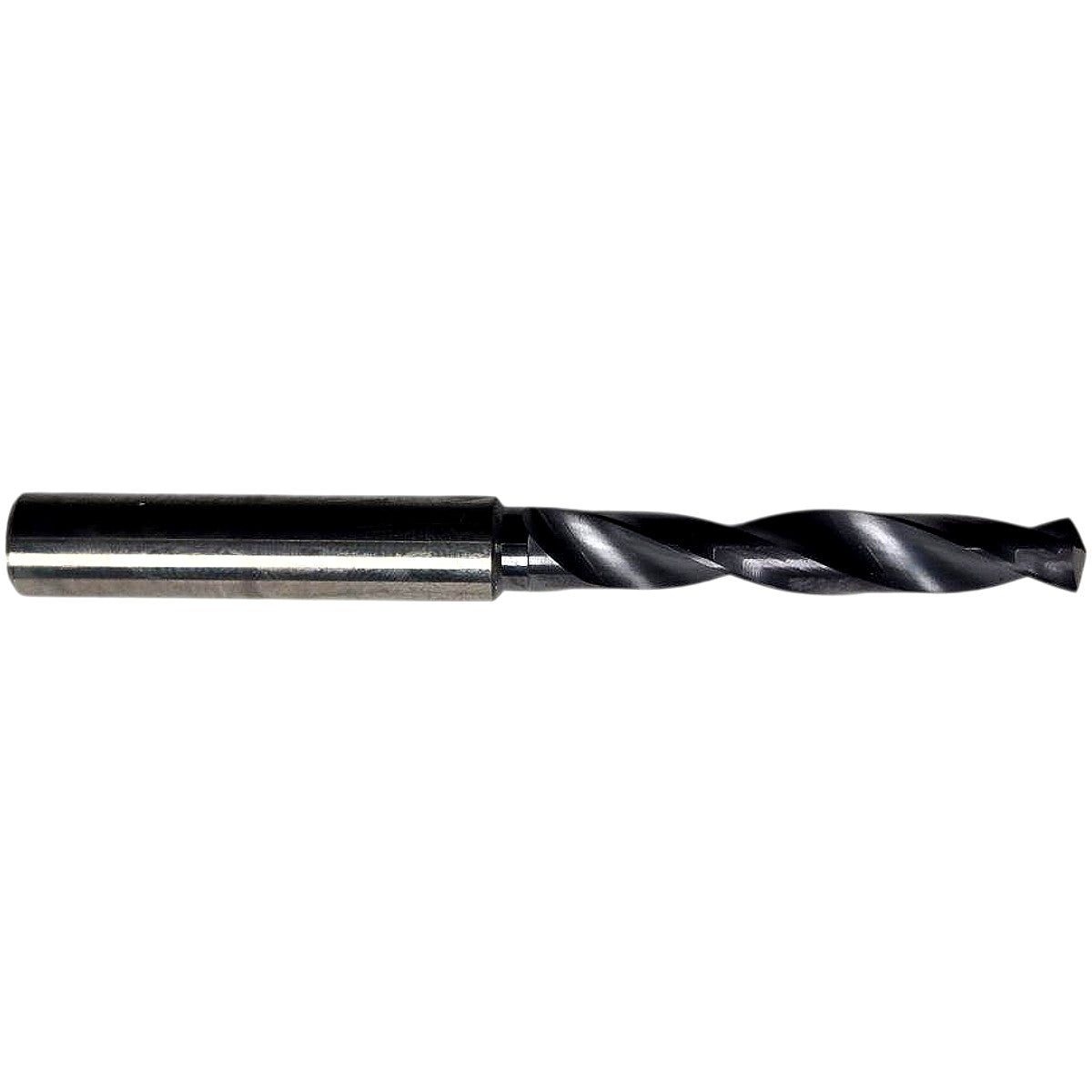

This Diversified Precision Products part 250-267 is a solid carbide step drill labeled 8.00x6.45x80, which reads as an 8.00 mm shank, a 6.45 mm cutting diameter and an 80 mm overall length. It has a two-flute twist design with a dark-coated fluted section and a bright, ground, straight round shank, and the shank is larger in diameter than the cutting section. Solid carbide construction gives high rigidity and wear resistance for CNC machining. The manufacturer is ISO 9001 registered, and the drill is supplied new in its original clear tube.
Product Specifications
| Brand | Diversified Precision Products |
| MPN | 250-267 |
| Revision | Rev - |
| Tool Catalog # | 98195 |
| Material | Solid Carbide |
| Cutting Diameter | 6.45 mm |
| Shank Diameter | 8.00 mm |
| Overall Length | 80 mm |
| Number of Flutes | 2 |
| Shank Type | Straight, Round |
| Coating | Dark coated flutes |
| Drill Type | Step Drill |
| Operation | Drilling |
| Certification | ISO 9001 Registered (manufacturer) |
