Dixon 150-D-SS 1-1/2 in Stainless Steel Type D Cam and Groove Coupler

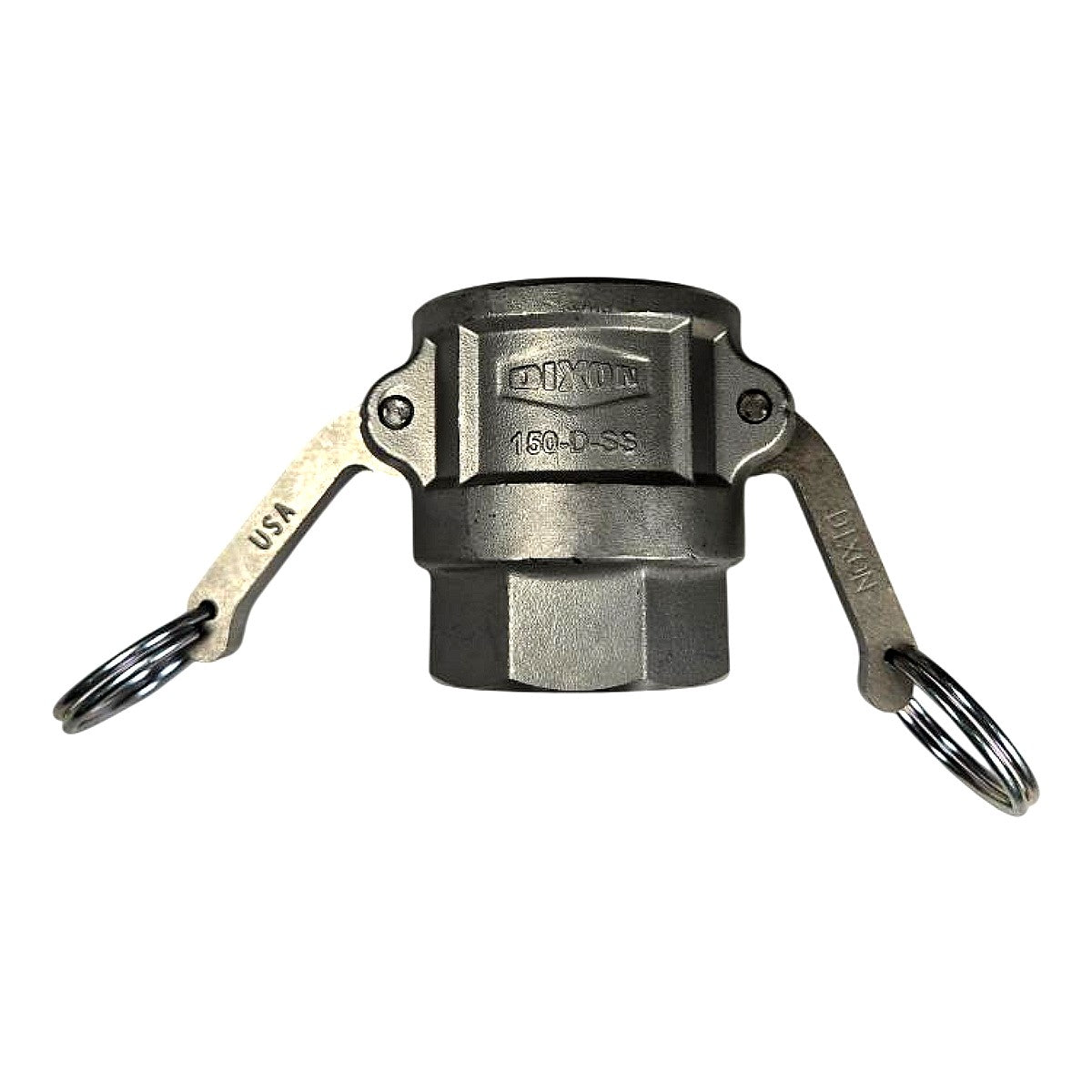

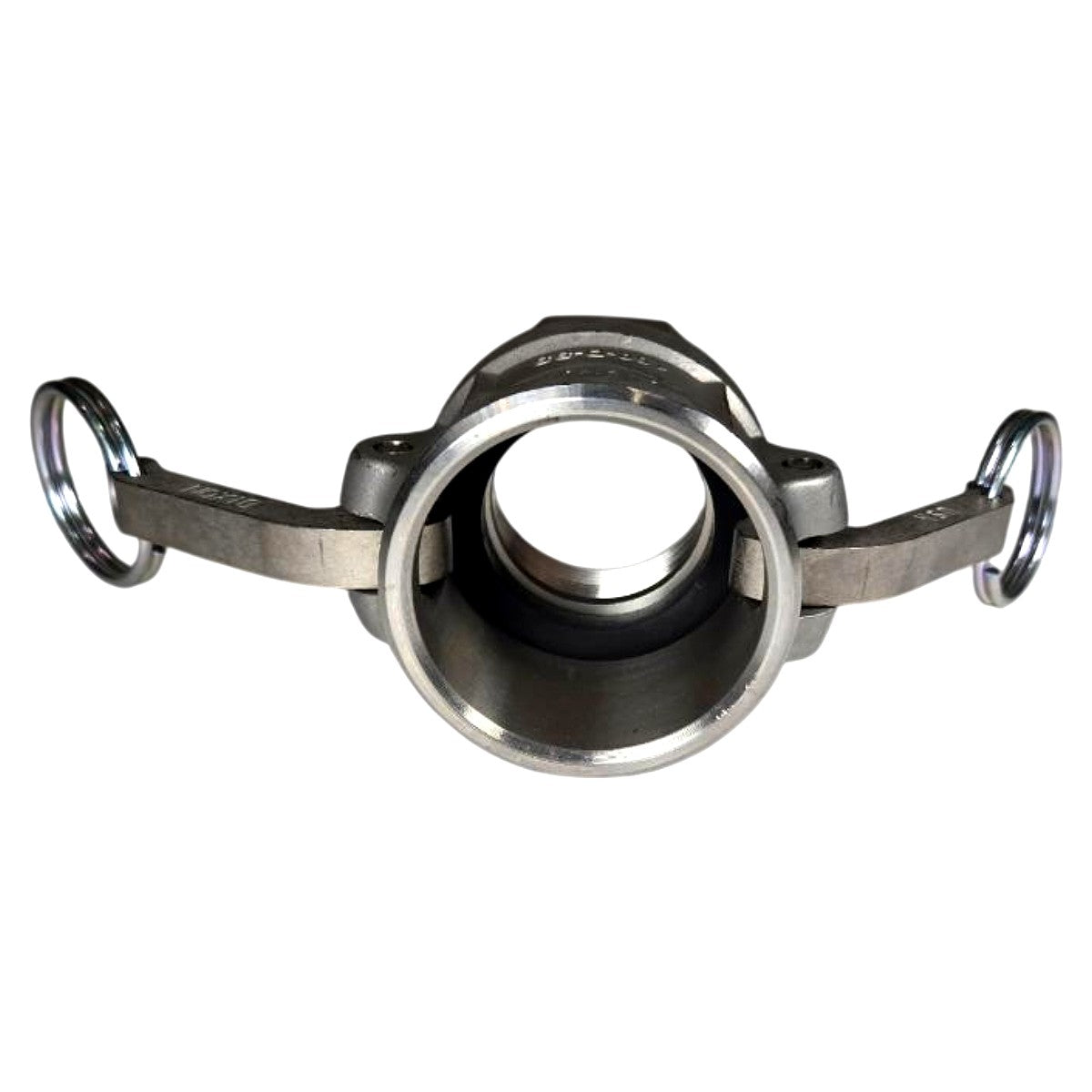

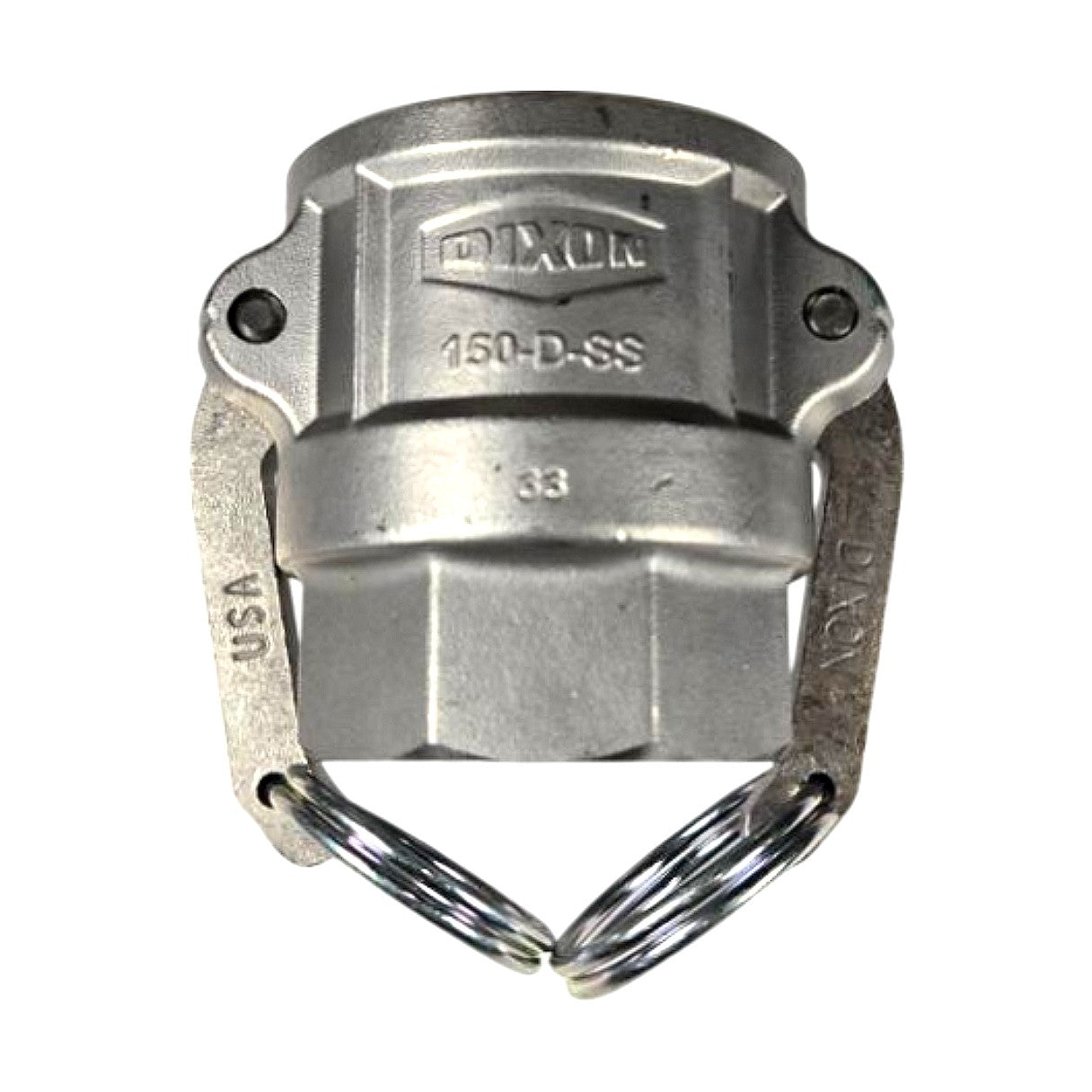

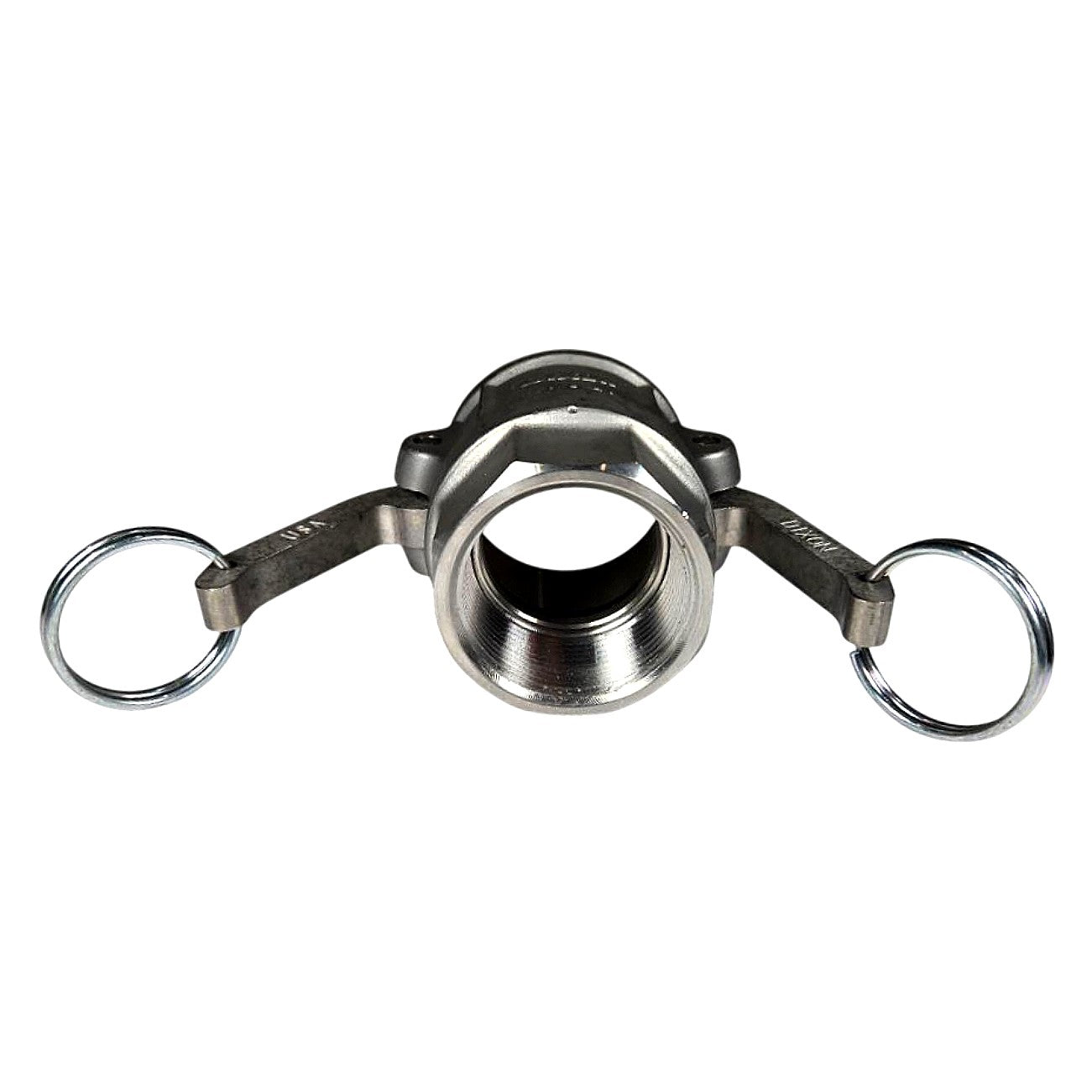

The Dixon 150-D-SS is a new Type D cam and groove coupler (female coupler × female NPT) manufactured in the USA from 303 stainless steel, as embossed directly on the body and confirmed by the "SS" suffix in the part number. The "150" prefix encodes the 1-1/2 in (1.5 in) nominal size, and "D" designates the MIL-C-27487 / ANSI/ASME B1.20.1 Type D configuration: a cam-lock female coupler body with two stainless steel cam arms and retaining rings that accept a male adapter (Type A, B, or E plug) with a quarter-turn locking motion. The female end carries 1-1/2 in NPT internal threads for direct pipe or fitting connection; a captive EPDM gasket (visible in the cam bore in the photos) provides the primary seal against the male adapter groove. Typical service applications include petroleum, water, chemical transfer, agriculture, and tank truck loading/unloading lines where fast tool-free connect/disconnect is required; the 303 SS construction provides corrosion resistance suitable for mildly corrosive media and outdoor environments.

Product Specifications
