Dixon 2HF2 16-263 1/4 in NPTF Female ISO-B Poppet Hydraulic QD Socket PK2

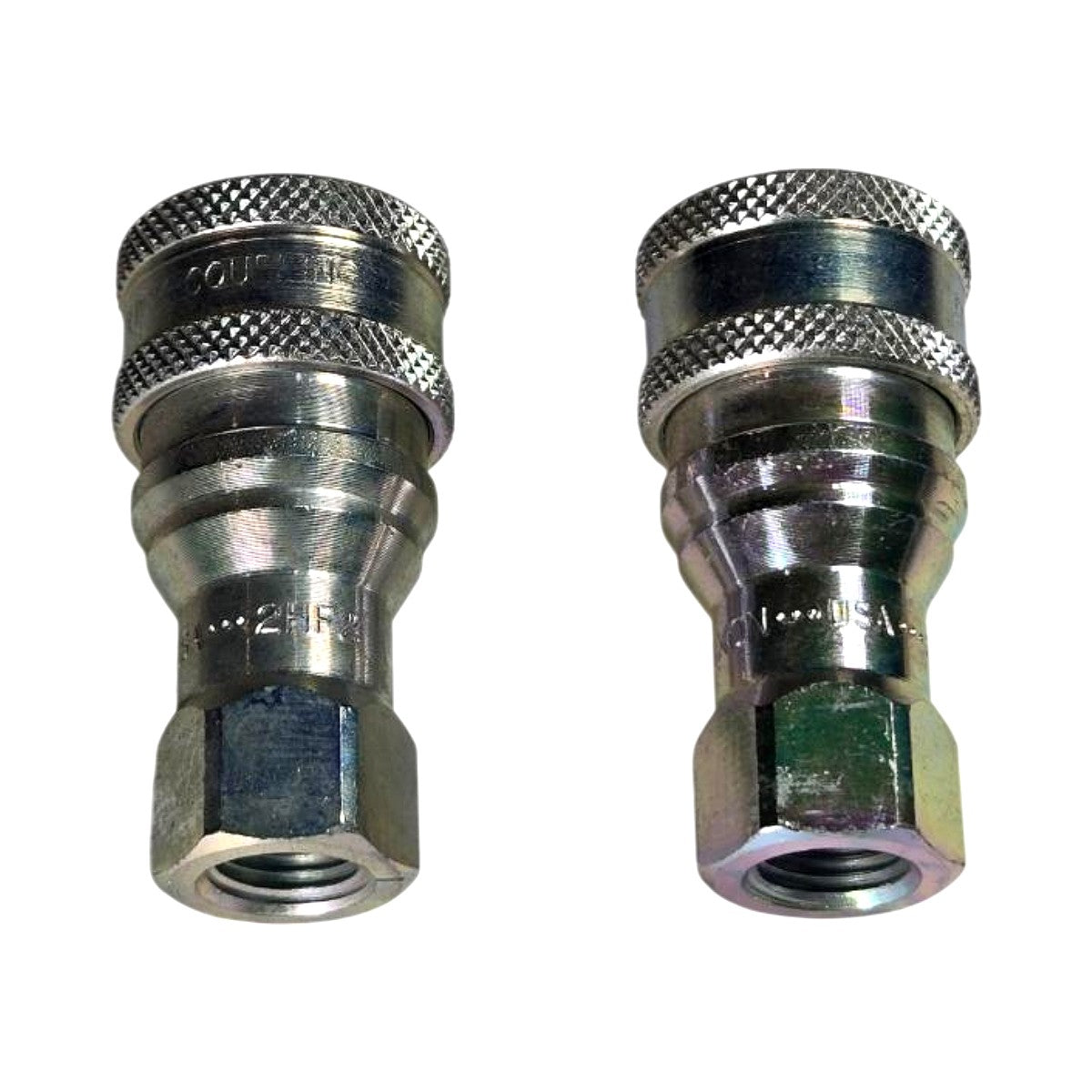

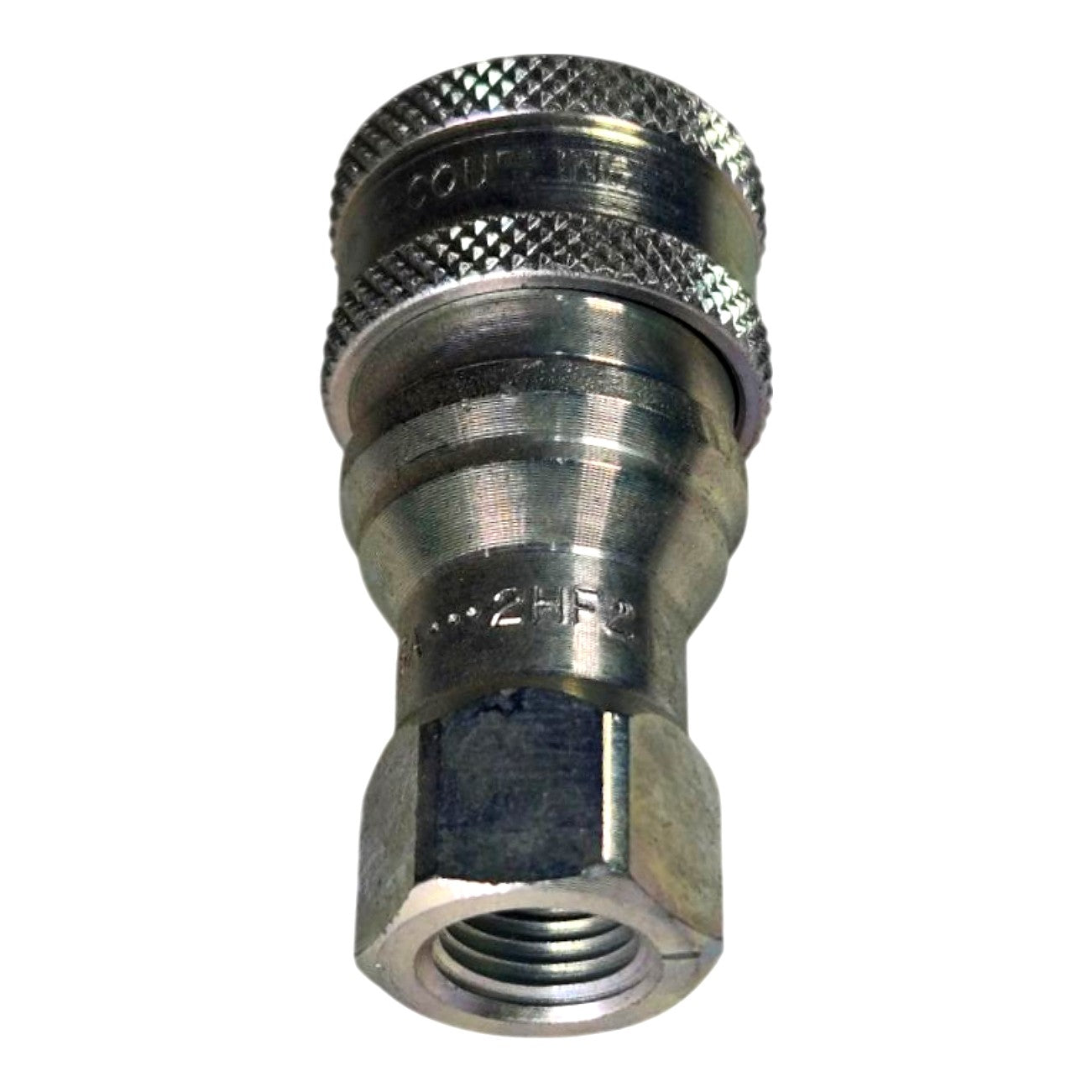

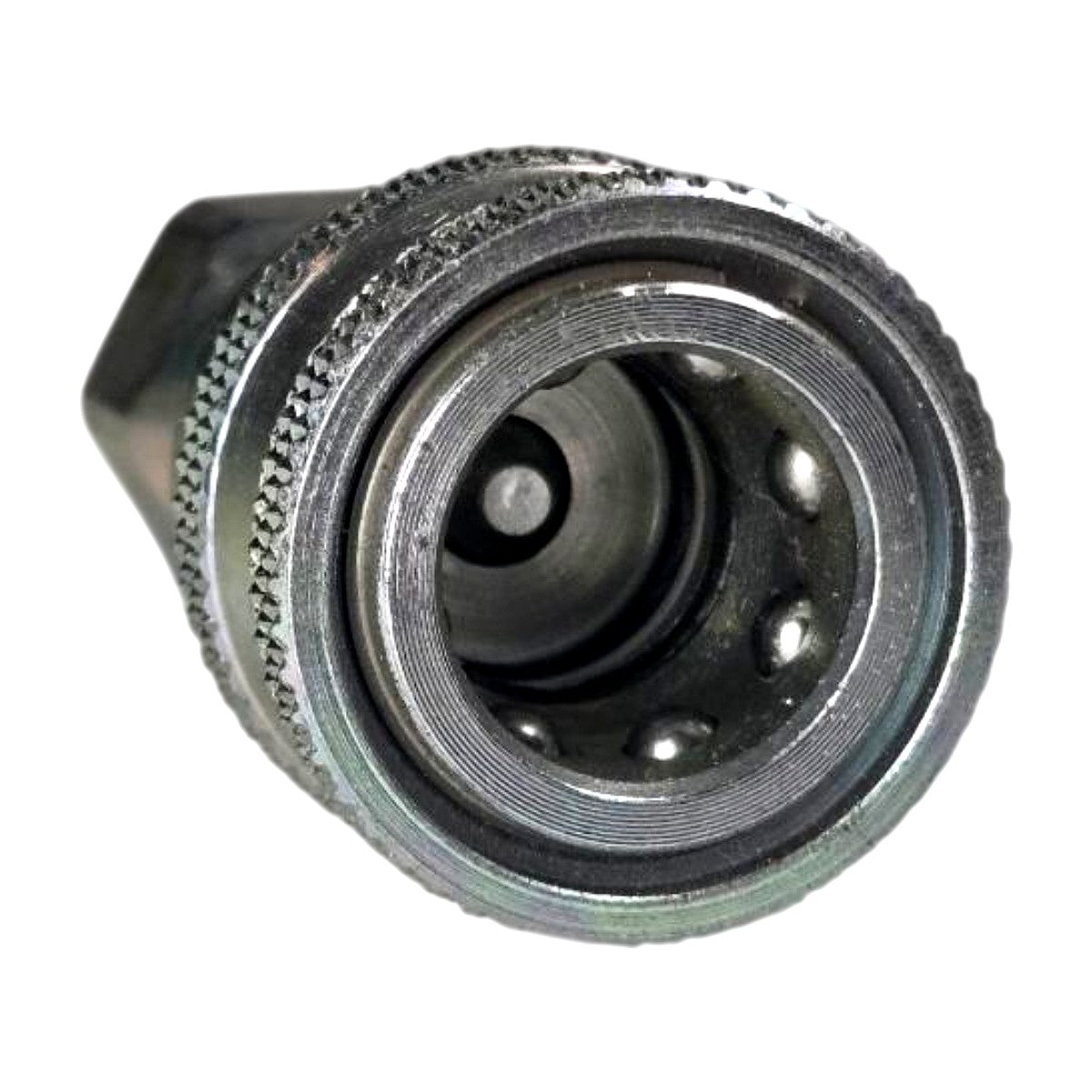

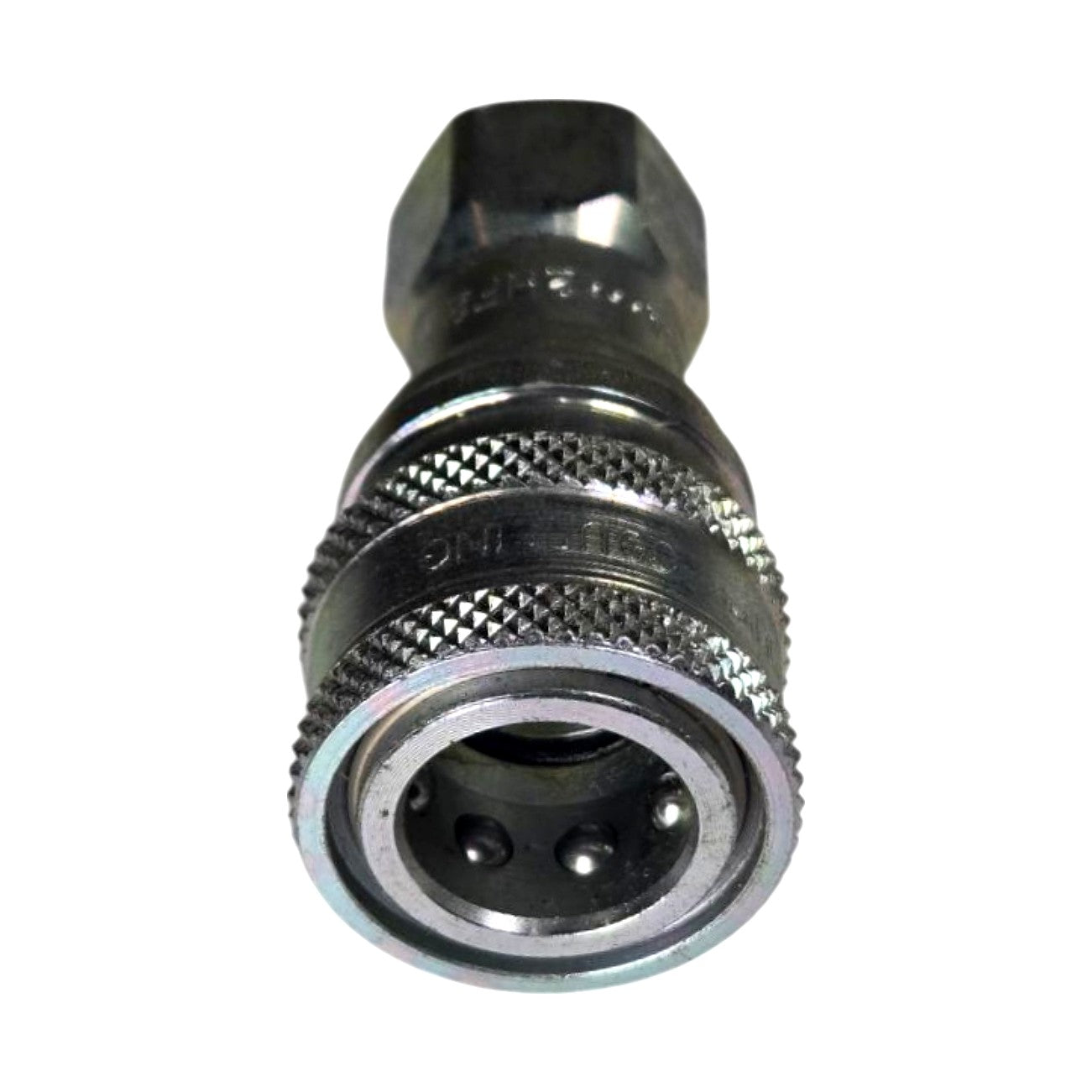

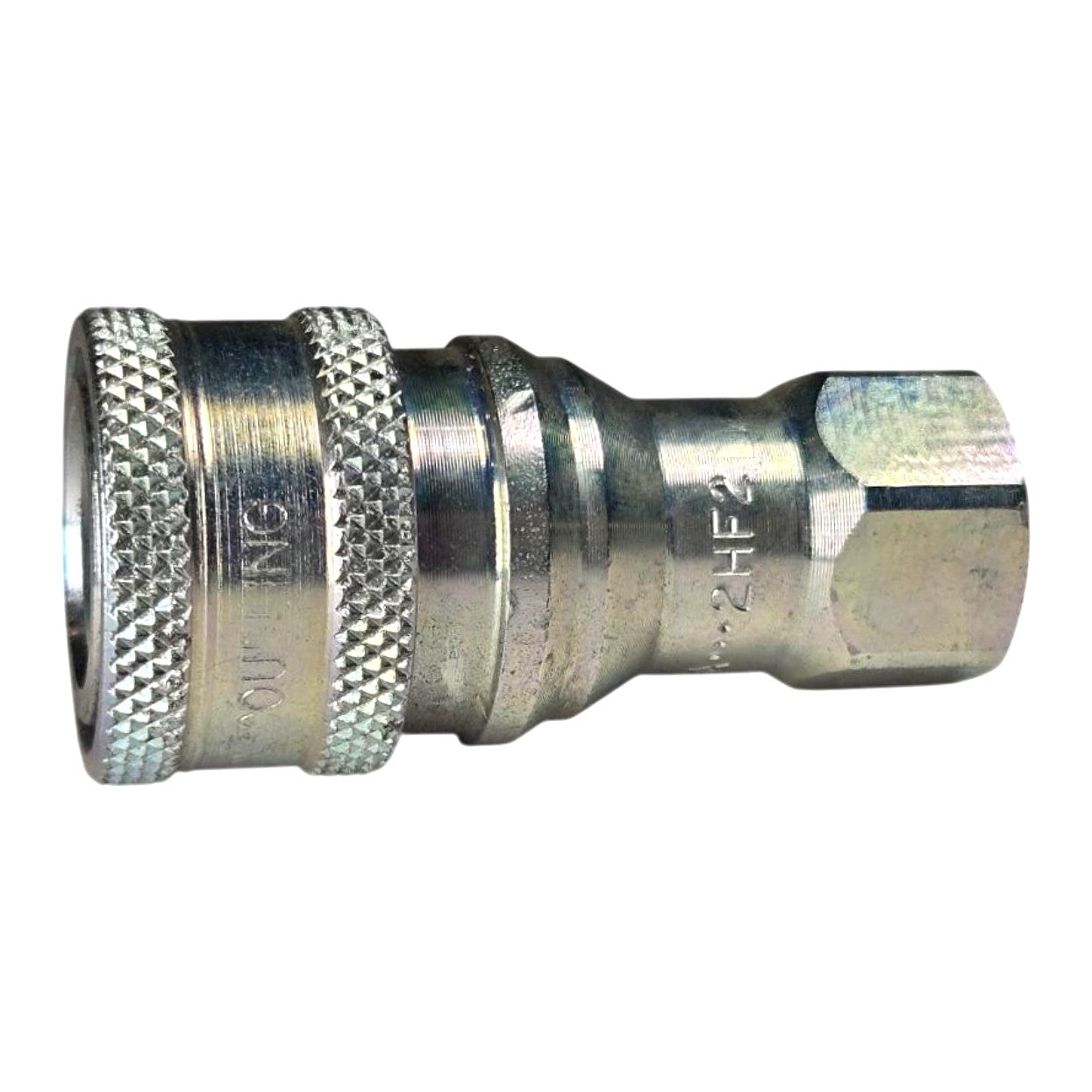

The Dixon 2HF2 (catalog 16-263) is a new 1/4-inch ISO-B interchange hydraulic quick-disconnect socket machined from carbon steel with a zinc-plated finish, featuring a 1/4 in female NPTF (National Pipe Taper Fuel) thread connection and an internal poppet-style valve that seals automatically on disconnection to minimize fluid loss and contamination. The "2HF2" part number encodes the series: "2" designates 1/4 in body size, "HF" denotes the ISO 7241-1 Series B (Pioneer/International-interchange) poppet-valve female socket configuration, and the trailing "2" confirms 1/4 in NPTF female thread. ISO-B poppet-valve sockets are the most widely used interchange standard in North American agricultural and construction hydraulics, compatible with ISO-B plugs from major manufacturers including Parker, John Deere, Case, and equivalent Pioneer 4000 series nipples. The socket accepts operating pressures typical of ISO 7241-1 Series B rated hardware and is suited for tractor hydraulic remotes, loader circuits, implement connections, and general industrial hydraulic plumbing where tool-free, one-hand connection and automatic shut-off are required; sold as a pair of two (2) sockets as shown in the product images.

Product Specifications
