Dixon AV150-I 1-1/2 in FNPT x 1-1/2 in MNS Brass Angle Hose Valve

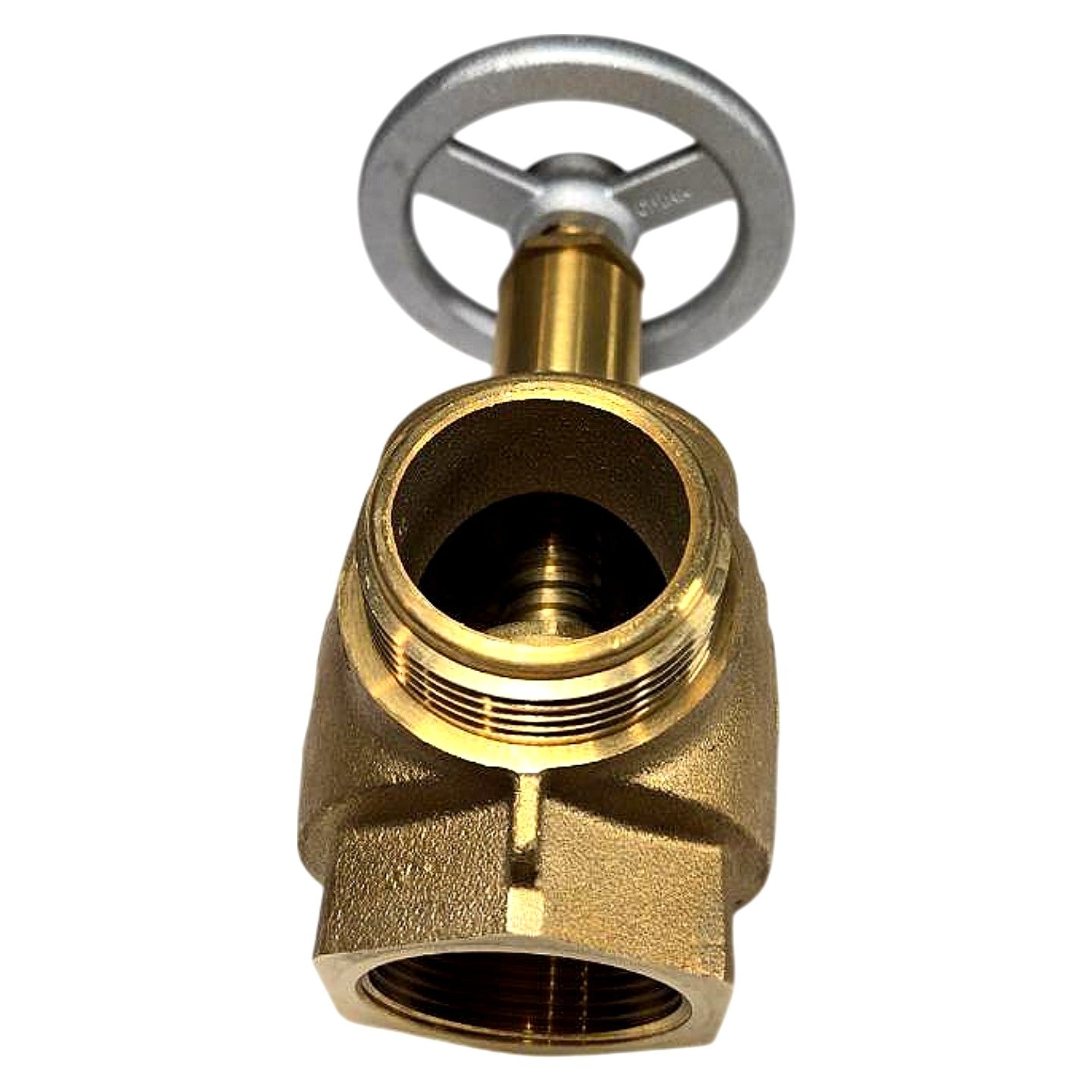

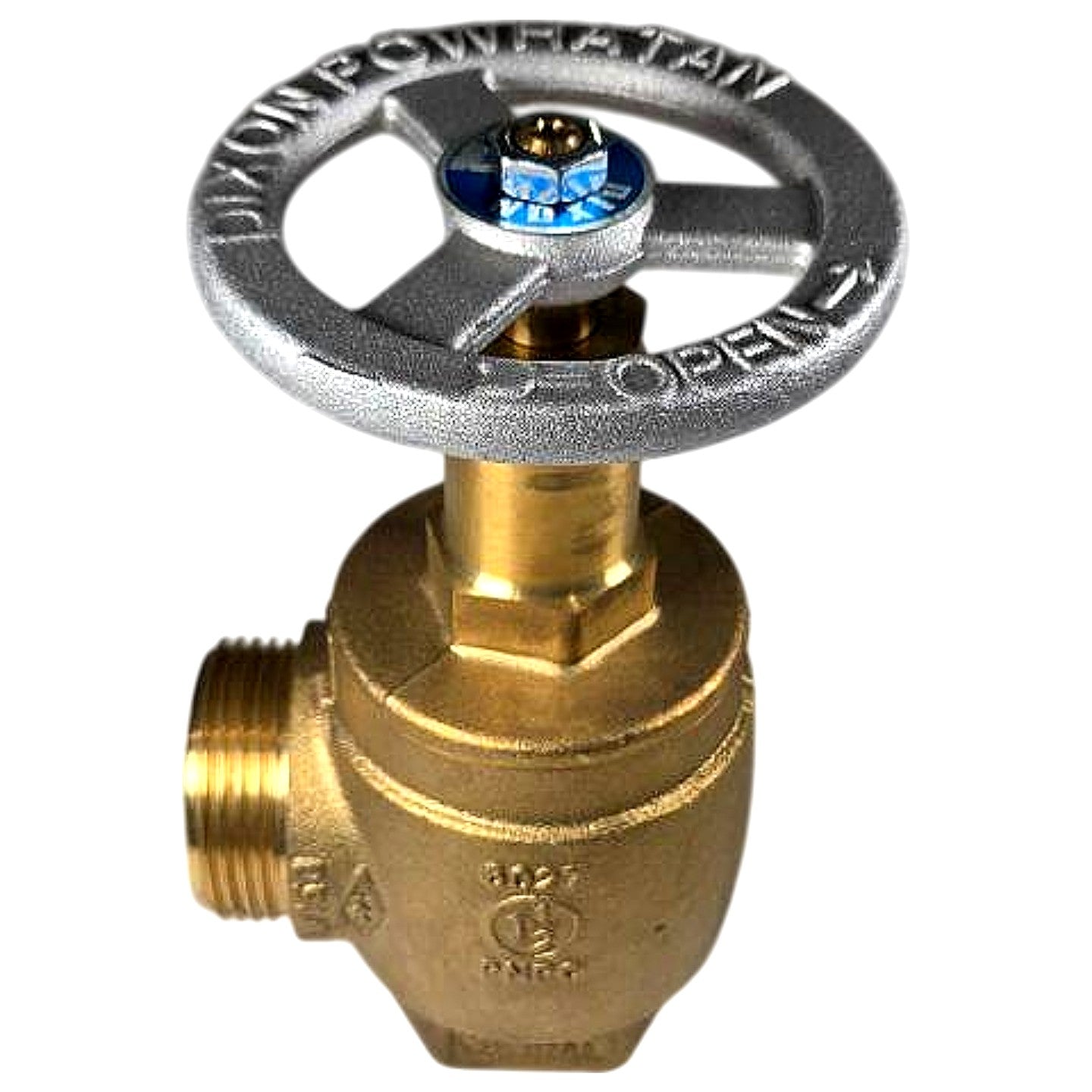

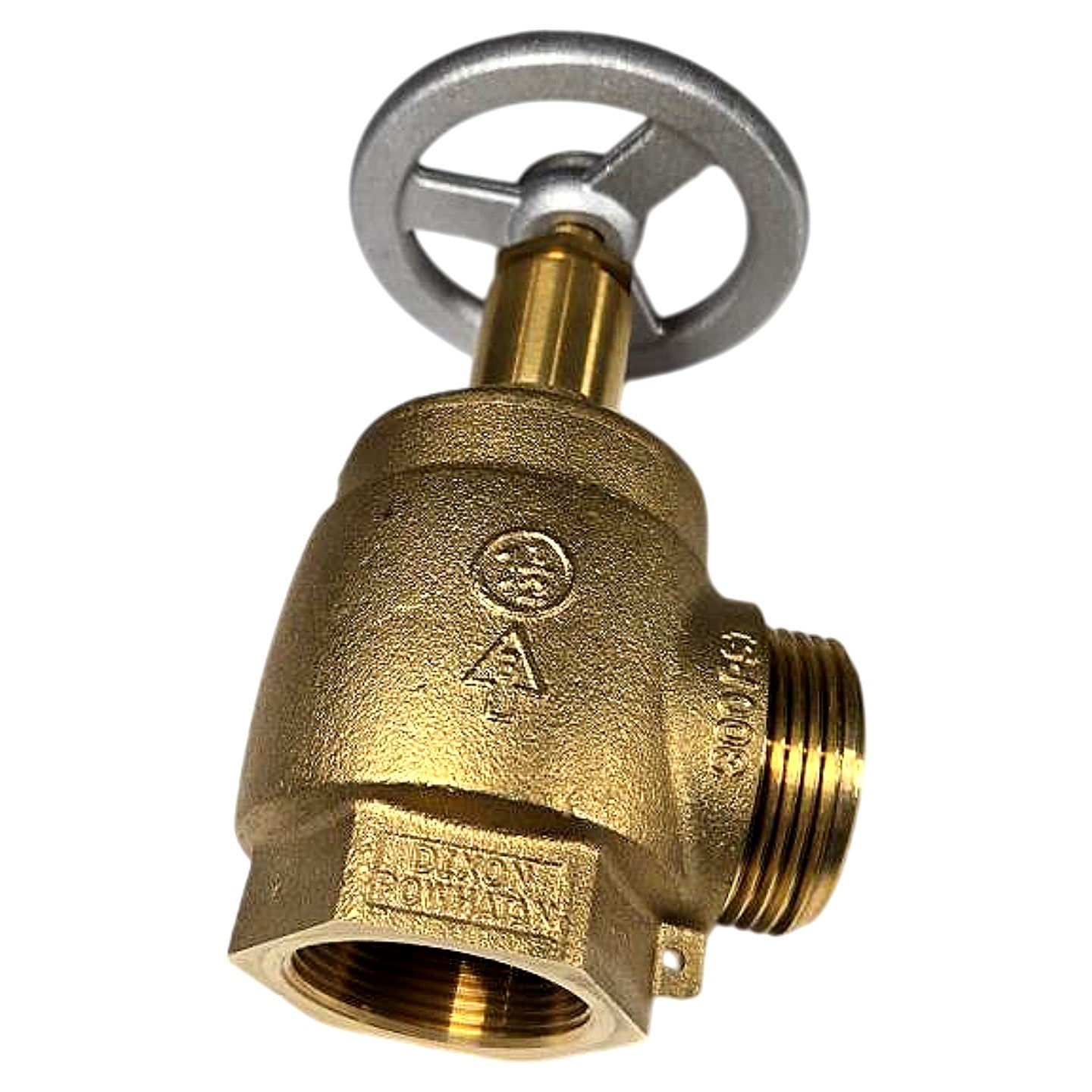

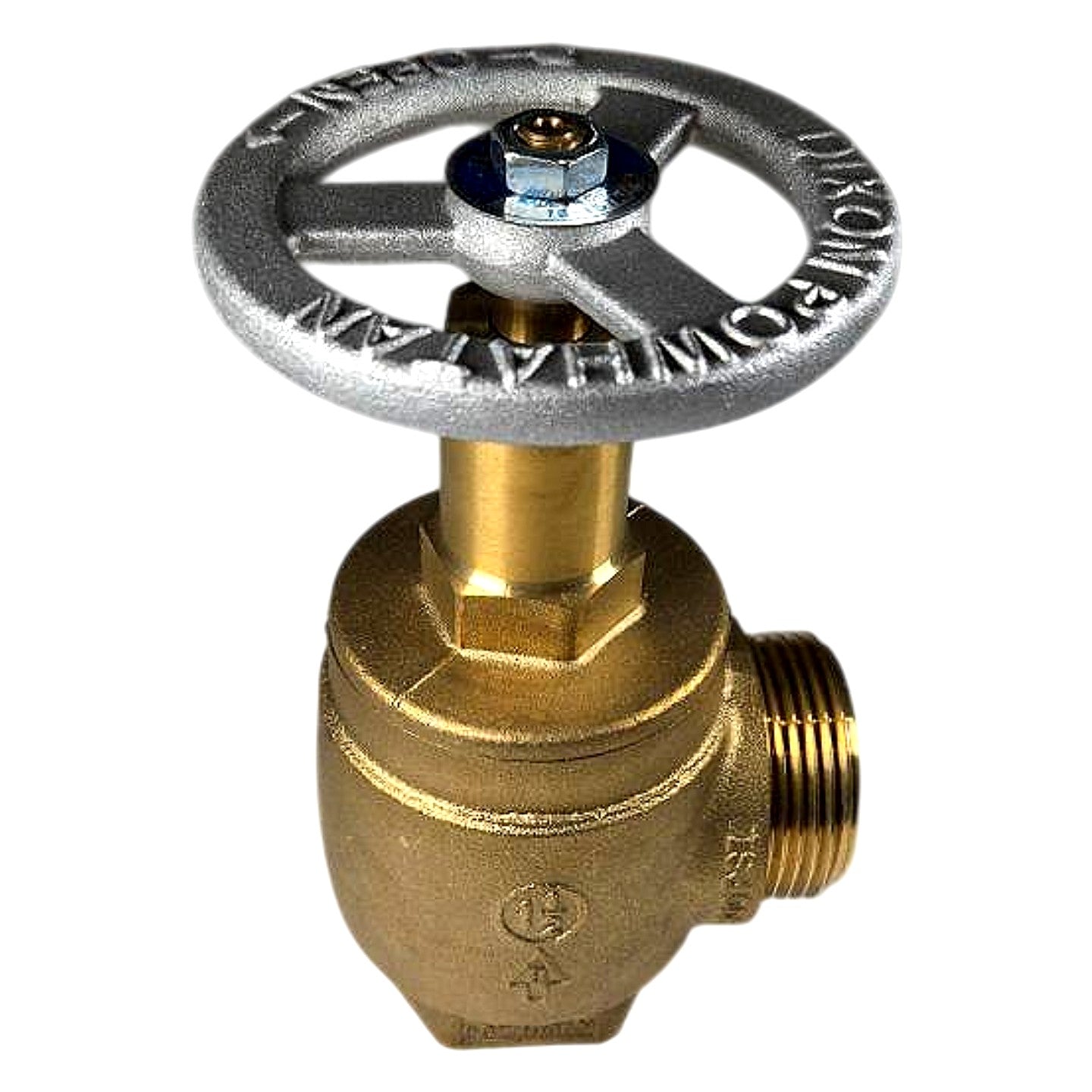

The Dixon Powhatan AV150-I is a new brass angle hose valve with a 1-1/2 in female NPT (FNPT) inlet and a 1-1/2 in male NST (MNS) hose outlet, designed for fire suppression standpipe systems, industrial hose stations, and fire department connections. The body is cast brass with a cast aluminum handwheel marked 'Dixon Powhatan' and directional 'Open' indicator, featuring a rising-stem globe-pattern internals in an angled configuration that redirects flow 90° from vertical inlet to horizontal outlet. The valve carries UL listing and FM approval markings visible on the body casting, confirming compliance with NFPA 14 standpipe and hose system requirements. The '-I' suffix in the part number designates this as the import version of the AV150 series. Rated 300 PSI WOG as cast on the body, this valve is a drop-in replacement for hose cabinet and standpipe riser service. Product Specifications MPN AV150-I Brand Dixon Valve Type Angle Hose Valve Inlet Connection 1-1/2 in FNPT Outlet Connection 1-1/2 in MNS (Male NST) Body Material Brass Handwheel Material Cast Aluminum Pressure Rating 300 PSI WOG Flow Angle 90 deg (vertical inlet to horizontal outlet) Approvals/Listings UL Listed, FM Approved Standard NFPA 14 standpipe & hose systems Origin Import
