Dixon BFS22 1/4 in Female NPSM x Hose Barb Ball Seat Brass Fitting PK6
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

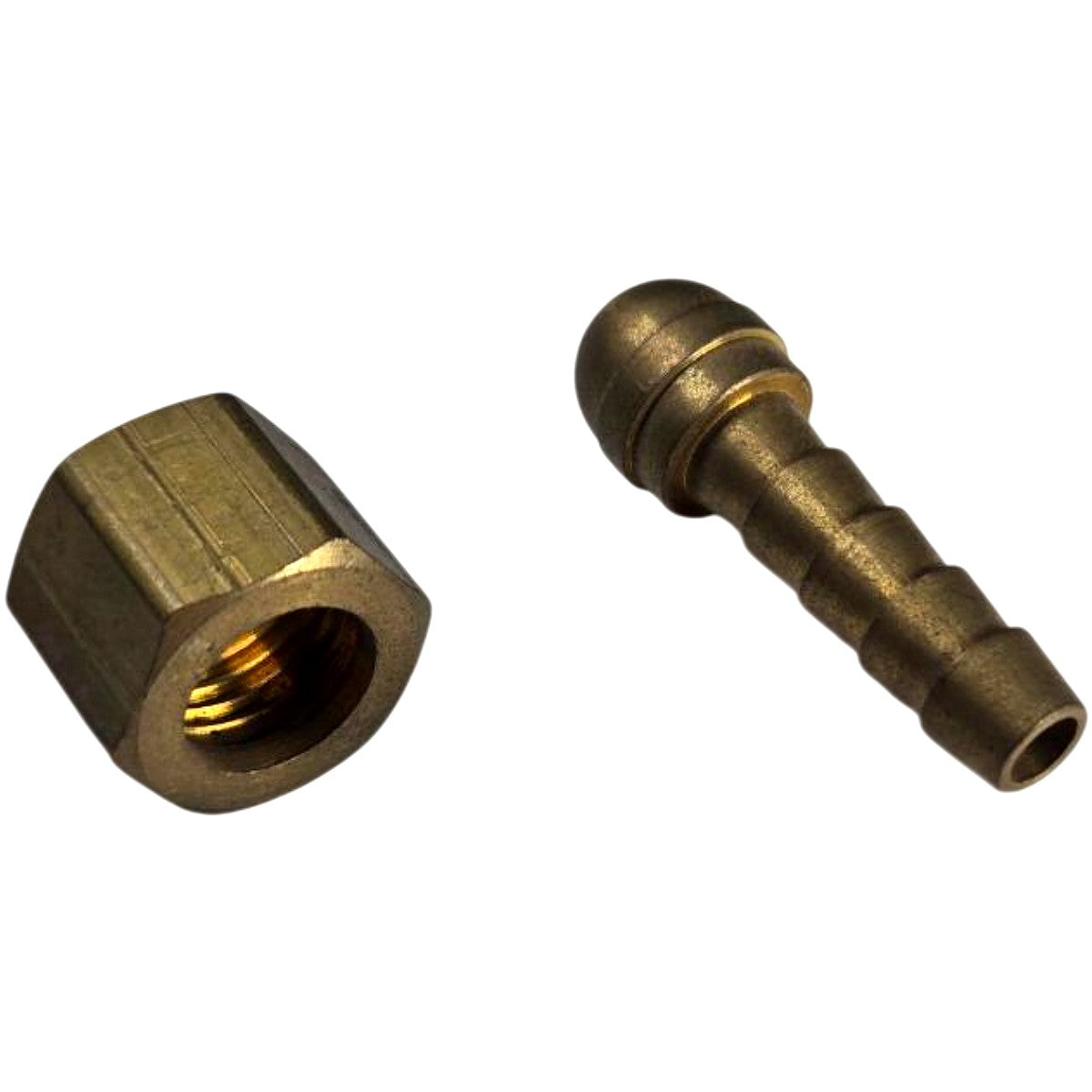

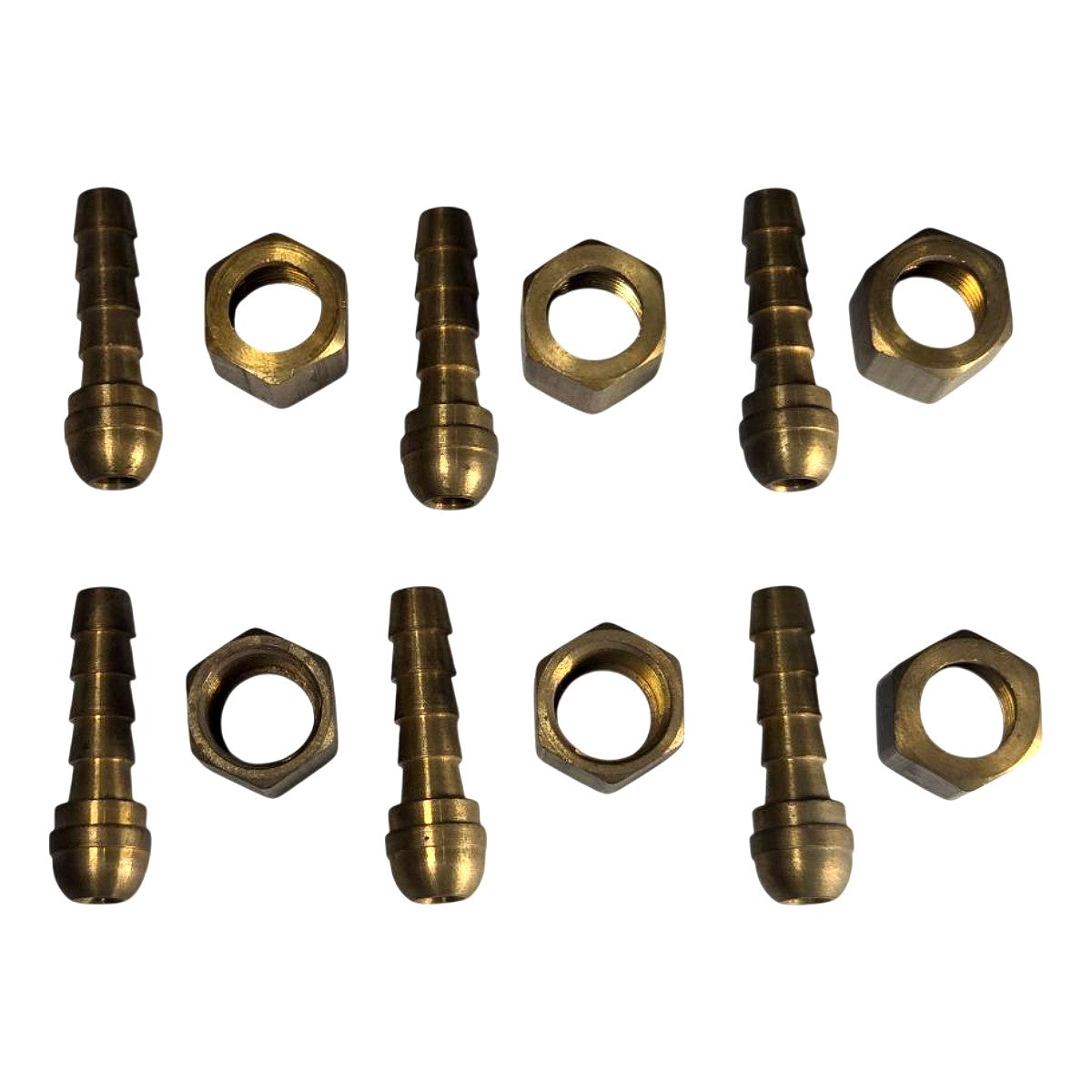

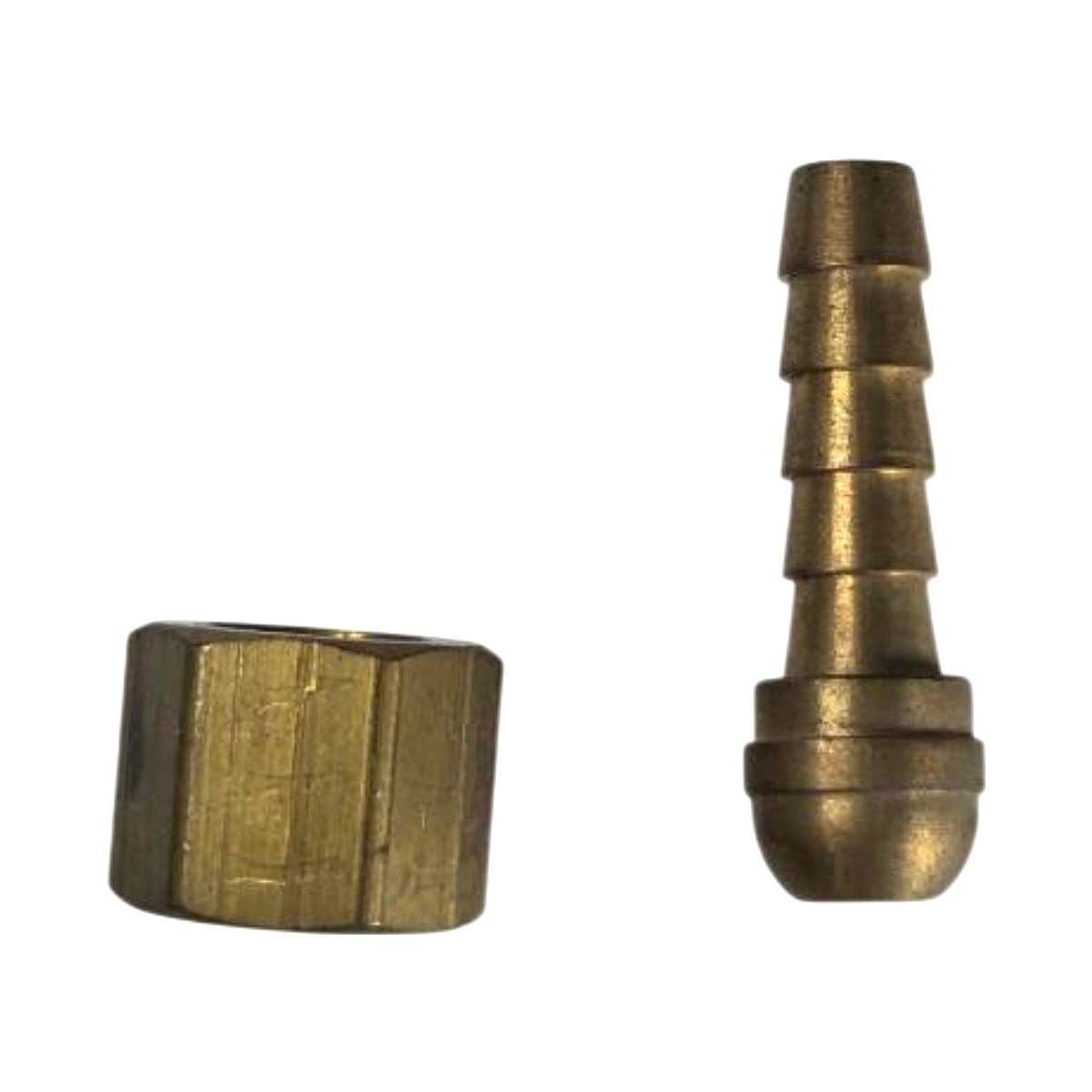

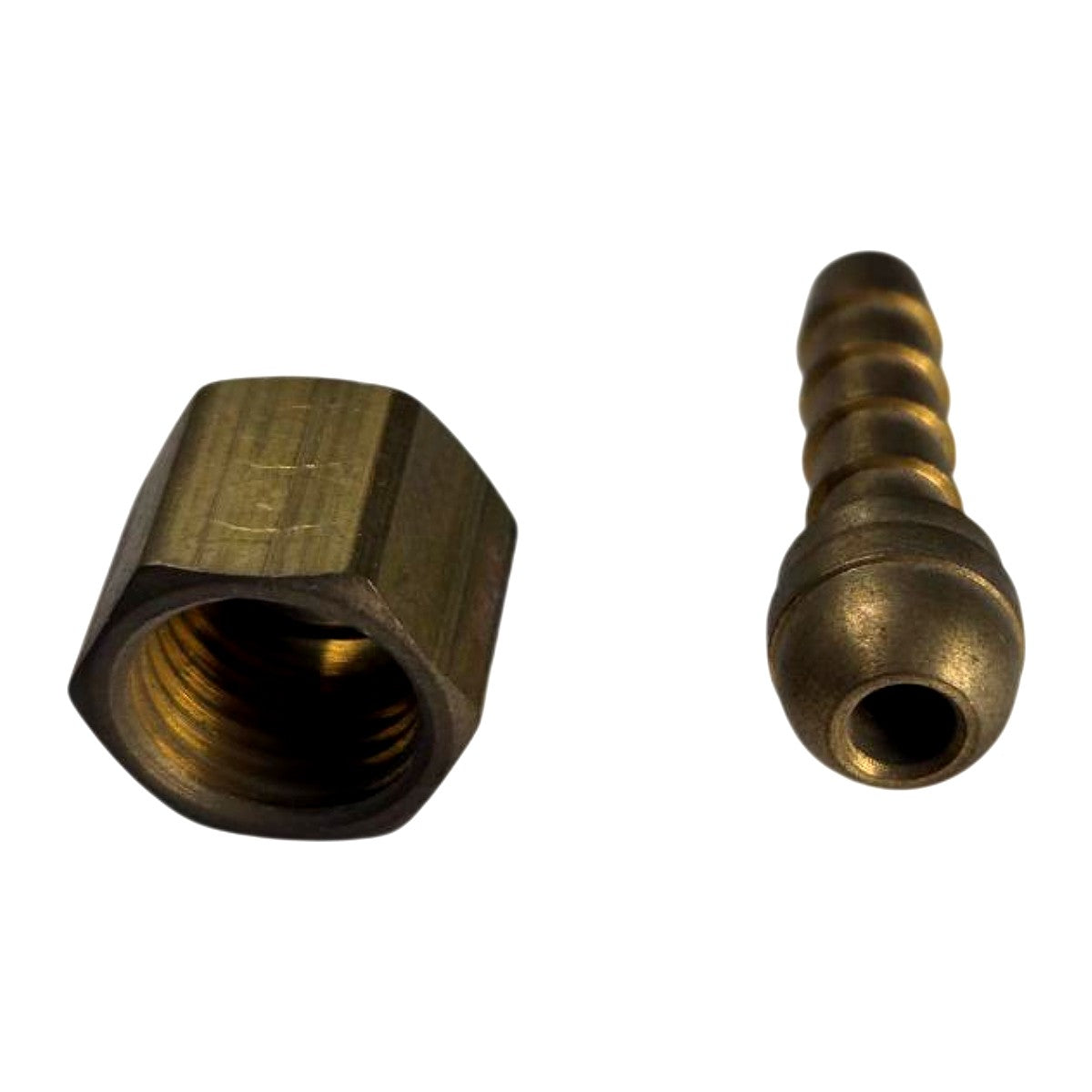

The Dixon BFS22 (full catalog number 1240404K) is a new domestically produced brass ball-seat hose barb fitting in a 6-piece pack, designed to connect a flexible hose to a female NPSM (National Pipe Straight Mechanical) threaded port. The fitting features a 1/4 in nominal size, a ball-seat nose on the barbed stem that seats against a female fitting to provide a leak-resistant seal without a separate gasket, 4 annular barbs over a 0.97 in barb length that grip the hose ID to resist pull-off, and a 5/8 in hex for wrench engagement. Overall assembled length is 1-15/32 in; construction is free-machined brass, offering good corrosion resistance and compatibility with air, water, fuel, and many hydraulic fluids. These fittings are used in compressed-air plumbing, pneumatic tool lines, coolant systems, and general fluid-transfer applications where a permanent, wrench-tightened hose-to-pipe-thread connection is required.
Product Specifications
| Brand | Dixon |
| MPN | BFS22 / 1240404K |
| Fitting Type | Ball Seat Hose Barb |
| Nominal Size | 1/4 in |
| Connection 1 | Female NPSM |
| Connection 2 | Hose Barb |
| Material | Brass |
| Number of Barbs | 4 |
| Barb Length | 0.97 in |
| Overall Length | 1-15/32 in (1.469 in) |
| Hex Size | 5/8 in |
| Thread Standard | NPSM (National Pipe Straight Mechanical) |
| Origin | Domestic (USA) |
| Package Quantity | 6 pieces (PK6) |
| Condition | New |
