Dixon PHL8 1/2 in Dual-Lock Hose Barb Pneumatic Air Coupler
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

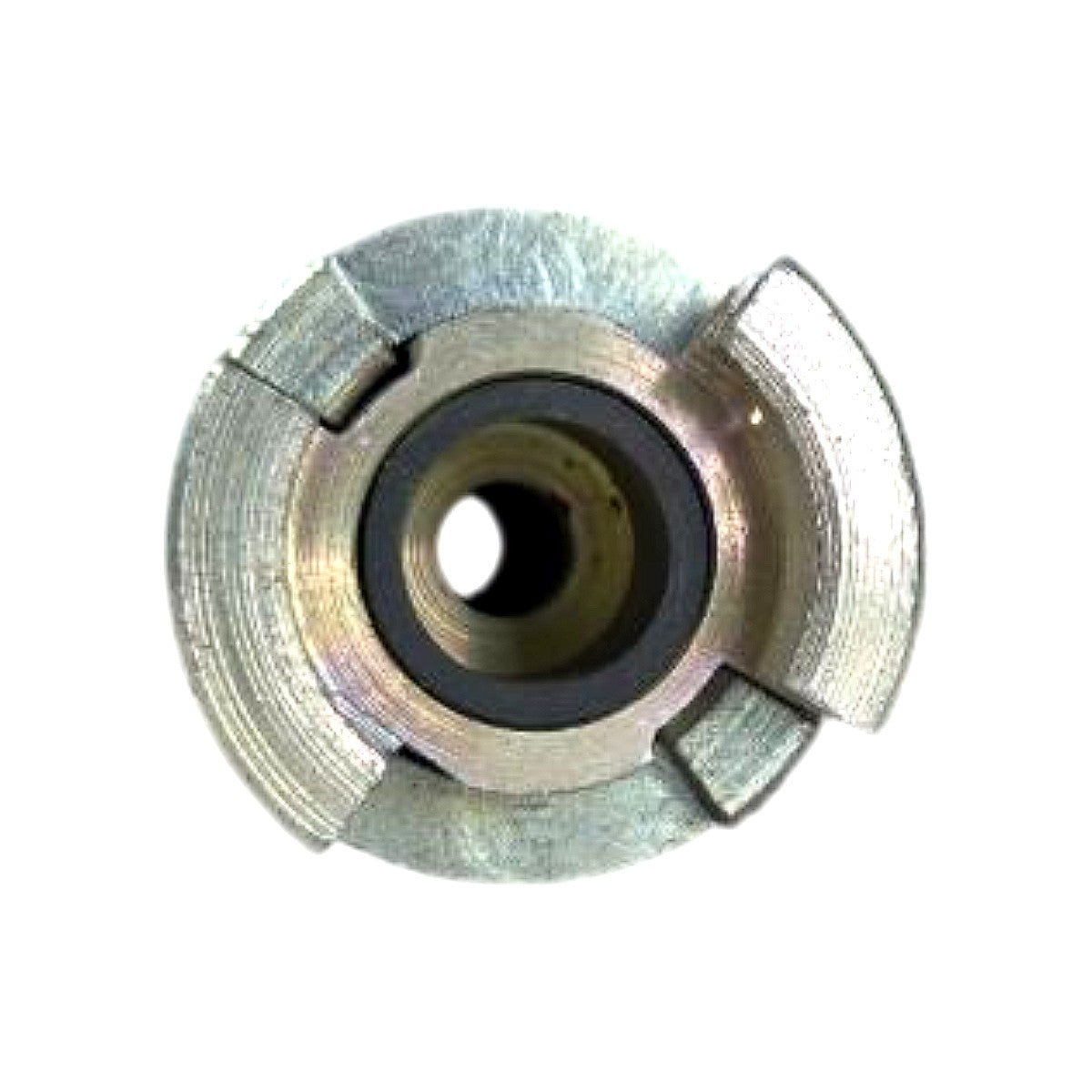

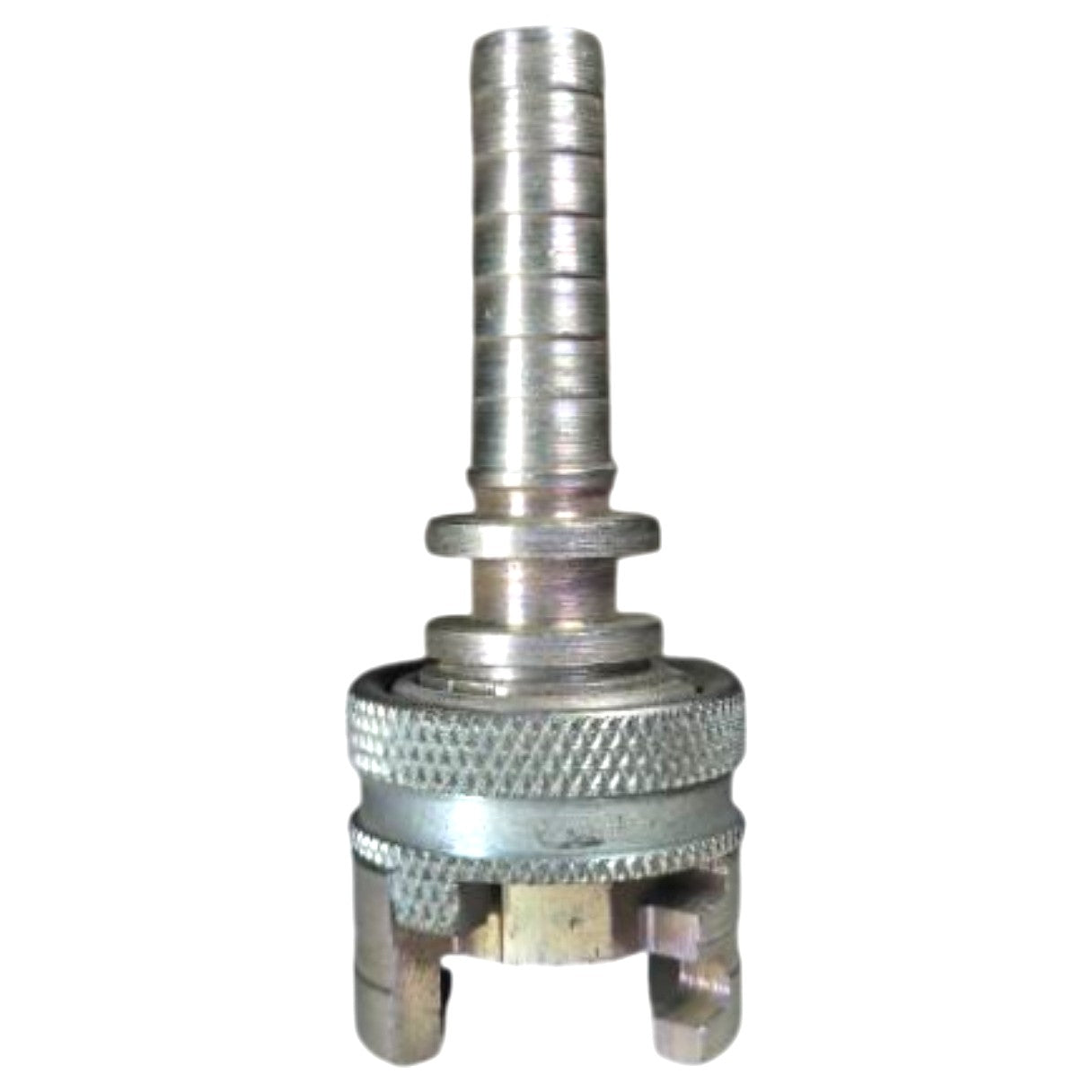

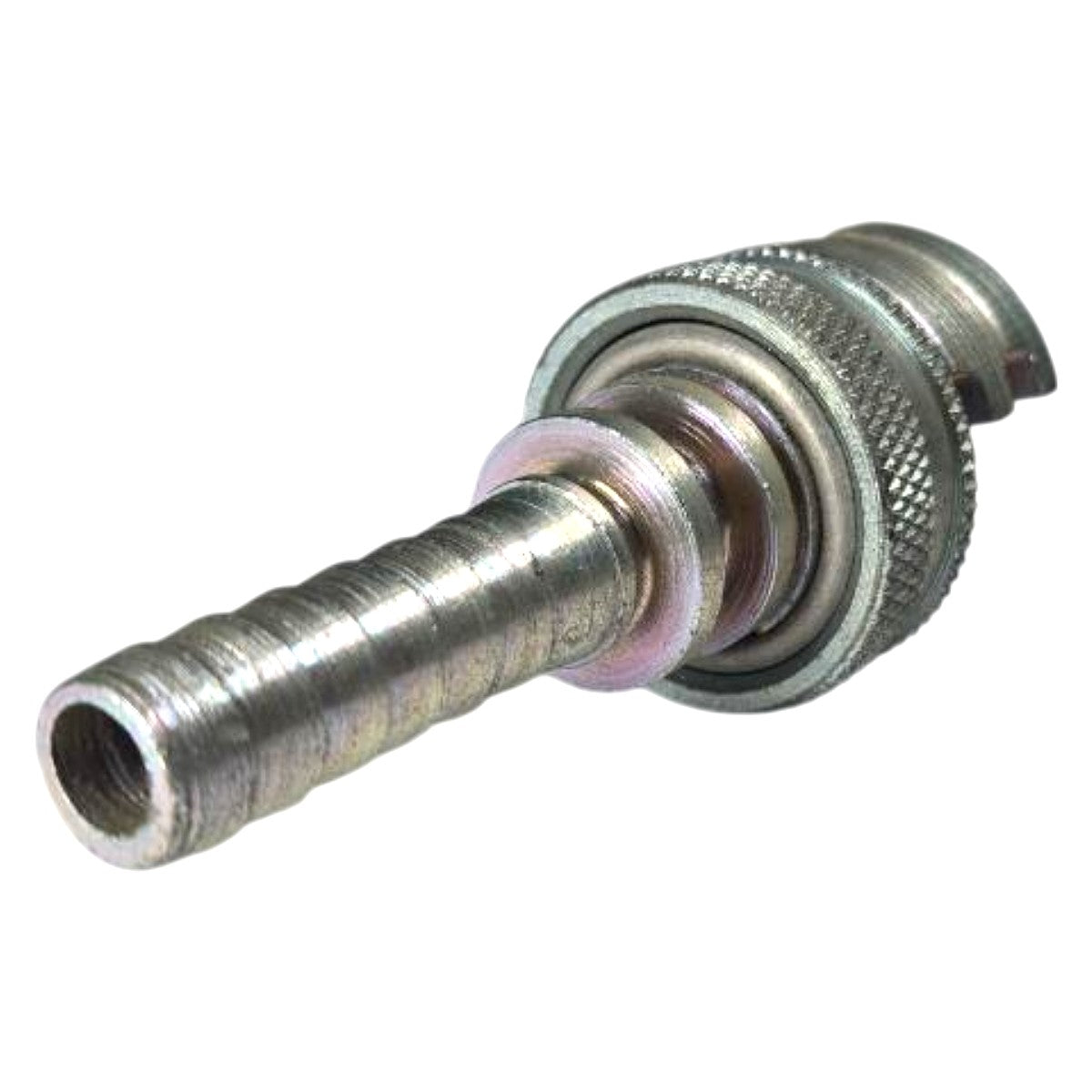

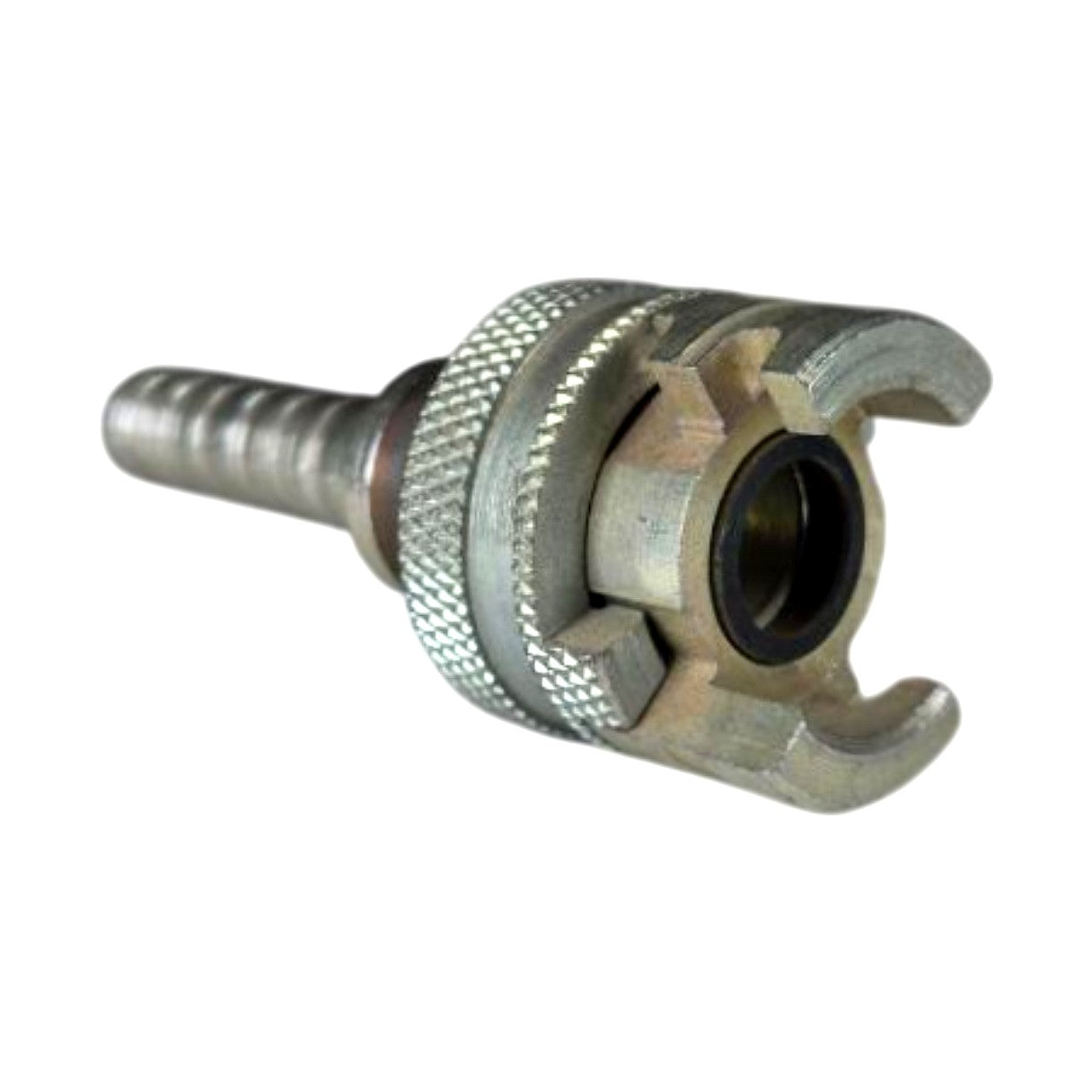

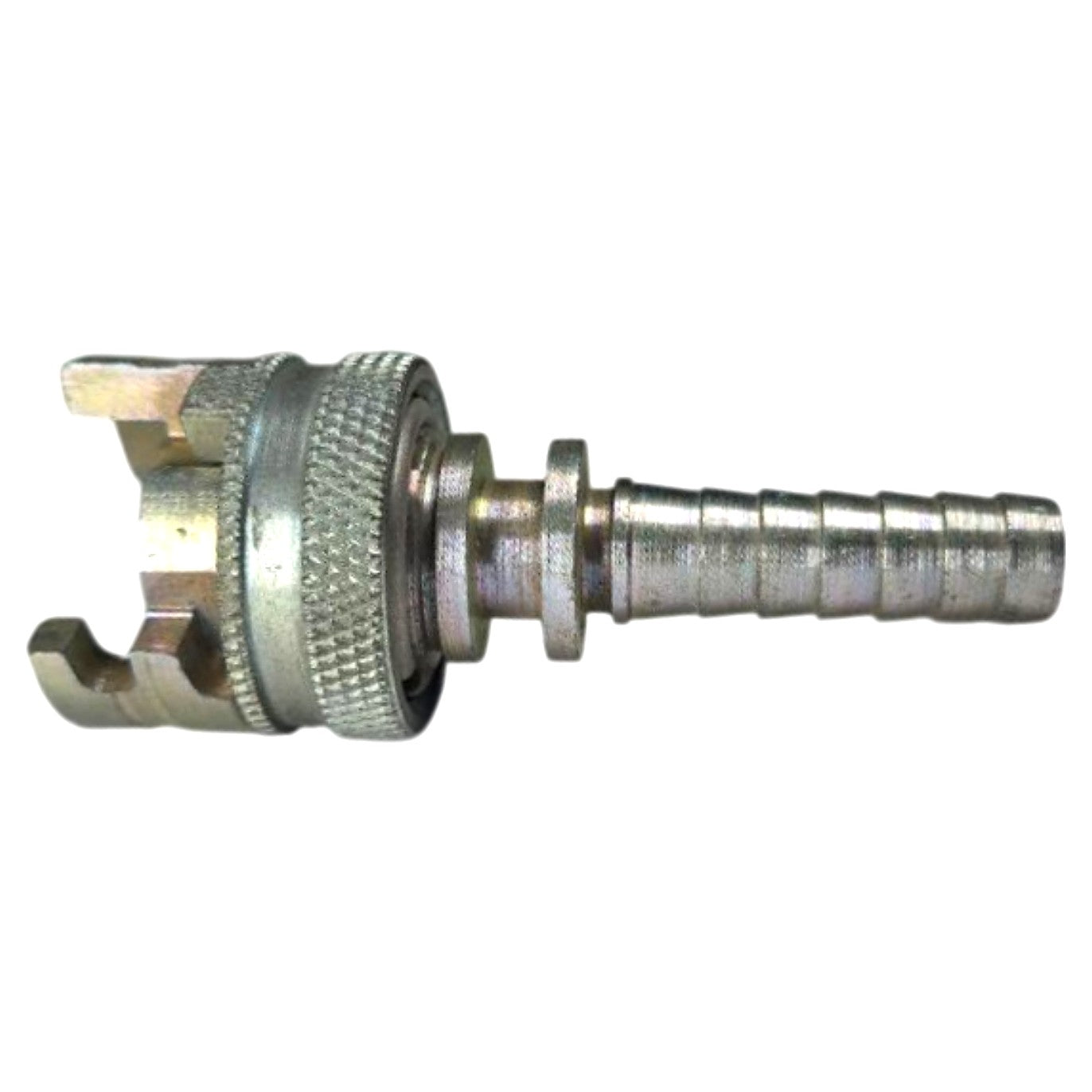

The Dixon PHL8 is a new, dual-lock (locking-sleeve) pneumatic air hose coupler in the "Thor" or "National Type A" interchange series, fitted with a 1/2 in hose barb end for push-on air hose attachment without clamps. The body is zinc-die-cast steel with a bright zinc plating visible in the photos; the coupler half features four symmetrical jaw lugs machined into a stamped steel collar that engage a mating nipple with a quarter-turn, while a knurled locking sleeve — visible in all photos — must be retracted to connect or disconnect, preventing accidental uncoupling under pressure. The rubber face seal (clearly visible in the front-face photo) provides an air-tight shutoff when mated, and the hose barb shank accepts 1/2 in ID rubber or thermoplastic air hose. This coupler is interchangeable with Dixon Thor series nipples, Lincoln, and other National Type A style fittings widely used in pneumatic tool, compressor, and production-line air circuits rated to approximately 300 PSI working pressure.
Product Specifications
| Brand | Dixon |
| Part Number (MPN) | PHL8 |
| Coupler Type | Dual-Lock (Locking Sleeve) |
| Series / Interchange | Thor / National Type A |
| Hose Barb Size | 1/2 in |
| Hose ID (Barb Fits) | 1/2 in |
| Body Material | Zinc die-cast steel, bright zinc plated |
| Seal Material | Rubber (face seal) |
| Connection Style | Hose barb (push-on) |
| Coupler End Type | Female coupler (socket) |
| Max Working Pressure | 300 PSI |
| Compatible Nipple Style | Thor / National Type A |
| Condition | New |
