Dodge 079163-80-T 250-DM6A-17.1-A1 30HP 17.1:1 Tigear-2 Helical Gear Reducer

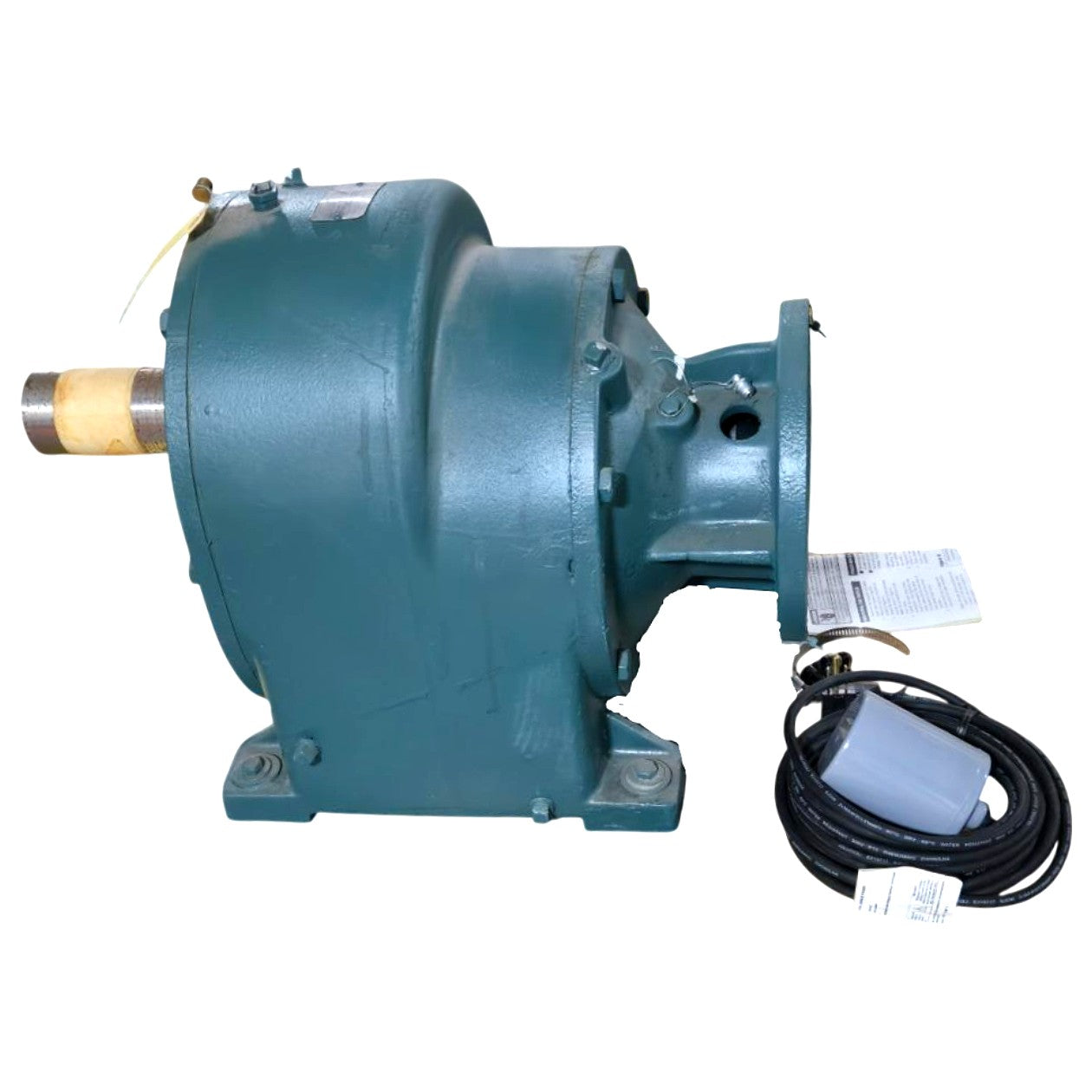

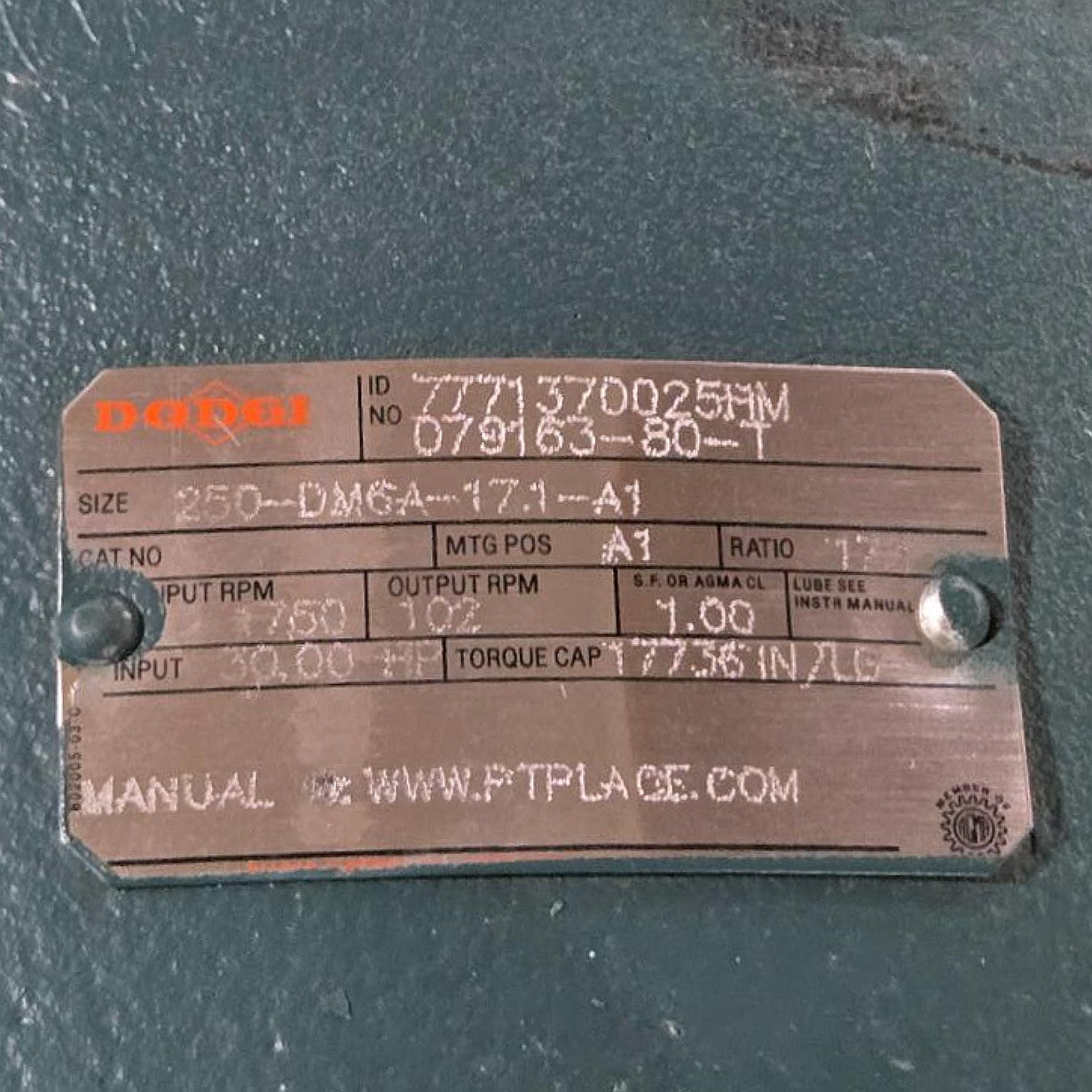

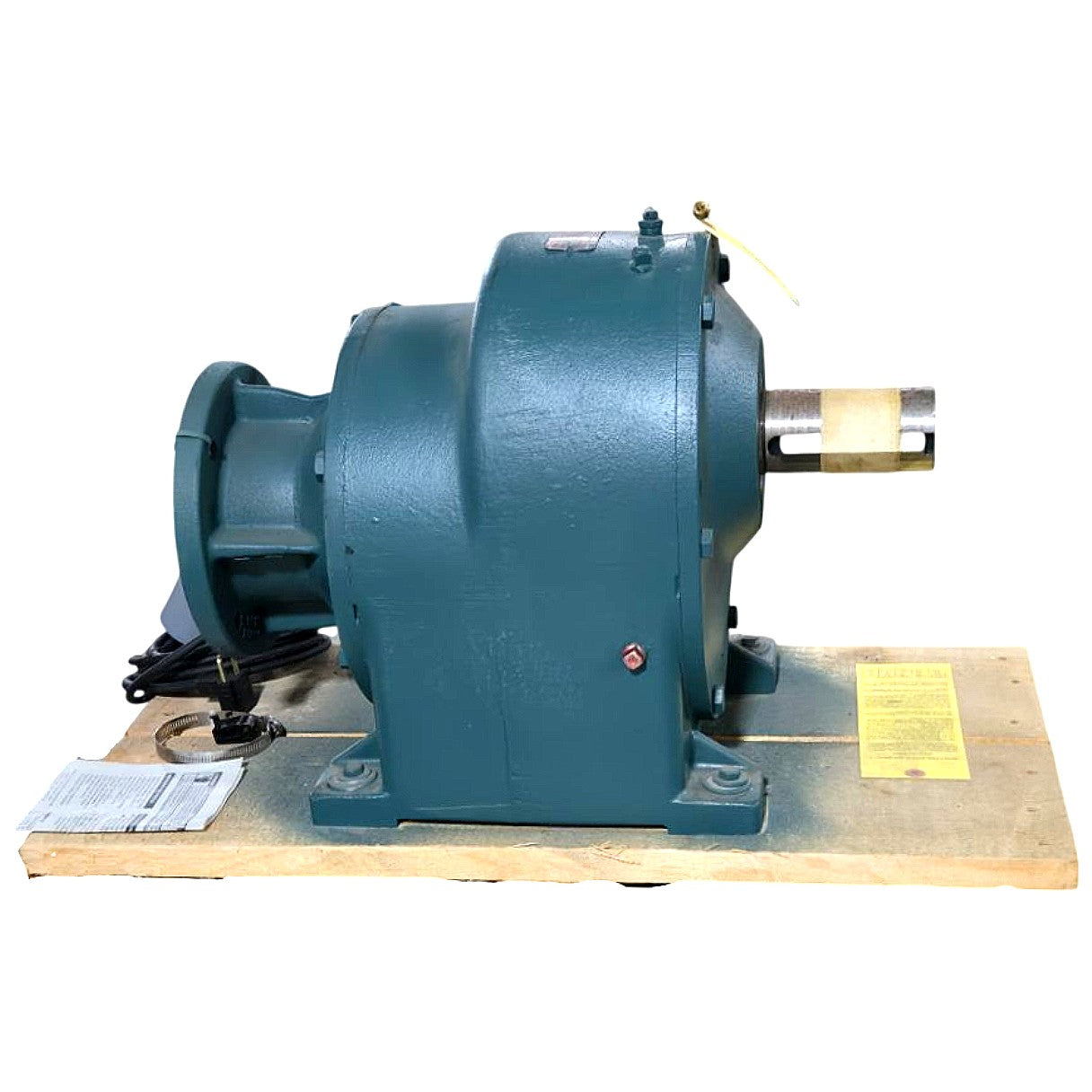

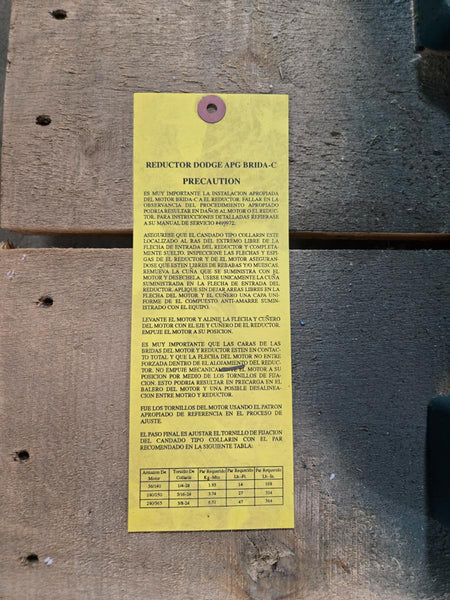

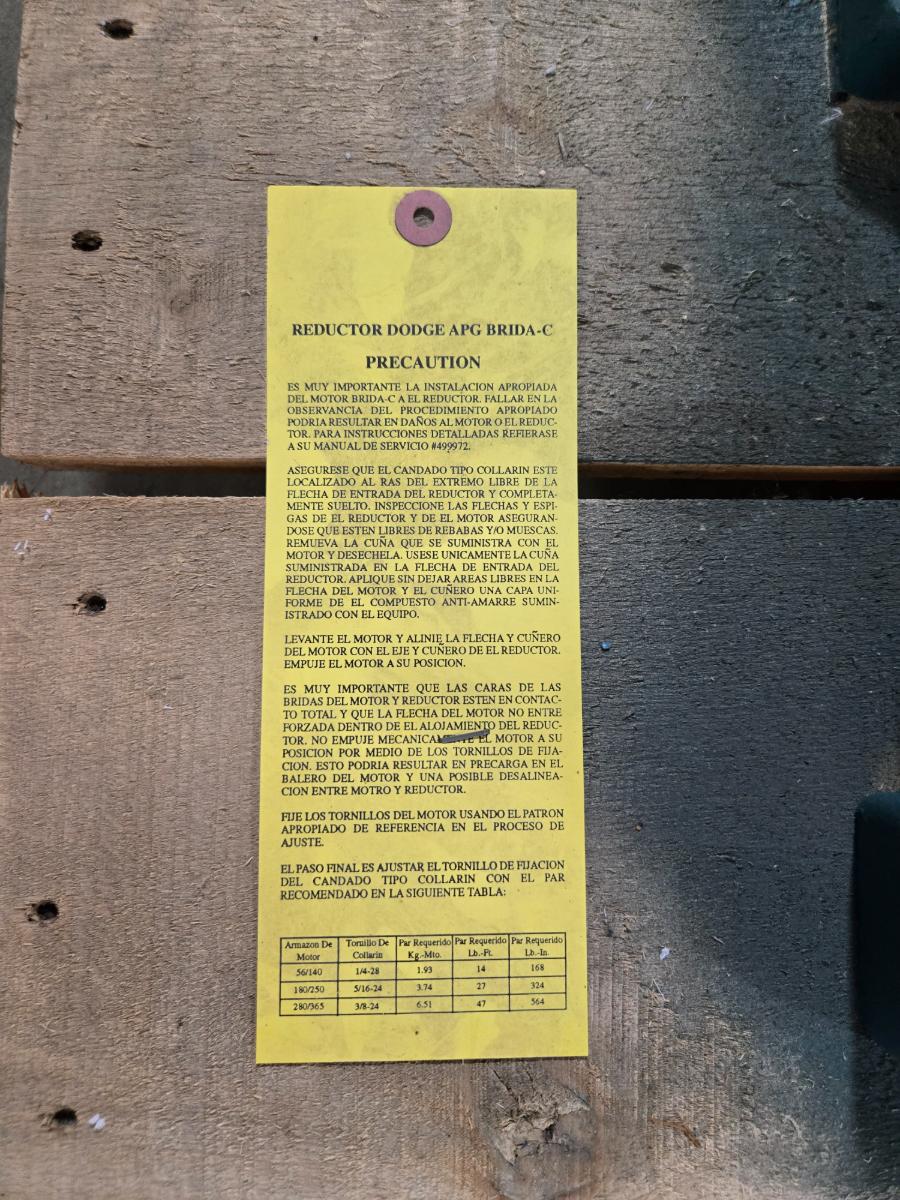

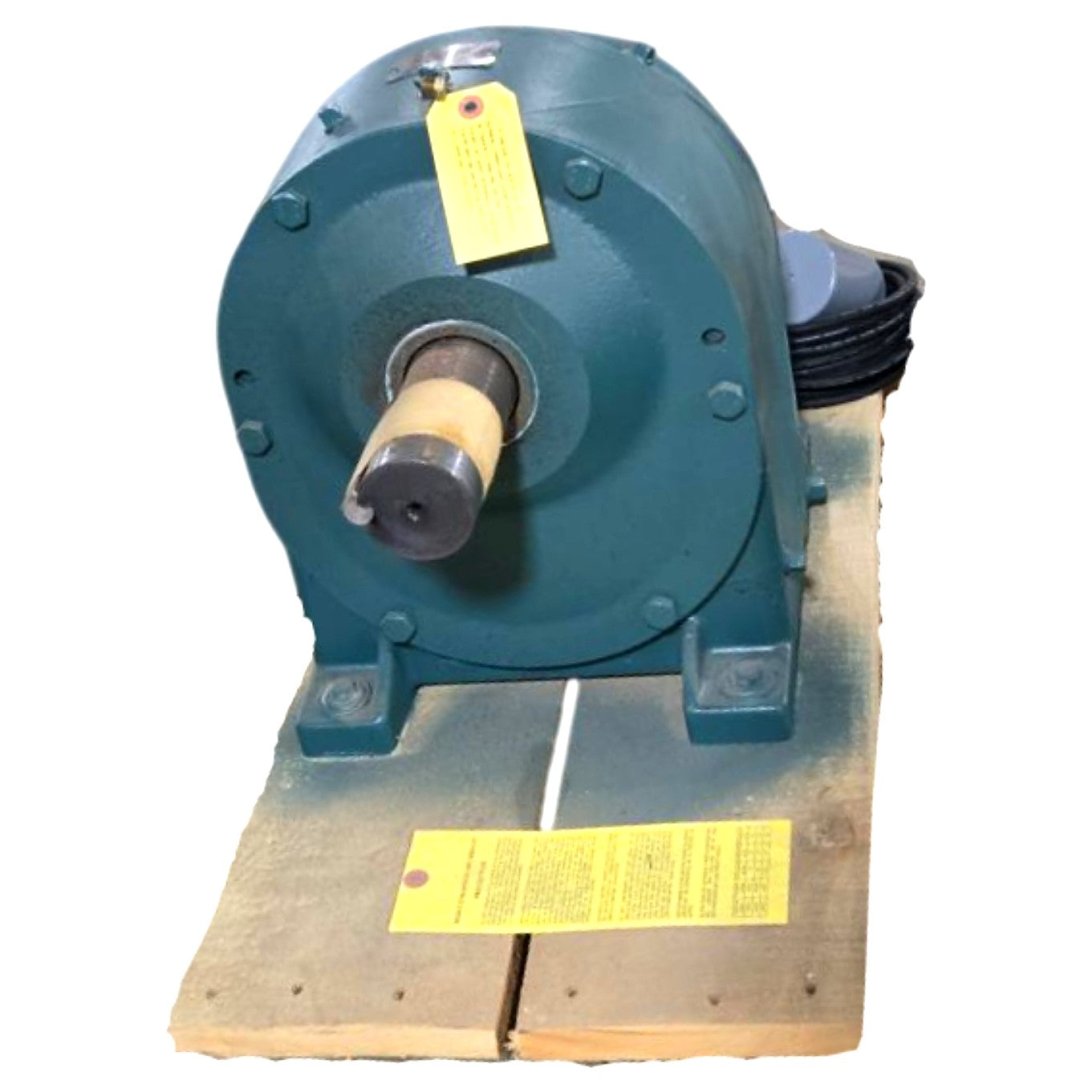

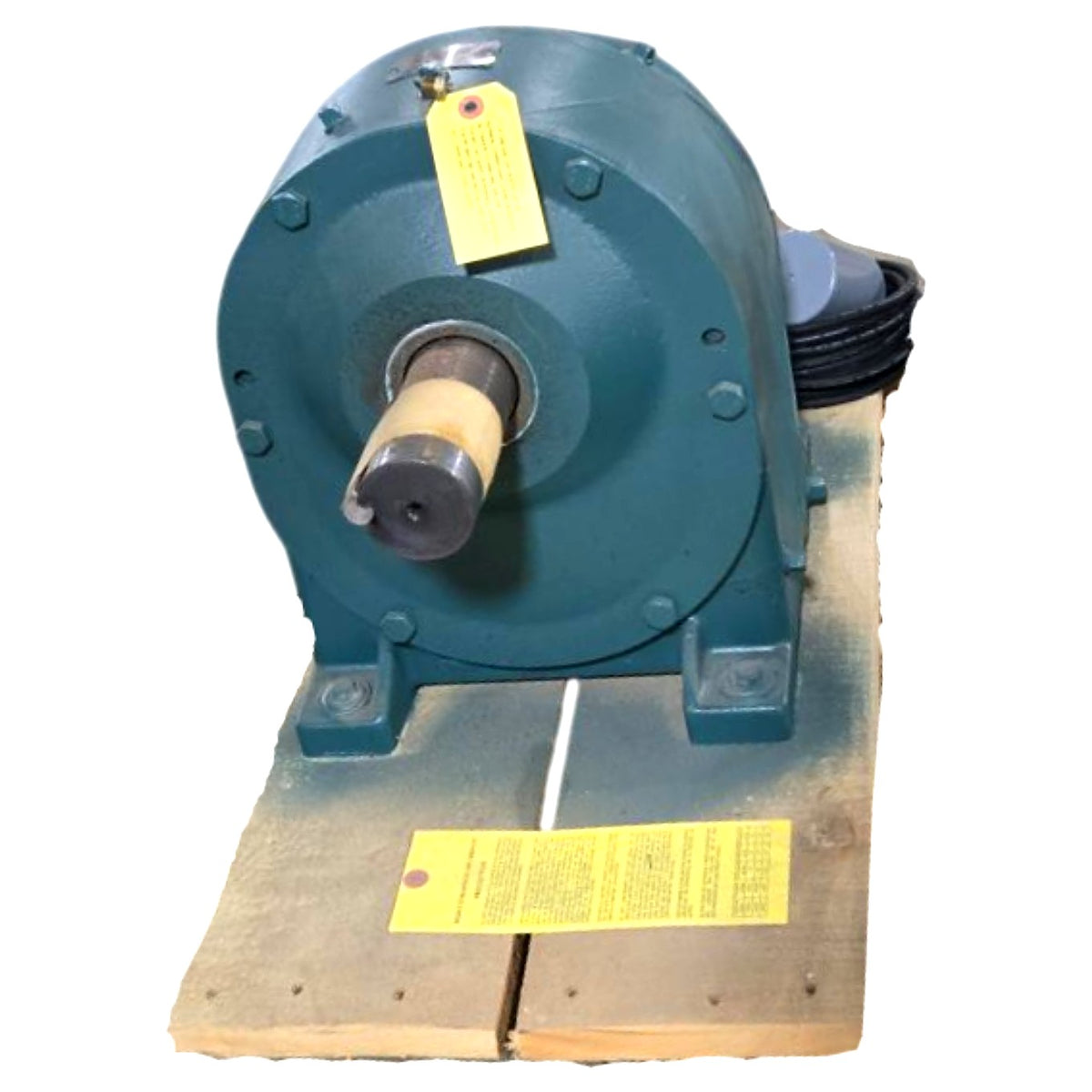

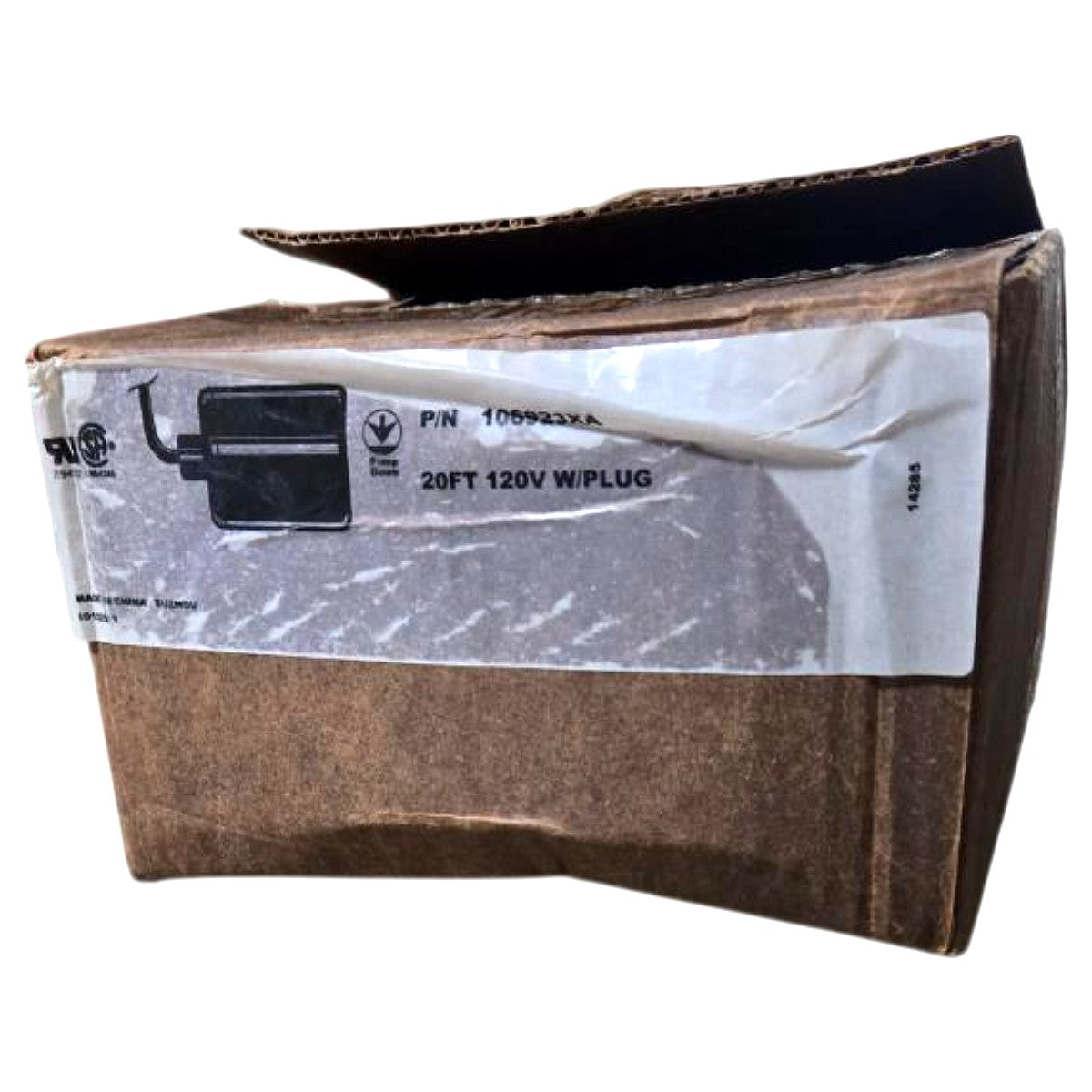

This is a new Dodge Tigear-2 right-angle helical gear reducer, Size 250, model 250-DM6A-17.1-A1, bearing ID No. 079163-80-T, shipped direct from Baldor·Dodge. The nameplate confirms: Input RPM 1,750, Output RPM 102, Ratio 17.1:1 (nominal), Input HP 30.00, Torque Capacity 177,561 in-lb (approximately 14,797 ft-lb), Service Factor (AGMA Class) 1.00, and Mounting Position A1. The "DM6A" designation in the size code indicates a dual-shaft (D), motor-mount (M) C-face flange adapter configuration, 6-bolt pattern, with the "A" suffix denoting an A1 foot-mount orientation; the included yellow tag and bilingual precaution label confirm this is a Dodge APG Brida-C (C-face motor mount) reducer. Accessories shipped with the unit include a pump-down float switch (P/N 106923XA, 20 ft cord, 120V w/plug) and a hose-clamp style mounting hardware kit, all on the original wood shipping skid. The Tigear-2 series features a cast-iron housing, splash lubrication, and is designed for demanding industrial conveyor, mixer, and material-handling applications requiring high torque at reduced speed.

Product Specifications
