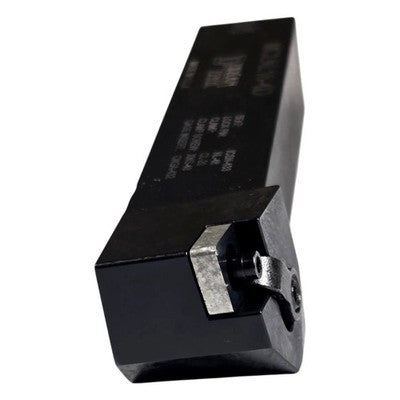

Dorian MCLNL16-4D 1x1in Shank 6in OAL Left-Hand Turning Toolholder

The Dorian MCLNL16-4D is a new, Made in USA clamp-and-pin style indexable turning toolholder with a 1 x 1 in square shank and 6 in overall length, designed to accept CNMG-432 style inserts (80° diamond, negative rake). The holder uses a top-clamp (CL-20) and lock-pin (NL-46) retention system with a seat of ICSN-433, clamp screw XNS-45, and gage insert CNMG-432, all clearly stamped on the body. The left-hand (L) cutting direction and 95° lead angle geometry make this holder suited for longitudinal turning and facing operations on manual or CNC lathes where approach from the left side of the workpiece is required. The steel body carries a black oxide finish for corrosion resistance. Compatible inserts are CNMG-432 series (ANSI); the Dorian part number 73310150129 is confirmed by the manufacturer's catalog as the catalog/order number for this holder. Product Specifications Brand Dorian MPN 73310150129 Catalog / Order Number 73310150129 Country of Origin USA Shank Width 1 in Shank Height 1 in Overall Length (OAL) 6 in Hand of Cut Left-Hand Insert Shape CNMG (80° diamond) Insert Style CNMG-432 Gage Insert CHGA-432 Clamping System Clamp & Pin (top clamp + lock pin) Seat ICSN-433 Lock Pin NL-46 Clamp CL-20 Clamp Screw XNS-45 Lead Angle 95° Insert Rake Negative Body Finish Black oxide Body Material Alloy steel Insert Holding Method M-style (clamp + pin)
