Drill Master 100683SC 0.0625 x 6 in Carbide Coolant Through Gun Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

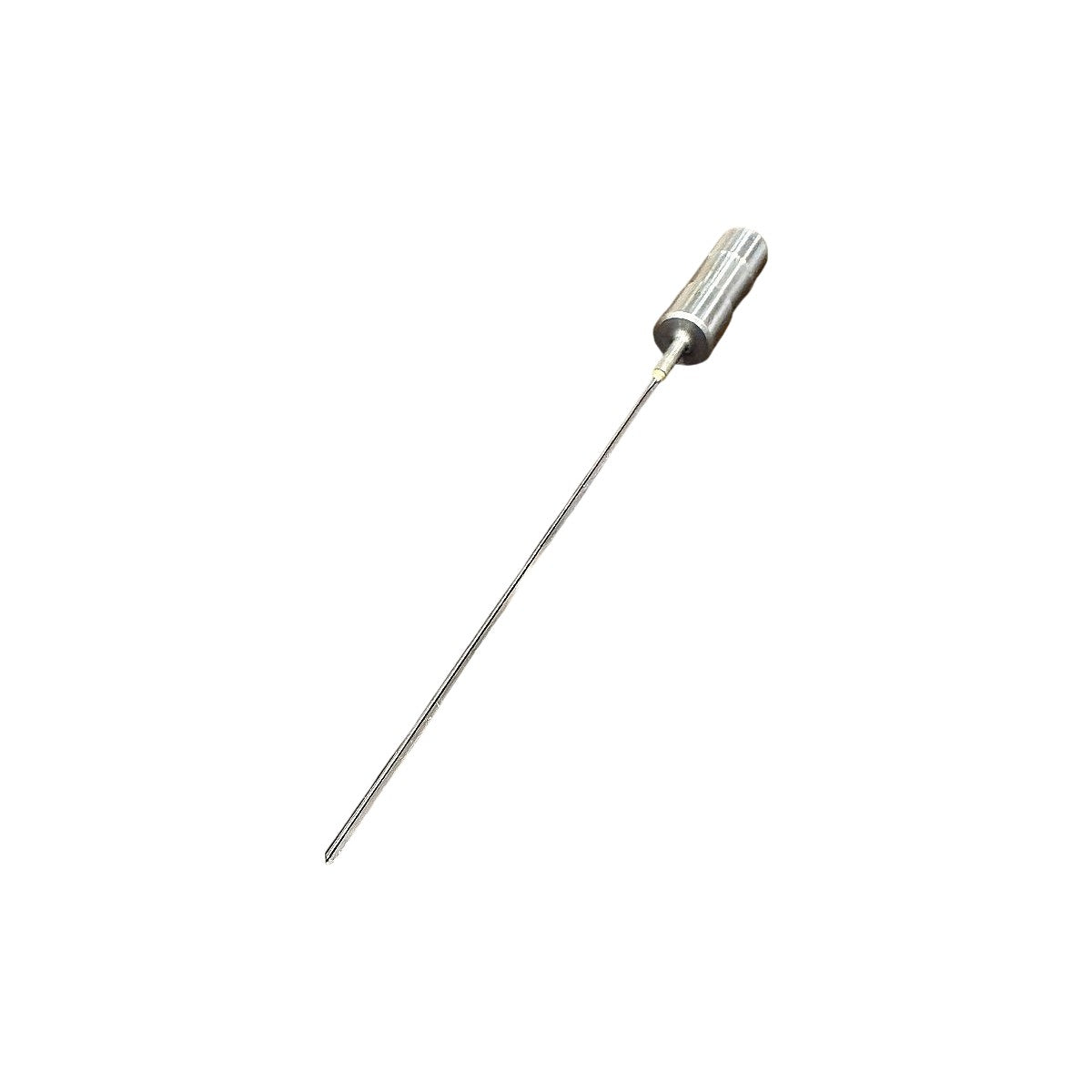

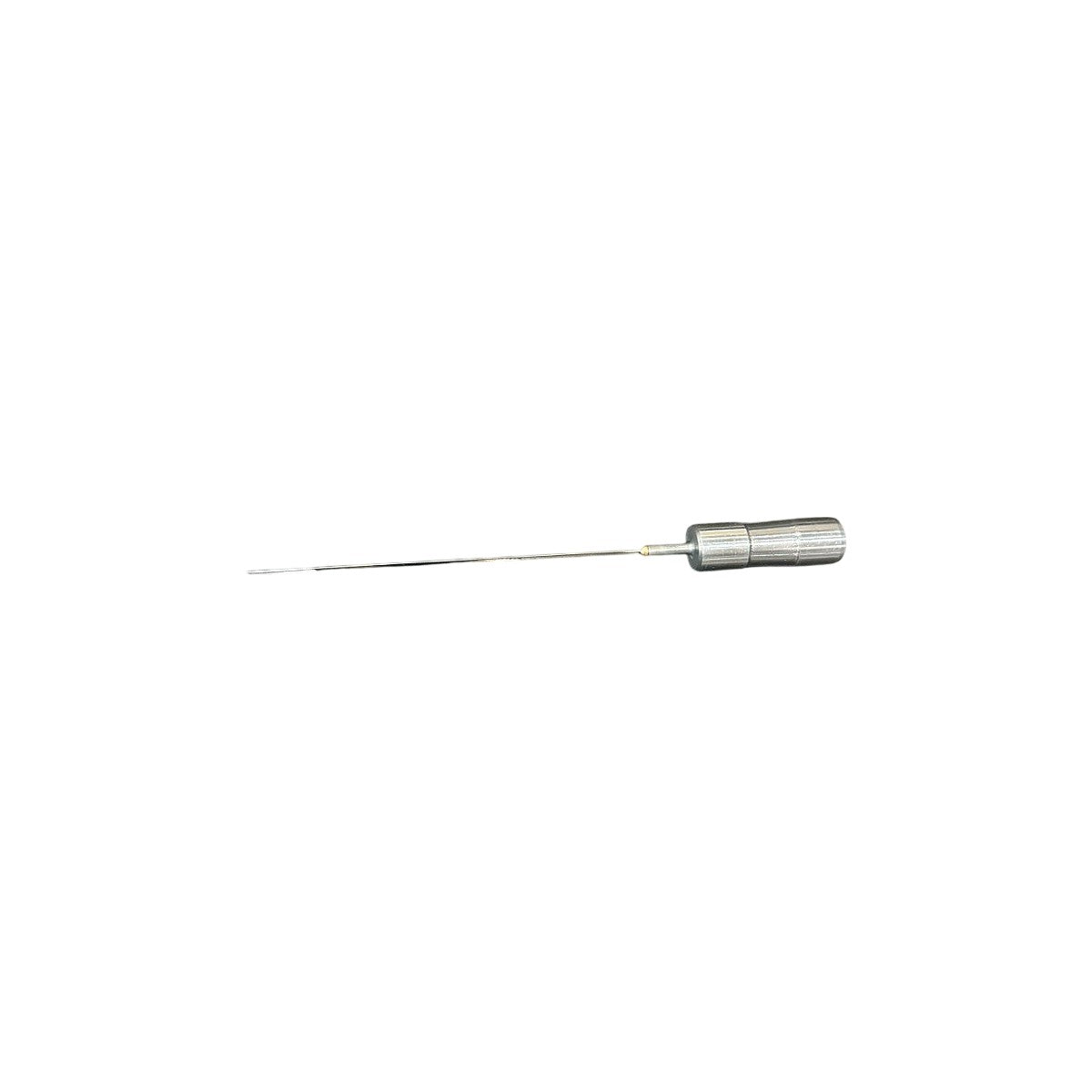

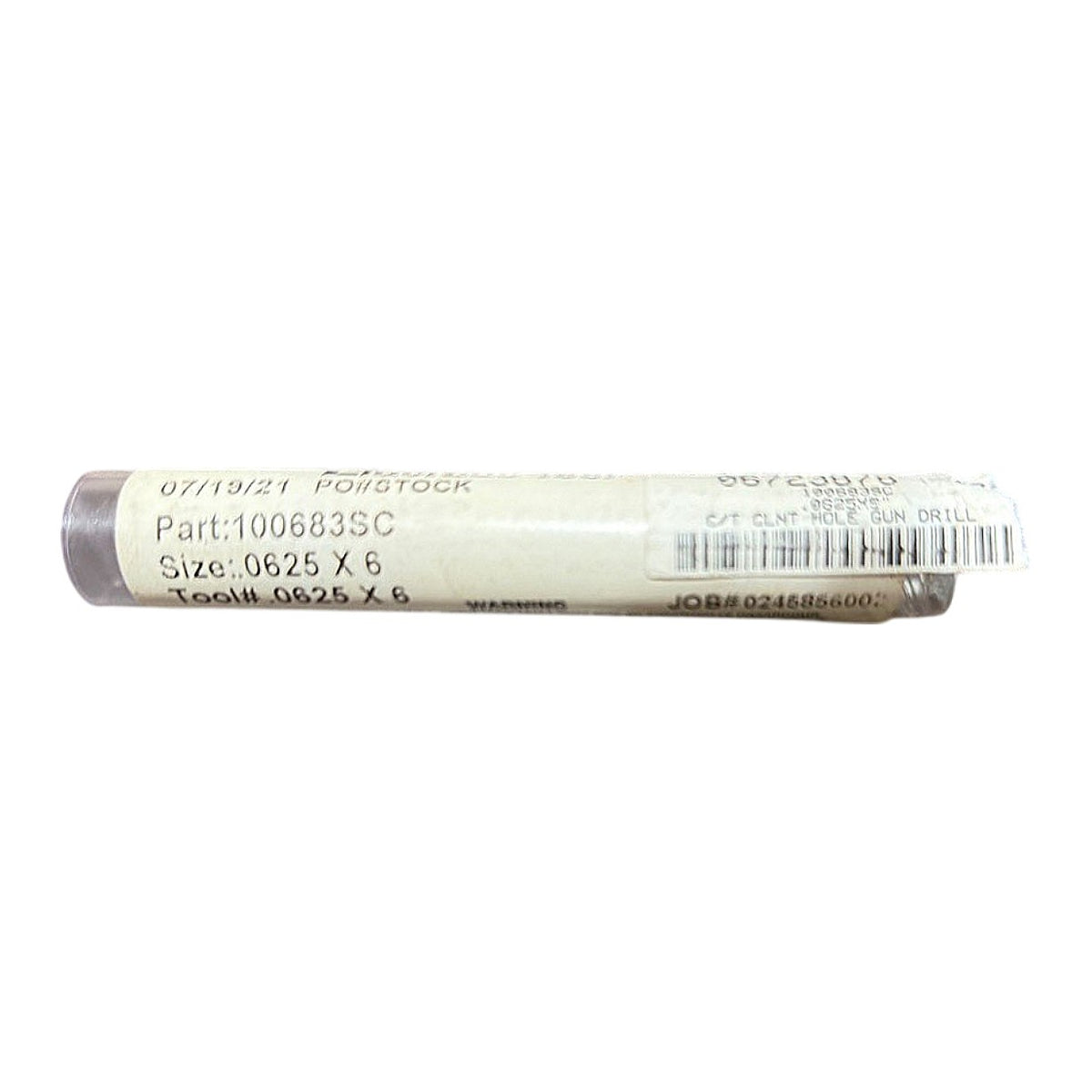

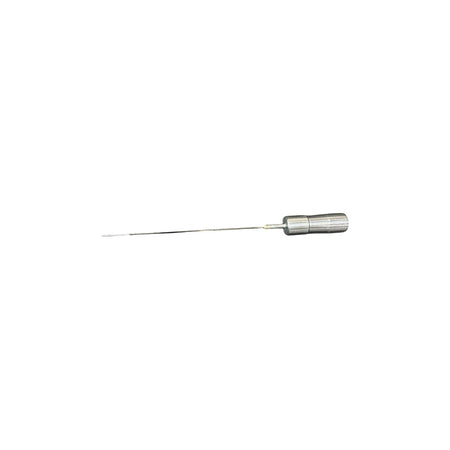

This Drill Master 100683SC is a coolant-through gun drill with a 0.0625 in (1/16 in) diameter and a 6 in length, as marked on the tube label (Size .0625 x 6, Tool # .0625 x 6). The tool is a long, slender straight-shank design with a stepped cylindrical steel driver at the back end and a thin tool body that ends in a single-flute gun drill tip. The label identifies it as a carbide coolant-through hole gun drill, so coolant is delivered through the tool to the cutting tip to flush chips from deep holes. It is intended for deep-hole drilling of small-diameter holes on gun drilling machines or equipped CNC machines with through-tool coolant. This item is new and ships in its original clear storage tube.
Product Specifications
| Brand | Drill Master |
| MPN | 100683SC |
| Drill Diameter | 0.0625 in (1/16 in) |
| Overall Length | 6 in |
| Tool Number | .0625 x 6 |
| Coolant Delivery | Coolant Through |
| Drill Type | Gun Drill |
| Material | Carbide |
| Operation | Deep Hole Drilling |
| Number of Flutes | 1 |
