duMont Minute Man 22213 3/8-D Keyway Broach New
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

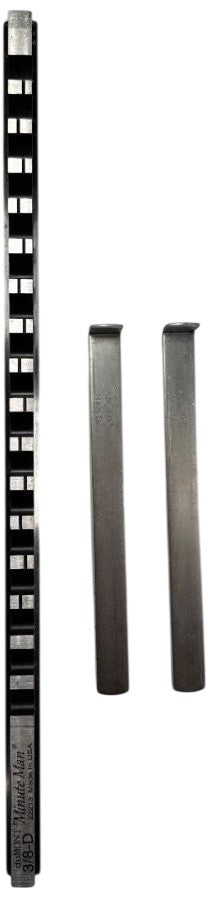

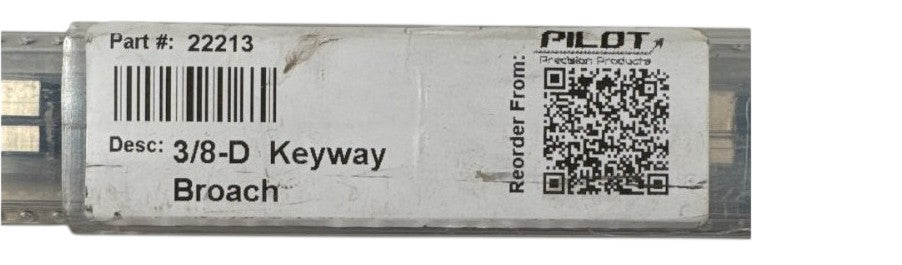

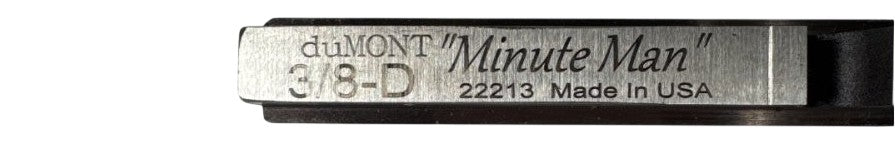

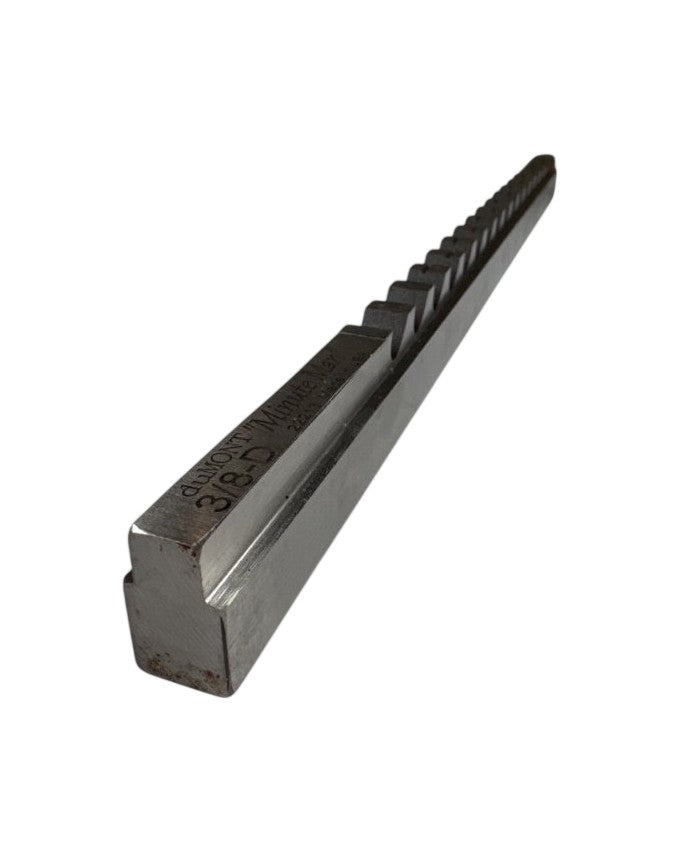

This is a new duMont Minute Man 3/8-D keyway broach, part number 22213, made in the USA and distributed by Pilot Precision Products. The 3/8-D designation indicates this broach cuts a 3/8-inch wide keyway to ANSI B17.1 'D' depth specification, used for cutting keyways in bores to accept standard square or rectangular keys in hubs, sprockets, gears, and pulleys. The Minute Man style is a push-type broach designed for use with an arbor press, and the set visible in the photos includes the broach and two shim/spacer plates used to progressively increase cutting depth per pass. The tool body is high-speed steel (HSS) with a hardened and ground finish, featuring multiple cutting teeth along one face that remove material incrementally with each press stroke.
Product Specifications
| Brand | duMont Minute Man |
| Part Number | 22213 |
| Keyway Width | 3/8 in |
| Keyway Depth Class | D (ANSI B17.1 standard depth) |
| Broach Type | Push-type (arbor press) |
| Country of Origin | USA |
| Distributor | Pilot Precision Products |
| Condition | New |
| Material | High-Speed Steel (HSS) |
| Set Contents | Broach + 2 shim spacer plates |
