Dwyer Instruments 628-19-CH-P1-E5-S1 Pressure Transmitter Ser. 626 0-5000 PSI -

In stock
SKU: 5218eS5
$41.63

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Brand My Store
Location: (S5)
MPN 628-19-CH-P1-E5-S1

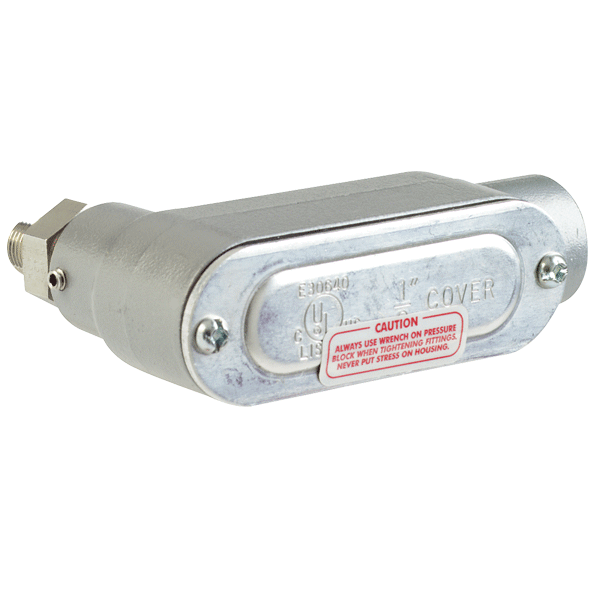

Dwyer Instruments 628-19-CH-P1-E5-S1 Pressure Transmitter Series 626 0-5000 PSI

Dwyer Pressure Transmittermodel 628-19-CH-P1-E5-S1The Series 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X stainless steel general purpose housing or cast aluminum conduit housing.SpecificationServiceCompatible gases and liquidsWetted MaterialsType 316L SSAccuracy0.25% FS; 0.20% RSSTemperature Limit0 to 200°F (-18 to 93°C)Compensated Temperature Range0 to 175°F (-18 to 79°C)Thermal Effect±0.02% FS/°F. (includes zero and span)Pressure LimitsMaximum Pressure: 7500 psig; Over Pressure: 10000 psigPower Requirements10-30 VDCOutput Signal4-20 mAResponse Time50 msecLoop Resistance0-1000 Ohms max. R max = 50 (Vps-10) OhmsCurrent Consumption38 mA maximumElectrical Connectionsterminal block; 1/2" female NPT conduitProcess Connection1/4" Male NPTEnclosure RatingNEMA 4X (IP66)Mounting OrientationMount in any positionWeight10 oz (283 g)Agency ApprovalsCEStability1.0% FS/year (Typ.)
Dwyer Pressure Transmitter

model 628-19-CH-P1-E5-S1


The Series 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy
piezo-resistive sensor contained in a compact, rugged, NEMA 4X stainless steel general
purpose housing or cast aluminum conduit housing.

Specification

Service Compatible gases and liquids
Wetted Materials Type 316L SS
Accuracy 0.25% FS; 0.20% RSS
Temperature Limit 0 to 200°F (-18 to 93°C)
Compensated Temperature Range 0 to 175°F (-18 to 79°C)
Thermal Effect ±0.02% FS/°F. (includes zero and span)
Pressure Limits Maximum Pressure: 7500 psig; Over Pressure: 10000 psig
Power Requirements 10-30 VDC
Output Signal 4-20 mA
Response Time 50 msec
Loop Resistance 0-1000 Ohms max. R max = 50 (Vps-10) Ohms
Current Consumption 38 mA maximum
Electrical Connections terminal block; 1/2" female NPT conduit
Process Connection 1/4" Male NPT
Enclosure Rating NEMA 4X (IP66)
Mounting Orientation Mount in any position
Weight 10 oz (283 g)
Agency Approvals CE
Stability 1.0% FS/year (Typ.)
