Dynabrade 14000 0.5HP 20,000RPM 1/2x24in Pneumatic Abrasive Belt Filer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

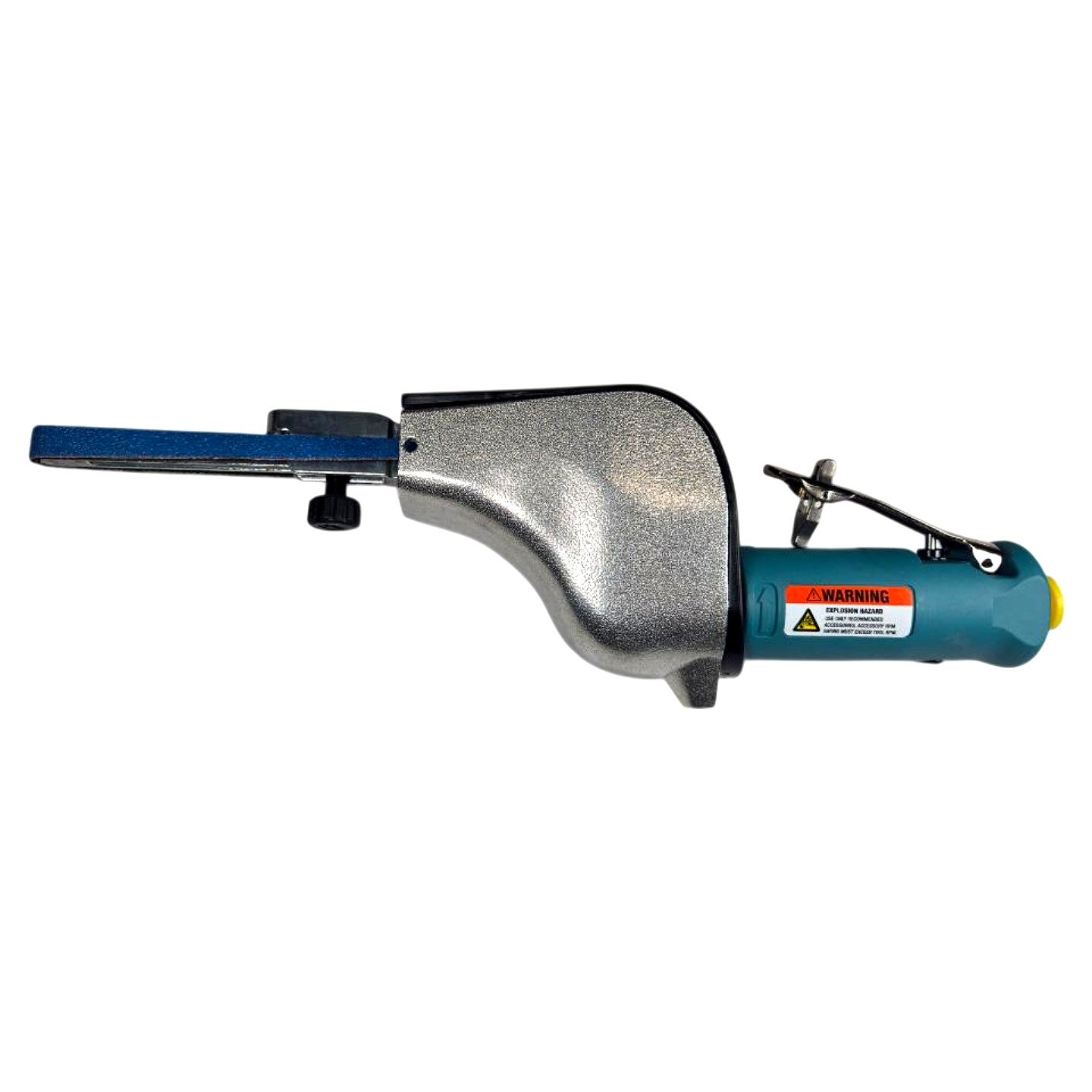

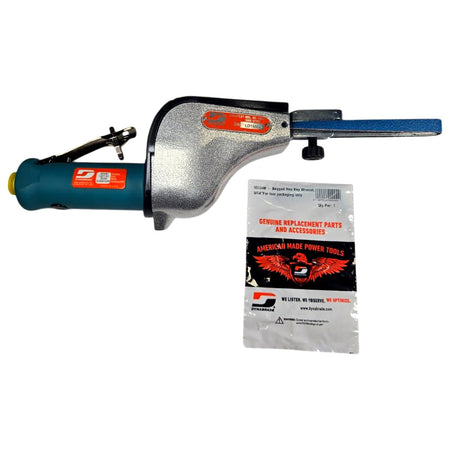

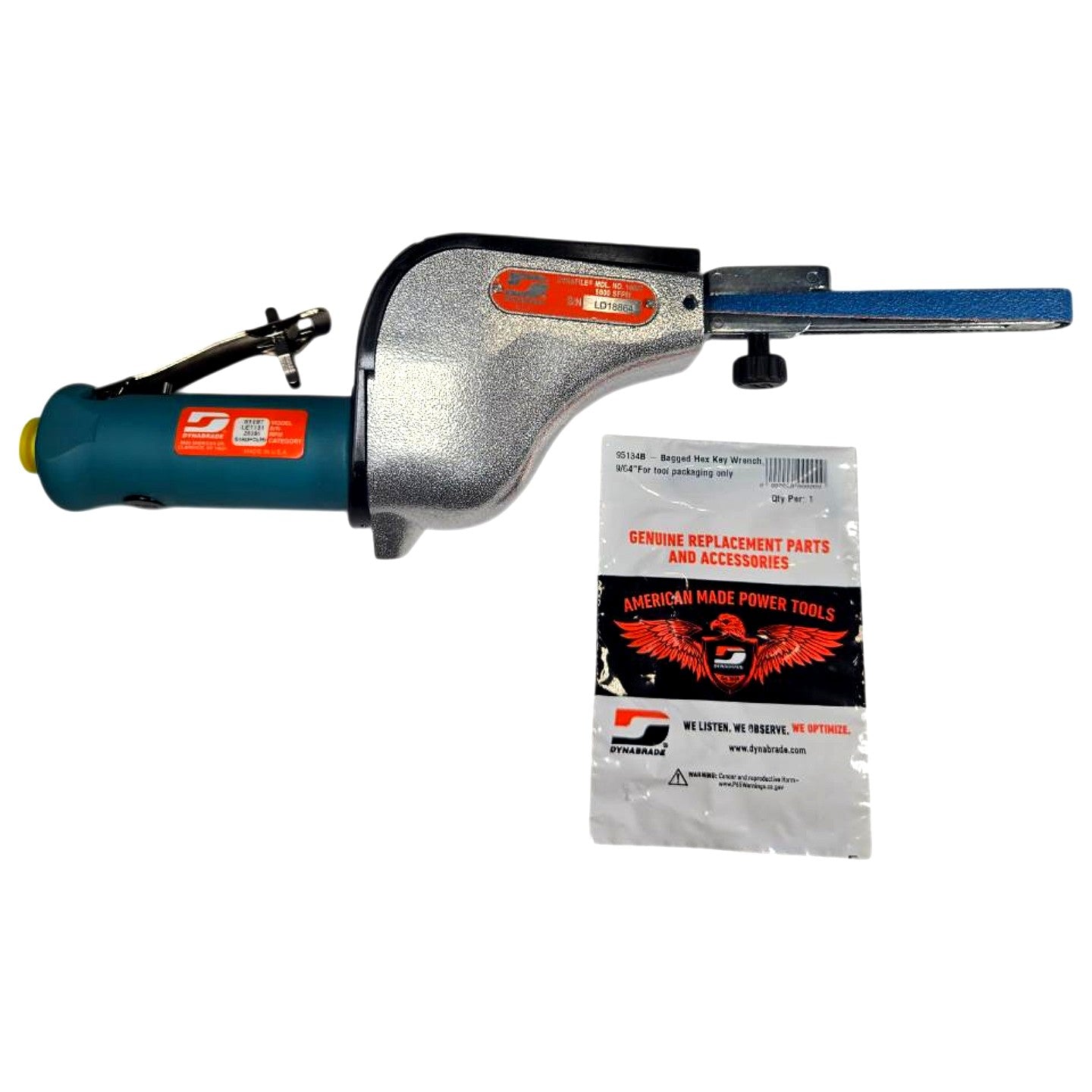

The Dynabrade 14000 Dynafile is a new, American-made pneumatic abrasive belt tool rated at 0.5 HP and 20,000 RPM, designed for straight-line filing, deburring, blending, and finishing in metalworking and fabrication environments. It accepts abrasive belts from 1/8 in to 1/2 in wide by 24 in long (3–13 mm x 610 mm), with a fixed arm configuration and front exhaust that directs spent air away from the workpiece and operator. The tool operates on compressed air with a 1/4 in NPT inlet and requires 31 SCFM at 90 PSI, making it suited for applications such as weld blending, tube and pipe finishing, die finishing, and contour sanding on metal, composites, and plastics. Belt tension is adjusted via the knurled tracking knob visible on the nose, and the tool ships with a 9/64 in hex key wrench (Dynabrade part 95134B) for belt change and maintenance. Manufactured in the USA and CE/UKCA marked, the 14000 is a production-grade tool built for continuous industrial use.
Product Specifications
| Brand | Dynabrade |
| Model Number | 14000 |
| Serial Number | LD18864 |
| Tool Type | Dynafile Abrasive Belt Tool |
| Motion Type | Straight-Line |
| Horsepower | 0.5 HP |
| No-Load Speed | 20,000 RPM |
| Belt Width Range | 1/8 in – 1/2 in (3–13 mm) |
| Belt Length | 24 in (610 mm) |
| Arm Style | Fixed |
| Exhaust Location | Front Exhaust |
| Air Consumption | 31 SCFM |
| Air Inlet Size | 1/4 in NPT |
| Operating Pressure | 90 PSI |
| Country of Origin | USA |
| Condition | New |
| Included Accessory | 9/64 in Hex Key Wrench (95134B) |
| Certifications | CE, UKCA, EAC |
