Eaton BR315 15A 3-Pole 240V 10kAIC Molded Case Circuit Breaker
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

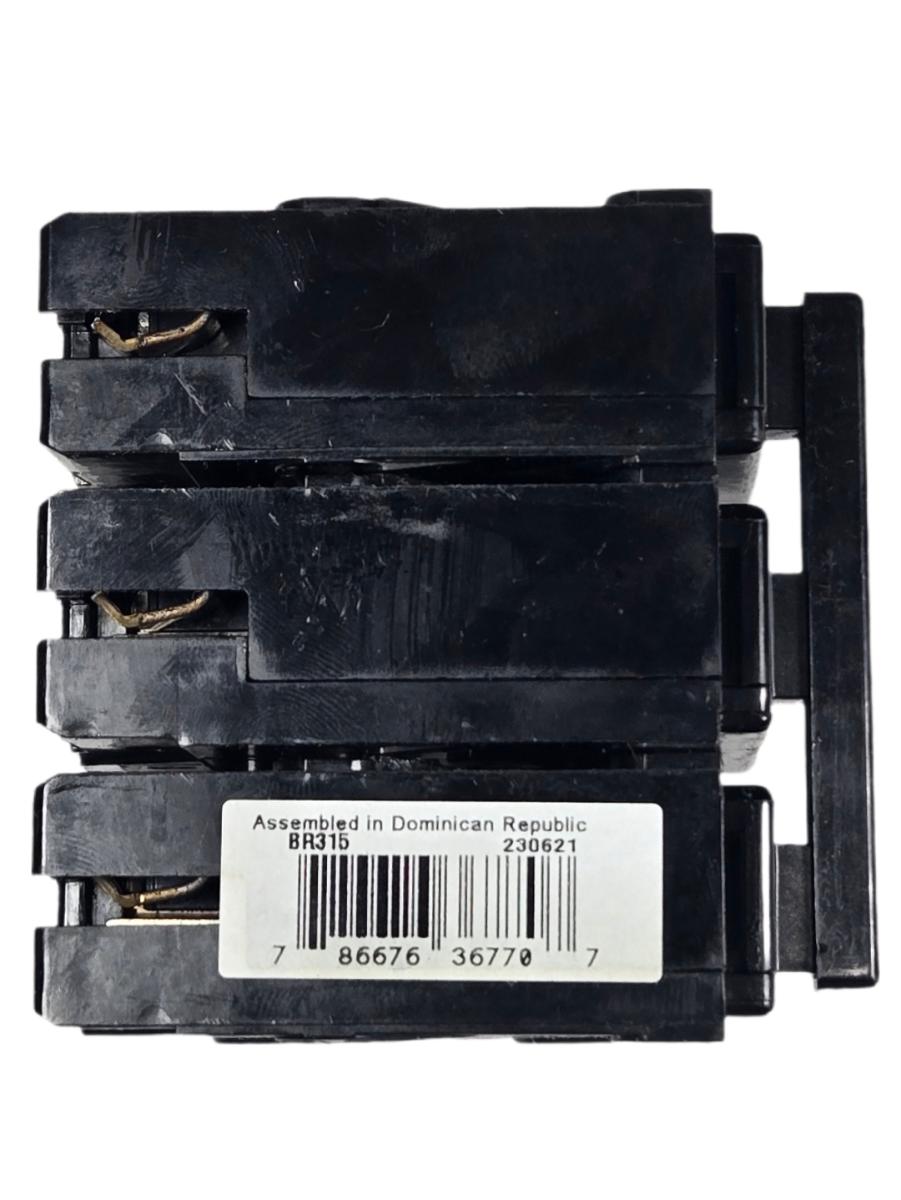

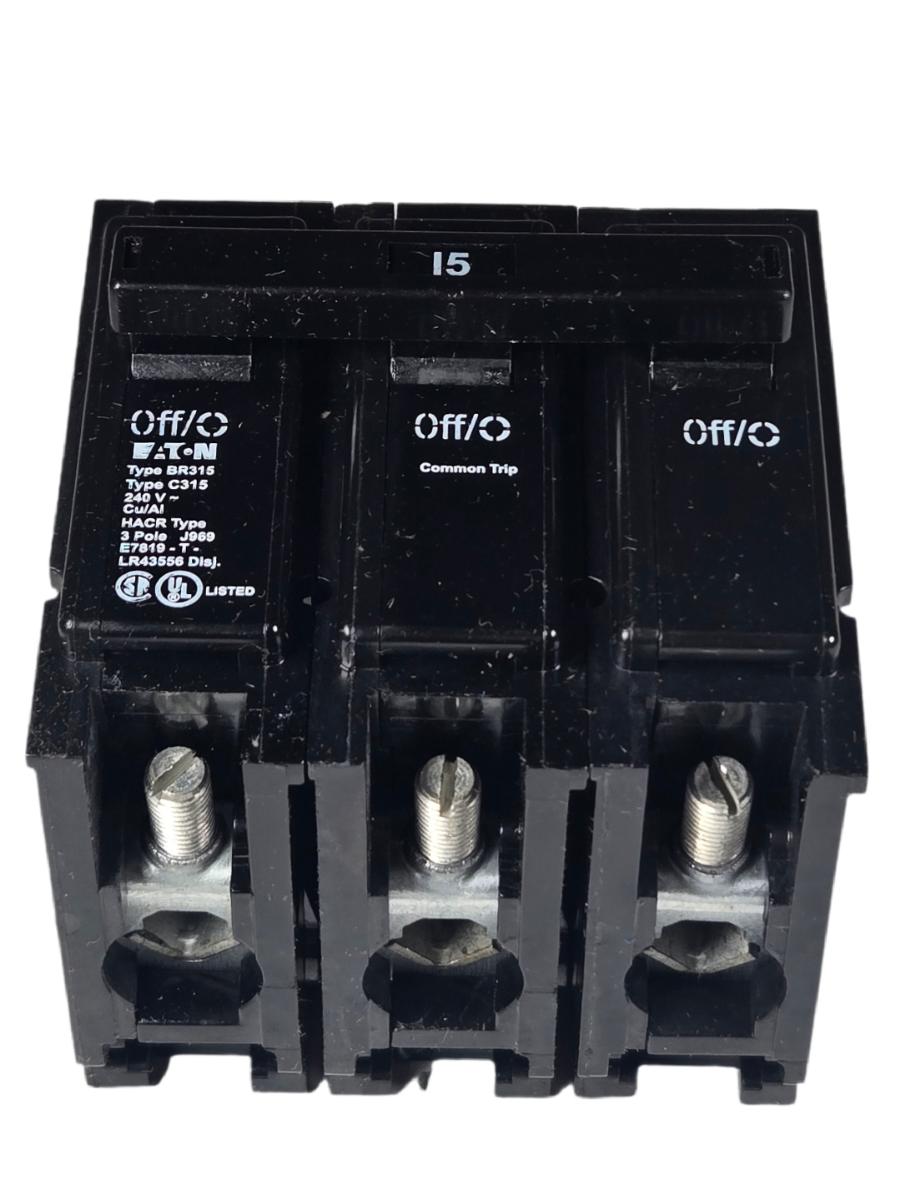

The Eaton BR315 is a new, factory-assembled 3-pole molded case circuit breaker rated 15A at 240V AC with a 10,000A RMS symmetrical interrupting rating at 240V. It carries HACR (Heating, Air Conditioning, and Refrigeration) type listing, making it suitable for motor-load branch circuits in HVAC equipment per NEC requirements. The breaker accepts both copper and aluminum conductors (Cu/Al rated) and is rated for 60°C/75°C wire terminations, with common-trip operation across all three poles ensuring simultaneous disconnection on fault. It is UL Listed (E7819) and CSA certified (LR43556), designed for use exclusively in listed enclosures — specifically compatible with Eaton BR-series load centers and panelboards. Assembled in the Dominican Republic, part number BR315 confirmed on both the front label and rear barcode label.
Product Specifications
| Manufacturer Part Number | BR315 |
| Brand | Eaton |
| Ampere Rating | 15A |
| Number of Poles | 3 |
| Voltage Rating | 240V AC |
| Interrupting Rating | 10,000A RMS sym. @ 240V |
| Trip Type | Common Trip |
| HACR Rated | Yes |
| Conductor Material | Cu/Al |
| Wire Temperature Rating | 60°C / 75°C |
| Series | BR |
| UL File Number | E7819 |
| CSA Designation | LR43556 |
| Also Listed As | Type C315 |
| Enclosure Requirement | Listed enclosure only |
| Assembly Origin | Dominican Republic |
| Date Code | 230621 |
| Condition | New |
