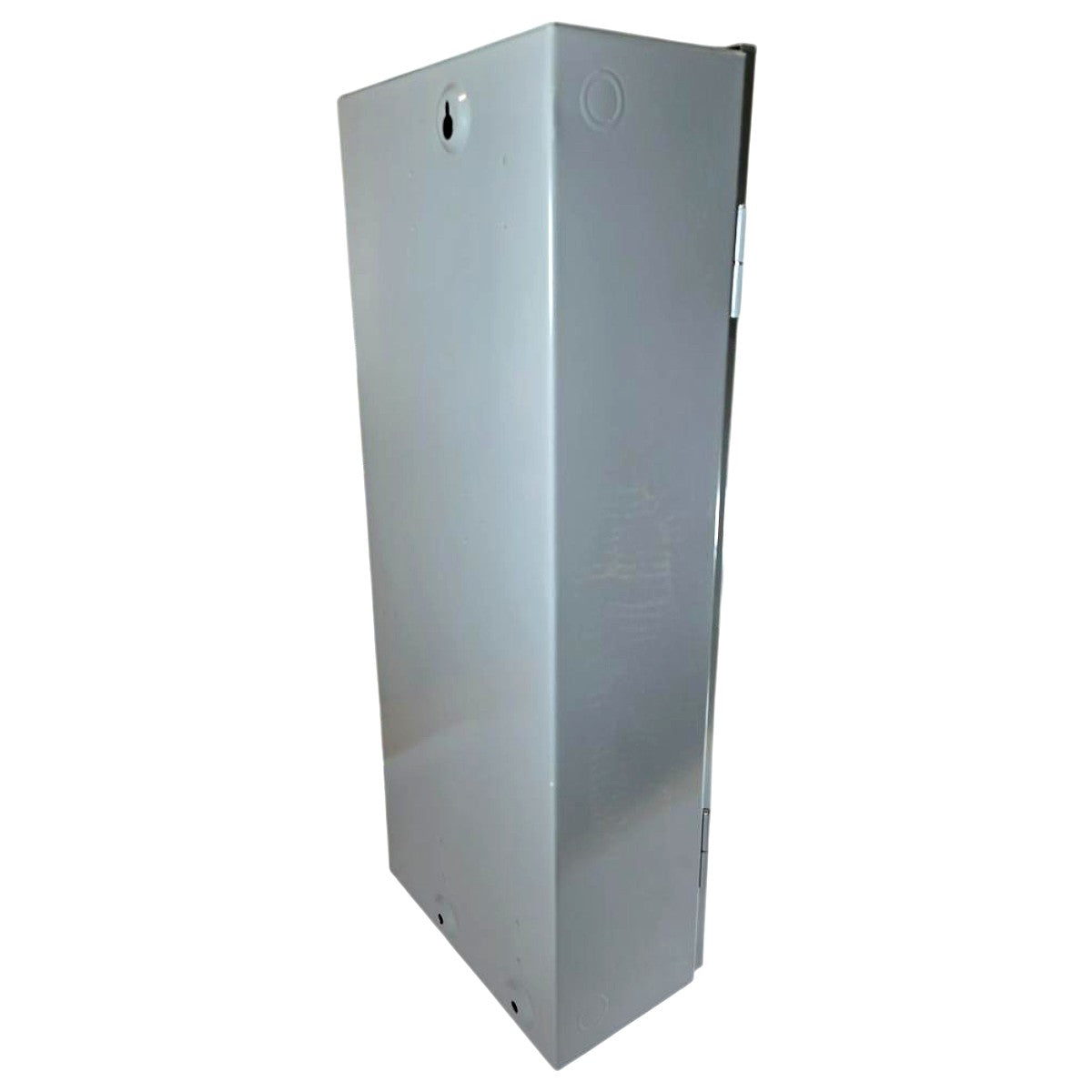

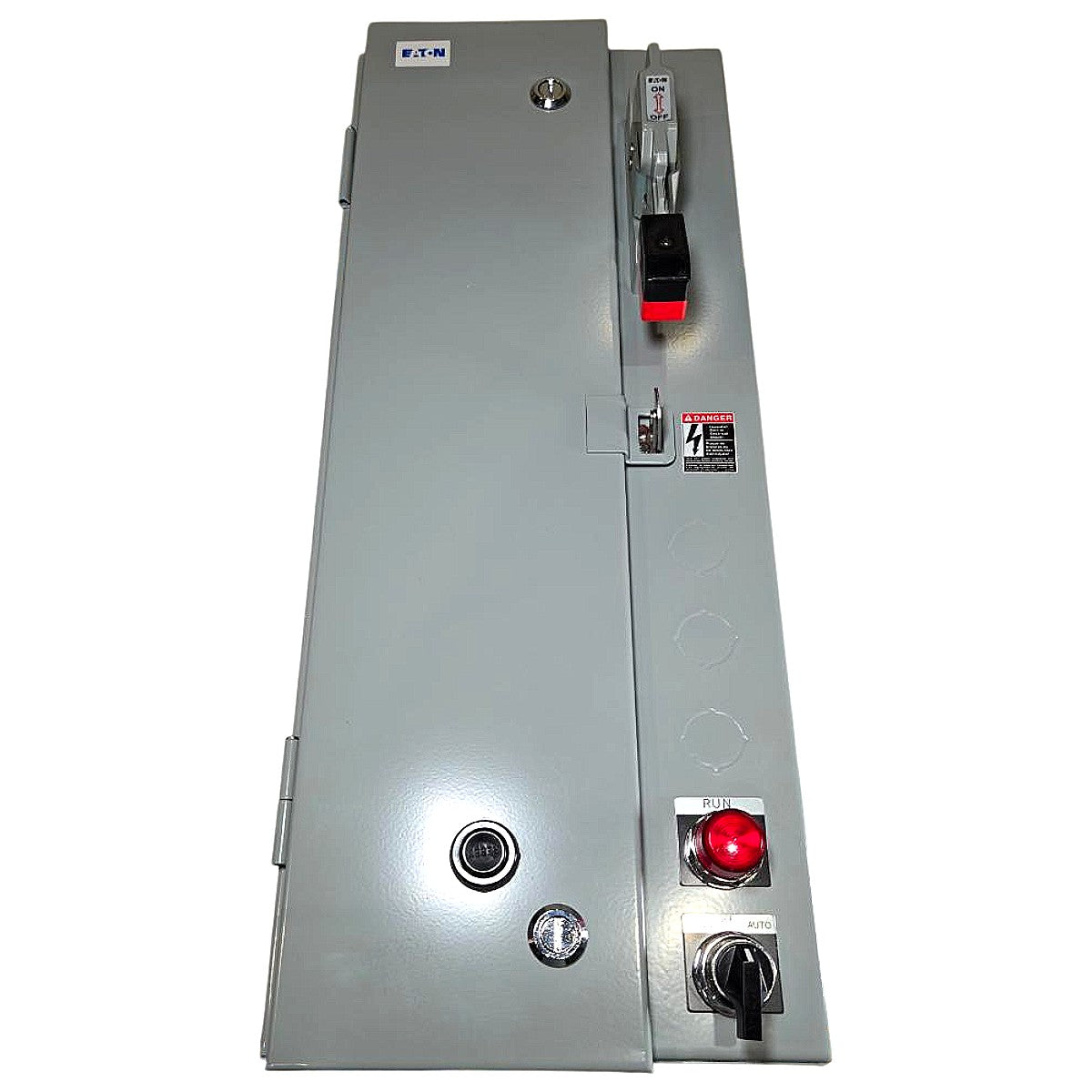

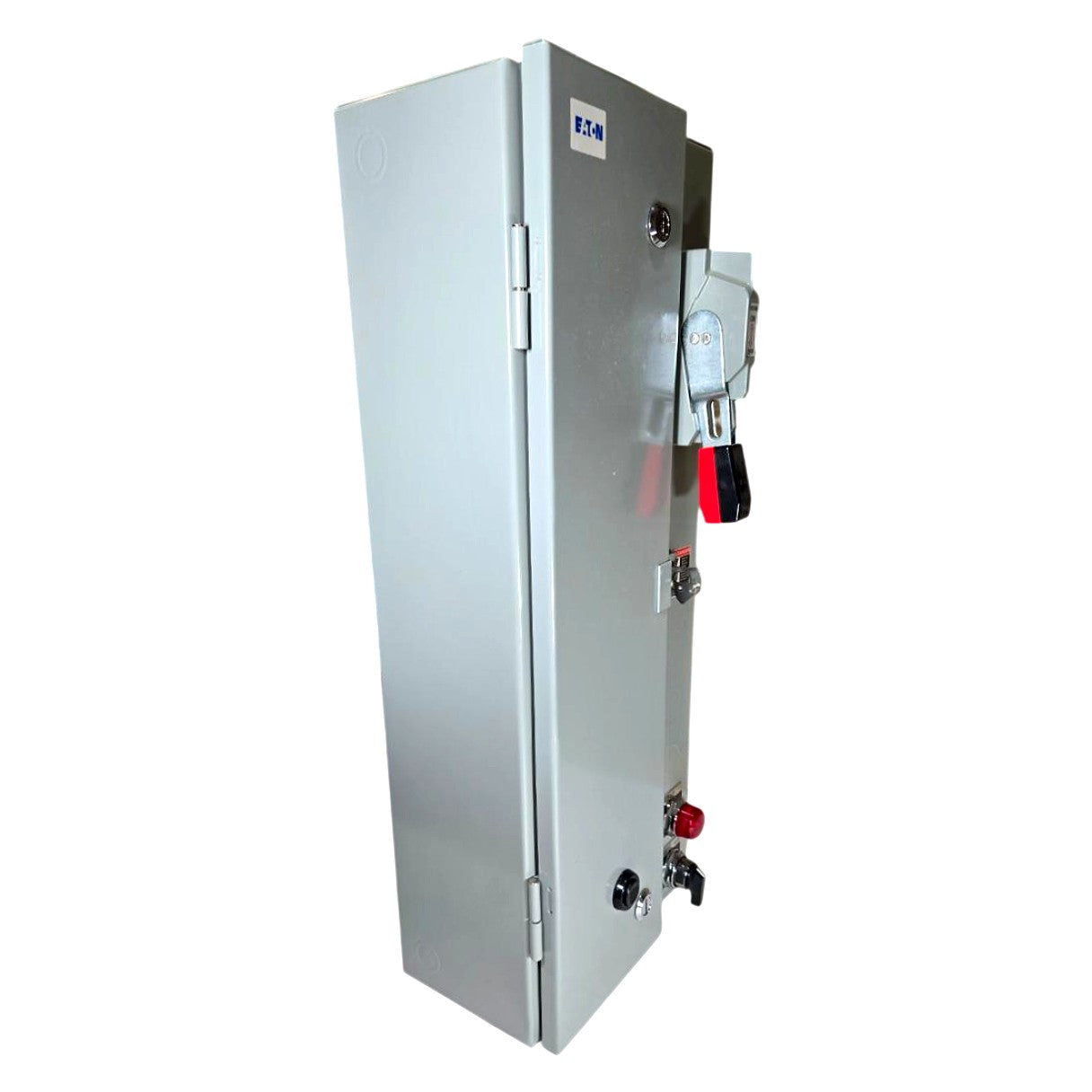

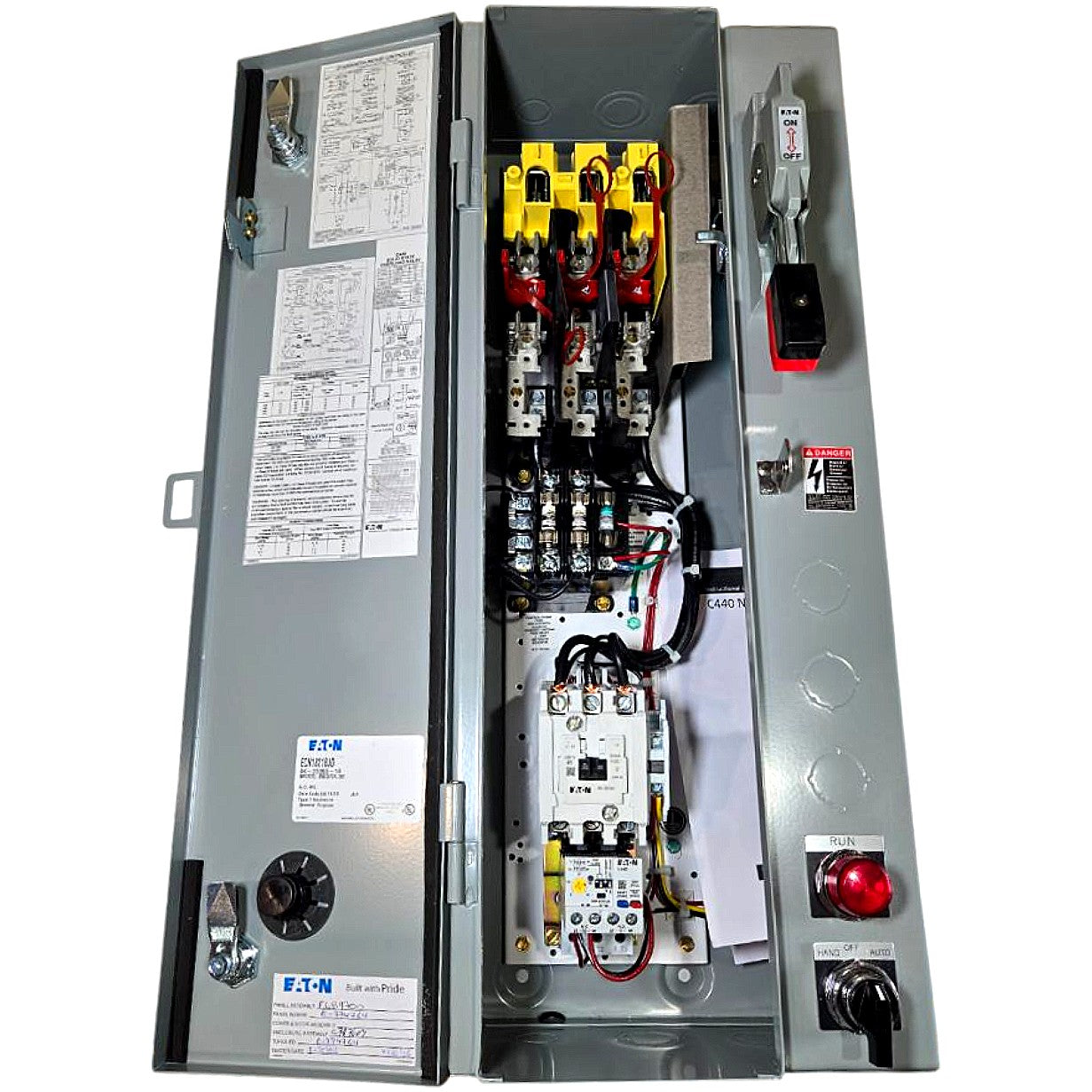

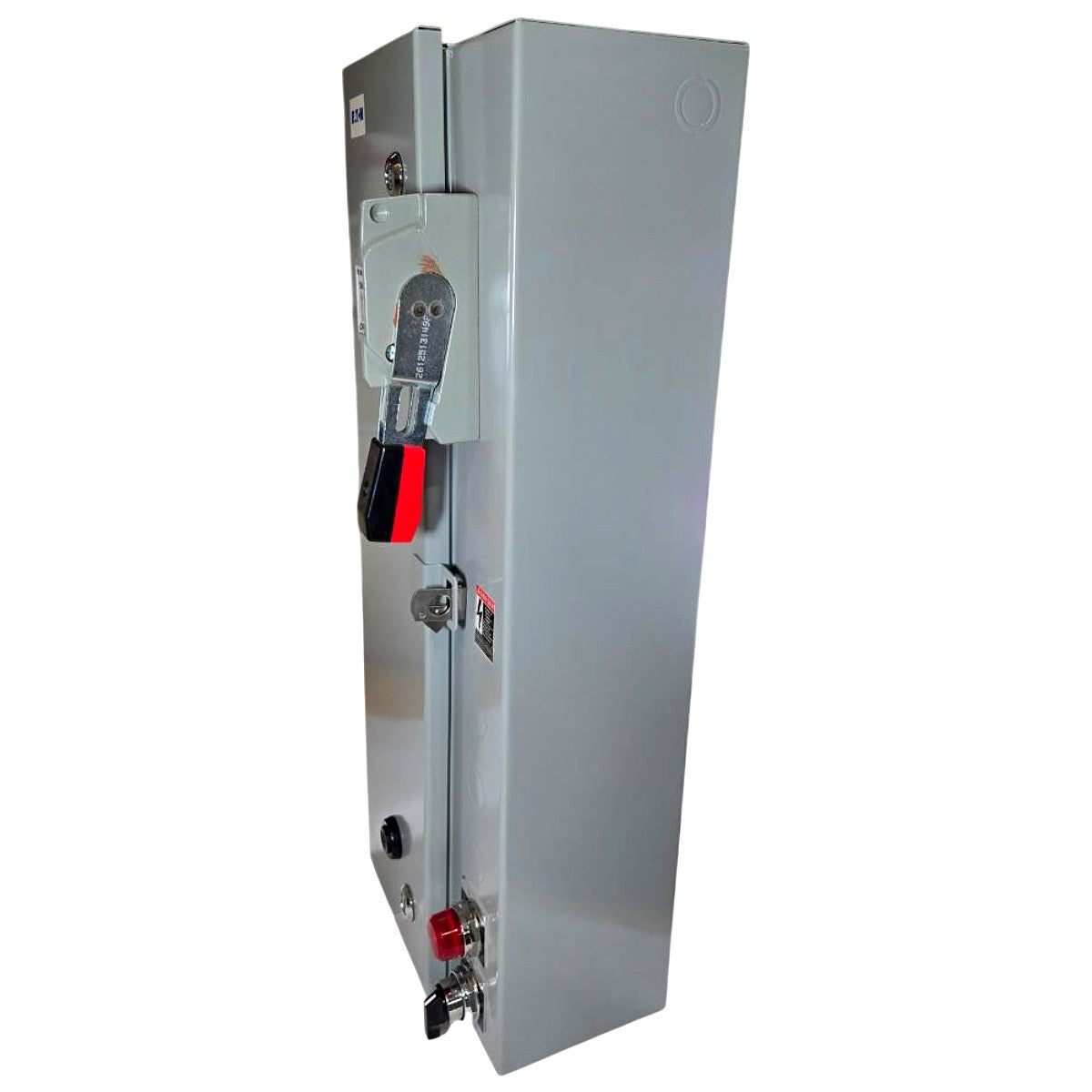

The Eaton ECN1821BJD is a new Freedom NEMA combination full-voltage non-reversing (FVNR) motor starter with integrated fusible disconnect and control power transformer (CPT), housed in a NEMA 1 general-purpose steel enclosure. The unit is NEMA Size 2 (rated for motors up to 15 HP at 240V 3-phase or 25 HP at 480V 3-phase) and incorporates a 3-pole contactor with overload relay, a 60A/250V fusible disconnect switch with lockable ON/OFF handle for branch circuit protection, and a CPT rated 240V primary to 120V secondary for control circuit power. Mods RC3/DL30 add a HAND–OFF–AUTO selector switch and a red illuminated "RUN" pilot light on the enclosure door, enabling local manual or automatic remote control without additional external components. This combination starter is designed for across-the-line motor starting in HVAC, pump, fan, and conveyor applications where a single enclosure integrates disconnect, starter, overload protection, and operator controls per NEMA ICS 2 standards.
Product Specifications
| Brand | Eaton |
| Model Number (MPN) | ECN1821BJD |
| Series | Freedom NEMA |
| Starter Type | Full-Voltage Non-Reversing (FVNR) |
| NEMA Starter Size | Size 2 |
| Number of Poles | 3 |
| Control Voltage | 120V AC (via CPT) |
| CPT Primary Voltage | 240V |
| CPT Secondary Voltage | 120V |
| Disconnect Type | Fusible |
| Disconnect Rating | 60A / 250V R |
| Enclosure Type | NEMA 1 - General Purpose |
| Modifications (Mods) | RC3/DL30 |
| Operator Controls | HAND-OFF-AUTO selector switch |
| Pilot Light | Red RUN light |
| Max HP (240V, 3-Phase) | 15 HP |
| Max HP (480V, 3-Phase) | 25 HP |
| Max HP (208V, 3-Phase) | 10 HP |
| Condition | New |
| Standards | NEMA ICS 2, UL Listed |
| Date Code | 09/17/25 |
