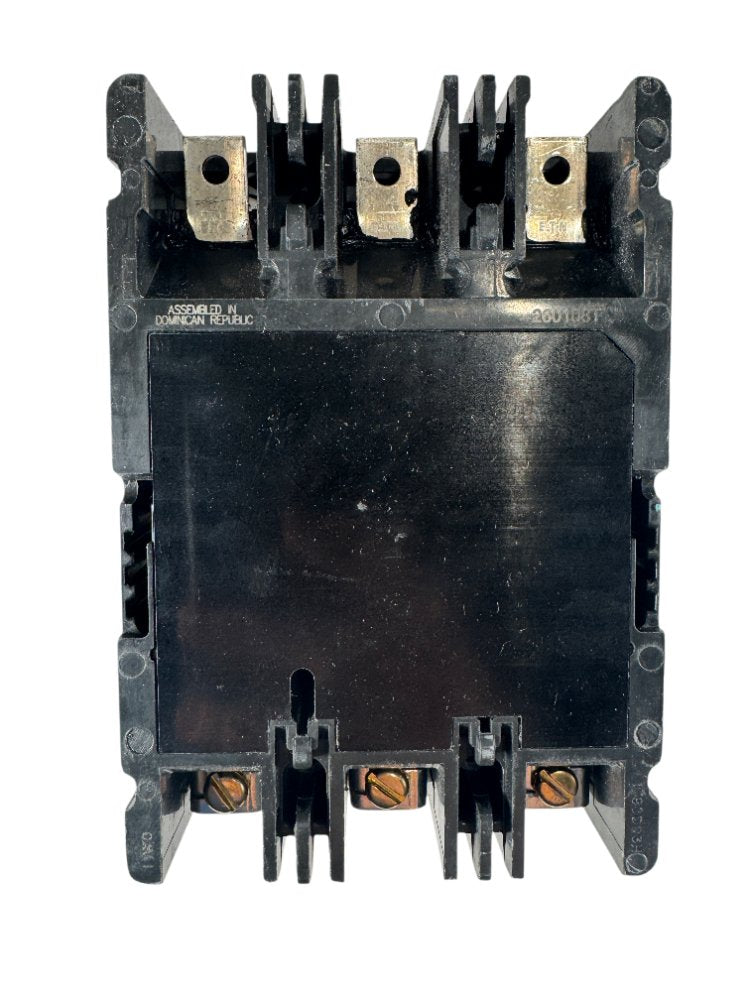

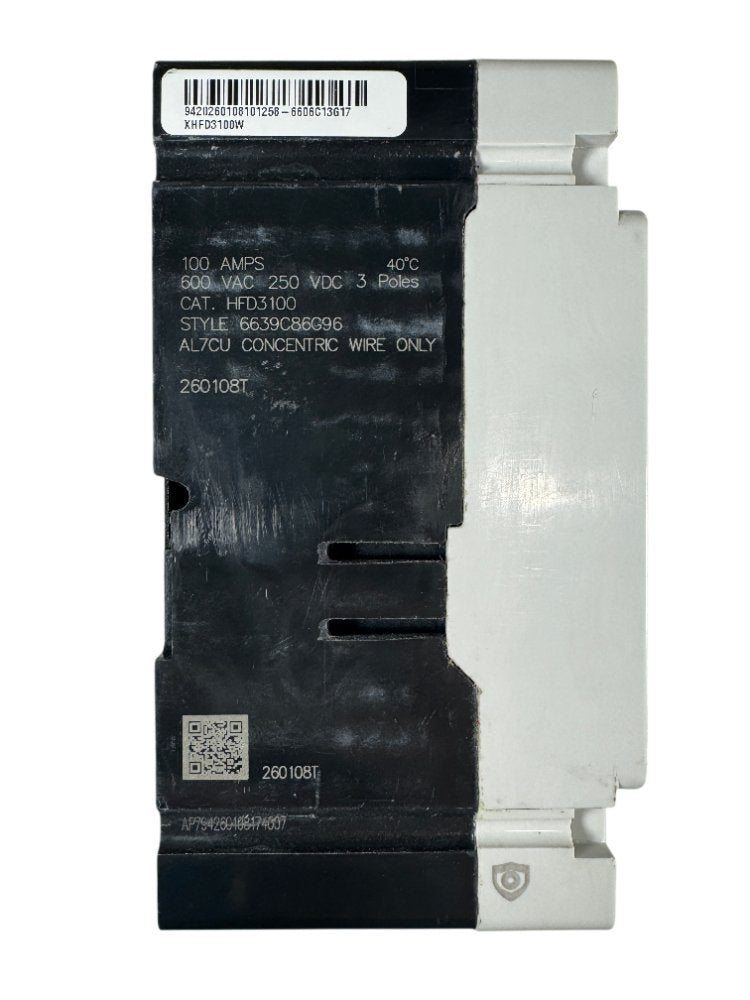

Eaton HFD3100 100A 600V 3-Pole Industrial Circuit Breaker
Regular price
$226.09
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

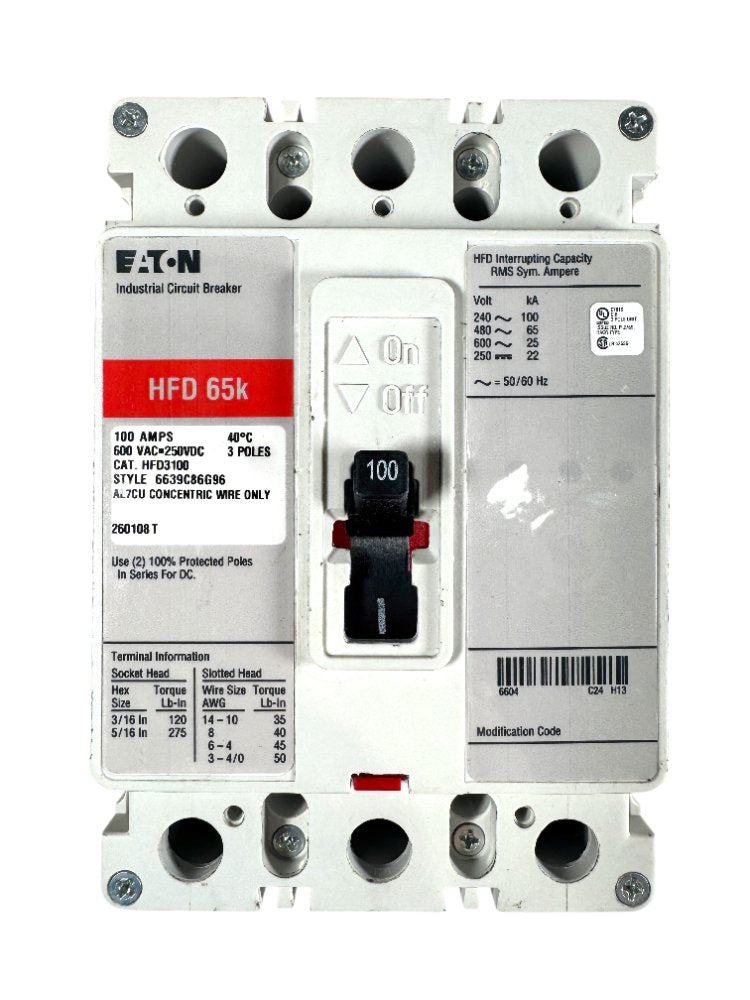

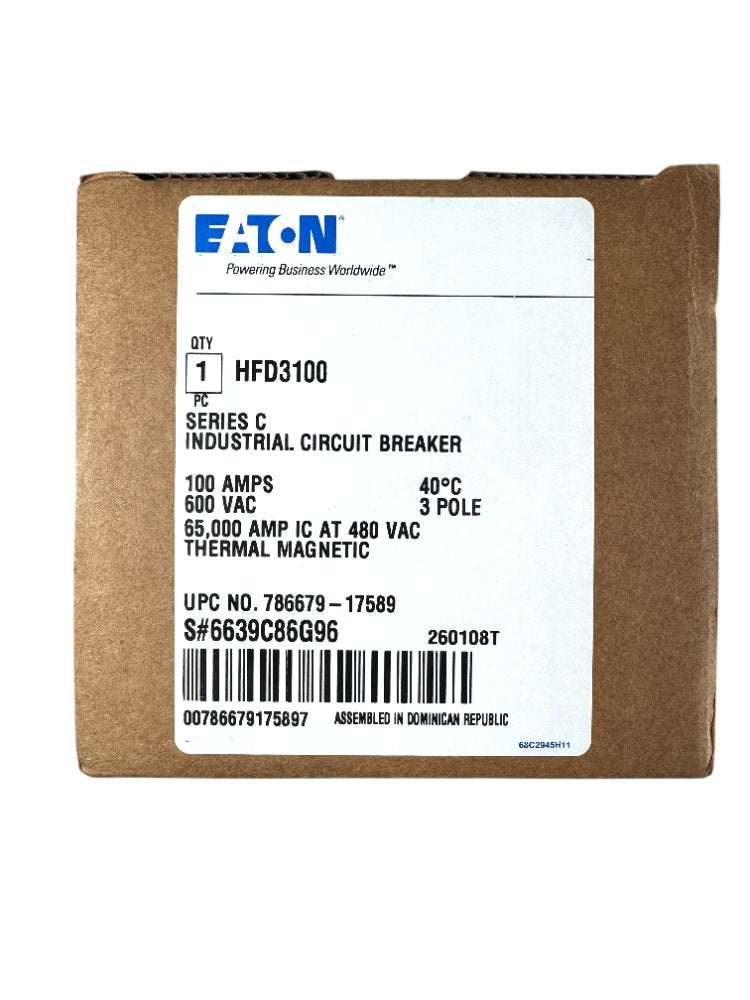

Eaton HFD3100 is a Series C molded case industrial circuit breaker rated 100 amperes at 600 volts AC with 3-pole configuration and thermal-magnetic trip mechanism. The breaker carries 65,000 amperes interrupting capacity (AIC) at 480 VAC and is rated for 40°C ambient temperature operation. This is new, factory-sealed stock with UPC 00786679175897 and style designation 6639C86G96; it is designed for AL7CU concentric wire only applications and features hex socket head terminals with specified torque values (120 lb-in for 3/16", 275 lb-in for 5/16") for secure installation in industrial control panels and distribution systems.
Product Specifications
| Brand | Eaton |
| Model Number | HFD3100 |
| Rated Current | 100 A |
| Voltage Rating | 600 VAC |
| Number of Poles | 3 |
| Trip Type | Thermal-Magnetic |
| Interrupting Capacity at 480 VAC | 65,000 A |
| Operating Temperature | 40°C |
| Wire Type | AL7CU Concentric Wire Only |
| Style Designation | 6639C86G96 |
| Condition | New |
