EMUGE BU783200.5005 SF-MULTI-LS No.6-32 UNC-2B/3B Spiral Flute Tap
Regular price
$64.72
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

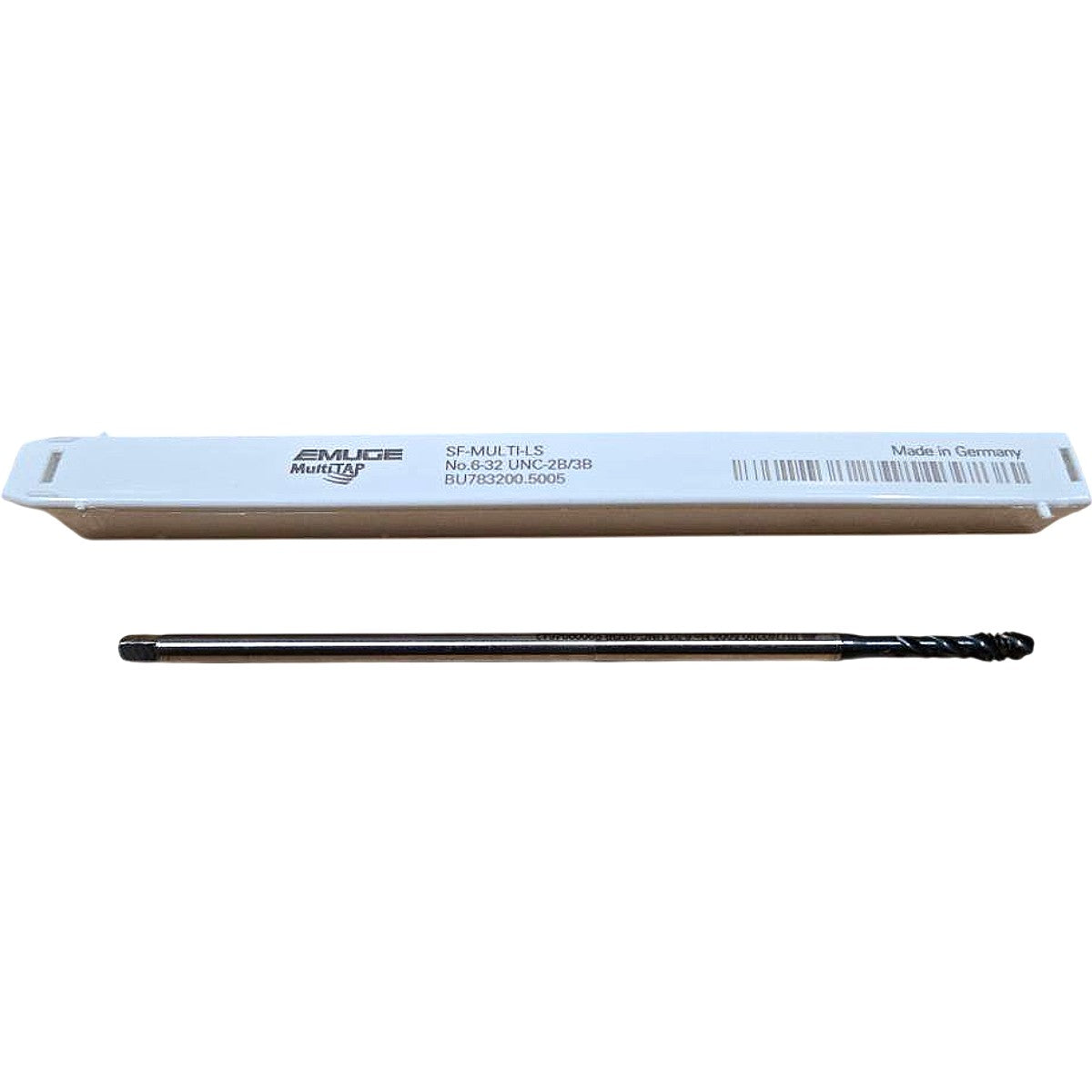

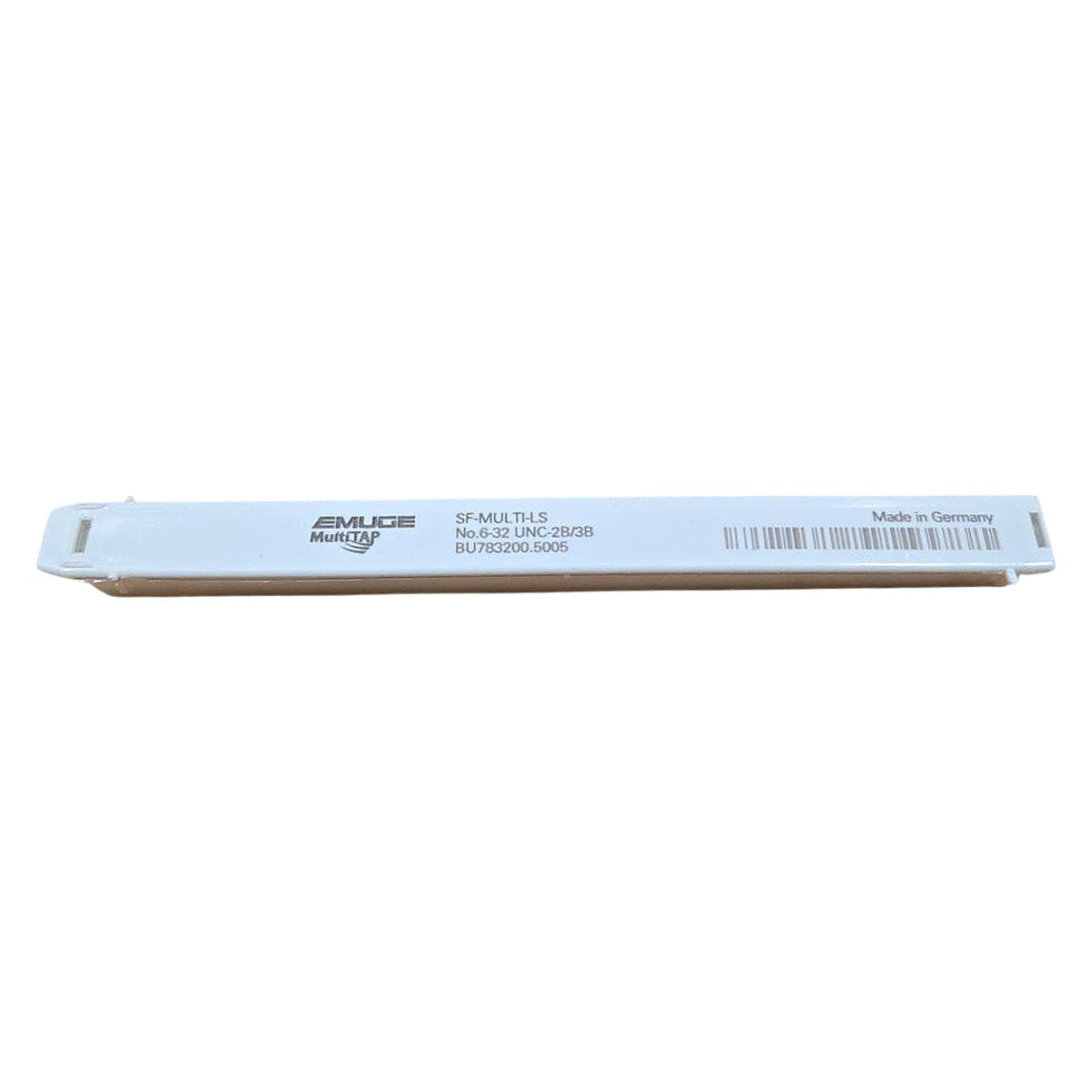

This new EMUGE MultiTAP SF-MULTI-LS, part number BU783200.5005, is a No. 6-32 UNC spiral flute machine tap for cutting 2B/3B class internal threads. The tap has a spiral flute geometry with a dark surface-treated finish and a long extended-reach shank with a ground, round shank and a driving square visible at the end. The EMUGE MultiTAP series is designed as a universal tap for multiple workpiece material groups, and this tool was made in Germany and is supplied in the original EMUGE plastic case.
Product Specifications
| Brand | EMUGE |
| MPN | BU783200.5005 |
| Series | MultiTAP |
| Model | SF-MULTI-LS |
| Thread Size | No. 6-32 UNC |
| Thread Standard | UNC (Unified National Coarse) |
| Thread Class | 2B/3B |
| Threads Per Inch | 32 TPI |
| Flute Type | Spiral Flute |
| Thread Direction | Right Hand |
| Operation | Tapping, Thread Cutting |
| Tap Type | Machine Tap |
| Country of Origin | Germany |
| Shank Type | Extended-length round shank w/ drive square |
