Emuge CU499300.0112 SP-MULTI-TiCN M12x1.75 6H Spiral Point Tap
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

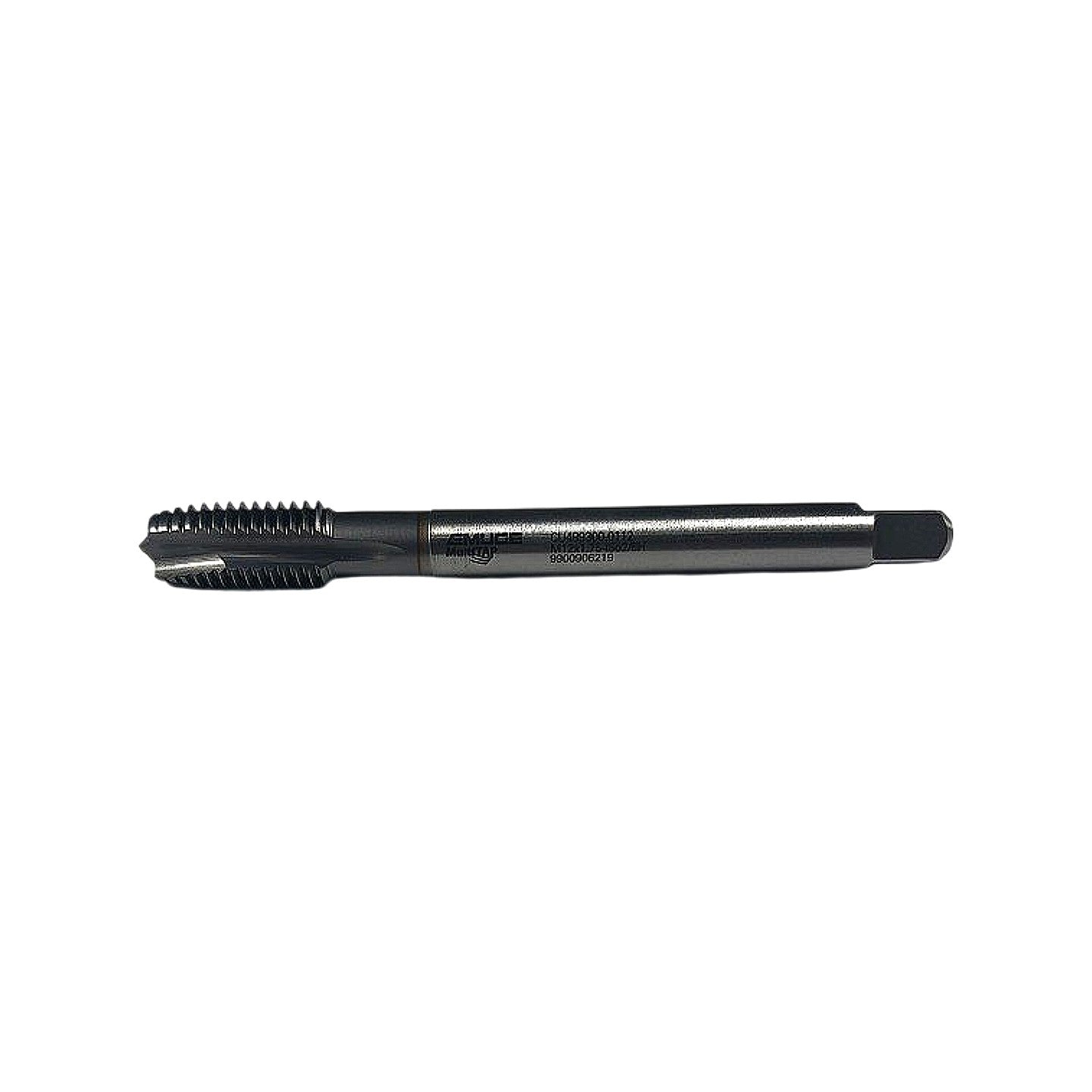

This is a new Emuge MultiTAP SP-MULTI-TiCN spiral point (gun) tap, part number CU499300.0112, sized M12x1.75 to ISO 6H tolerance class, manufactured in Germany. The SP-MULTI series is a premium powdered-metallurgy HSS-E-PM substrate tap with a TiCN (Titanium Carbonitride) coating, which provides higher surface hardness and lower friction than TiN, enabling dry or minimum-quantity lubrication tapping and longer tool life across a broad range of materials. The spiral point geometry pushes chips forward ahead of the tap, making it suited for through-hole tapping in CNC machining centers, tapping units, and rigid tapping setups. The ISO 2 chamfer lead (approximately 3–5 threads) facilitates easy thread entry, and the 6H tolerance produces a standard-fit internal thread compatible with 6g-class fasteners. The square drive shank is sized for standard ISO machine tap holders and floating tap collets appropriate for M12.
Product Specifications
| Brand | Emuge |
| Series | MultiTAP SP-MULTI-TiCN |
| Part Number (MPN) | CU499300.0112 |
| Thread Size | M12 |
| Thread Pitch | 1.75 mm |
| Thread Standard | ISO Metric |
| Thread Tolerance Class | 6H |
| Chamfer Style | ISO 2 (Plug/Spiral Point, ~3-5 thread lead) |
| Tap Style | Spiral Point (Gun Tap) |
| Application Type | Through-hole |
| Coating | TiCN (Titanium Carbonitride) |
| Substrate Material | HSS-E-PM (Powdered Metal High Speed Steel) |
| Country of Origin | Germany |
| Condition | New |
| Shank Type | Square drive (ISO machine tap shank) |
