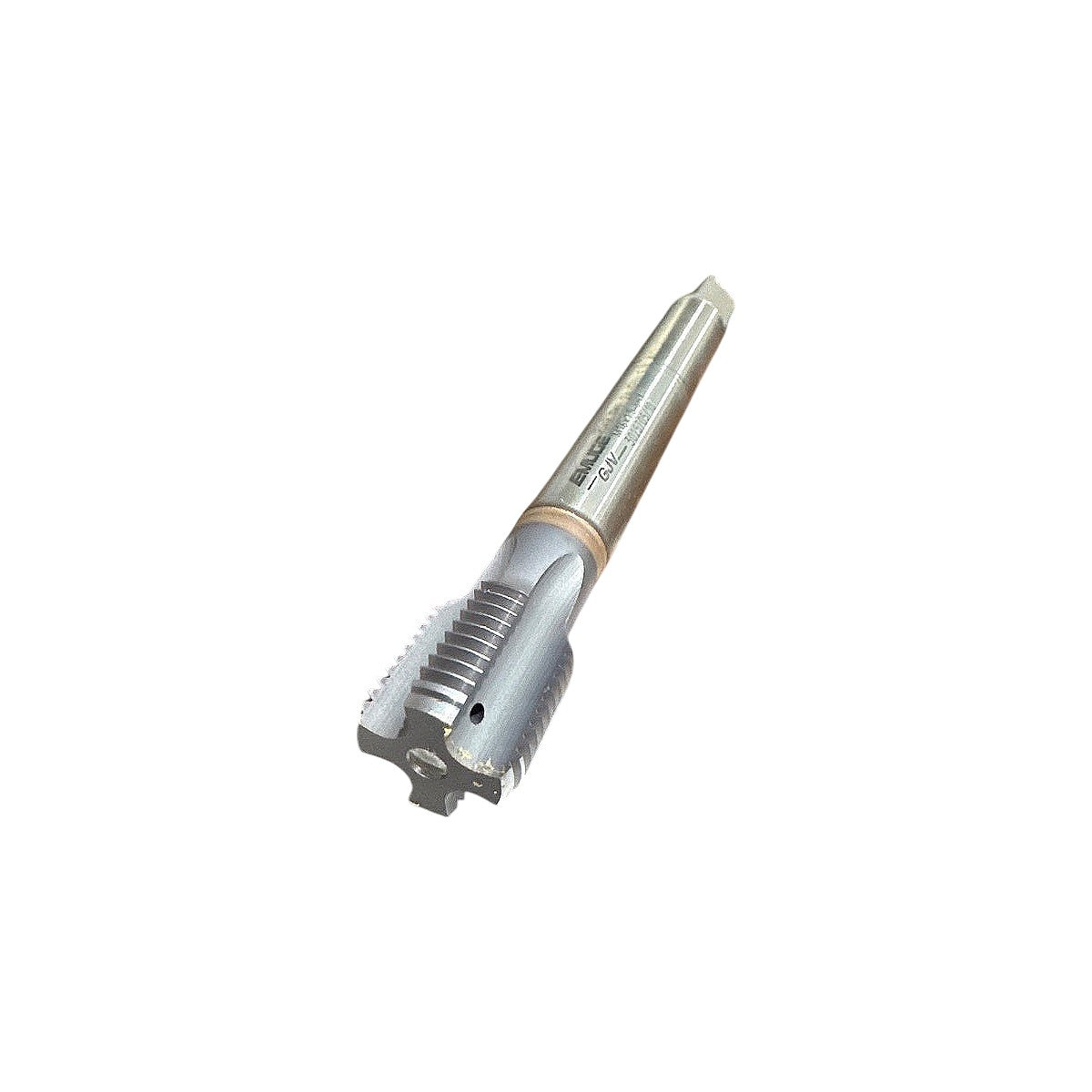

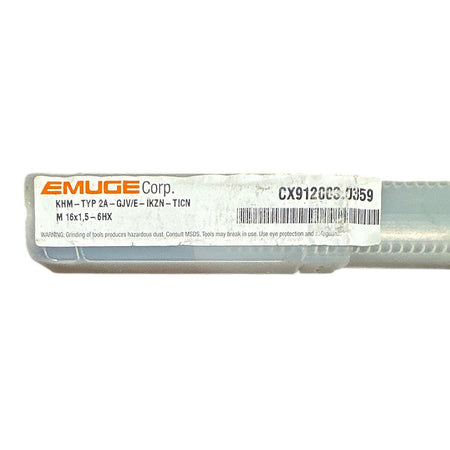

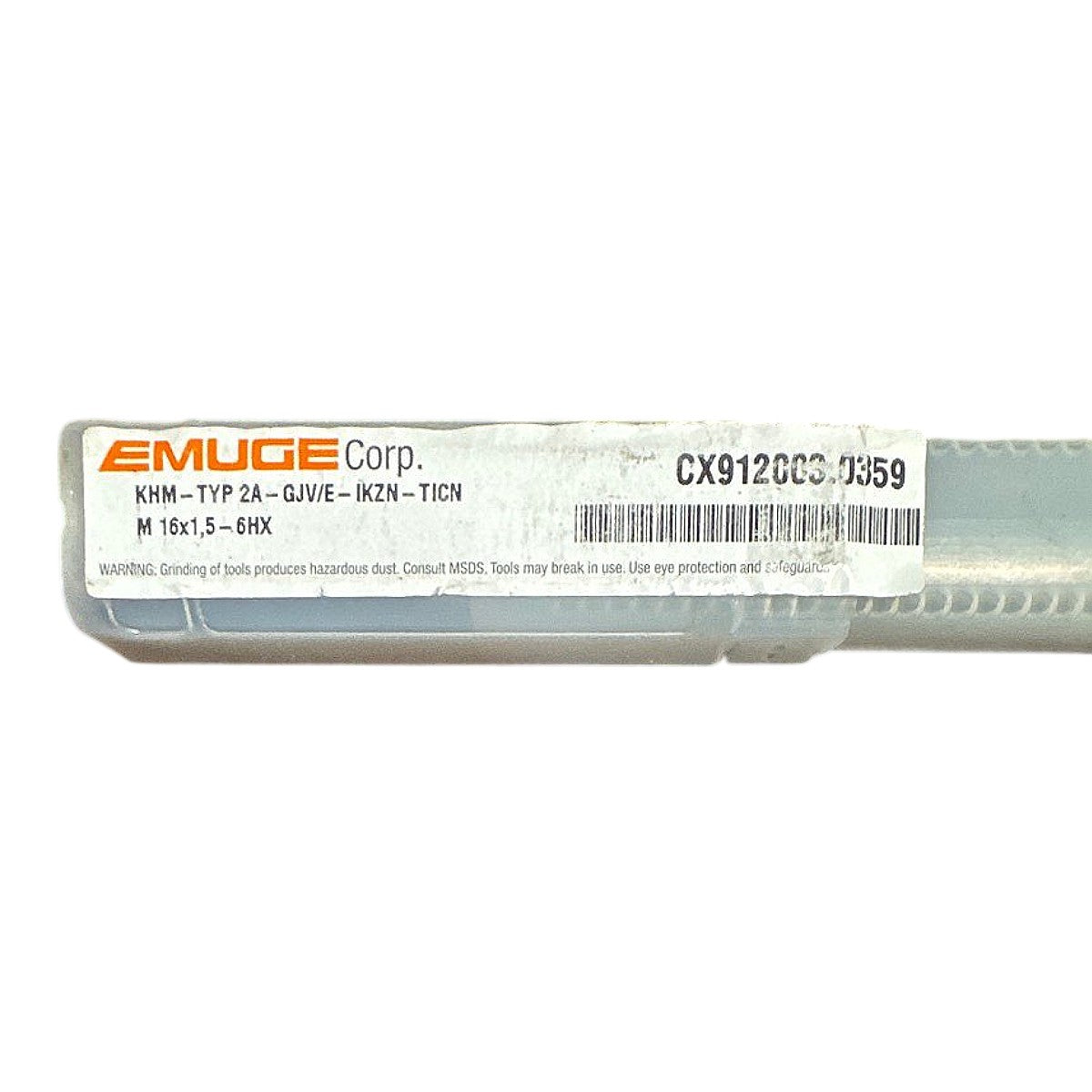

Emuge CX912003.0359 M16x1.5 6HX TiCN Spiral Flute Tap KHM
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
This is a new Emuge KHM-TYP 2A spiral flute tap, part number CX912003.0359, manufactured for cutting M16x1.5 metric fine threads to a 6HX tolerance class. The KHM designation indicates a high-performance HSS-E (cobalt-alloyed high-speed steel) tap with a GJV/E geometry featuring a spiral flute design (right-hand flute for left-hand chip evacuation in blind holes), internal coolant capability (IKZN — internal coolant through the shank), and a TiCN (Titanium Carbonitride) PVD coating that provides superior hardness and wear resistance compared to standard TiN, extending tool life in ferrous and non-ferrous materials. The GJV/E geometry is specifically engineered for tapping gray cast iron (GJV) and similar materials, and the Type 2A shank conforms to DIN 376 standards. This tap is suited for CNC machining centers with through-coolant capability and is compatible with standard tap chucks and synchro tap holders accepting the appropriate shank diameter for M16 tooling.
Product Specifications
| Brand | Emuge Corp. |
| Part Number (MPN) | CX912003.0359 |
| Thread Size | M16x1.5 |
| Thread Standard | Metric Fine (ISO) |
| Thread Tolerance | 6HX |
| Tap Type | Spiral Flute (Right-Hand Helix) |
| Series / Designation | KHM-TYP 2A-GJV/E-IKZN-TiCN |
| Shank Type | Type 2A per DIN 376 |
| Coating | TiCN (Titanium Carbonitride) PVD |
| Coolant | Internal coolant through shank (IKZN) |
| Geometry | GJV/E — optimized for cast iron |
| Hand of Cut | Right-Hand |
| Application Material | Gray cast iron (GJV), ferrous materials |
| Condition | New |
