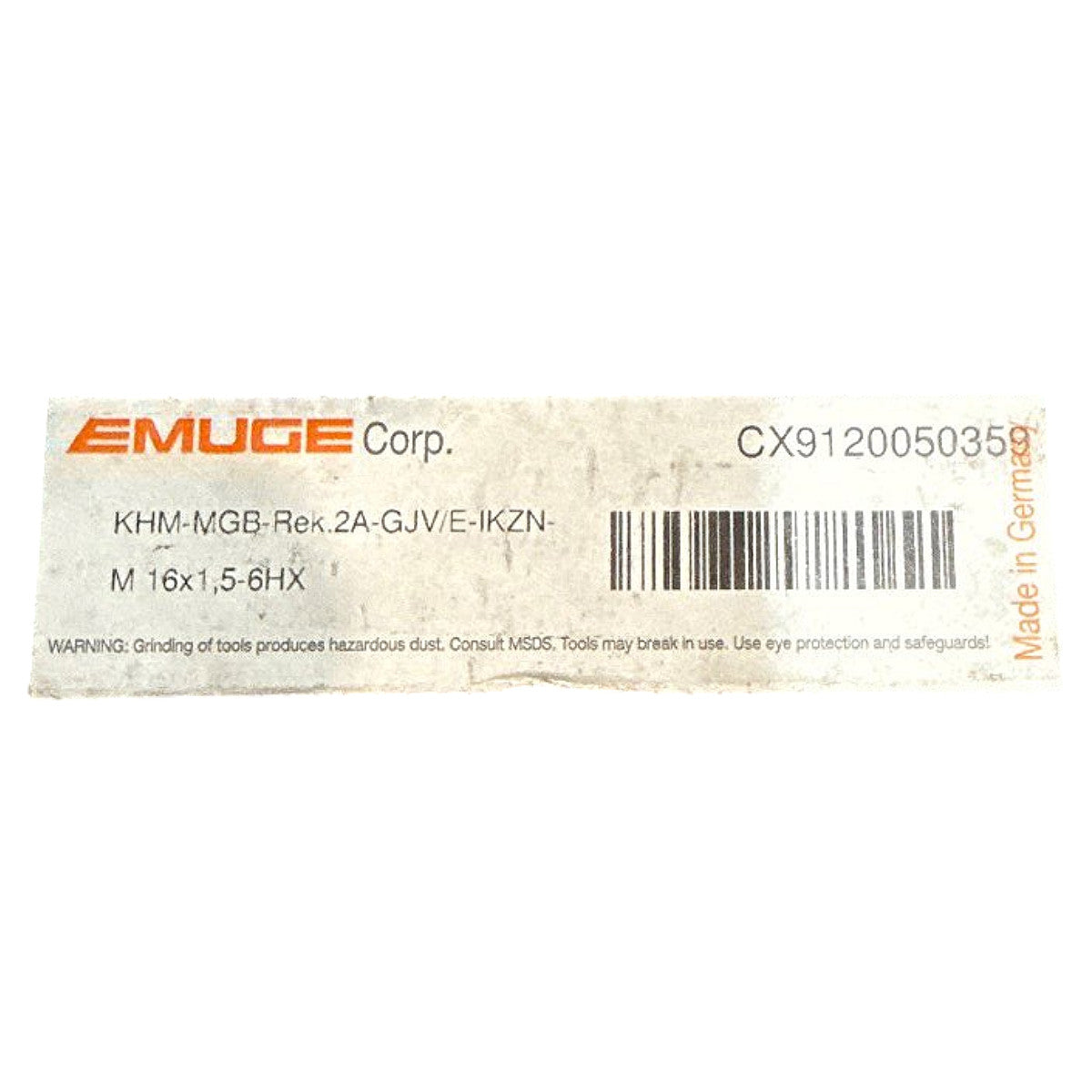

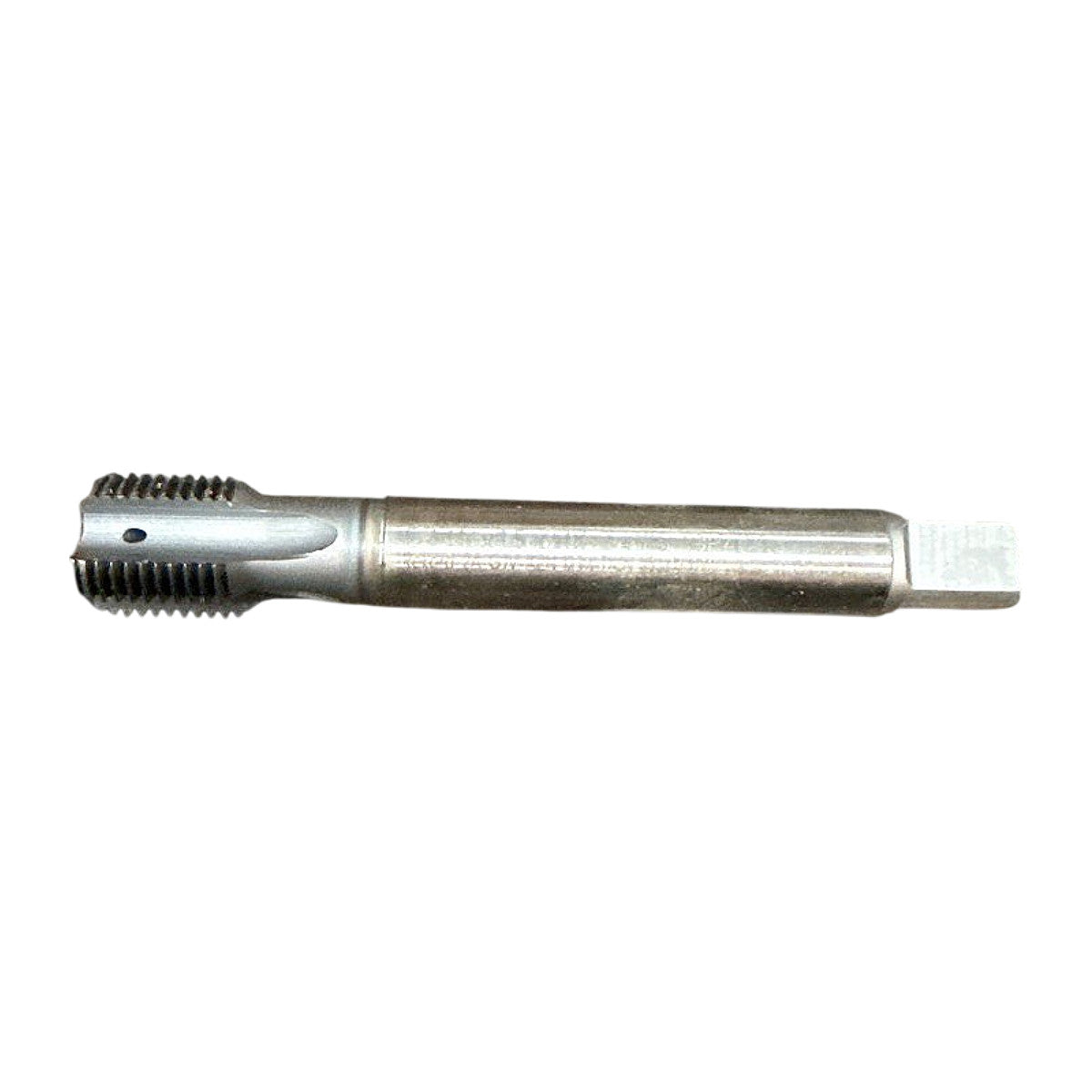

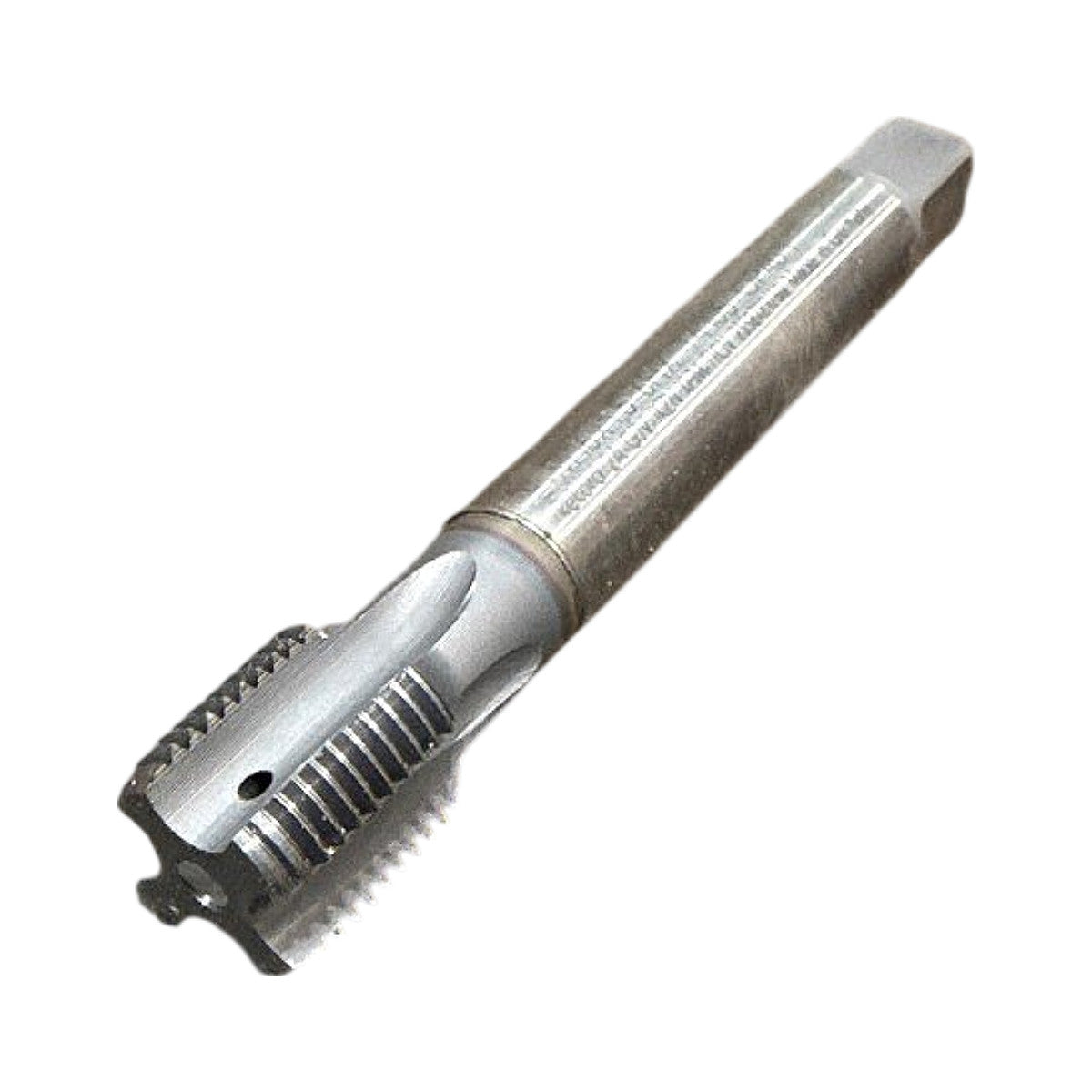

Emuge KHM-MGB-Rek.2A-GJV/E-IKZN M16x1.5-6HX HSS-E Spiral Flute Tap

This new Emuge KHM-MGB-Rek.2A-GJV/E-IKZN M16x1.5-6HX is a premium German-made HSS-E (cobalt-alloyed high-speed steel) spiral flute tap designed for through-hole tapping in difficult-to-machine materials, including grey cast iron (GJV/GG designation) and compacted graphite iron (CGI). The "KHM-MGB" designation identifies it as a machine tap from Emuge's KHM series with a MGB (Maschinengewindebohrer) shank; "Rek.2A" indicates a relieved (Rekonstituiert) cutting geometry in tolerance class 2A; the "IKZN" suffix denotes internal coolant supply capability with a zink-nickel or bright finish (uncoated bright). The M16x1.5 thread size follows ISO metric fine-pitch standards, and the 6HX tolerance class provides the tight fit required for precision threading applications; the tap features a square-drive shank for use in standard tap chucks and tension/compression holders. Made in Germany, this tap is suitable for CNC machining centers and drilling/tapping machines where coolant-through capability and chip evacuation performance are critical.

Product Specifications
