Enerpac BRP106L 10-Ton 6in Stroke Eye-End Pull Hydraulic Cylinder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

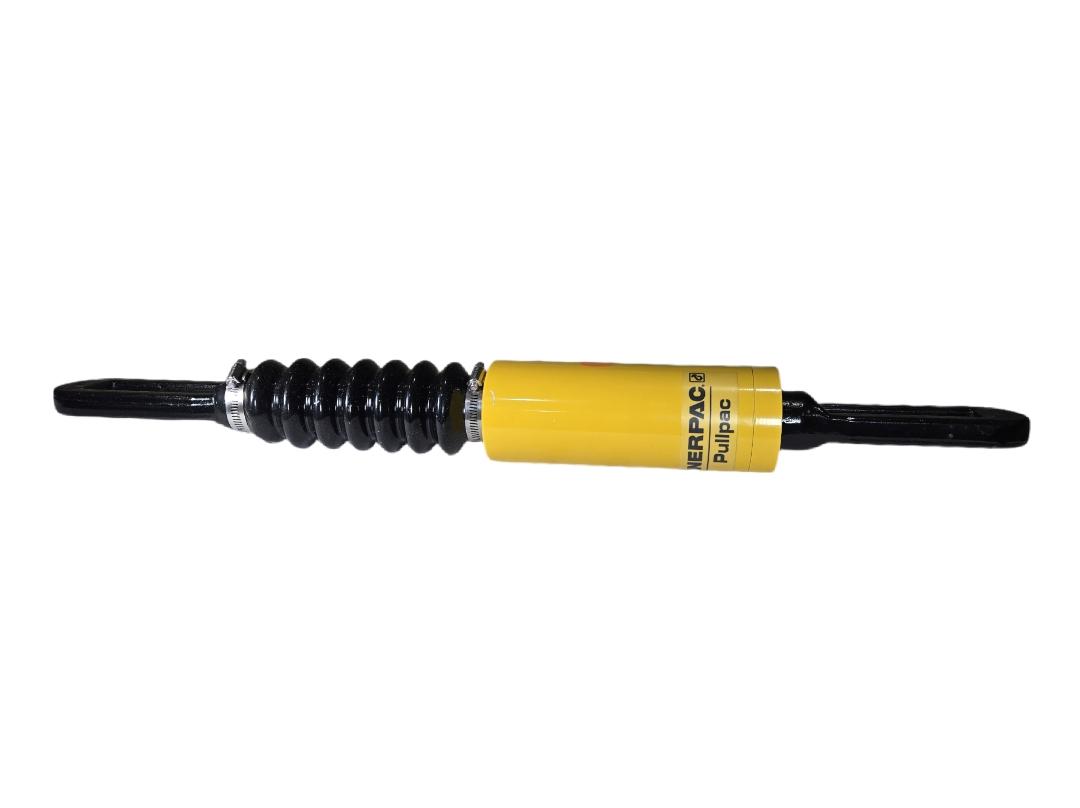

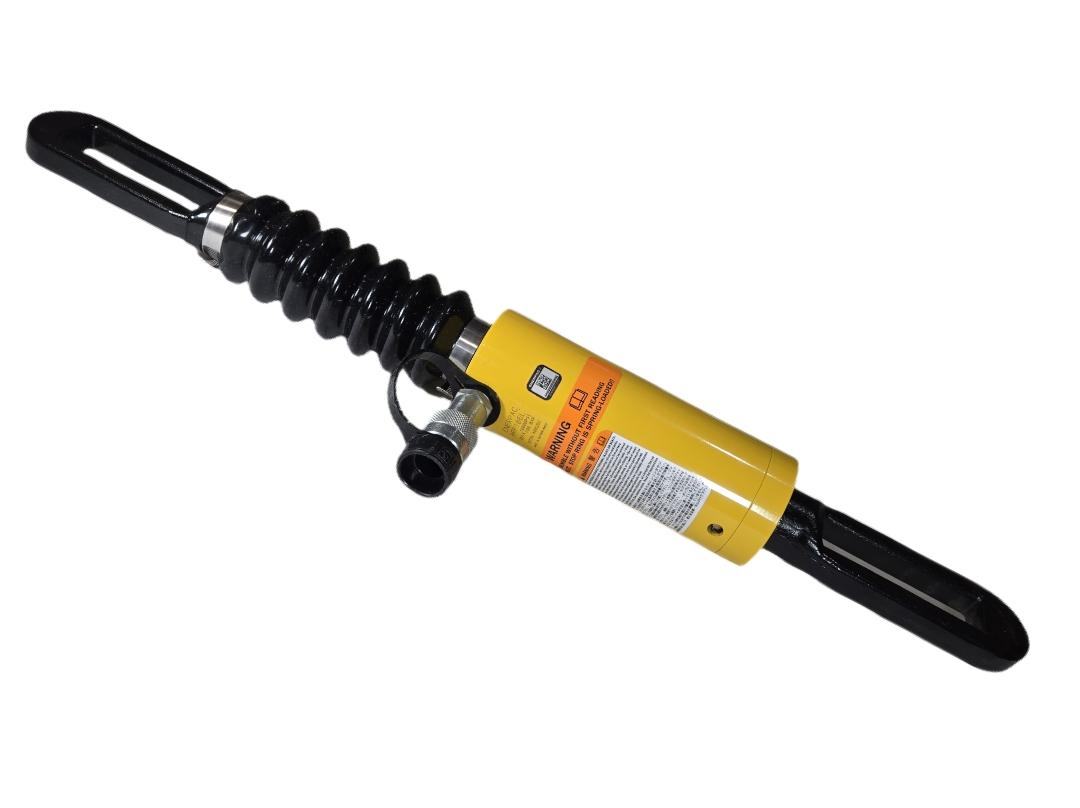

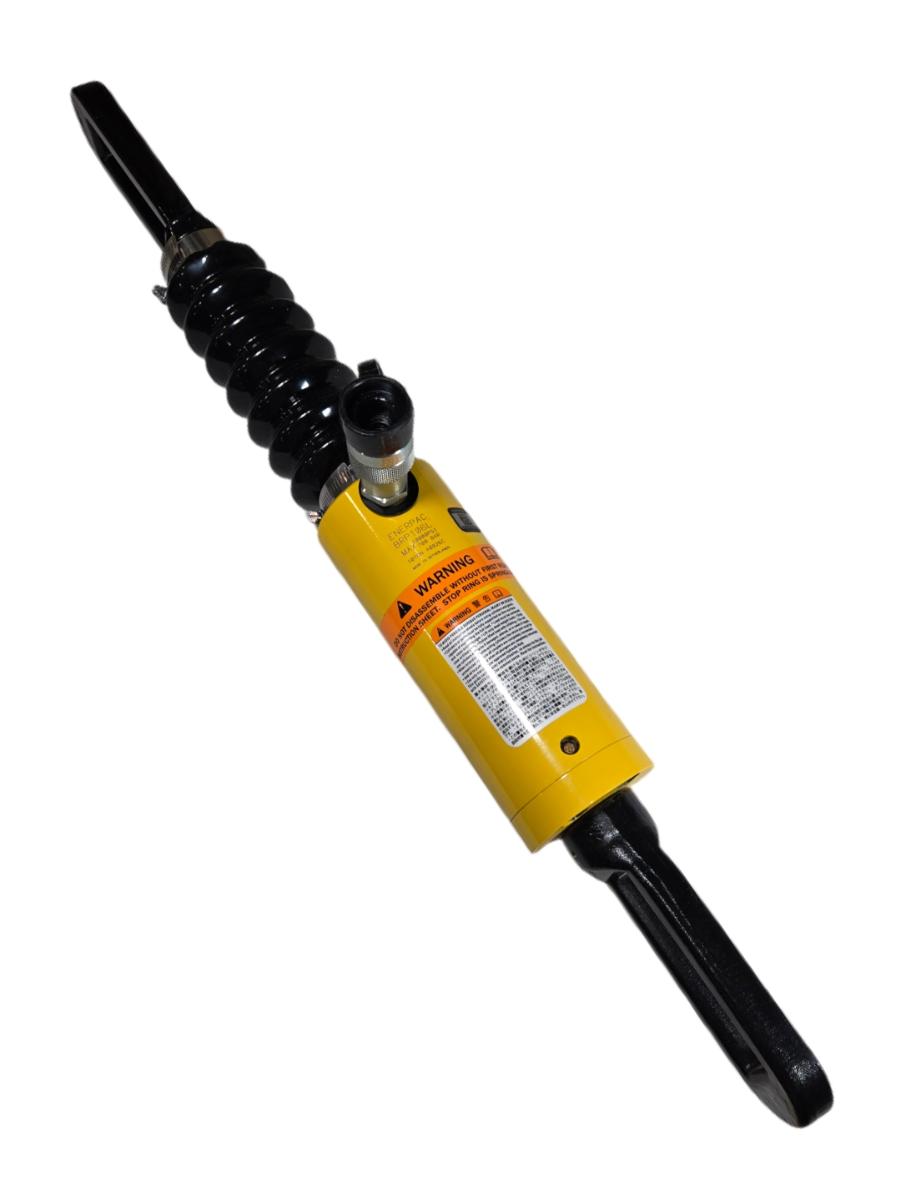

The Enerpac BRP106L is a new, single-acting hydraulic pull cylinder rated at 10 tons (89 kN) pull force with a 6-inch stroke, designed for tensile pulling applications in maintenance, construction, and industrial assembly. The cylinder features eye-end attachment points on both the piston rod end and the base, enabling inline pull forces when connected to chains, cables, or puller attachments, and is protected by a heavy-duty coil spring return mechanism that retracts the piston rod when hydraulic pressure is released. Rated for 700 bar (10,000 PSI) maximum operating pressure, it is equipped with a standard Enerpac male coupler port for connection to compatible hydraulic hand, foot, or electric pumps. The yellow-painted steel cylinder body with black powder-coated end fittings is manufactured in the Netherlands and bears the Enerpac 'Pullpac' series designation, and includes a prominent warning label cautioning against disassembly while the spring is loaded.
Product Specifications
| Brand | Enerpac |
| Model Number | BRP106L |
| Series | Pullpac BRP Series |
| Pull Force Capacity | 10 ton (89 kN) |
| Stroke | 6 in (152 mm) |
| Action Type | Single-acting, spring return |
| Force Direction | Pull (tensile) |
| Maximum Operating Pressure | 700 bar (10,000 PSI) |
| End Configuration | Eye-end both sides |
| Hydraulic Port Connection | Enerpac male coupler (standard) |
| Condition | New |
| Country of Manufacture | Netherlands |
