Enerpac PATG1102N Turbo II 10,000 PSI Air Hydraulic Foot Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

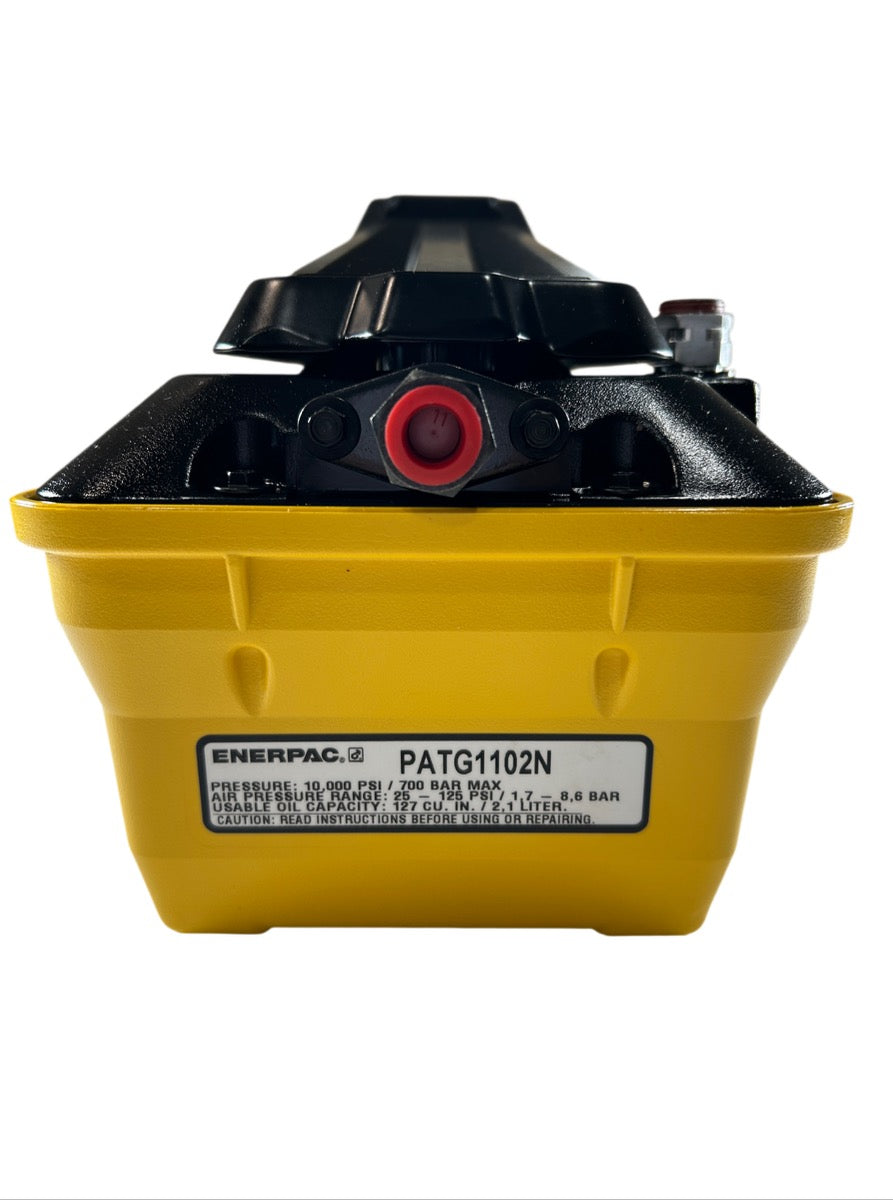

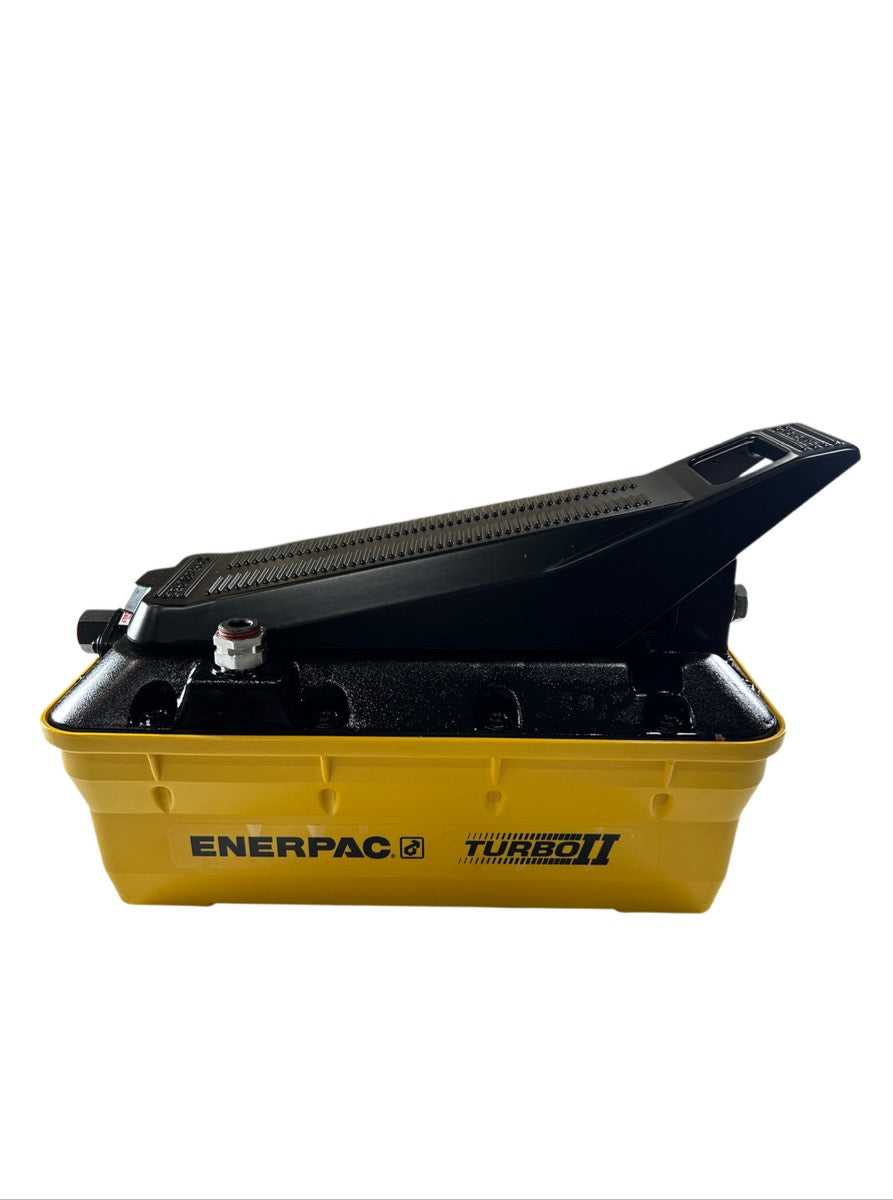

The Enerpac PATG1102N is a new, air-driven hydraulic foot pump from the Turbo II series, rated for 10,000 PSI (700 bar) maximum hydraulic output pressure with a usable oil capacity of 127 cu. in. (2.1 liters). The pump requires an air supply in the 25–125 PSI (1.7–8.6 bar) range and uses a two-speed pumping action: the Turbo II design delivers high oil volume at low pressure for rapid cylinder advance, then automatically shifts to high-pressure output as load resistance increases, reducing operator fatigue significantly. The yellow polyethylene reservoir is paired with a cast-iron pump head and a textured non-slip foot pedal; a manual release valve (red button visible on end) allows controlled retraction of single-acting cylinders. Made in the USA, the PATG1102N is compatible with Enerpac single-acting hydraulic cylinders, pullers, presses, and any 10,000 PSI rated tooling equipped with standard 3/8 in. NPT hydraulic couplers.
Product Specifications
| Brand | Enerpac |
| MPN | PATG1102N |
| Series | Turbo II |
| Pump Type | Air-Driven Hydraulic Foot Pump |
| Max Hydraulic Pressure | 10,000 PSI / 700 bar |
| Air Pressure Range | 25–125 PSI / 1.7–8.6 bar |
| Usable Oil Capacity | 127 cu. in. / 2.1 L |
| Pump Action | Two-speed (high volume / high pressure) |
| Cylinder Compatibility | Single-acting hydraulic cylinders |
| Country of Origin | USA |
| Condition | New |
| Reservoir Material | Polyethylene |
| Pump Head Material | Cast iron |
