Enerpac RC506 50-Ton 6" Stroke Single-Acting Hydraulic Cylinder

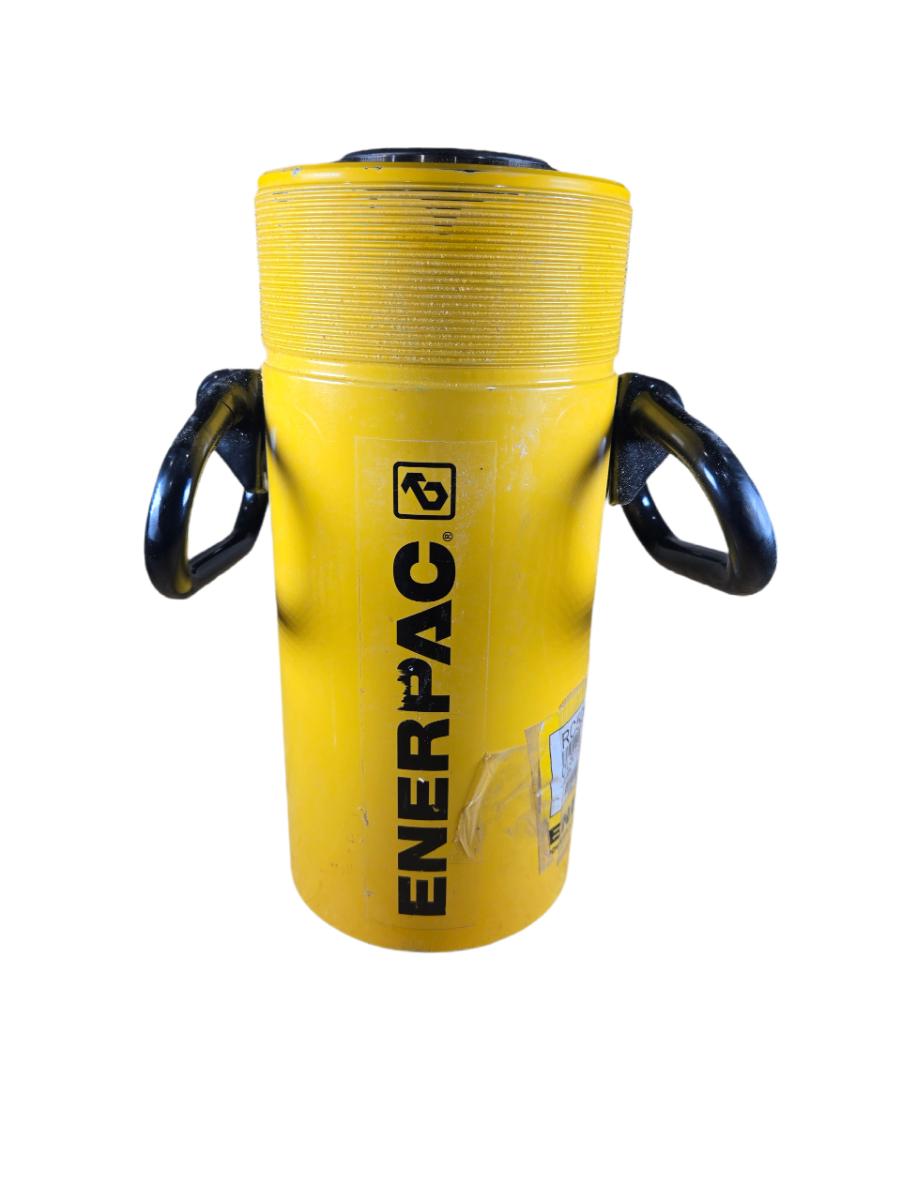

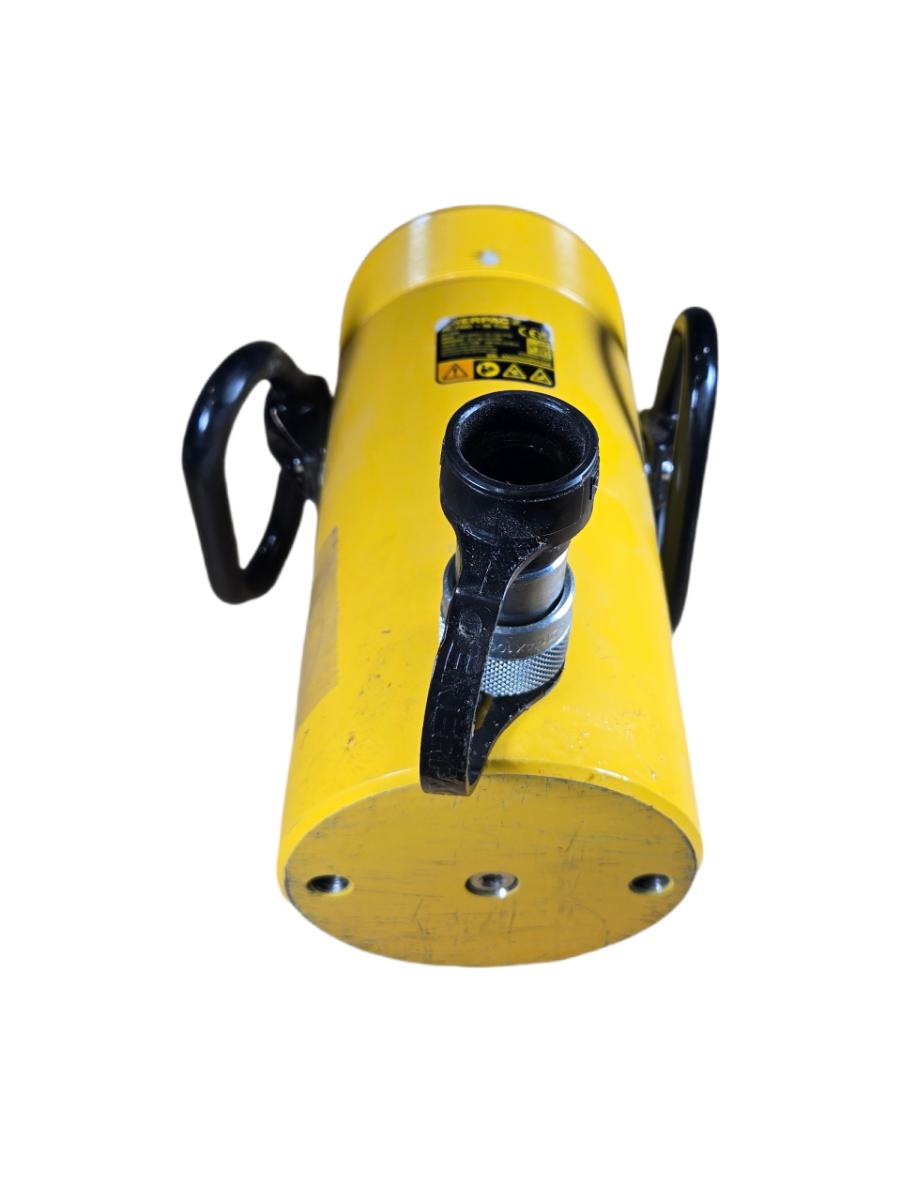

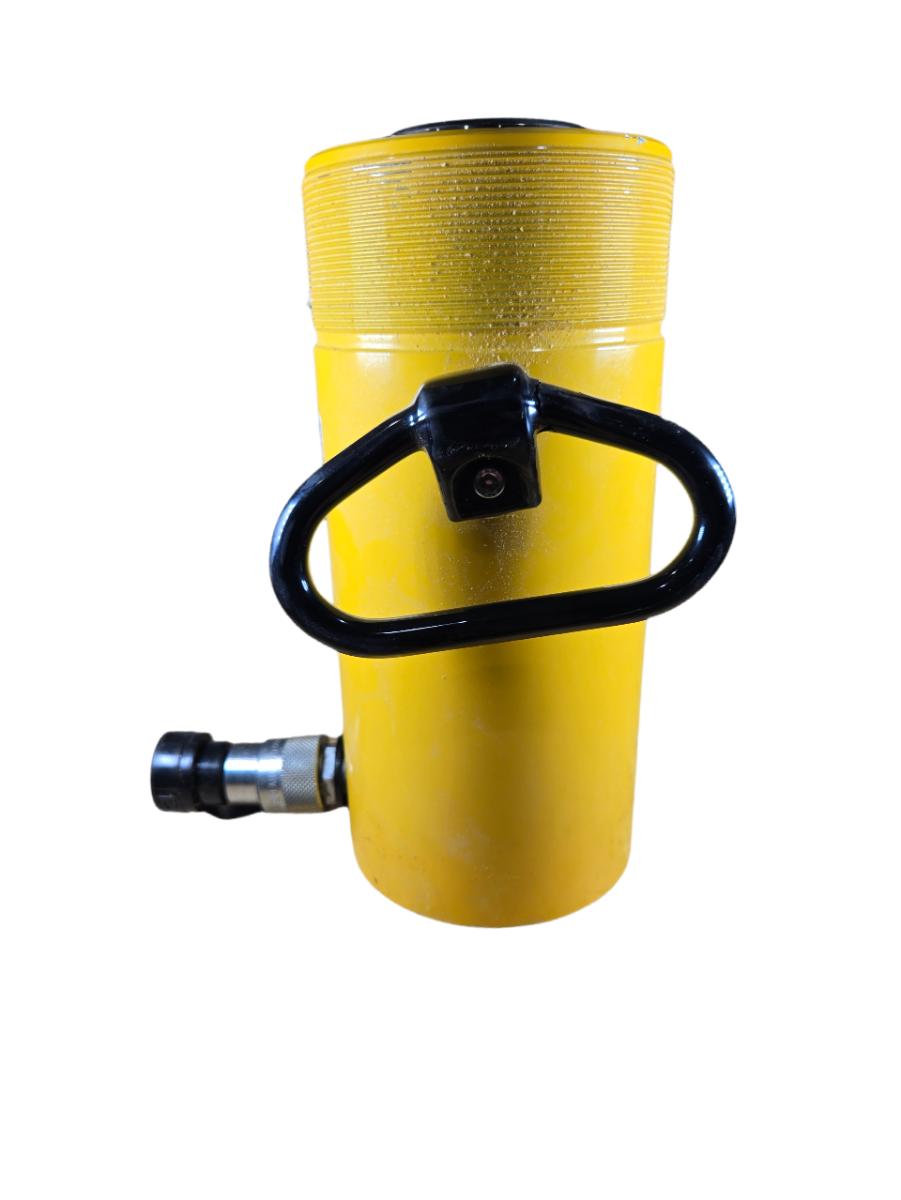

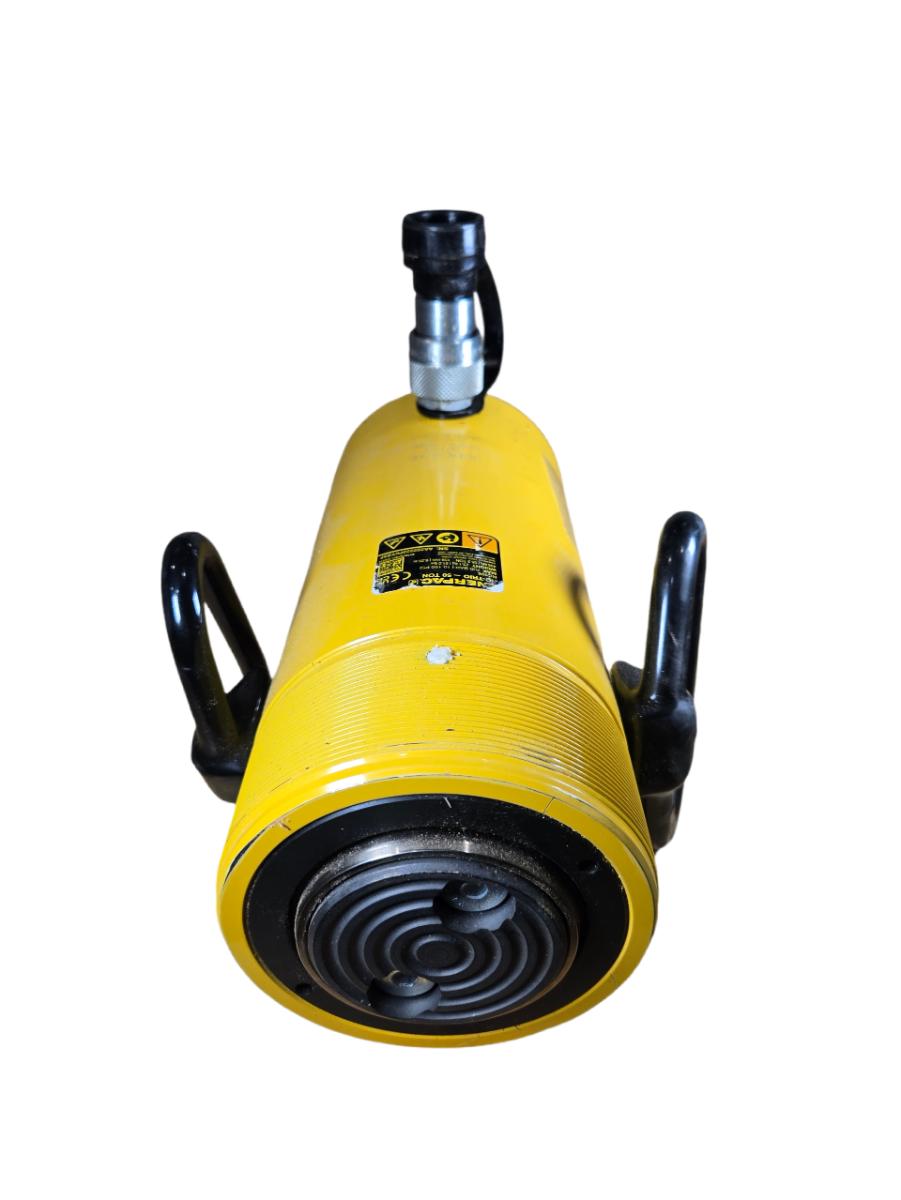

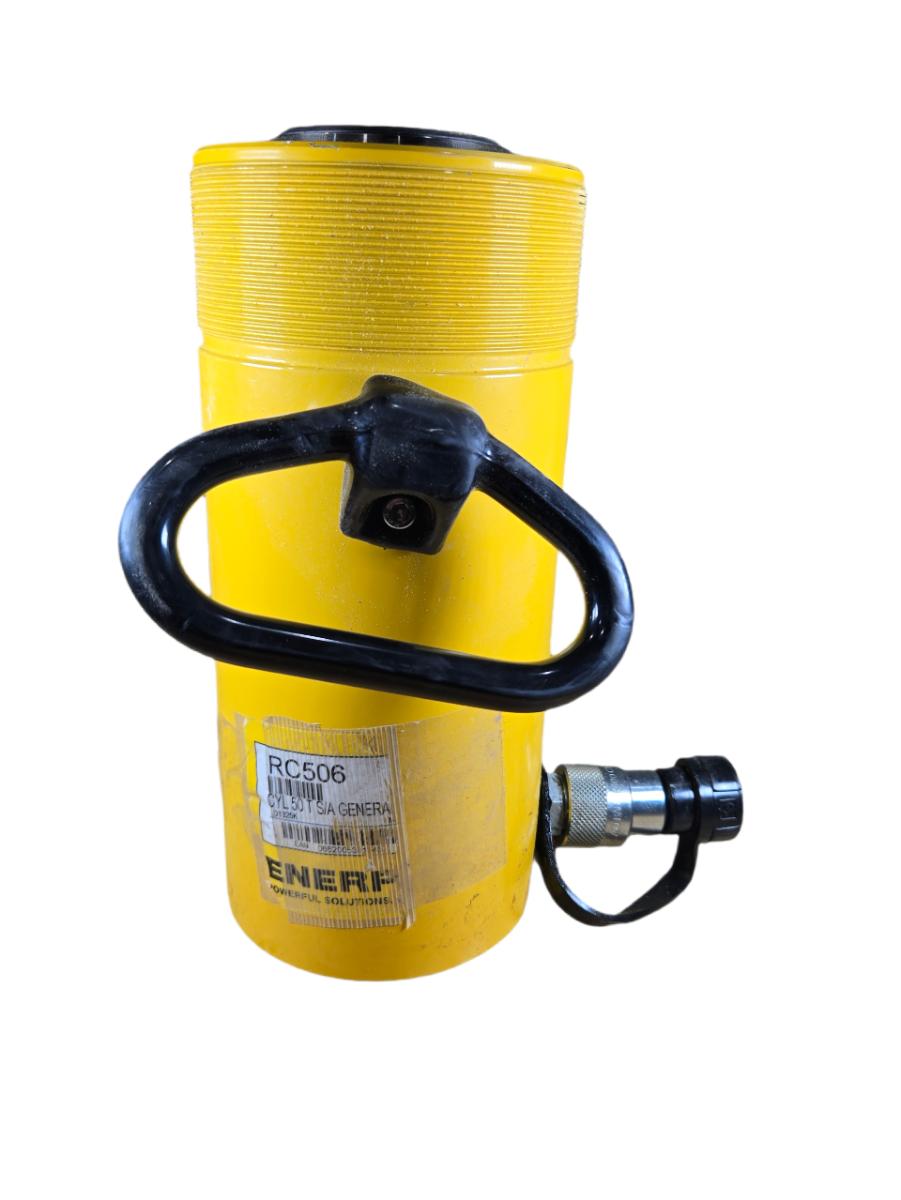

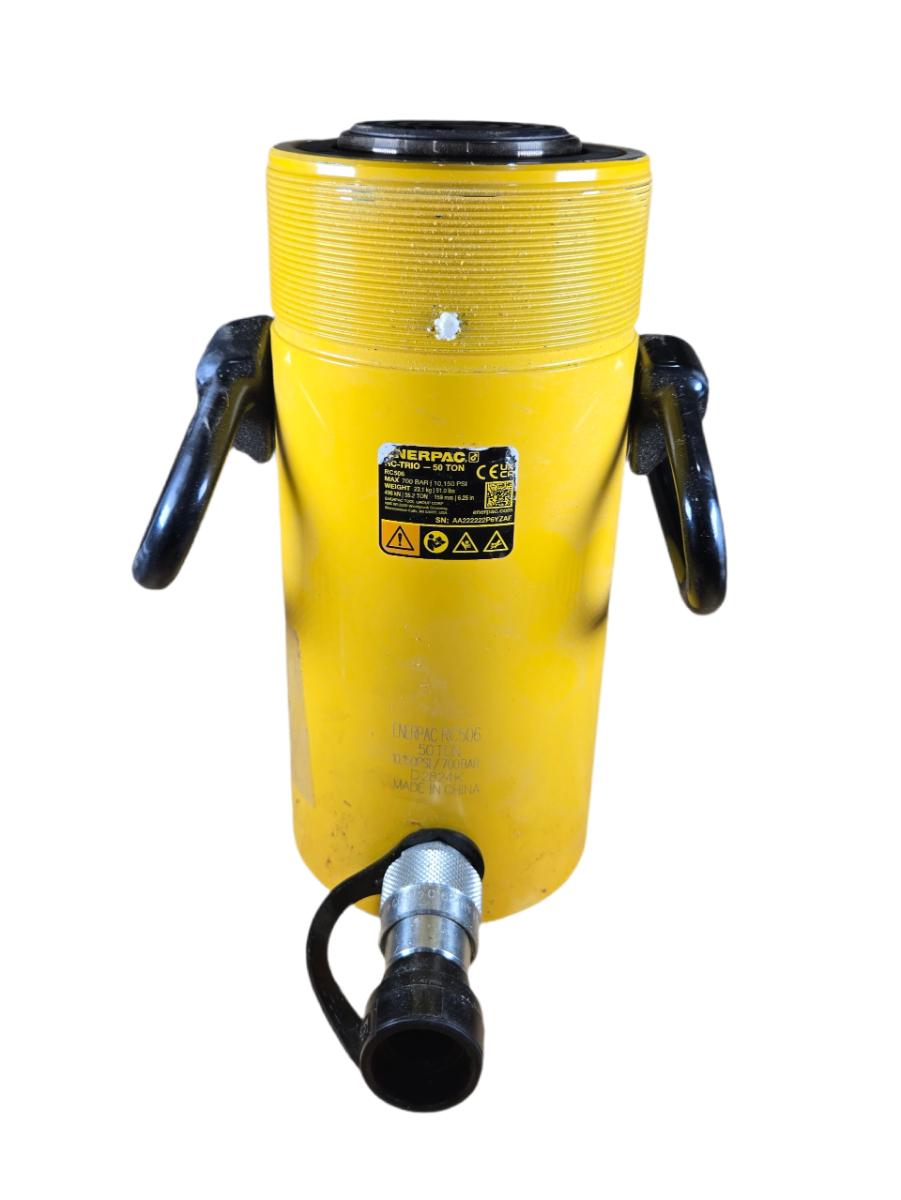

The Enerpac RC506 is a new single-acting, spring-return general purpose hydraulic cylinder rated at 50 tons (444.8 kN) capacity with a 6-inch (152 mm) stroke, operating at a maximum working pressure of 700 bar (10,153 PSI). Part of Enerpac's RC-Series, the cylinder features a high-strength steel body with a precision-honed bore, a built-in spring return mechanism for automatic ram retraction, a hardened bearing saddle, and a baked enamel finish for corrosion resistance. The unit is equipped with three integrated lift handles for safe positioning and maneuvering, a flat base with three threaded mounting holes for secure fixture, and a 3/8" NPTF hydraulic port with a coupled dust cap and safety-locking male coupler. Compatible with all Enerpac P-series hand pumps, ZU4 series air-driven pumps, and other hydraulic power units operating at 700 bar, this cylinder is suited for structural lifting, pressing, maintenance jacking, and industrial alignment applications requiring controlled, high-force linear actuation.

Product Specifications
