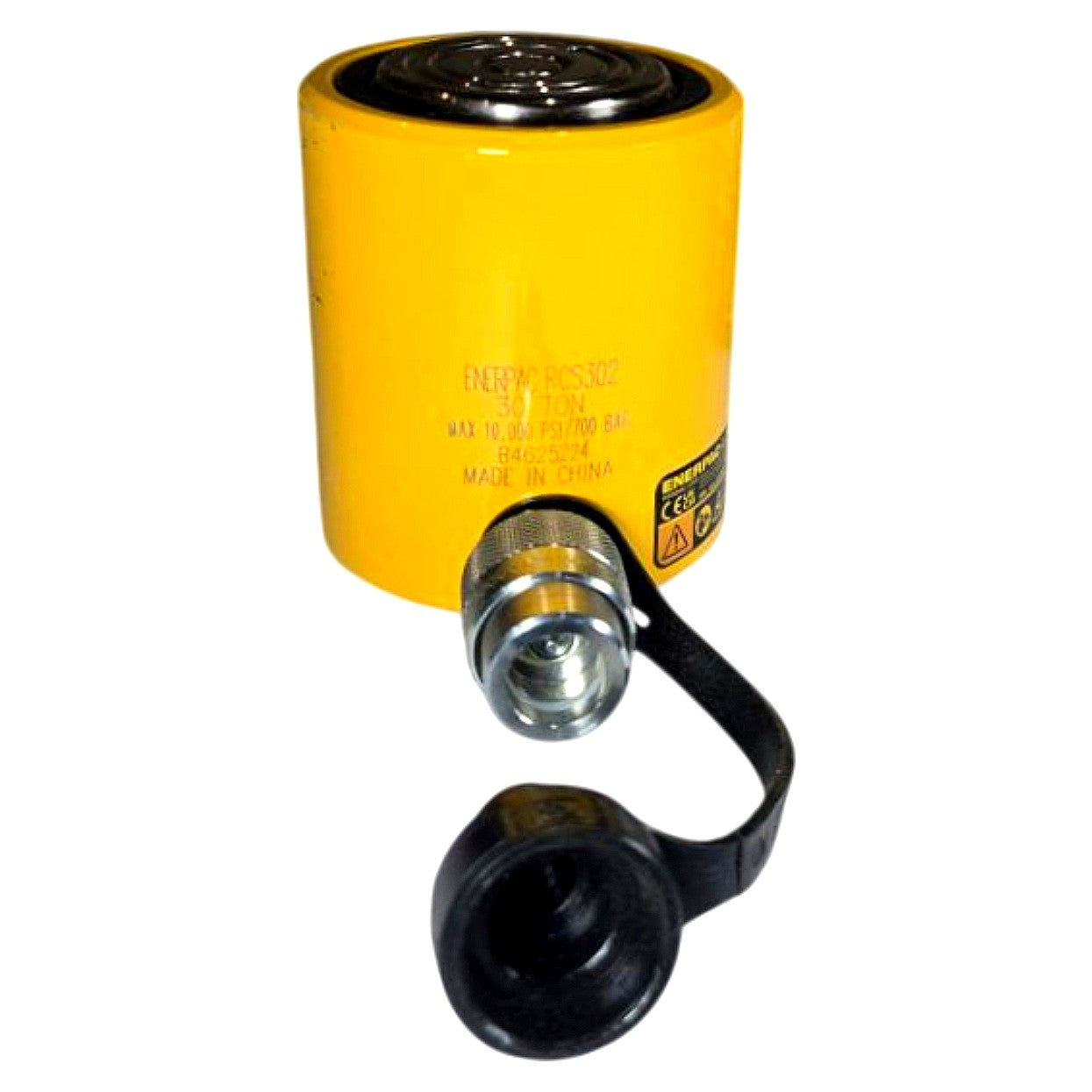

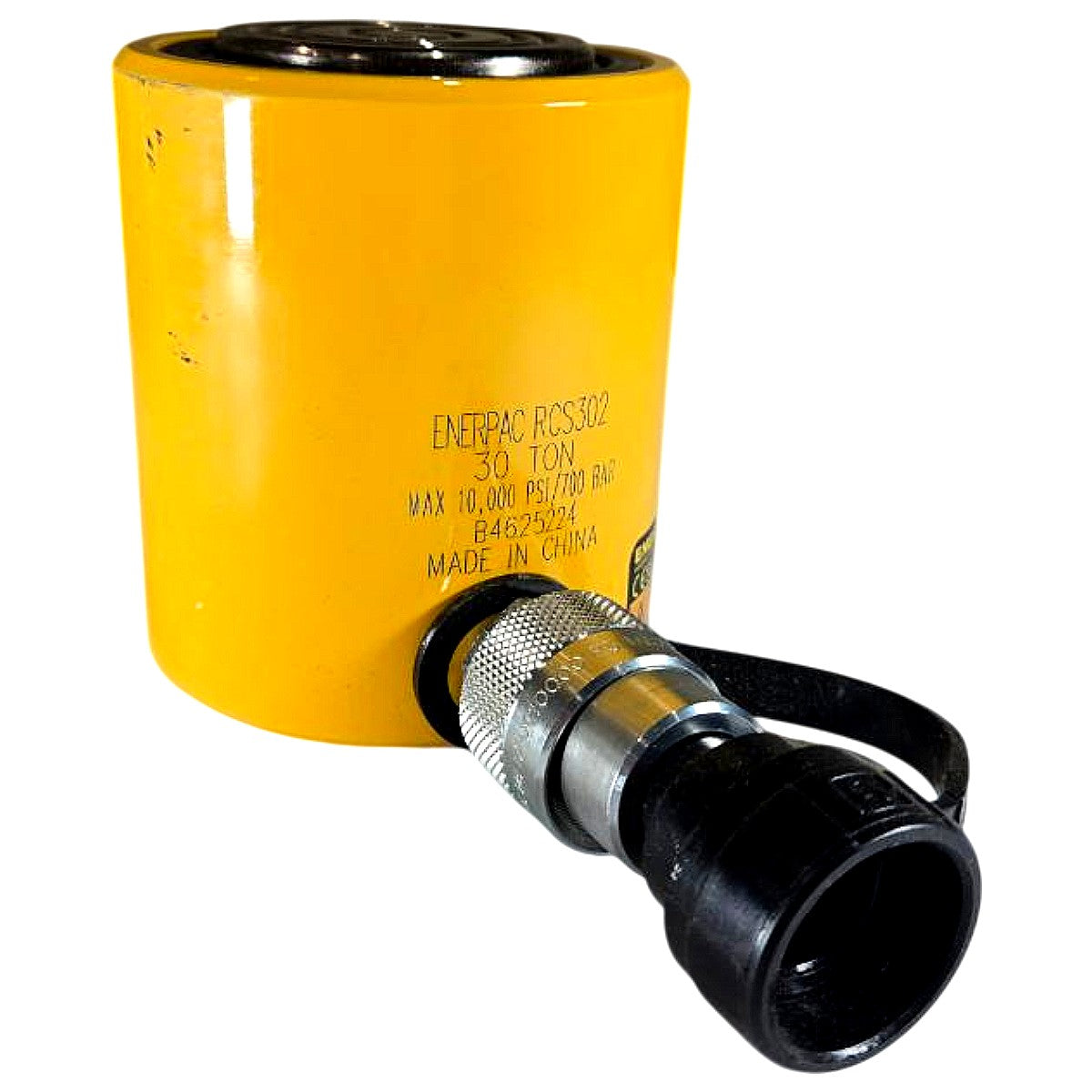

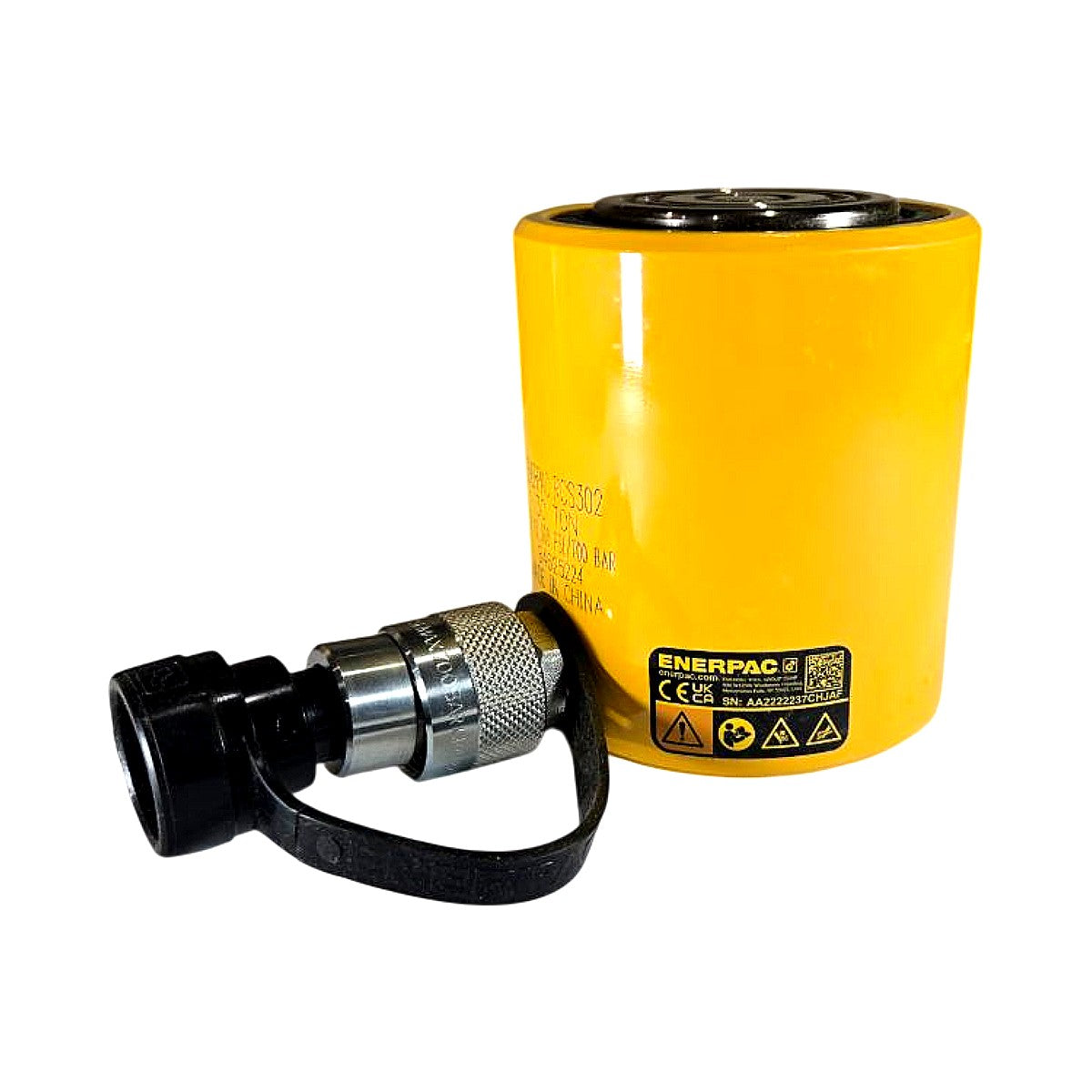

The Enerpac RCS302 is a new single-acting, spring-return, low-height (pancake-style) hydraulic cylinder rated at 30 US tons (267 kN) capacity with a 2-inch (51 mm) stroke and a maximum operating pressure of 10,000 PSI (700 bar). The RCS Series decodes as follows: R = round body, C = single-acting/spring return, S = low height, 30 = 30-ton capacity, 2 = 2-inch stroke. The cylinder features a baked-enamel yellow steel body with a hardened, chrome-plated piston, integral stop ring to prevent over-travel, and a leakproof design compatible with Enerpac hydraulic oil; the female coupler port accepts a standard 3/8 in-18 NPT or Enerpac quick-connect fitting (dust cap and coupler tethered to the body as shown). Typical applications include confined-space structural lifting, bridge jacking, press work, and synchronous lifting systems where low collapsed height is critical; the cylinder is compatible with all Enerpac P-Series hand pumps and ZU4-Series electric pump units operating at 10,000 PSI.
Product Specifications
| Brand | Enerpac |
| Model / MPN | RCS302 |
| Series | RCS (Round, Single-Acting, Low-Height) |
| Capacity | 30 ton (267 kN) |
| Stroke | 2 in (51 mm) |
| Max Operating Pressure | 10,000 PSI / 700 bar |
| Action Type | Single-acting, spring return |
| Body Style | Low-height (pancake) |
| Effective Area | 6.00 in² (38.7 cm²) |
| Oil Capacity | 12.1 in³ (198 cm³) |
| Collapsed Height | 4.13 in (105 mm) |
| Extended Height | 6.13 in (156 mm) |
| Outside Diameter | 4.84 in (123 mm) |
| Port Thread Size | 3/8 in NPTF |
| Body Material | Steel, baked-enamel yellow finish |
| Piston Treatment | Chrome-plated, hardened steel |
| Country of Origin | China |
| Condition | New |
