Enerpac RCS502 50-Ton 2in Stroke Single-Acting Low Height Hydraulic Cylinder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

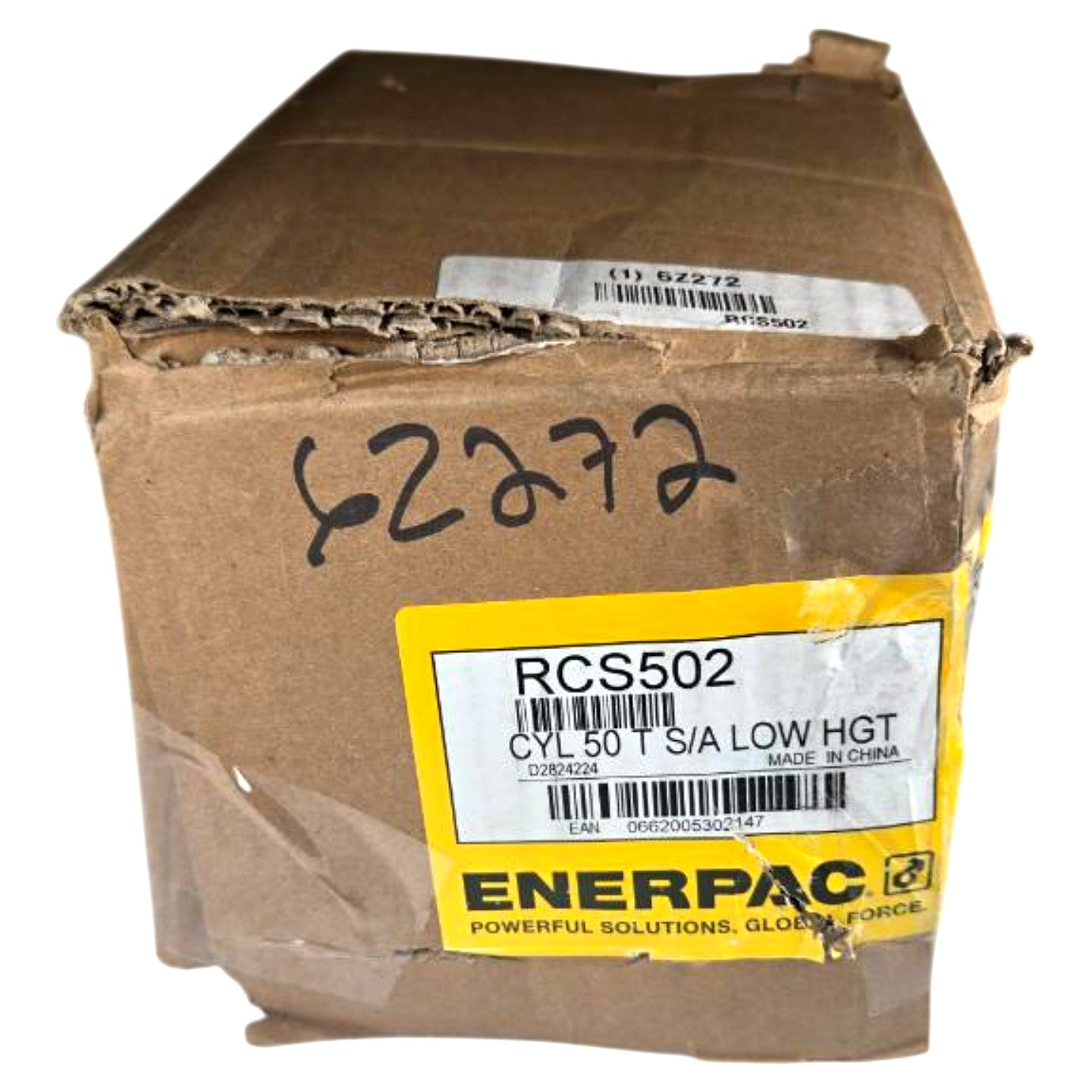

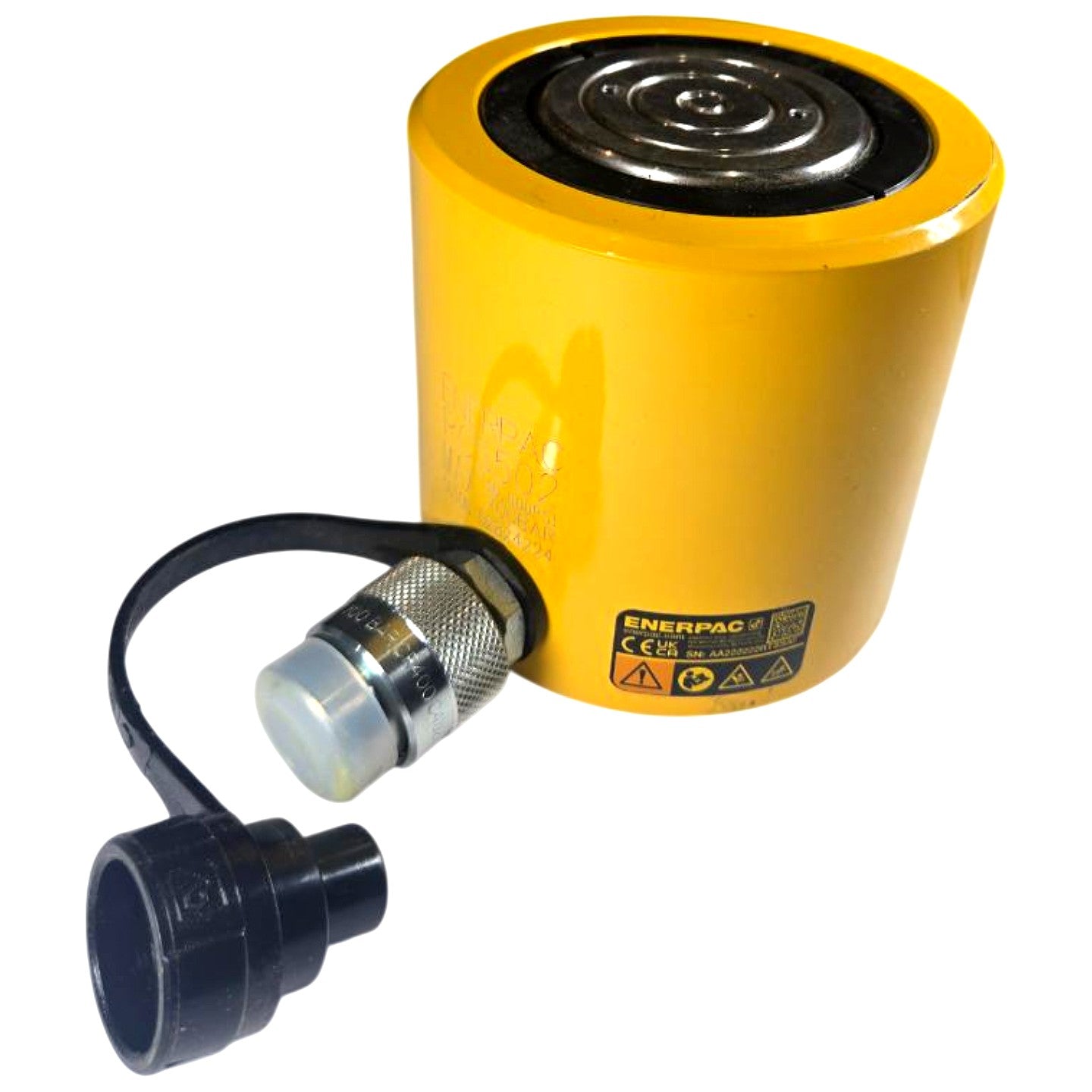

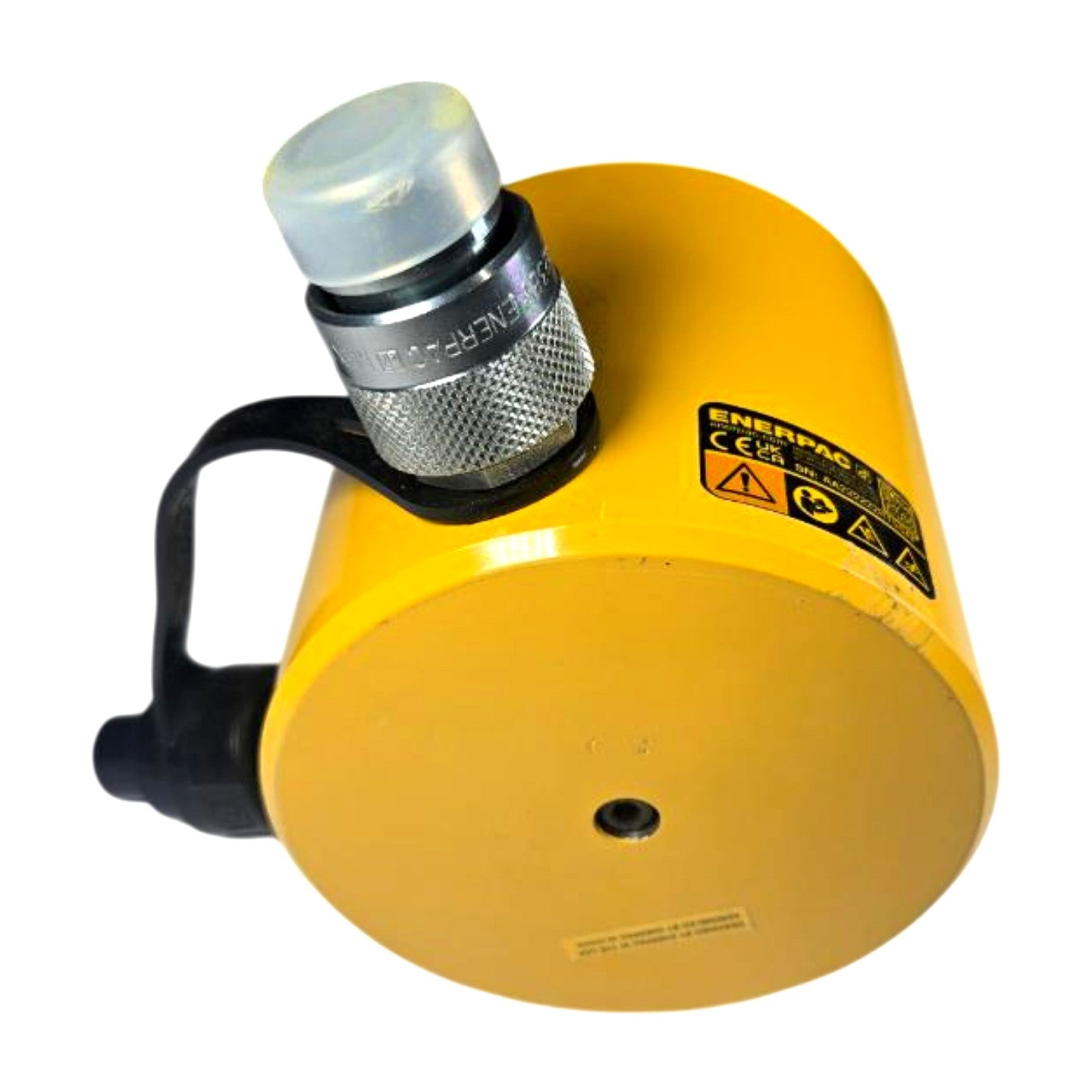

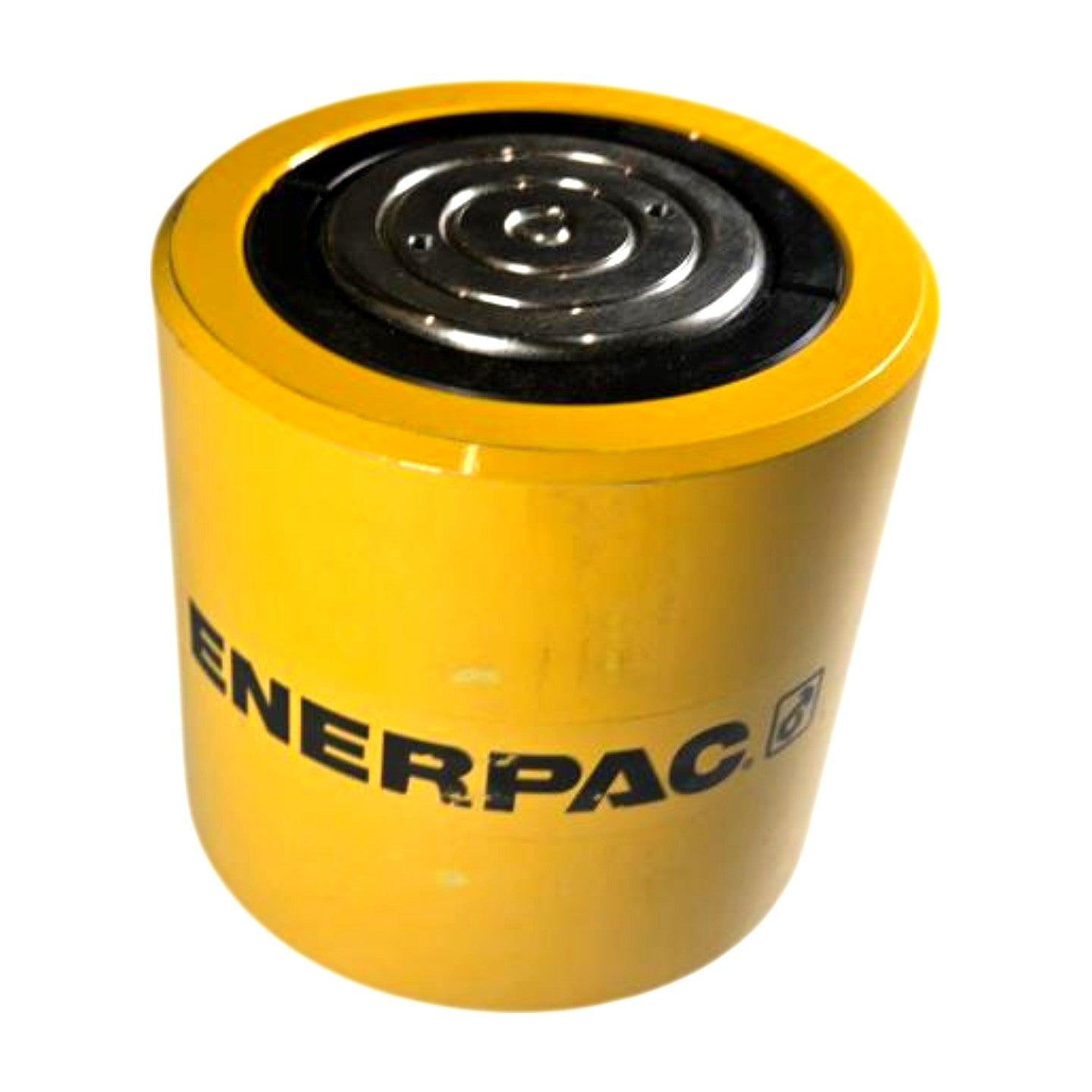

The Enerpac RCS502 is a new, single-acting, spring-return low-height hydraulic cylinder rated for 50 tons (445 kN) of force at 10,000 PSI (700 bar) maximum working pressure, with a 2-inch nominal stroke. The RCS (Round, Cylinder, Short) series is constructed from high-strength alloy steel with a hardened steel plunger and Enerpac's standard yellow enamel finish; the low-profile pancake design is engineered for confined-space lifting, pressing, and maintenance applications where vertical clearance is restricted. The cylinder ships with Enerpac's standard male quick-disconnect coupler (visible in photos) and a protective dust cap, and is compatible with Enerpac P-series hand pumps and W-series electric pumps that deliver 10,000 PSI hydraulic output. Return stroke is spring-actuated, requiring no return-line hydraulic connection. The box label confirms part number RCS502, description 'CYL 50 T S/A LOW HGT', EAN 0662005302147.
Product Specifications
| Brand | Enerpac |
| Part Number (MPN) | RCS502 |
| Cylinder Series | RCS (Round, Short/Low Height) |
| Action Type | Single-Acting, Spring Return |
| Nominal Capacity | 50 ton (445 kN) |
| Nominal Stroke | 2 in (51 mm) |
| Maximum Operating Pressure | 10,000 PSI (700 bar) |
| Cylinder Style | Low Height / Pancake |
| Body Material | Alloy Steel |
| Finish | Yellow Enamel |
| Hydraulic Fluid Port | Male quick-disconnect coupler included |
| Condition | New |
| EAN | 0662005302147 |
| Country of Origin | China |
| Standards / Certifications | CE, UKCA marked |
