Enerpac SCH302H 30 Ton 2in Stroke Hand Pump & Hollow Cylinder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

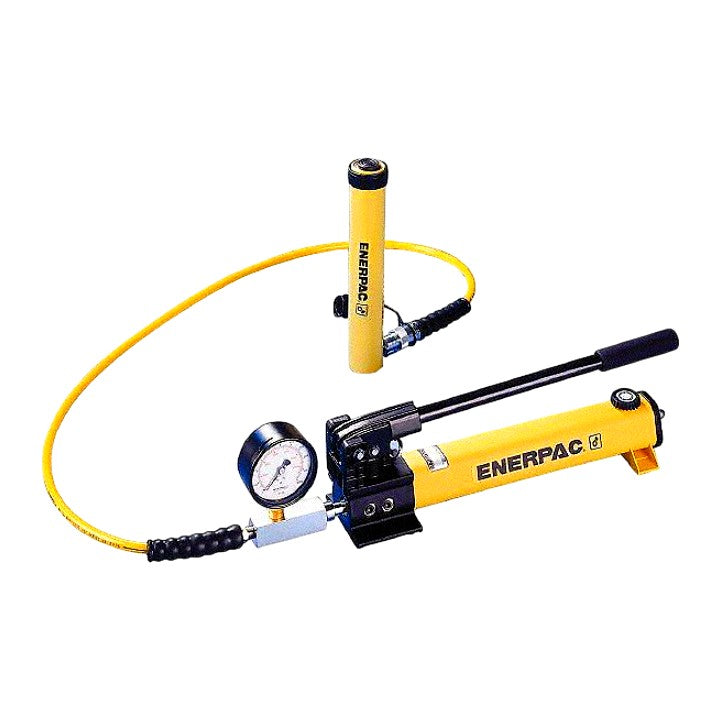

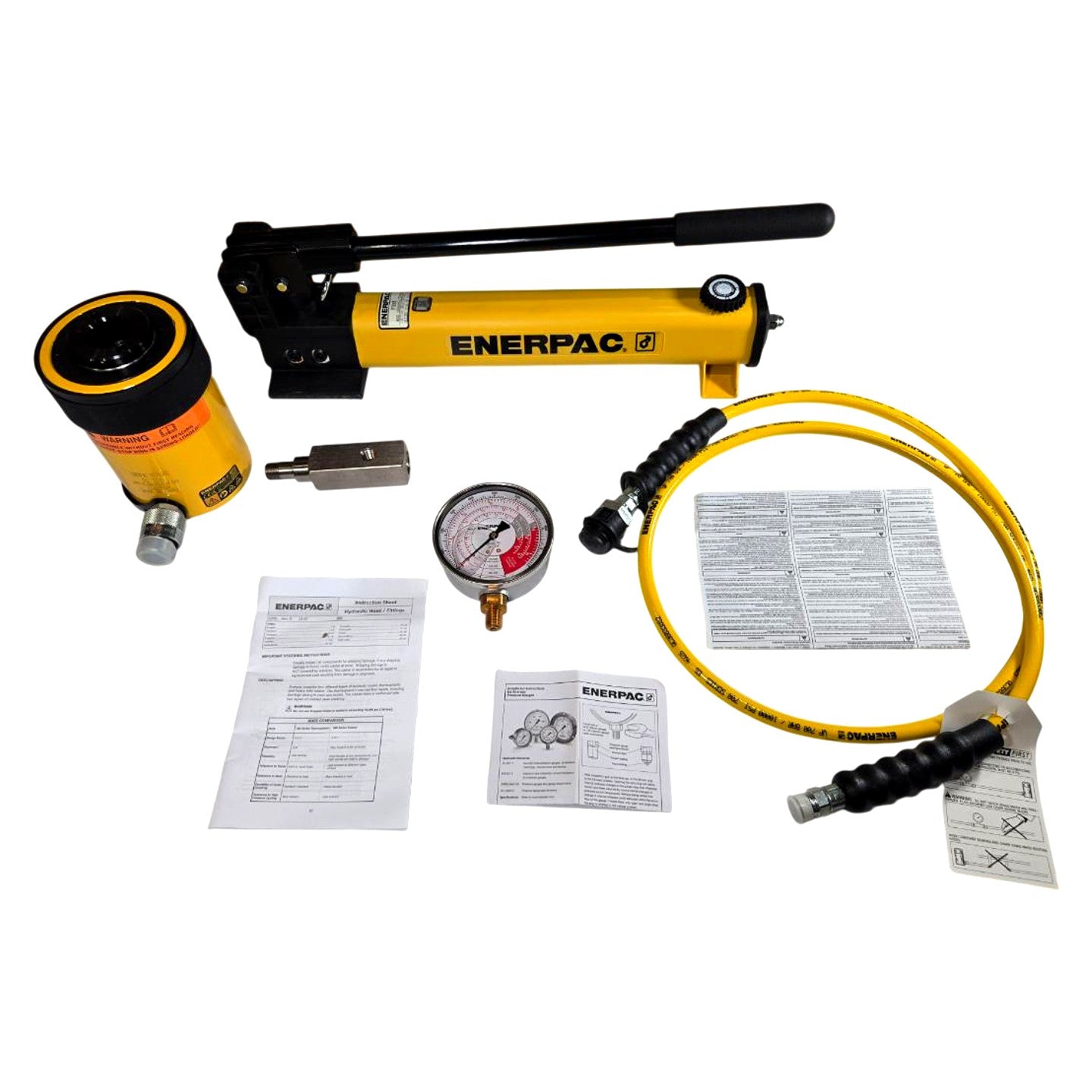

The Enerpac SCH302H is a new, factory-complete hydraulic hand pump and hollow-ram cylinder set consisting of the RCH-302 single-acting hollow-plunger cylinder and the P-392 single-speed hand pump, connected via a yellow 6 ft high-pressure hose and supplied with a glycerin-filled pressure gauge, coupler/dust caps, and full documentation as visible in the photos. The RCH-302 cylinder delivers 30 ton (267 kN) capacity at 10,000 PSI (700 bar) working pressure with a 2.00 in (50.8 mm) stroke and a through-hole bore that allows the set to be used for tension applications, cable pulling, post-tensioning, and mechanical assembly/disassembly work where a center passage is required. The P-392 pump features a single-speed pumping action with a built-in overload valve preset to 10,000 PSI, a steel reservoir, and Enerpac's standard 3/8 in NPTF outlet coupling, compatible with all 10,000 PSI Enerpac hydraulic equipment in the RC, RCH, and RCS cylinder families. The box label visible in the photos confirms part number SCH302H shipped via MSC from Enerpac; the set is unused and new-in-box, originally ordered for a U.S. Marine Air Station per the shipping documentation.
Product Specifications
| Part Number | SCH302H |
| Cylinder Model | RCH-302 |
| Pump Model | P-392 |
| Cylinder Type | Single-Acting Hollow-Plunger |
| Capacity | 30 ton (267 kN) |
| Stroke | 2.00 in (50.8 mm) |
| Working Pressure | 10,000 PSI (700 bar) |
| Pump Type | Single-Speed Hand Pump |
| Pump Overload Valve Setting | 10,000 PSI |
| Hose Length | 6 ft (1.8 m) |
| Hose Color | Yellow |
| Coupler Standard | 3/8 in NPTF, Enerpac standard |
| Cylinder Return | Spring (single-acting) |
| Gauge Included | Yes, glycerin-filled |
| Brand | Enerpac |
| Condition | New |
| Set Contents | Cylinder, pump, hose, gauge, coupler, docs |
