Everede CHM-1.000-30 1in Shank 30° Indexable Chamfer End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

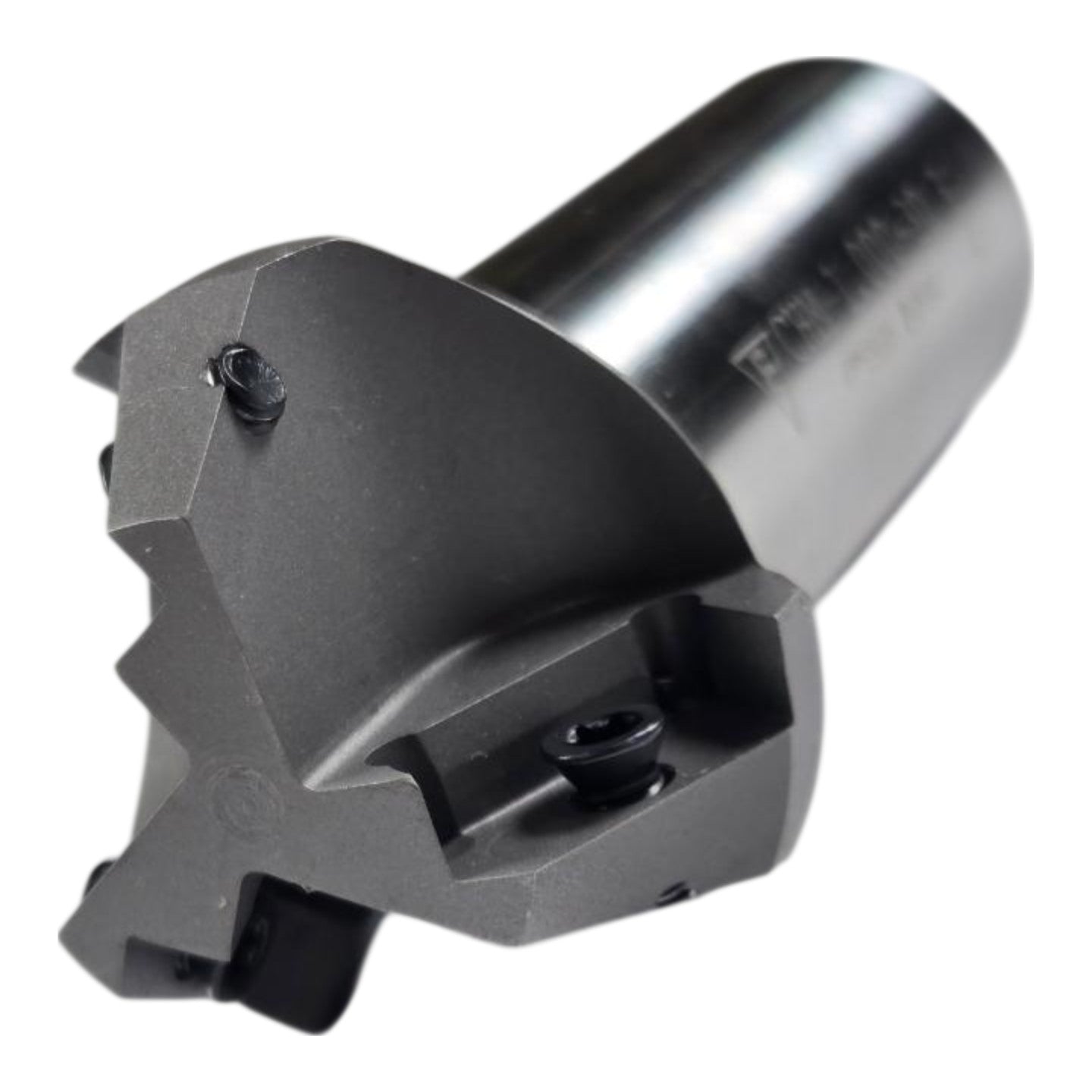

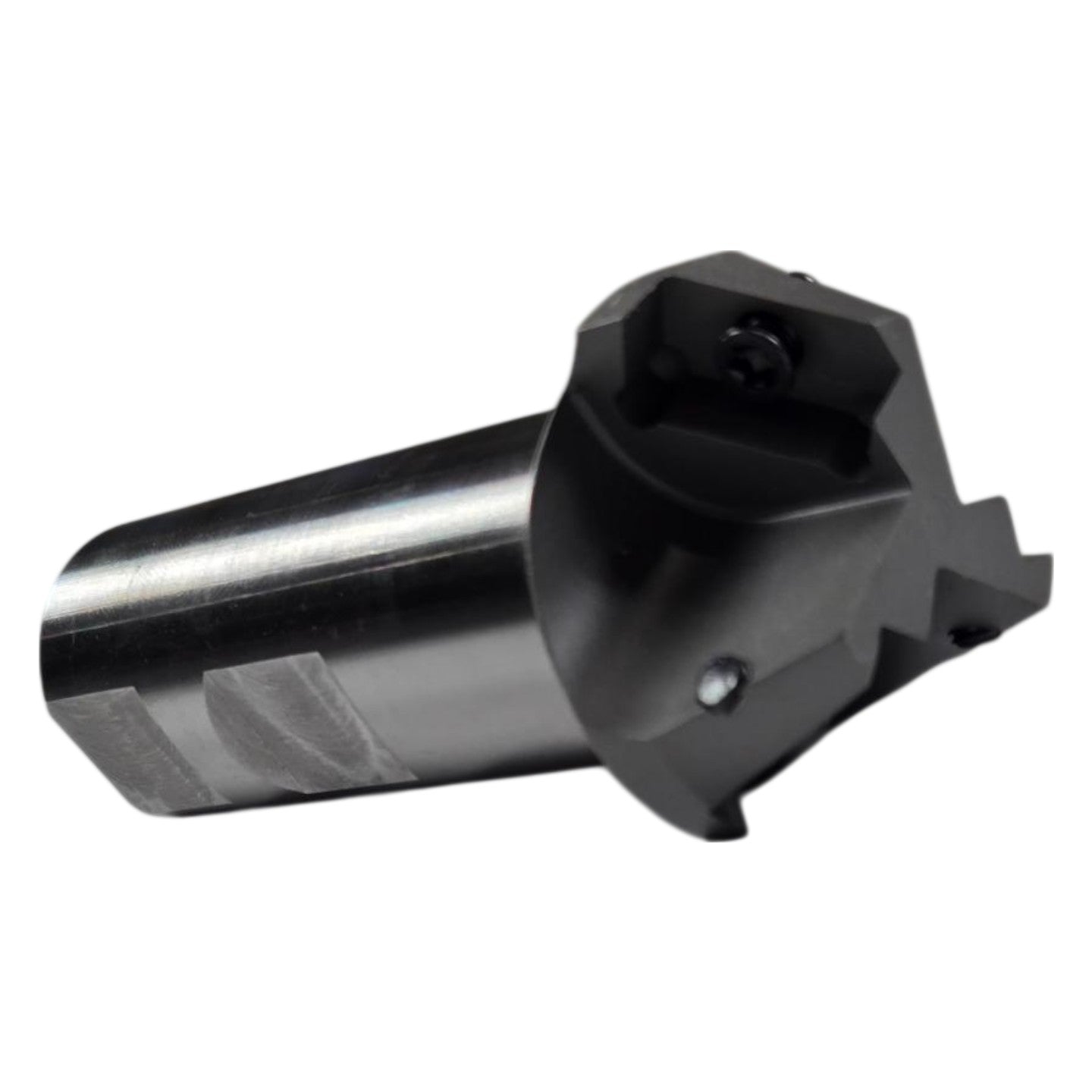

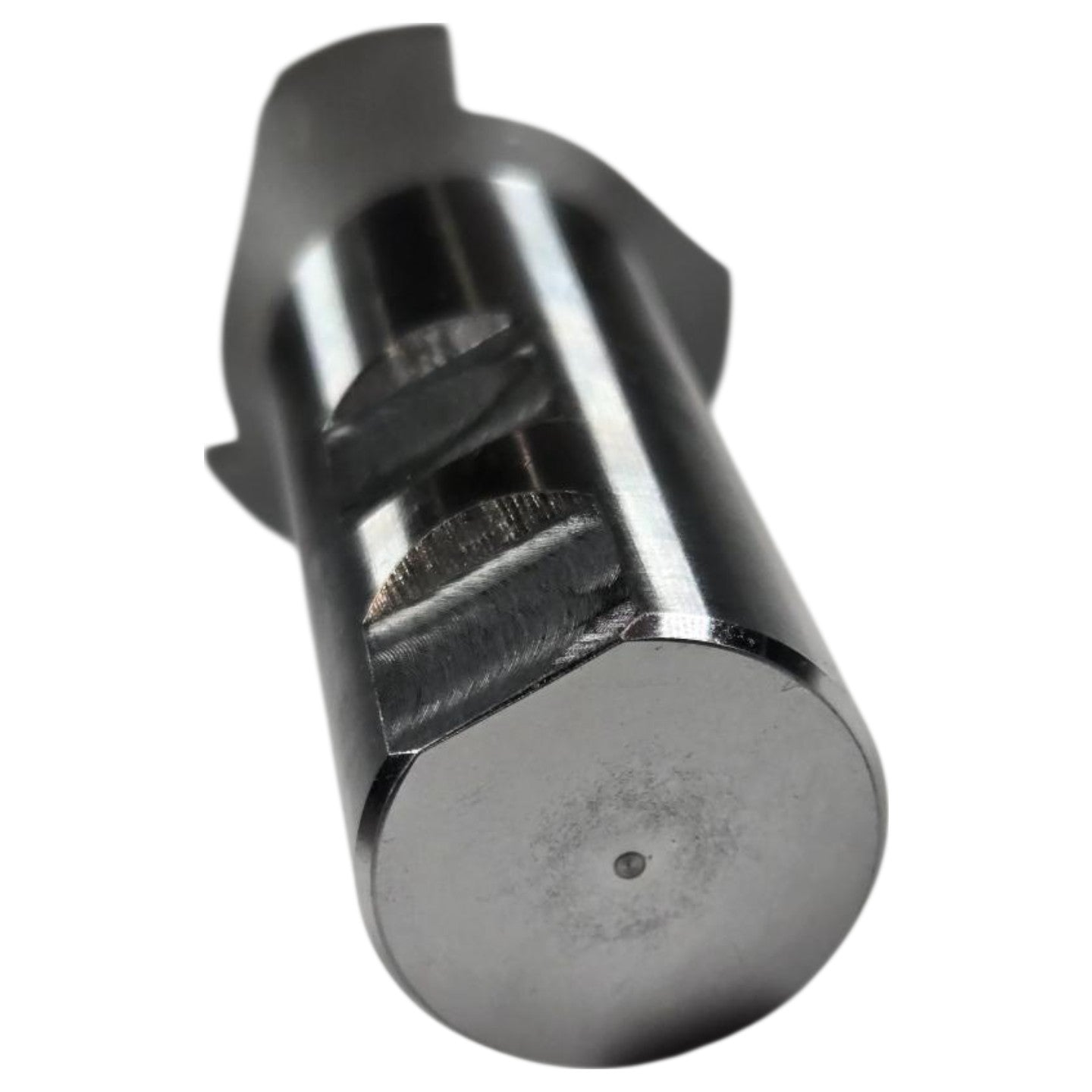

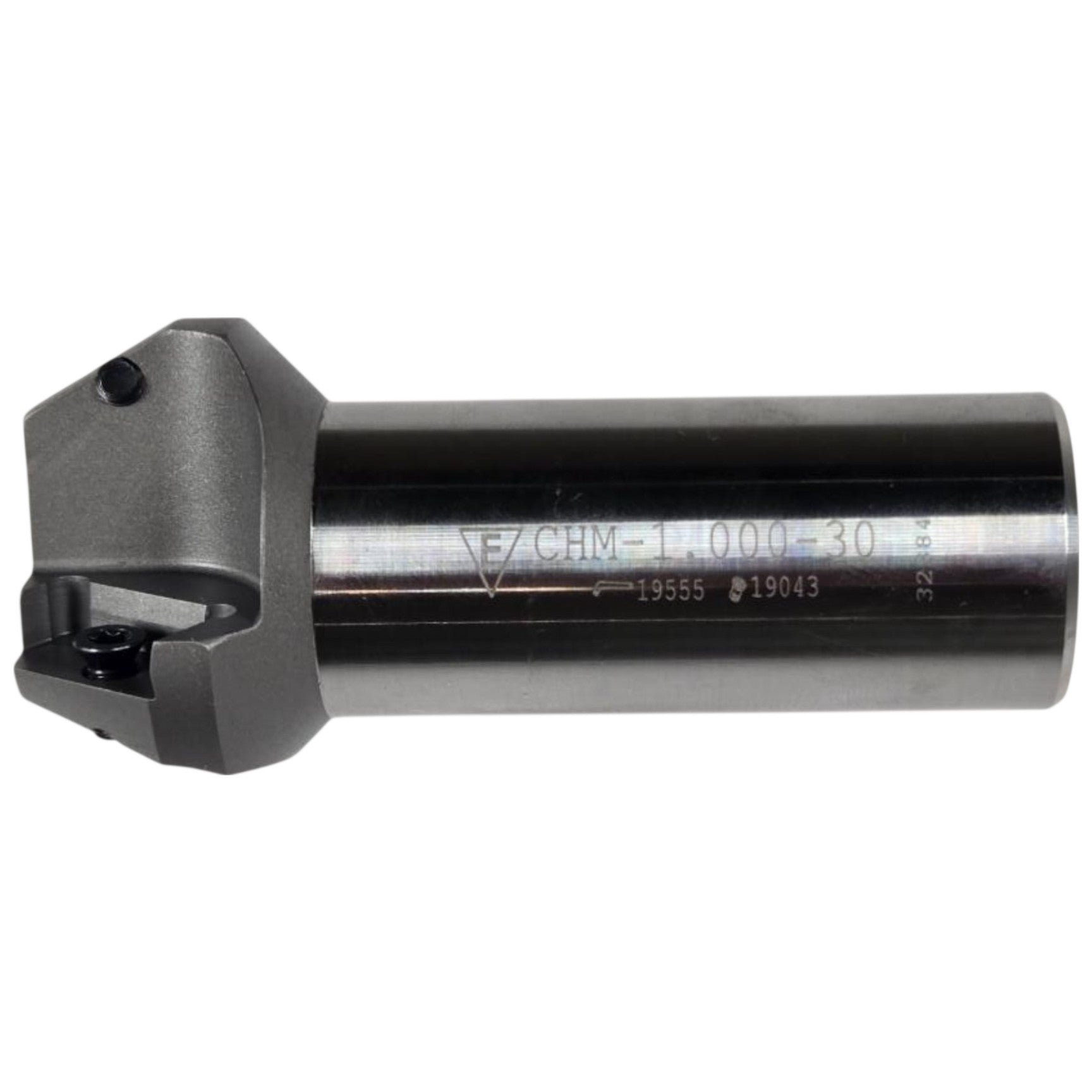

The Everede Tool CHM-1.000-30 (EDP 01258) is a new, Made-in-USA indexable chamfer end mill with a 1-inch straight shank, 30° lead angle, and a CHM-series toolholder body designed to accept APLT 347 style inserts secured by Torx-head clamping screws. The tool accommodates 3 inserts and delivers a cutting diameter range of 1.000" to 1.553" with a maximum depth of cut of 0.479", making it suited for chamfering, countersinking, and beveling operations on ferrous and non-ferrous workpieces in machining centers or CNC mills with 1-inch toolholding capability. At 3.2" overall length, the compact steel body features a black-oxide finish on the head, a precision-ground cylindrical shank, and chip gullets designed to promote evacuation during plunge and angular cutting passes. Inserts are not included with the body; the APLT 347 designation specifies the compatible insert geometry required for this holder.
Product Specifications
| Brand | Everede Tool Company |
| Model Number | CHM-1.000-30 |
| EDP Number | 01258 |
| Tool Type | Indexable Chamfer End Mill |
| Lead Angle | 30° |
| Shank Diameter | 1 in |
| Shank Style | Straight / Cylindrical |
| Cutting Diameter Min | 1.000 in |
| Cutting Diameter Max | 1.553 in |
| Overall Length (OAL) | 3.2 in |
| Max Depth of Cut | 0.479 in |
| Number of Insert Positions | 3 |
| Insert Style | APLT 347 |
| Toolholder Series | CHM |
| Country of Origin | USA |
| Condition | New |
| Inserts Included | No |
