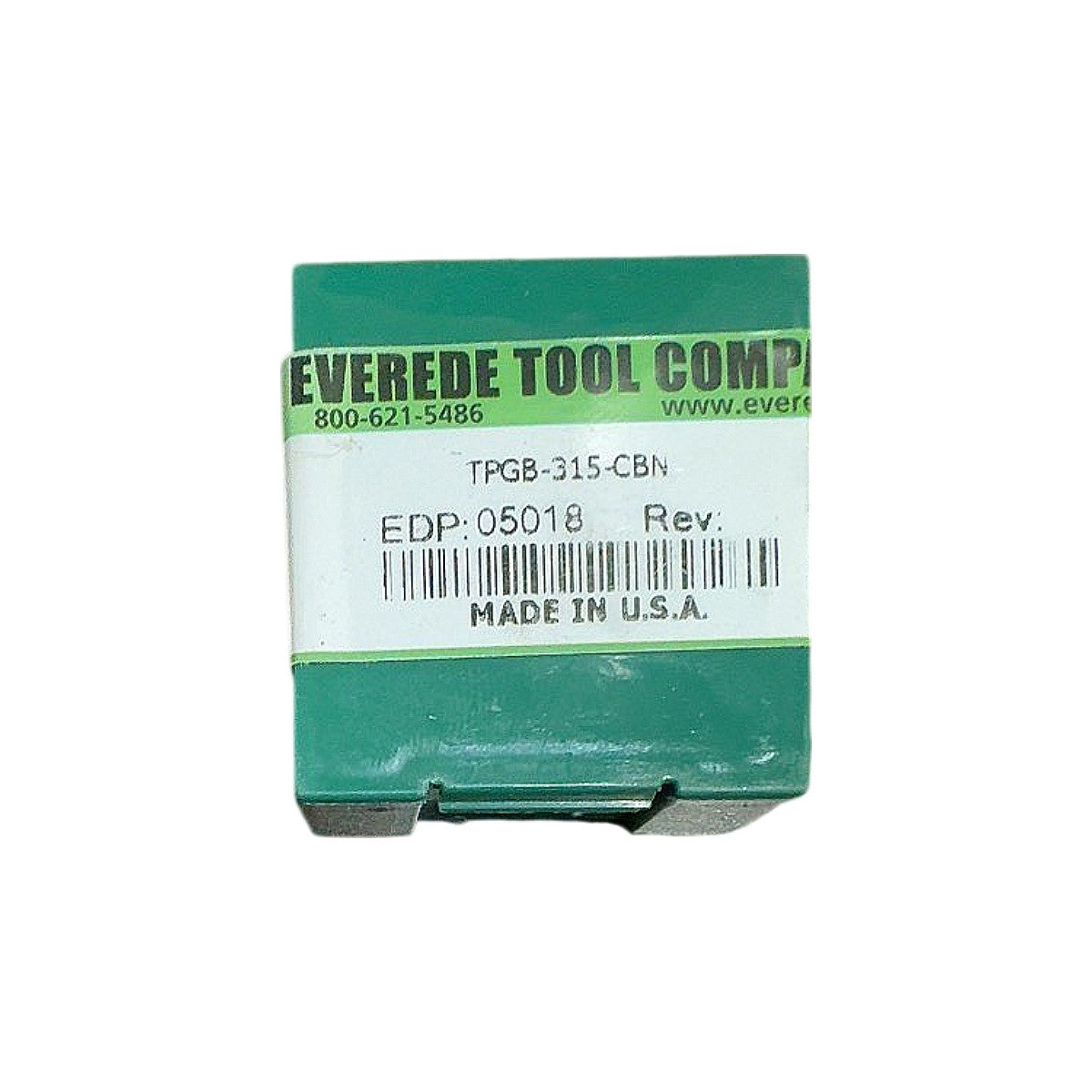

Everede TPGB-315-CBN Triangle EDP 05018 CBN Tipped Turning Insert
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

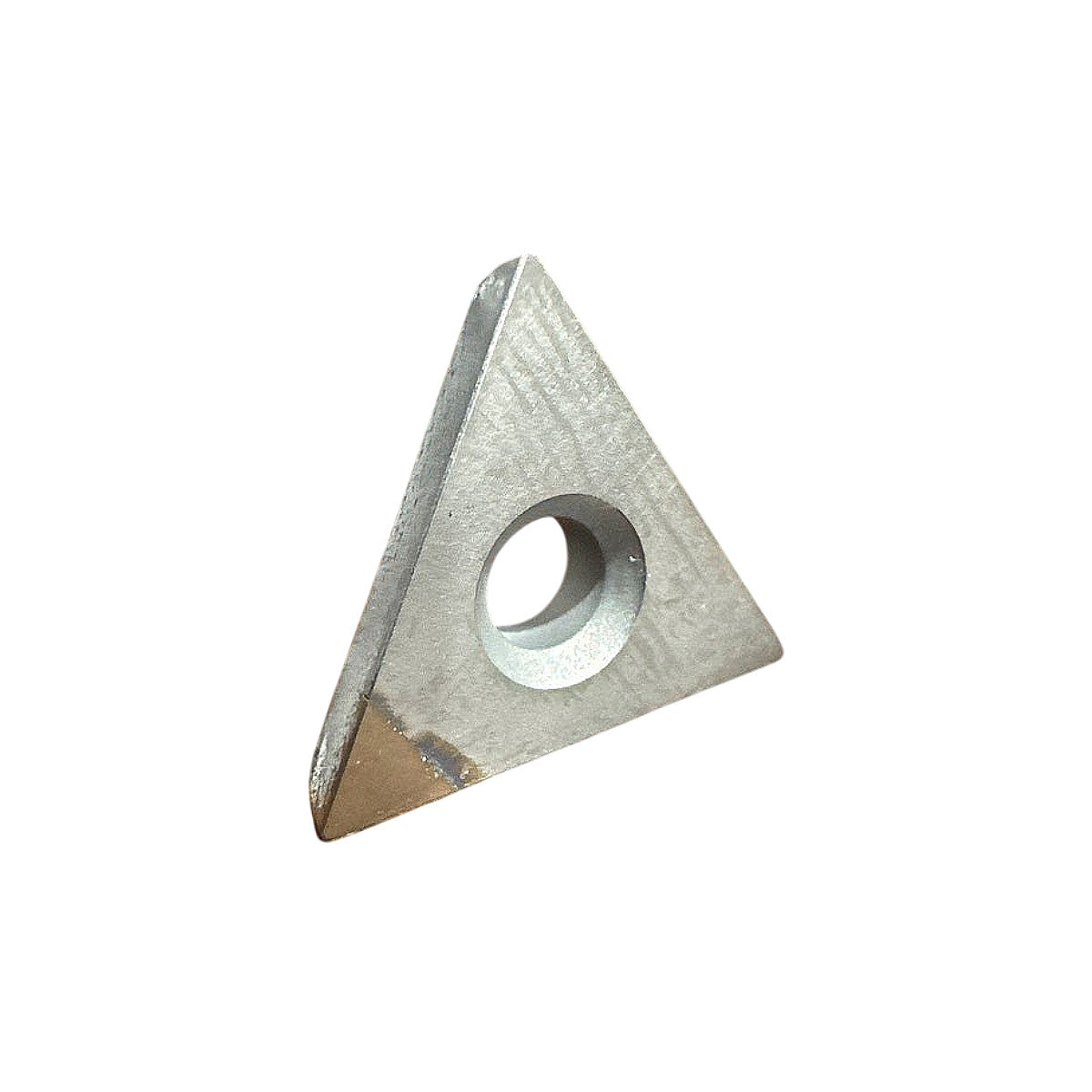

The Everede Tool TPGB-315-CBN (EDP 05018) is a new, Made in USA triangular CBN (cubic boron nitride) tipped turning insert in the ANSI TPGB designation. Decoding the part number: T = triangular shape (60° included angle); P = 11° clearance angle; G = ±0.001 in / ±0.001 in tolerance class (precision ground); B = hole with single-sided chipbreaker; 3 = 3/8 in inscribed circle; 1 = 3/32 in thickness; 5 = 1/64 in (0.031 in) nose radius; CBN = cubic boron nitride cutting tip brazed onto a carbide substrate. The CBN tip is visible in the photo as the gold/bronze-colored braze at one corner of the silver carbide body, confirming a single-corner brazed CBN configuration. CBN inserts of this type are engineered for hard turning of hardened steels (45–65 HRC), cast irons, and superalloys at high surface speeds without grinding, delivering superior surface finish and tool life compared to ceramic or coated carbide alternatives. Compatible with ANSI TPGB-style toolholders requiring a 3/8 in IC triangular insert with a center mounting hole.
Product Specifications
| Brand | Everede Tool Company |
| MPN | TPGB-315-CBN |
| EDP Number | 05018 |
| Insert Shape | Triangular (T) — 60° included angle |
| Clearance Angle | 11° (P) |
| Tolerance Class | G — precision ground, ±0.001 in ID & thickness |
| Hole / Chipbreaker Type | B — center hole, single-sided chipbreaker |
| Inscribed Circle (IC) | 3/8 in (0.375 in) |
| Insert Thickness | 3/32 in (0.094 in) |
| Nose Radius | 1/64 in (0.031 in / ~0.8 mm) |
| Cutting Material | CBN (cubic boron nitride) brazed tip |
| Substrate | Carbide |
| Number of Cutting Edges | 1 (single-corner brazed CBN) |
| Country of Origin | USA |
| Condition | New |
| Compatible Toolholder Style | ANSI TPGB-style holders, 3/8 in IC triangle |
