Everflo EF5500 12V DC 5.5 GPM 60 PSI Diaphragm Sprayer Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

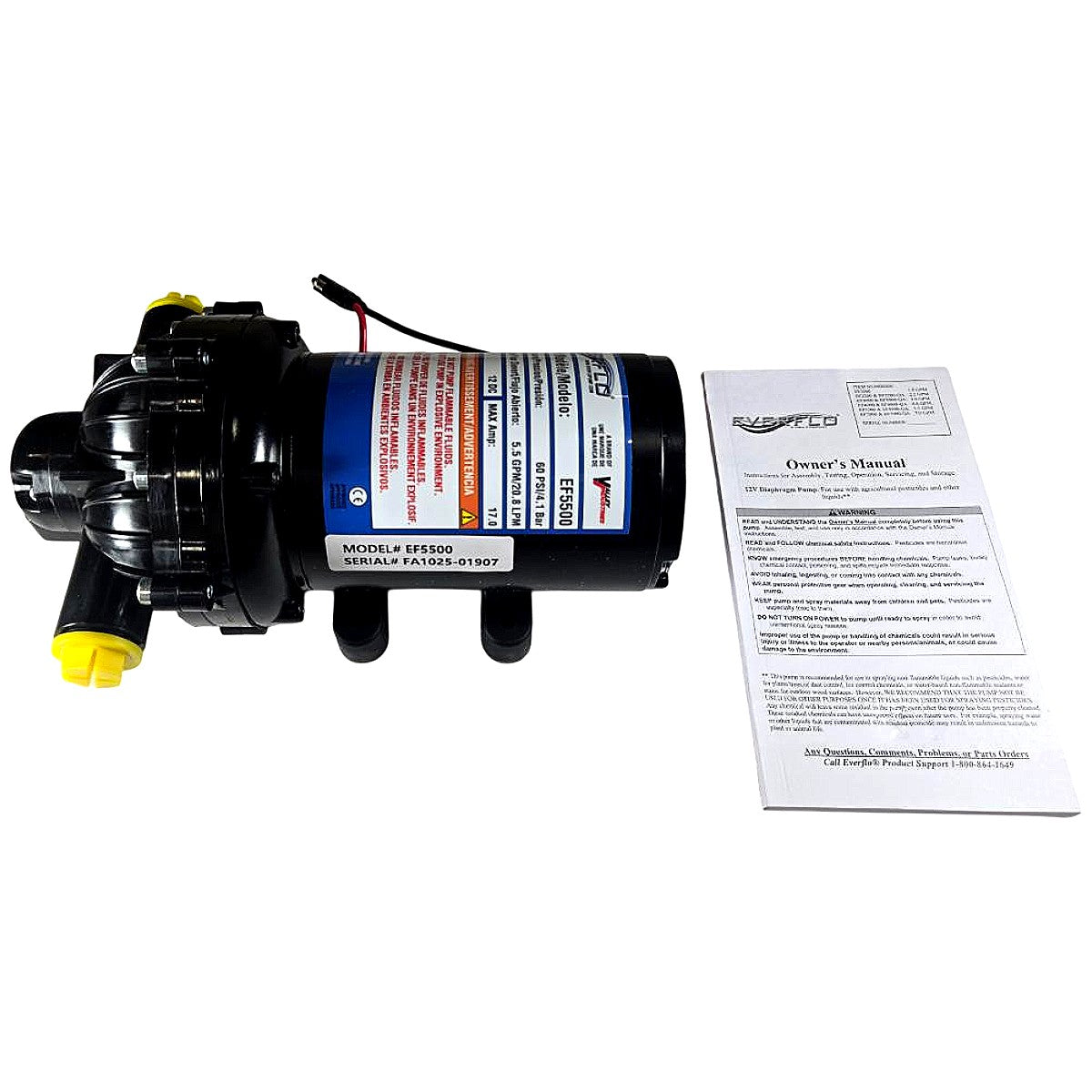

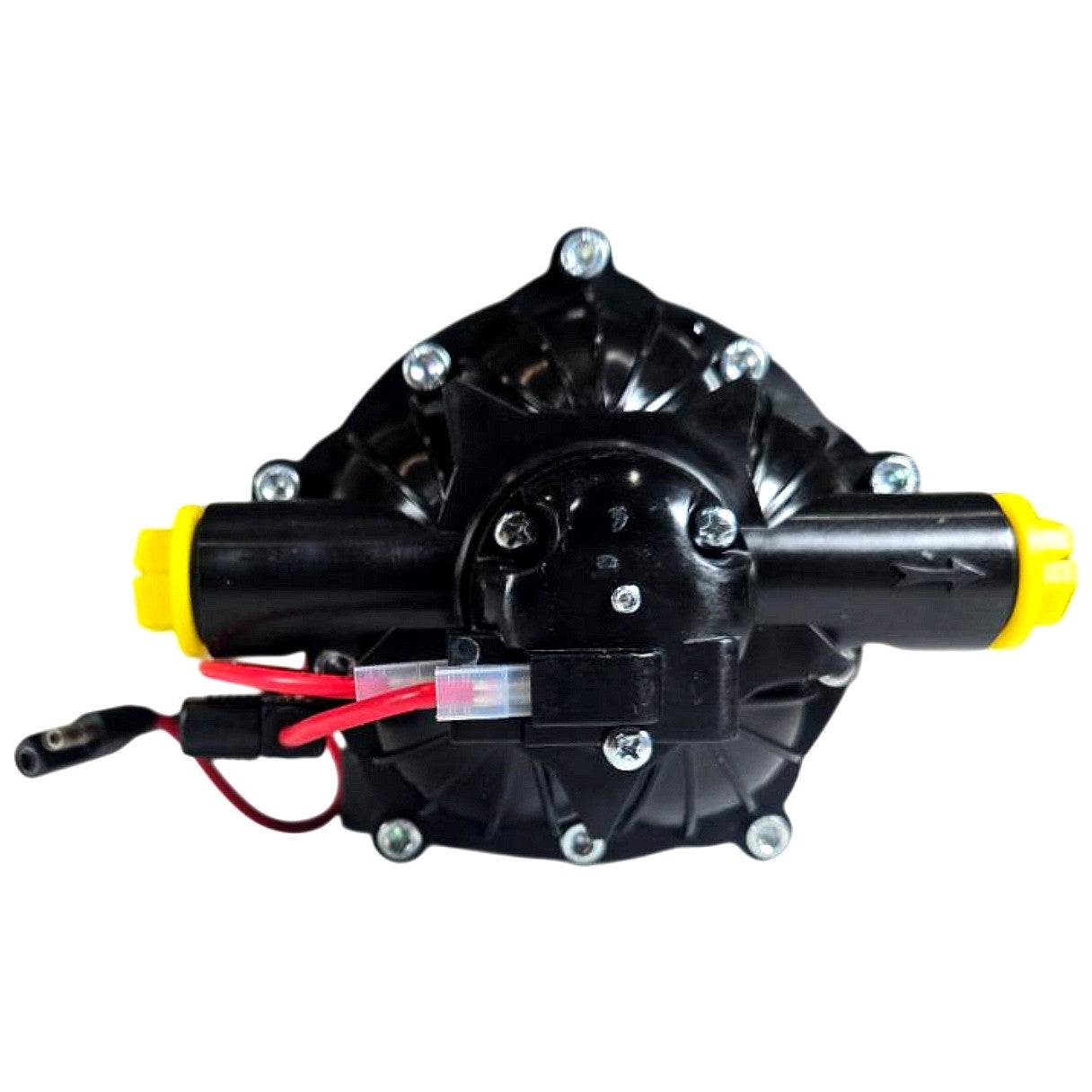

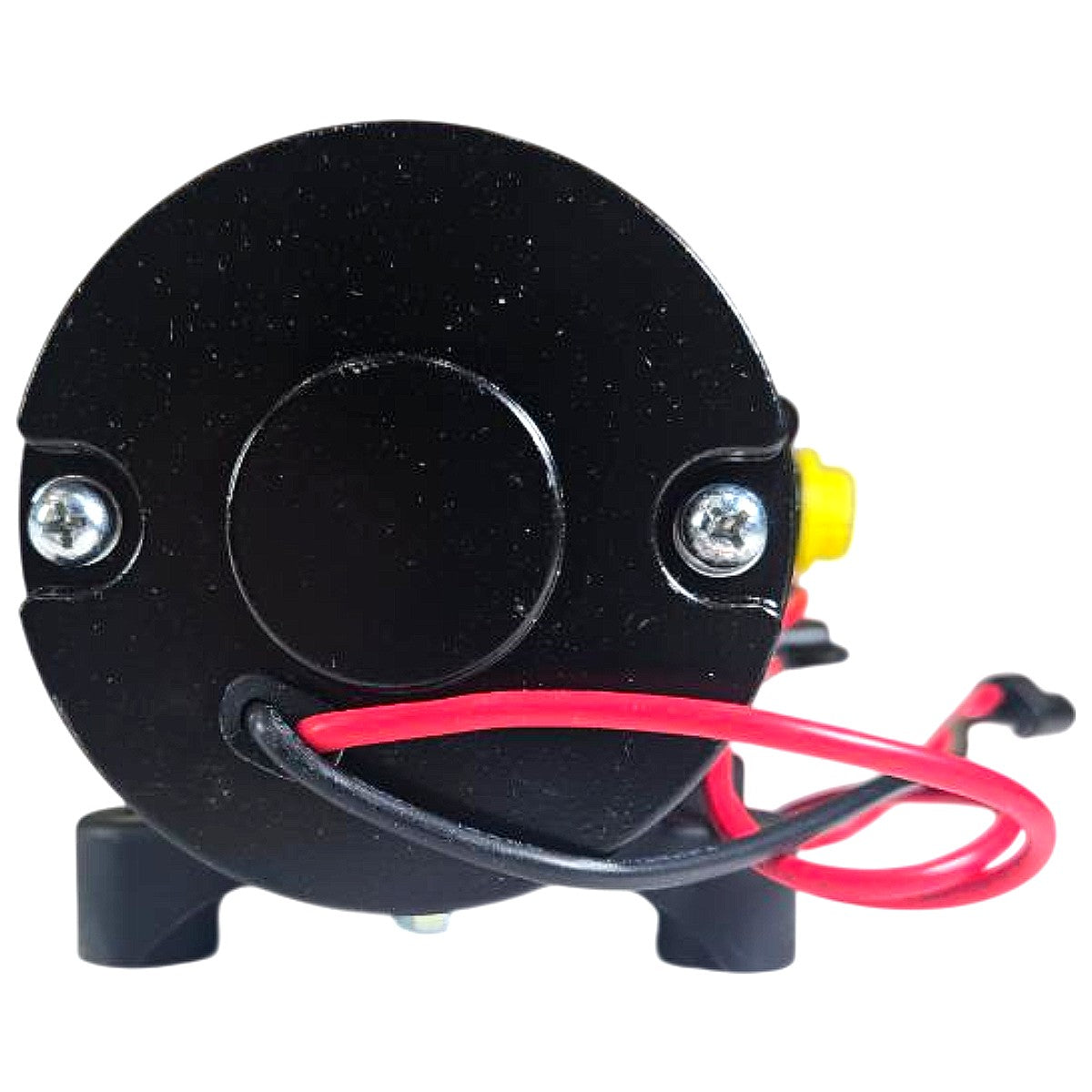

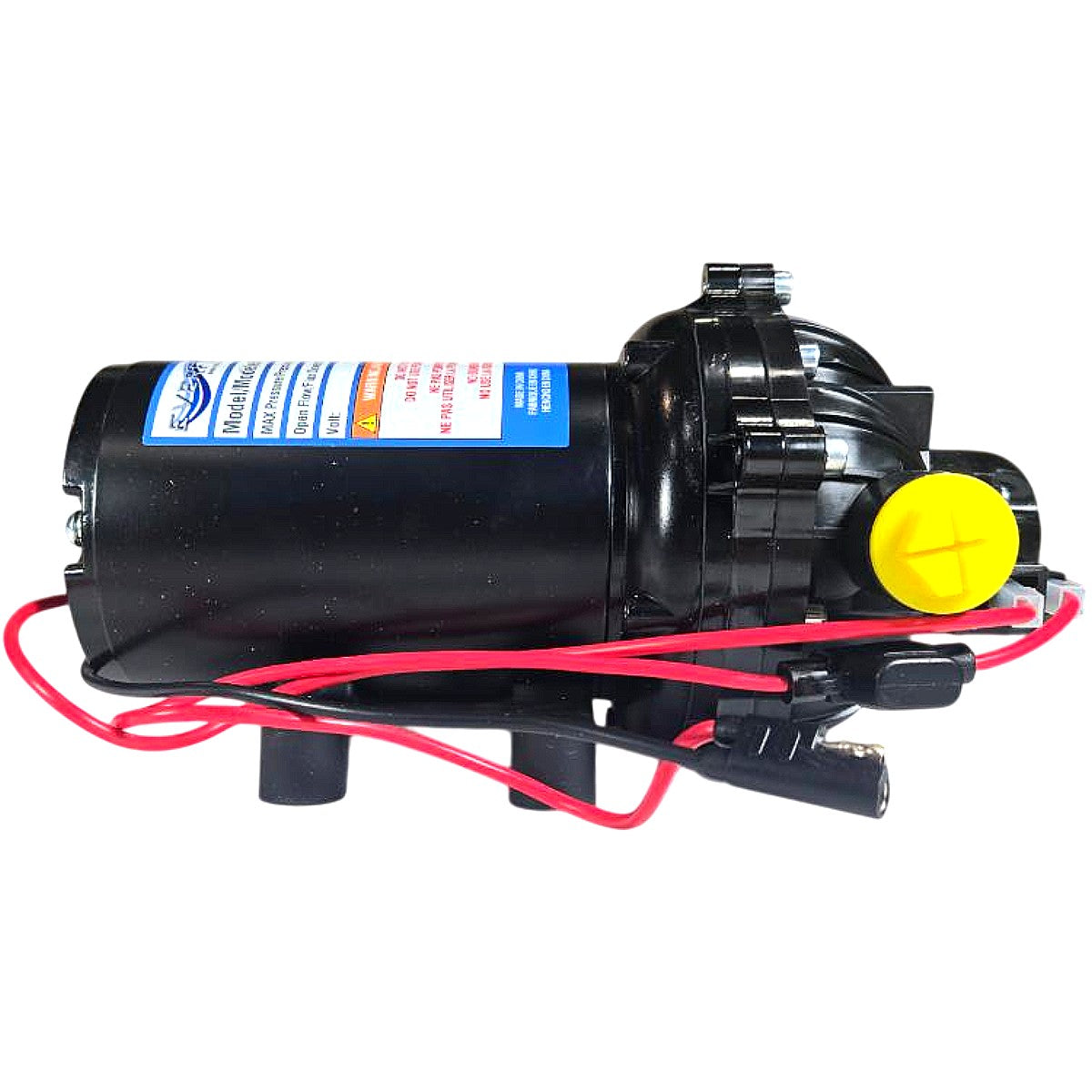

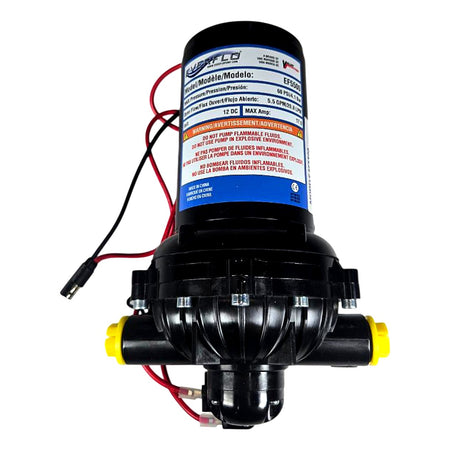

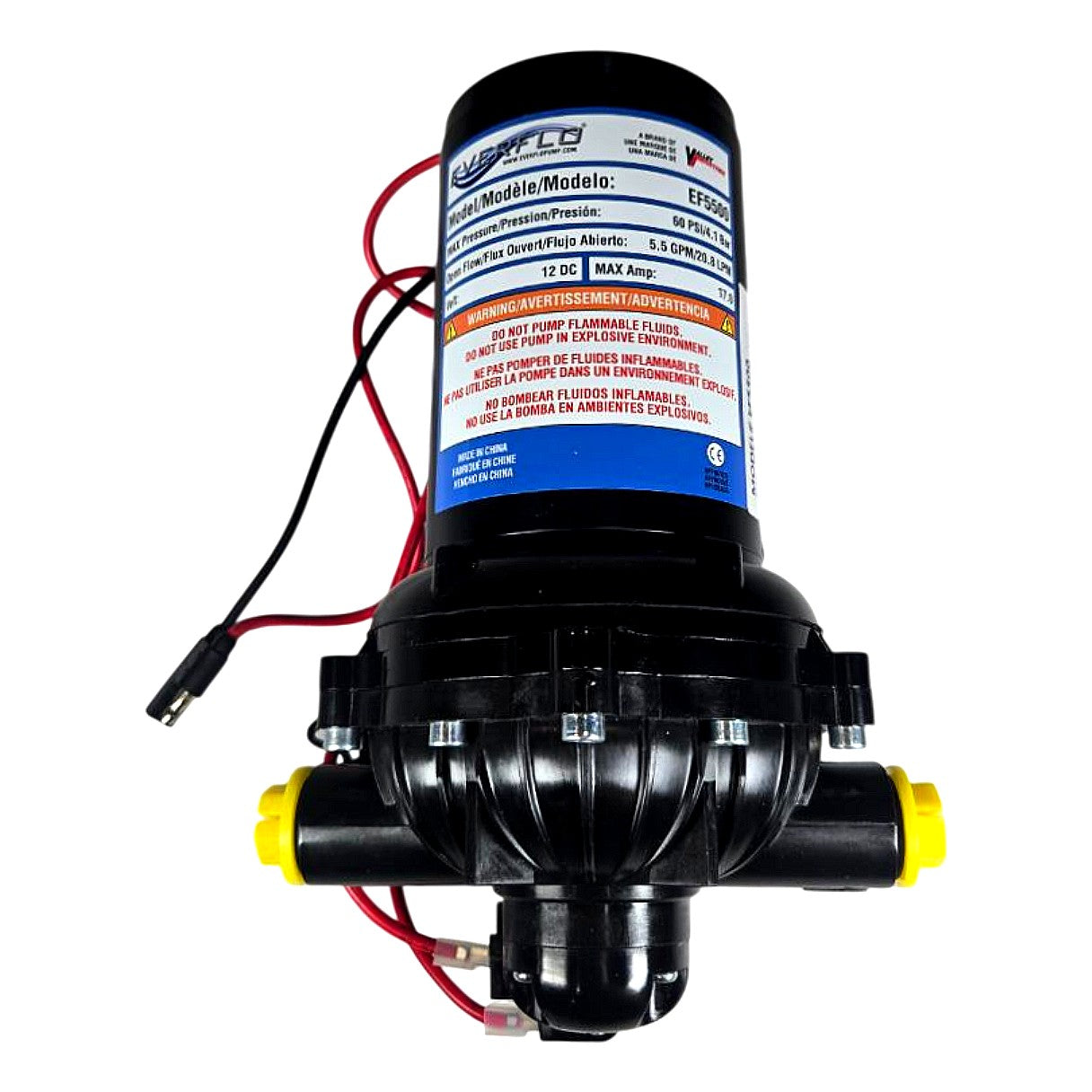

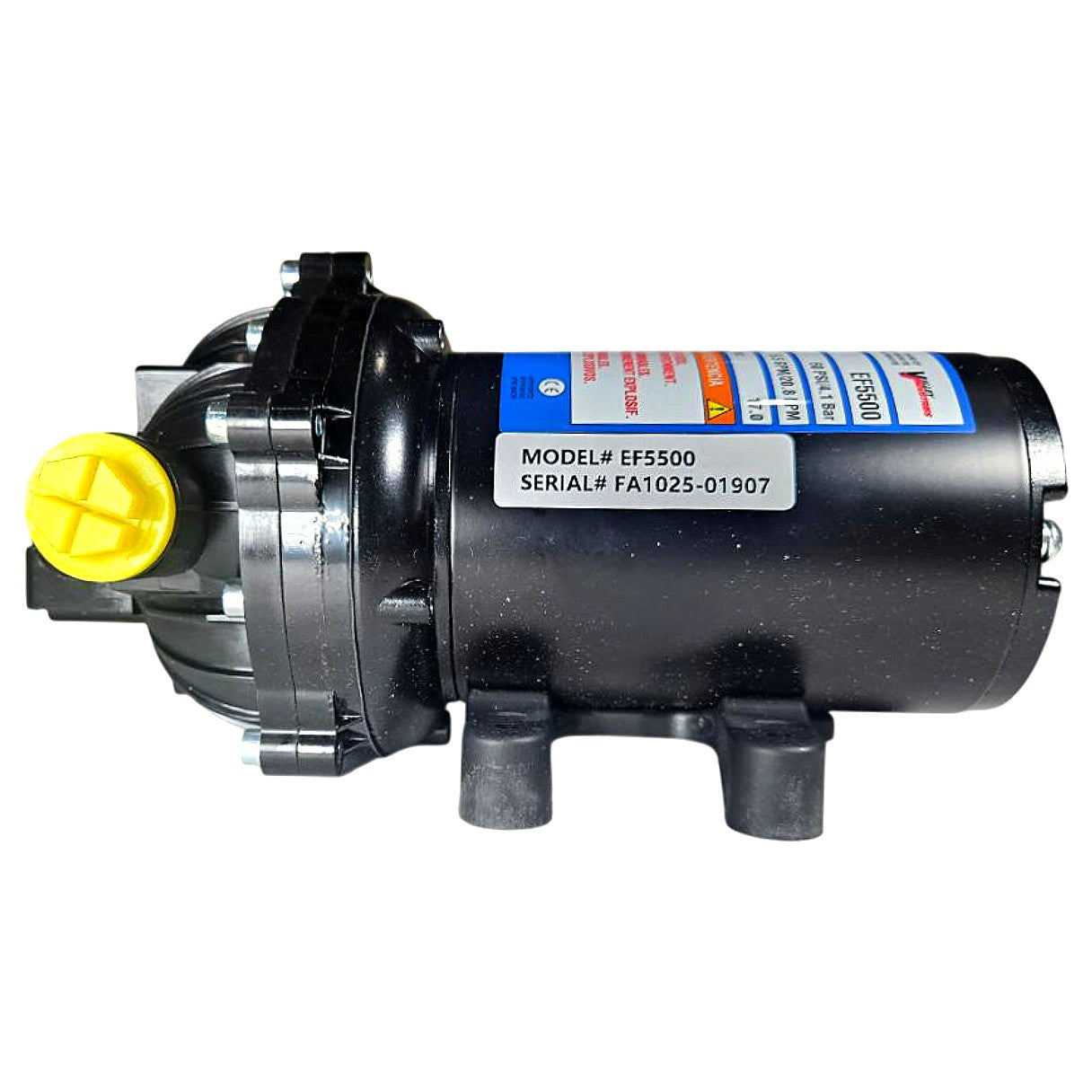

The Everflo EF5500 is a new 12V DC self-priming diaphragm pump designed for agricultural and commercial spraying applications, including pesticide/herbicide application, lawn care spraying, mobile pressure washing, water transfer, irrigation, and fire suppression. Operating at 12V DC with a max current draw of 17.0 A, it delivers an open-flow rate of 5.5 GPM (20.8 LPM) at up to 60 PSI (4.1 bar) maximum pressure, with 1/2 in FPT inlet and outlet ports. The pump features a Santoprene diaphragm and Viton valves for corrosion resistance against agricultural chemicals, a Honeywell MicroSwitch for reliable auto-shutoff when no flow is demanded, and an inline fuse for motor protection. Self-priming capability up to 12 feet, a standard mounting pattern, and a maximum fluid temperature of 140°F (60°C) make it a direct drop-in for trailer sprayer systems and skid units. CE certified; includes owner's manual and 2-year manufacturer warranty.
Product Specifications
| Brand | Everflo |
| Model | EF5500 |
| Pump Type | Diaphragm |
| Voltage | 12V DC |
| Max Amperage | 17.0 A |
| Open Flow Rate | 5.5 GPM (20.8 LPM) |
| Max Pressure | 60 PSI (4.1 bar) |
| Port Size | 1/2 in FPT |
| Diaphragm Material | Santoprene |
| Valve Material | Viton |
| Pressure Switch | Honeywell MicroSwitch (demand/auto-shutoff) |
| Self-Priming Lift | Up to 12 ft |
| Max Fluid Temp | 140°F (60°C) |
| Weight | 5.6 lbs (2.54 kg) |
| Mounting | Standard mounting pattern |
| Fuse Protection | Inline fuse included |
| Certifications | CE |
| Warranty | 2 Year |
| Condition | New |
