Fasco D114 1/12 HP 1550 RPM 115/230V Shaded Pole Fan Motor
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

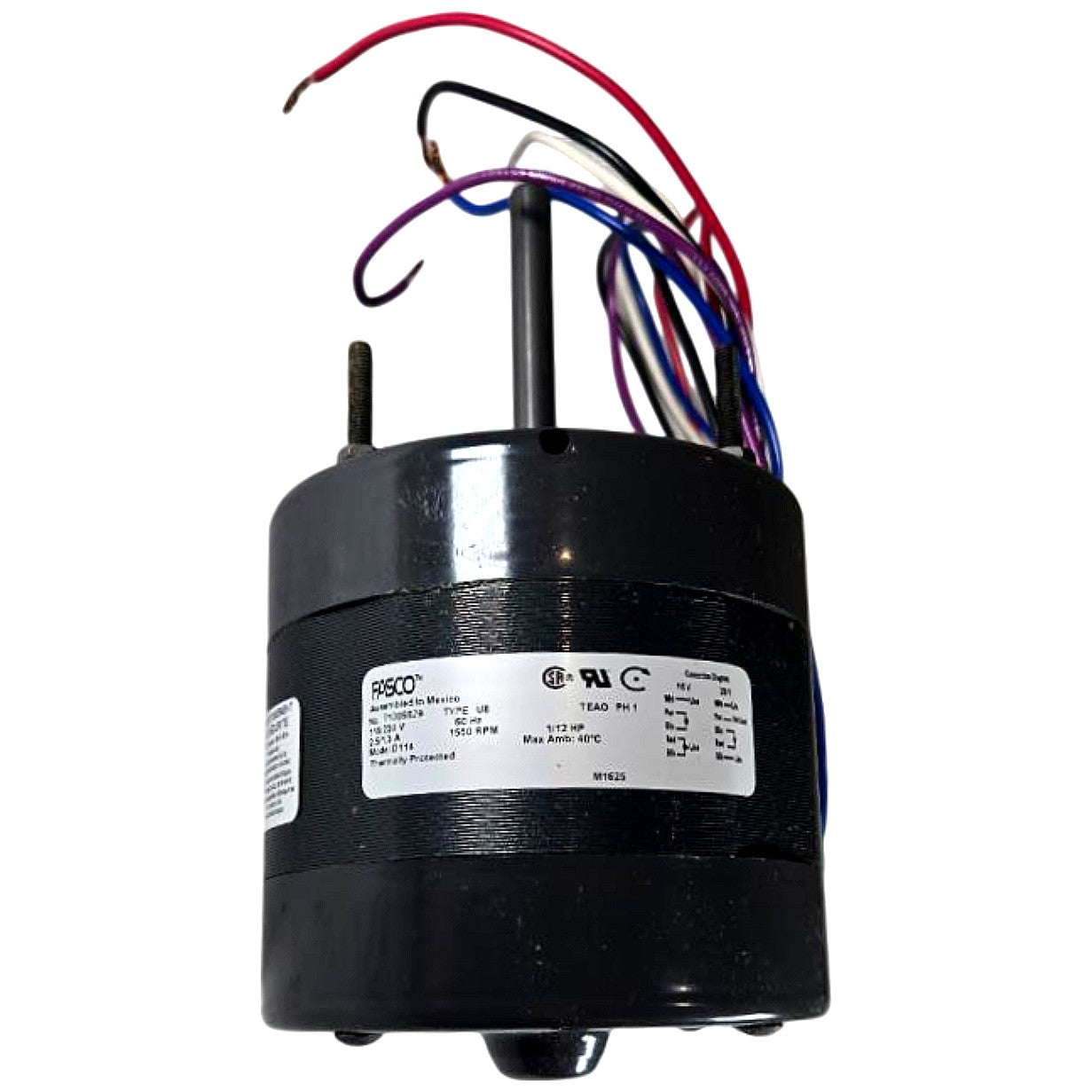

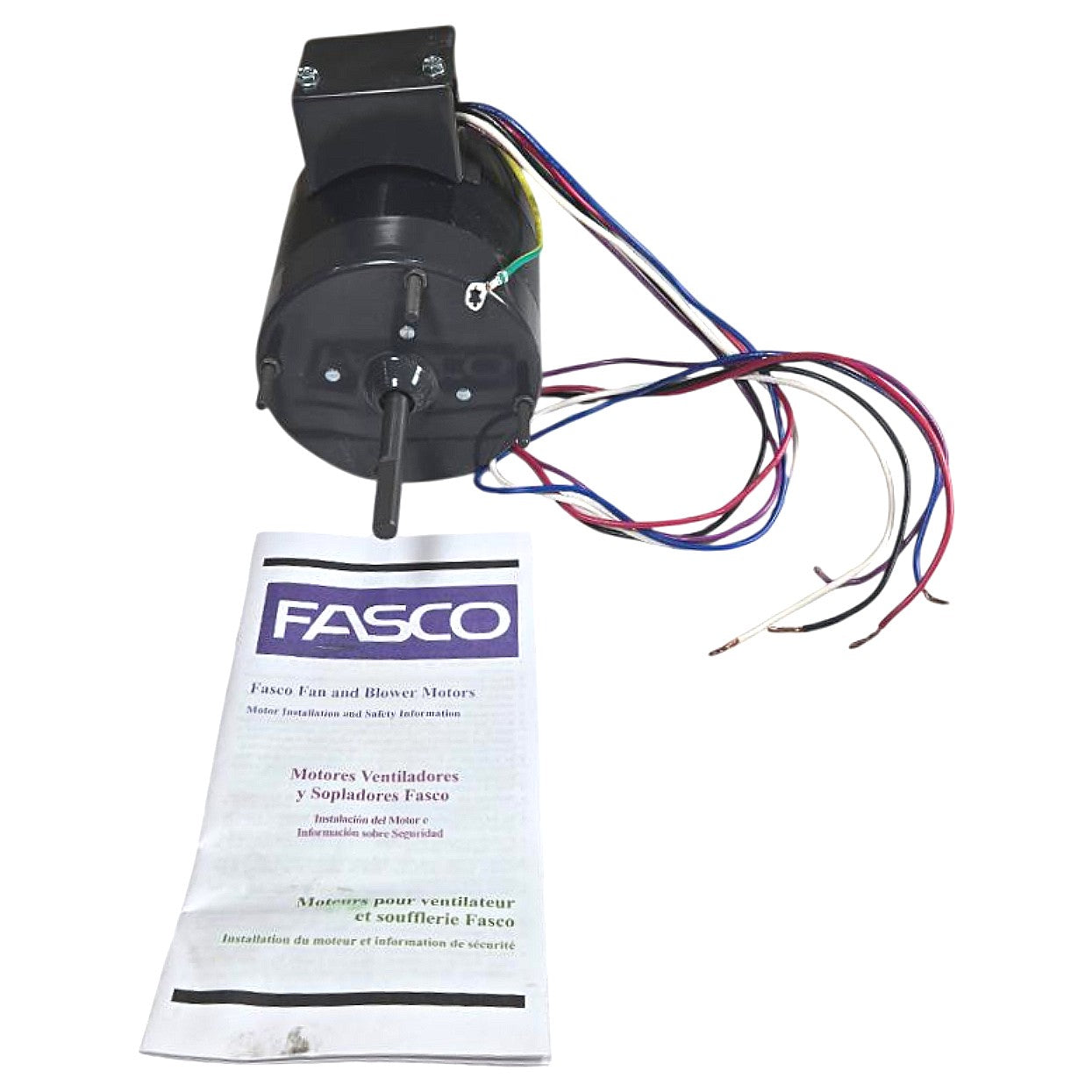

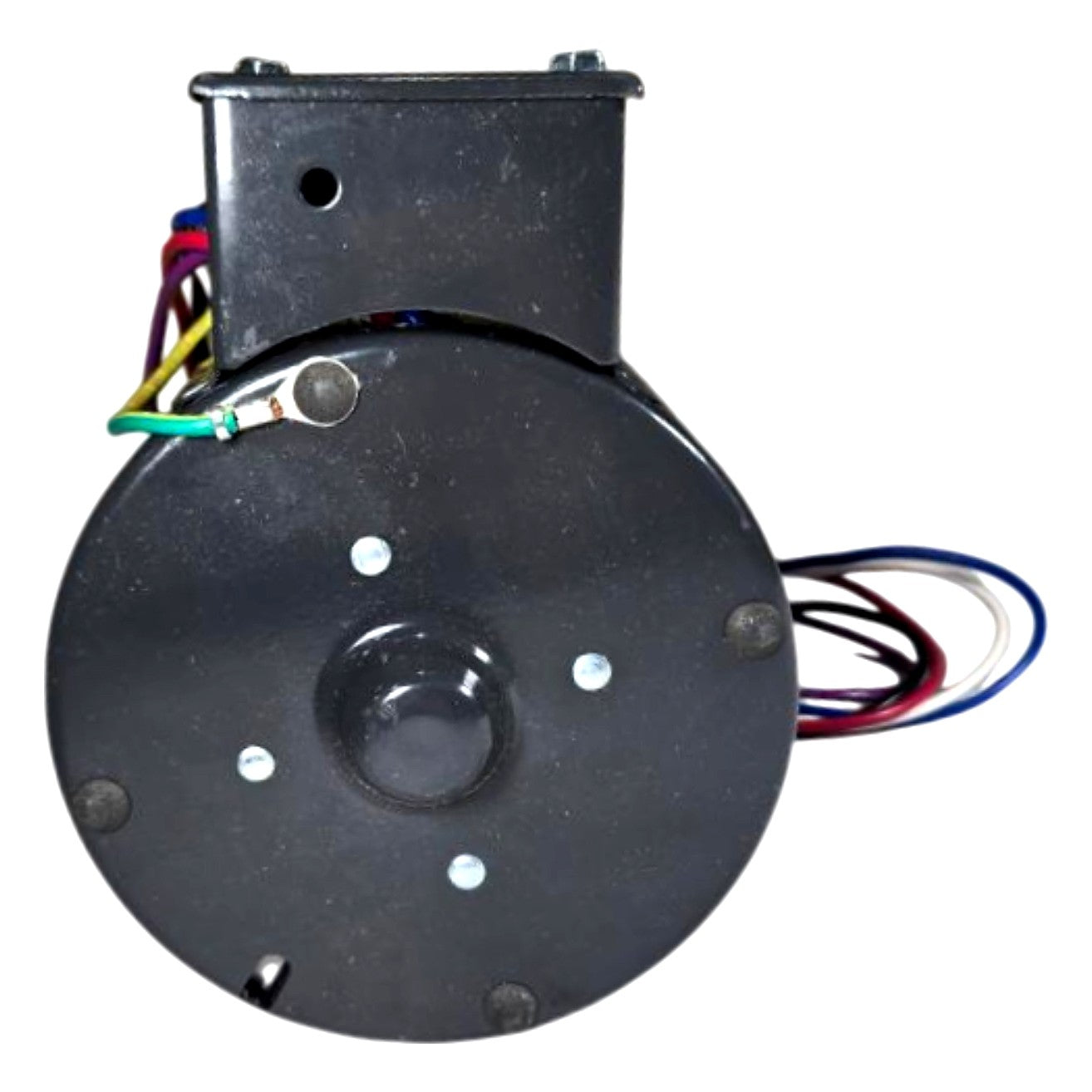

The Fasco D114 (also cataloged as S88-837, Grainger cross 813YA7) is a new shaded-pole, single-phase AC fan and blower replacement motor in a 3.3-inch (Frame 4.4) stud-mount configuration rated 1/12 HP at 1,550 RPM. It operates on 115/230 V, 60 Hz with a full-load current draw of 2.5 A at 115 V / 1.3 A at 230 V, features TEAO (Totally Enclosed Air Over) enclosure with closed ventilation, and is thermally protected. The motor turns clockwise when viewed from the shaft end (CWSE), rides on sleeve bearings, and has a 3/8 in × 3 in output shaft suitable for direct-mount propeller or blower wheel attachment. It carries UL, CSA, and CE listings and was assembled in Mexico by Fasco (now a brand under Regal Rexnord); typical service applications include refrigeration condenser fans, evaporator fans, unit coolers, and OEM HVAC equipment requiring a stud-mount shaded-pole motor in the 3.3-inch frame.
Product Specifications
| Brand | Fasco |
| Model / MPN | D114 |
| Cross Reference / Alt MPN | S88-837, 813YA7 |
| Motor Type | Shaded Pole |
| Phase | Single Phase |
| Horsepower | 1/12 HP |
| Speed | 1550 RPM |
| Number of Speeds | 1 |
| Voltage | 115/230 V |
| Frequency | 60 Hz |
| Full Load Amps | 2.5 A @ 115V / 1.3 A @ 230V |
| Frame Size | 3.3 in (Frame 4.4) |
| Mount Type | Stud Mount |
| Enclosure Type | TEAO (Totally Enclosed Air Over) |
| Ventilation | Closed |
| Thermal Protection | Yes – Thermally Protected |
| Rotation | CW from shaft end (CWSE) |
| Bearing Type | Sleeve Bearing |
| Shaft Diameter × Length | 3/8 in × 3 in |
| Max Ambient Temperature | 40°C |
| Certifications | UL, CSA, CE |
| Condition | New |
| Country of Assembly | Mexico |
