Flint & Walling CJ101C301AB 3HP 230V 3-Stage Centrifugal Booster Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

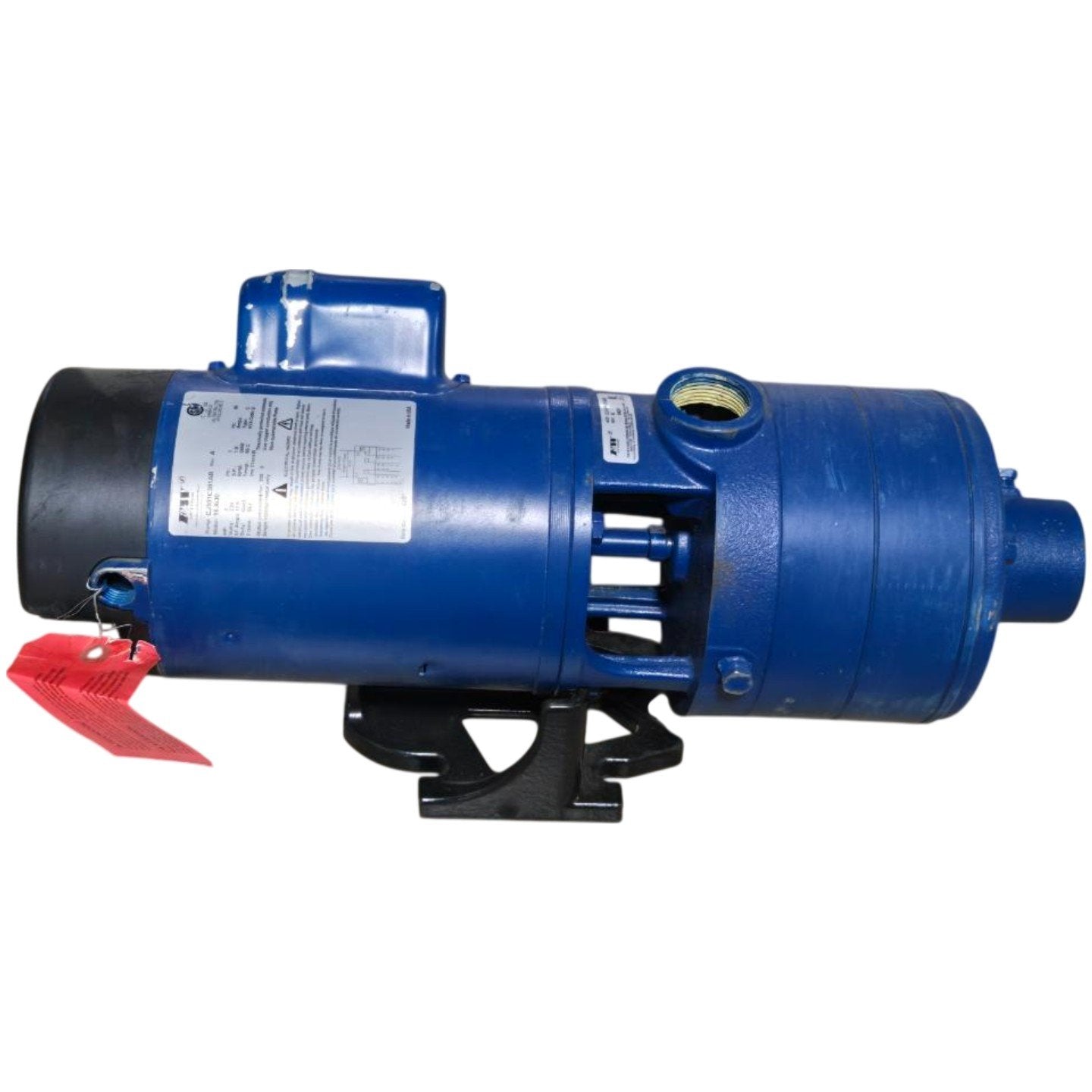

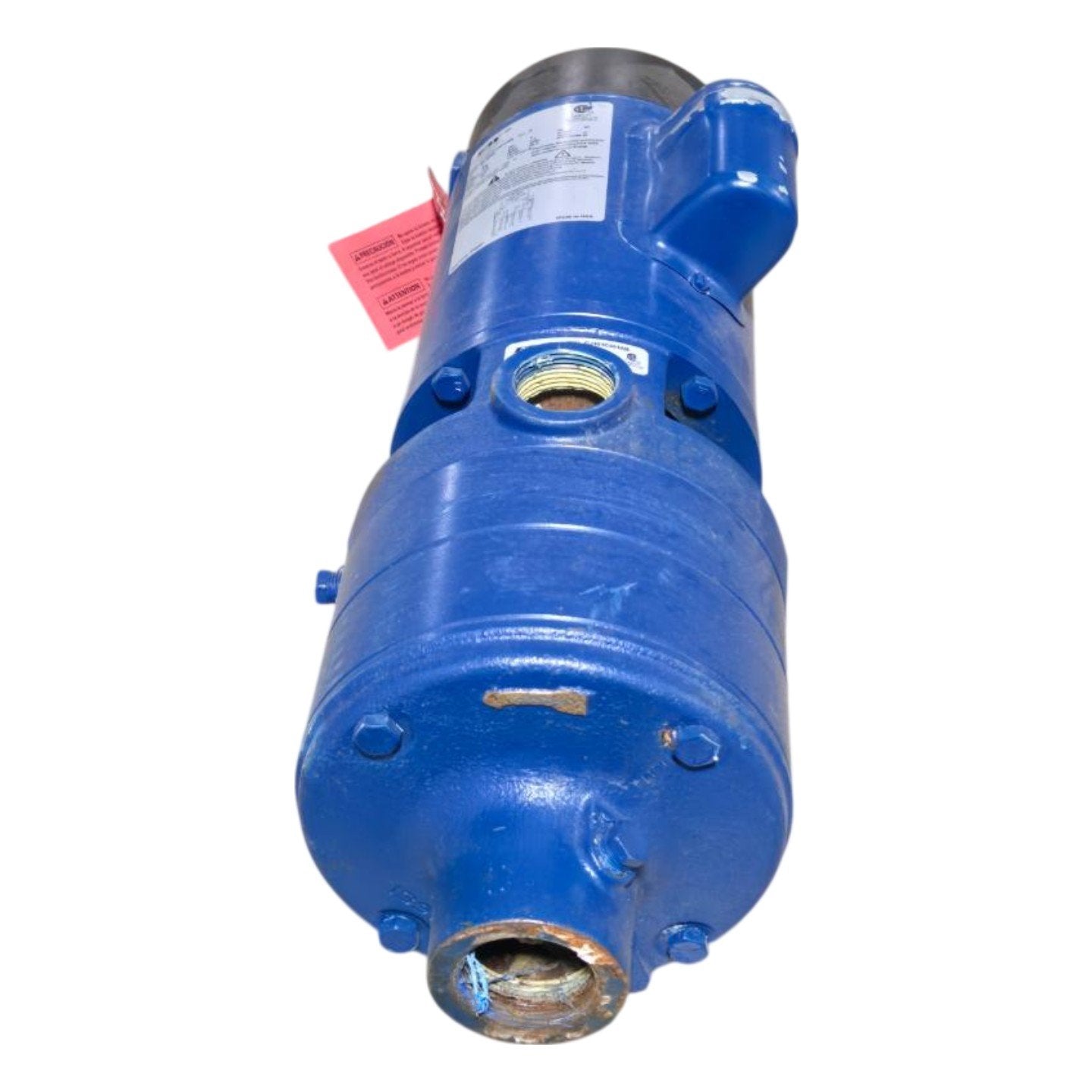

The Flint & Walling CJ101C301AB is a new, made-in-USA horizontal multistage centrifugal booster pump rated at 3 HP with an integrated 56J-frame single-phase motor running at 3450 RPM on 230V/60Hz. The pump body is cast iron construction with a 1-1/2 in NPT inlet and outlet, 3 pump stages delivering up to 95 PSI maximum working pressure, and is CSA/UL Listed (UL Std. 778, Enclosure 3, LR90197). The motor is thermally protected with automatic reset, insulation Class B rated to 65°C, Service Factor 1.0, 13.5 SF Amps, KVA Code D, wired for single voltage 230V only — copper conductors required. Typical applications include residential and light commercial water pressure boosting, irrigation systems, and water transfer where elevated discharge pressure is required; this unit is explicitly rated non-submersible and has not been investigated for swimming pool or marine use.
Product Specifications
| Brand | Flint & Walling |
| Model Number | CJ101C301AB |
| Revision | A |

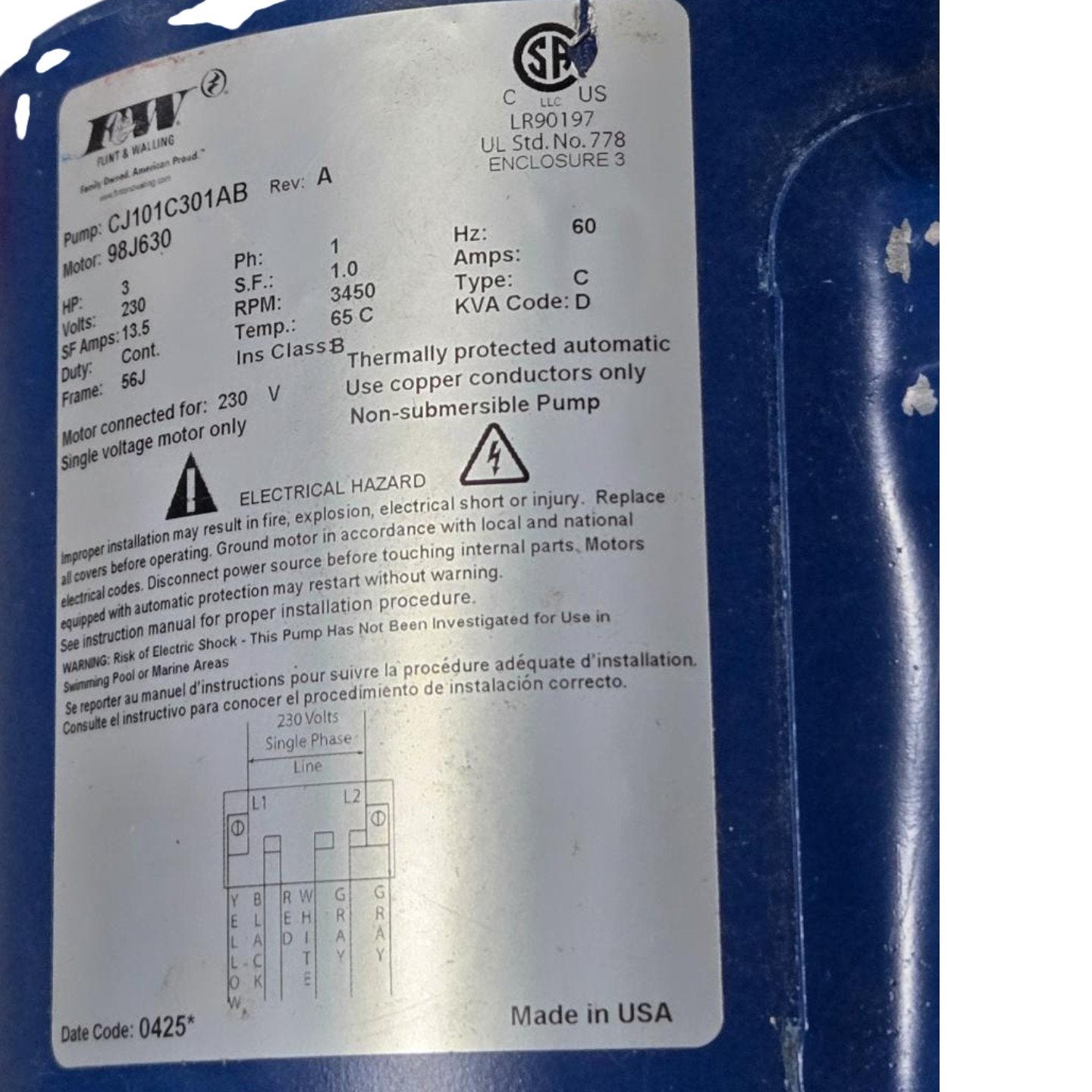

| Motor Model | 98J630 |
| Horsepower | 3 HP |
| Voltage | 230V AC |
| Phase | 1-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3450 RPM |
| Service Factor | 1.0 |
| SF Amps | 13.5 A |
| Insulation Class | Class B |
| Motor Temperature Rating | 65°C |
| Motor Frame | 56J |
| Duty | Continuous |
| KVA Code | D |
| Motor Type | C |
| Number of Stages | 3 |
| Max Pressure | 95 PSI |
| Inlet Size | 1-1/2 in NPT |
| Outlet Size | 1-1/4 in NPT |
| Pump Body Material | Cast Iron |
| Thermal Protection | Automatic Reset |
| Submersible | No — Non-Submersible |
| Enclosure Type | Enclosure 3 |
| Certifications | CSA, UL Listed (UL Std. 778), LR90197 |
| Wiring | Single voltage 230V, copper conductors only |
| Country of Origin | USA |

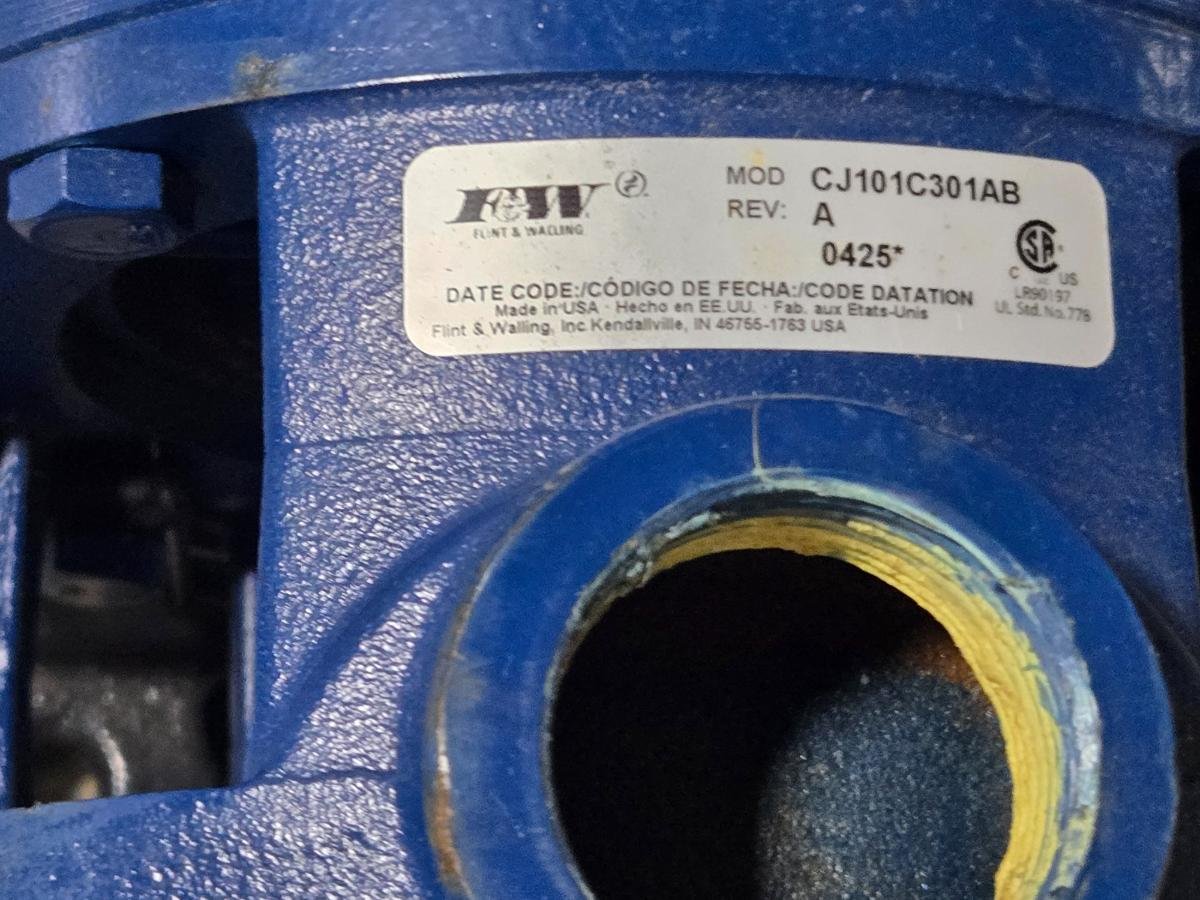

| Date Code | 0425 |
| Condition | New |
