Fraisa B6066220 4mm Dia R2.0 Ball Nose Solid Carbide End Mill

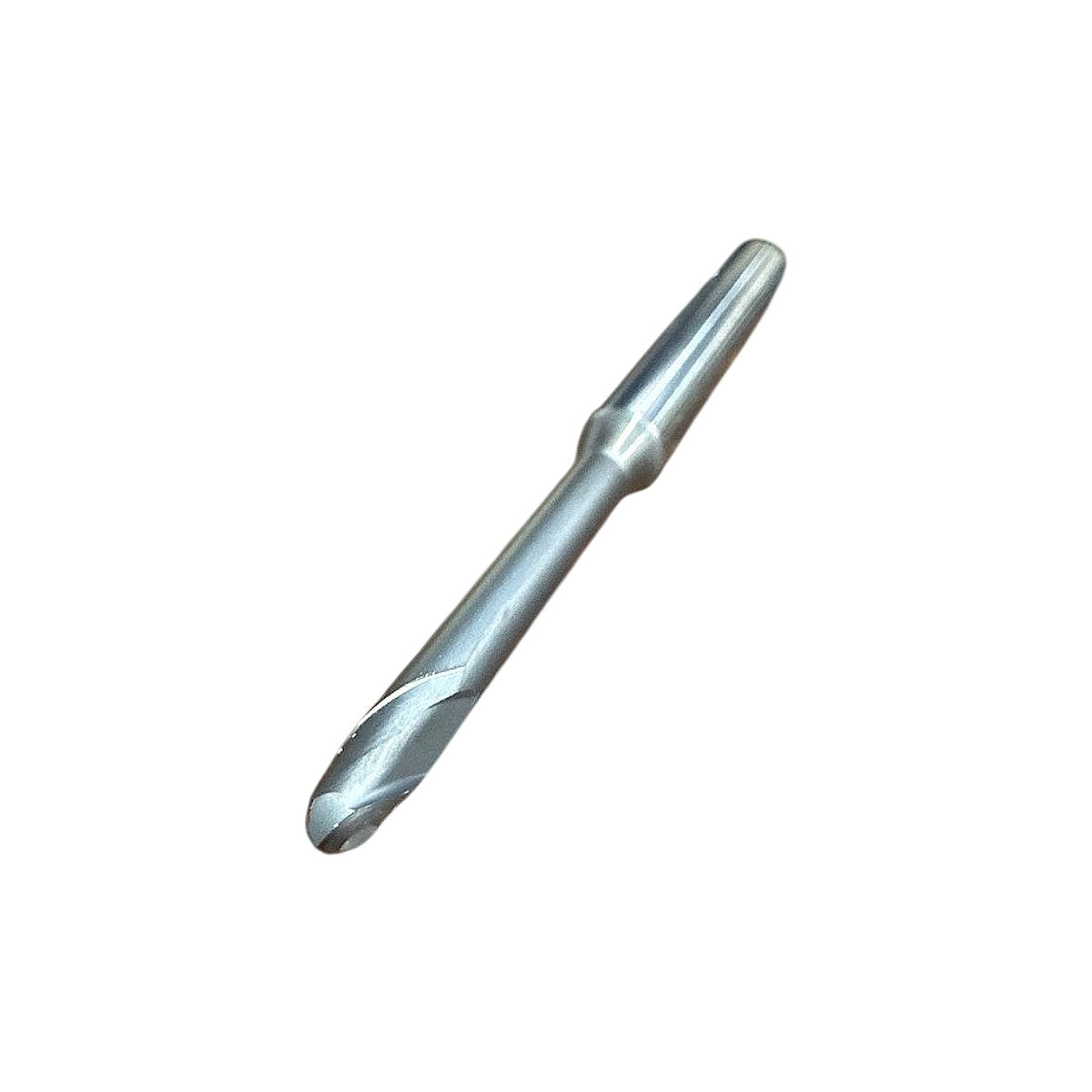

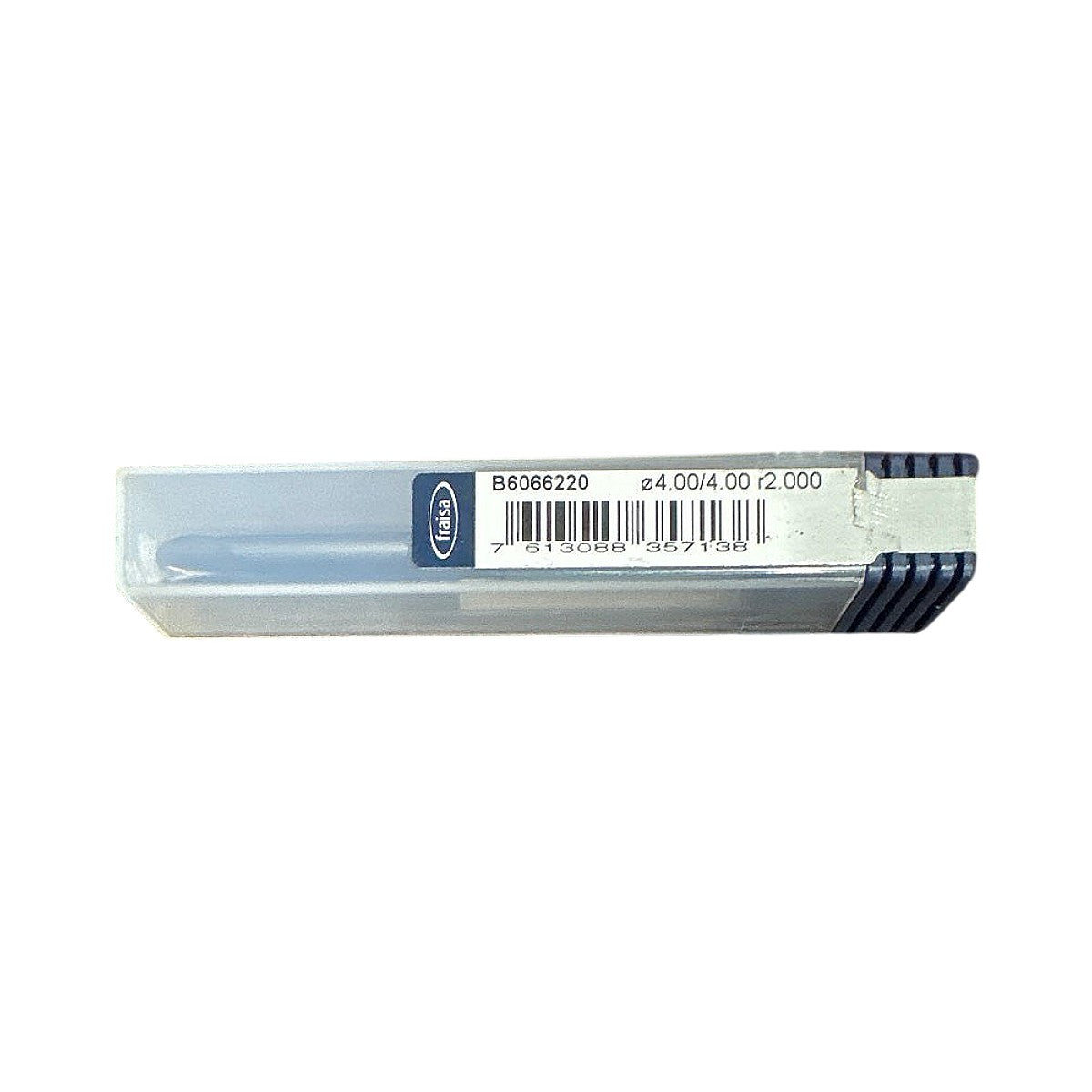

This Fraisa B6066220 is a new solid carbide ball nose end mill with a 4.00 mm cutting diameter, a 4.00 mm shank diameter and a full 2.000 mm ball radius, as marked on the package. The tool has two flutes and a relieved, reduced-diameter neck behind the cutting head, which provides reach and clearance in deep-cavity and 3D contour milling. The body is bright, uncoated carbide with a cylindrical shank and a tapered section above the neck. It suits 3D profiling, die and mold finishing and contouring on a CNC machining center, and it is held in a standard collet or shrink-fit toolholder.
