Fraisa D5850532 1/2in 6FL .030R AlTiN Carbide Corner Radius End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

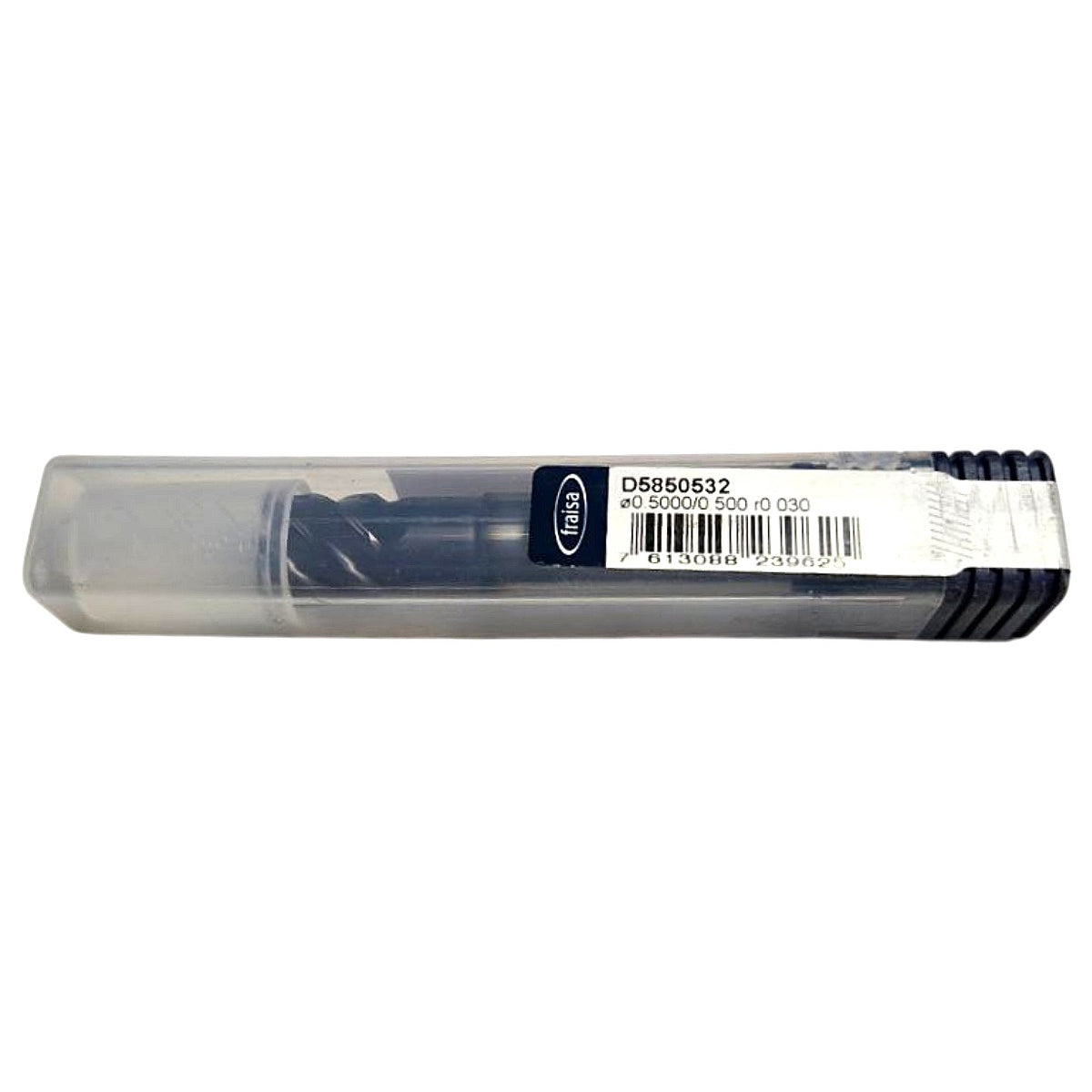

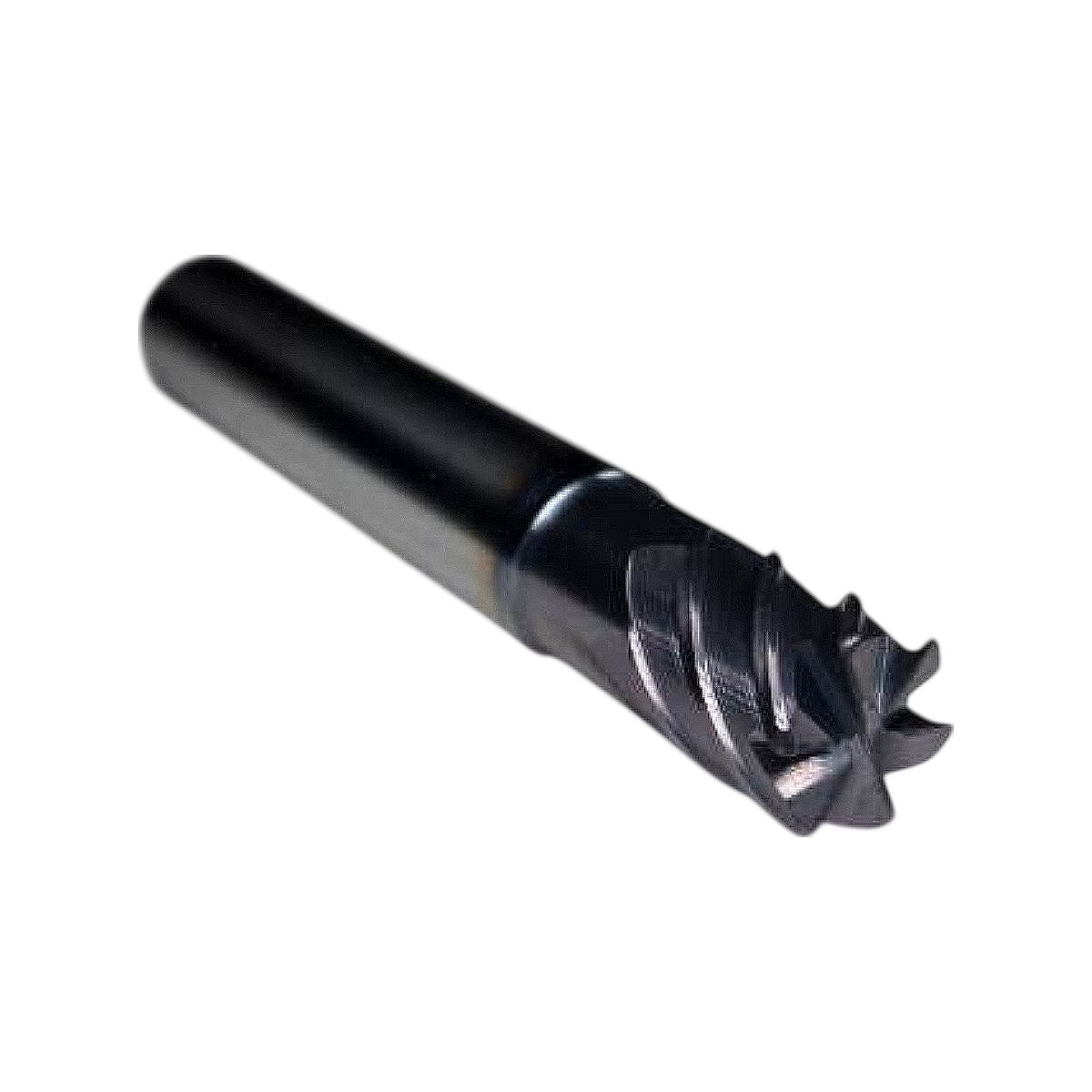

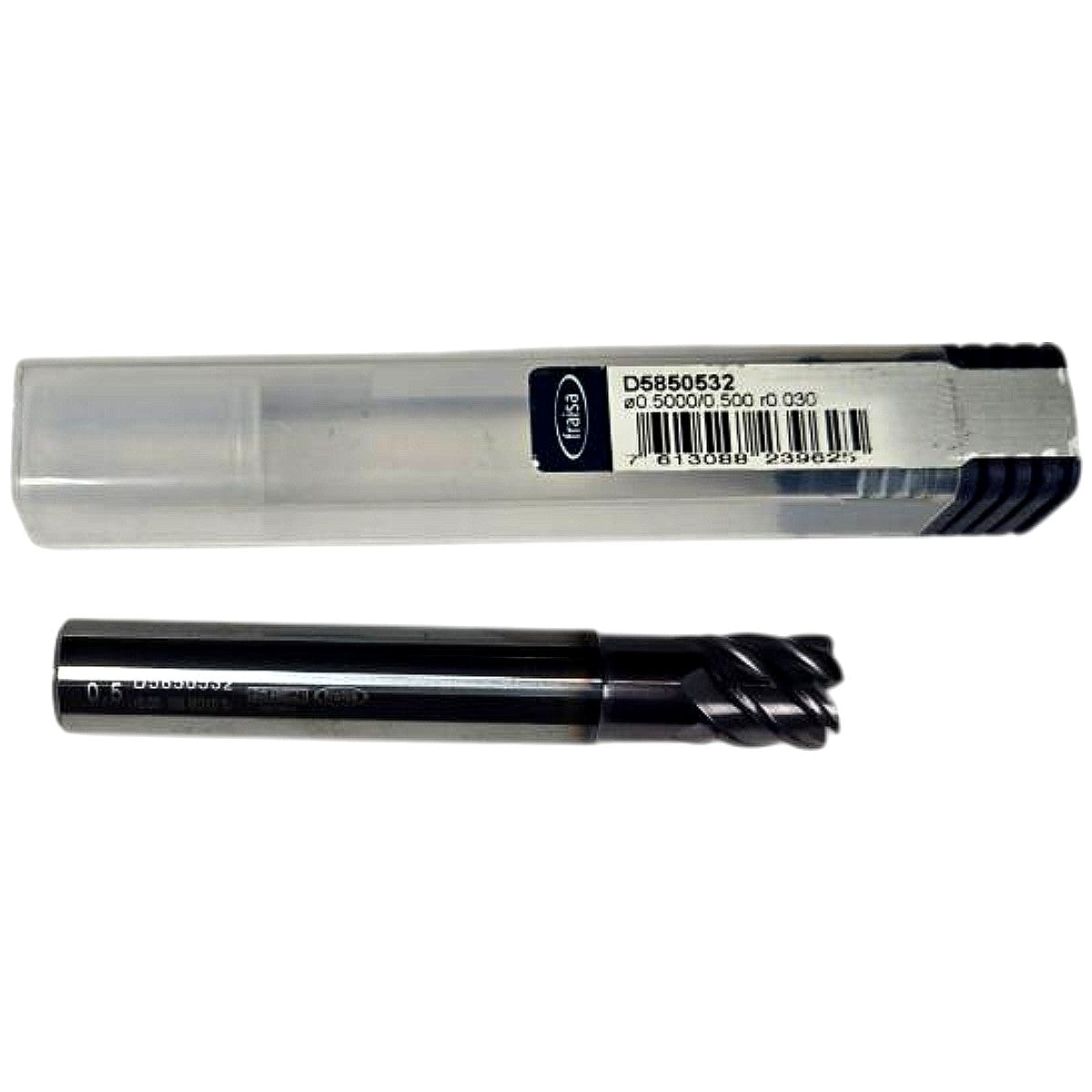

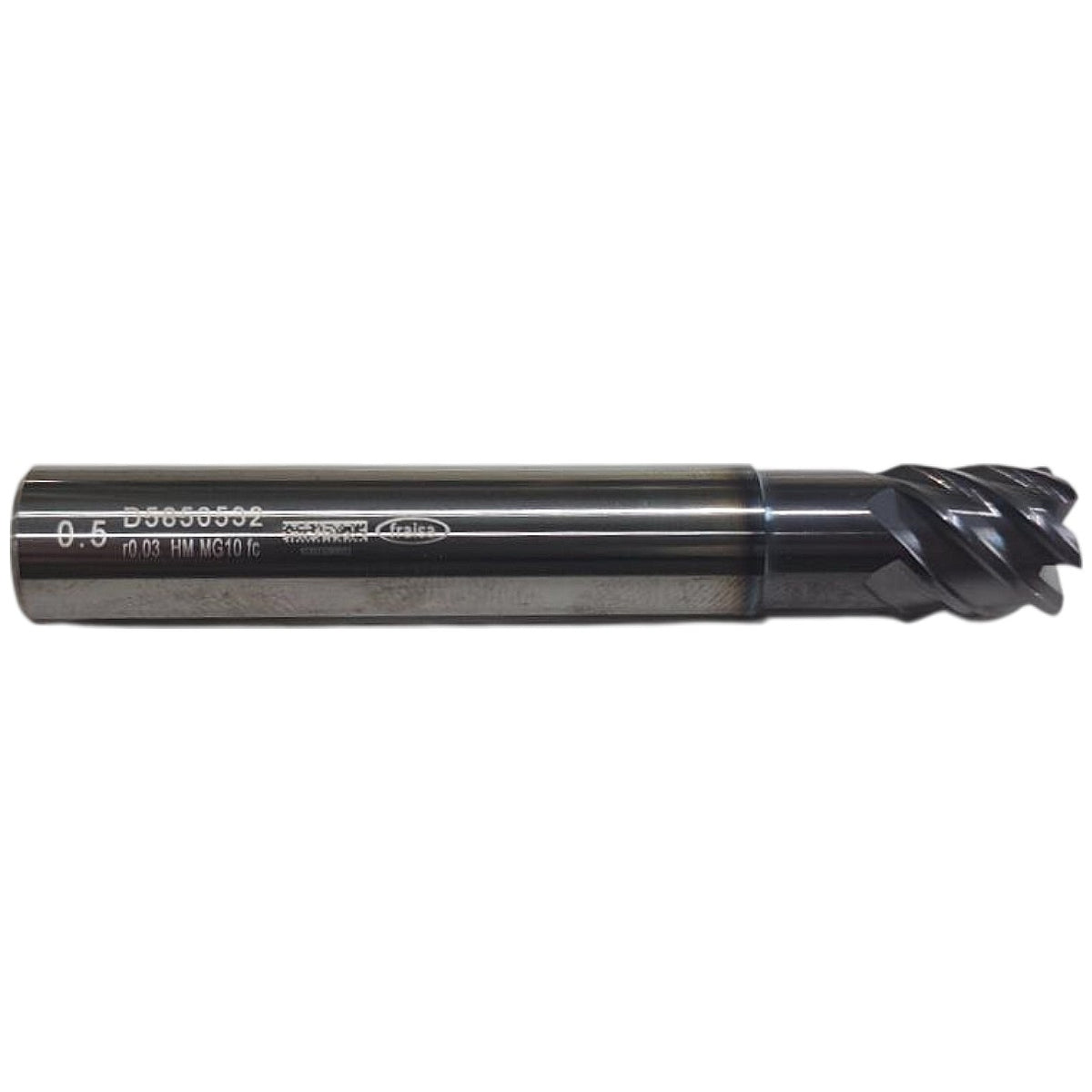

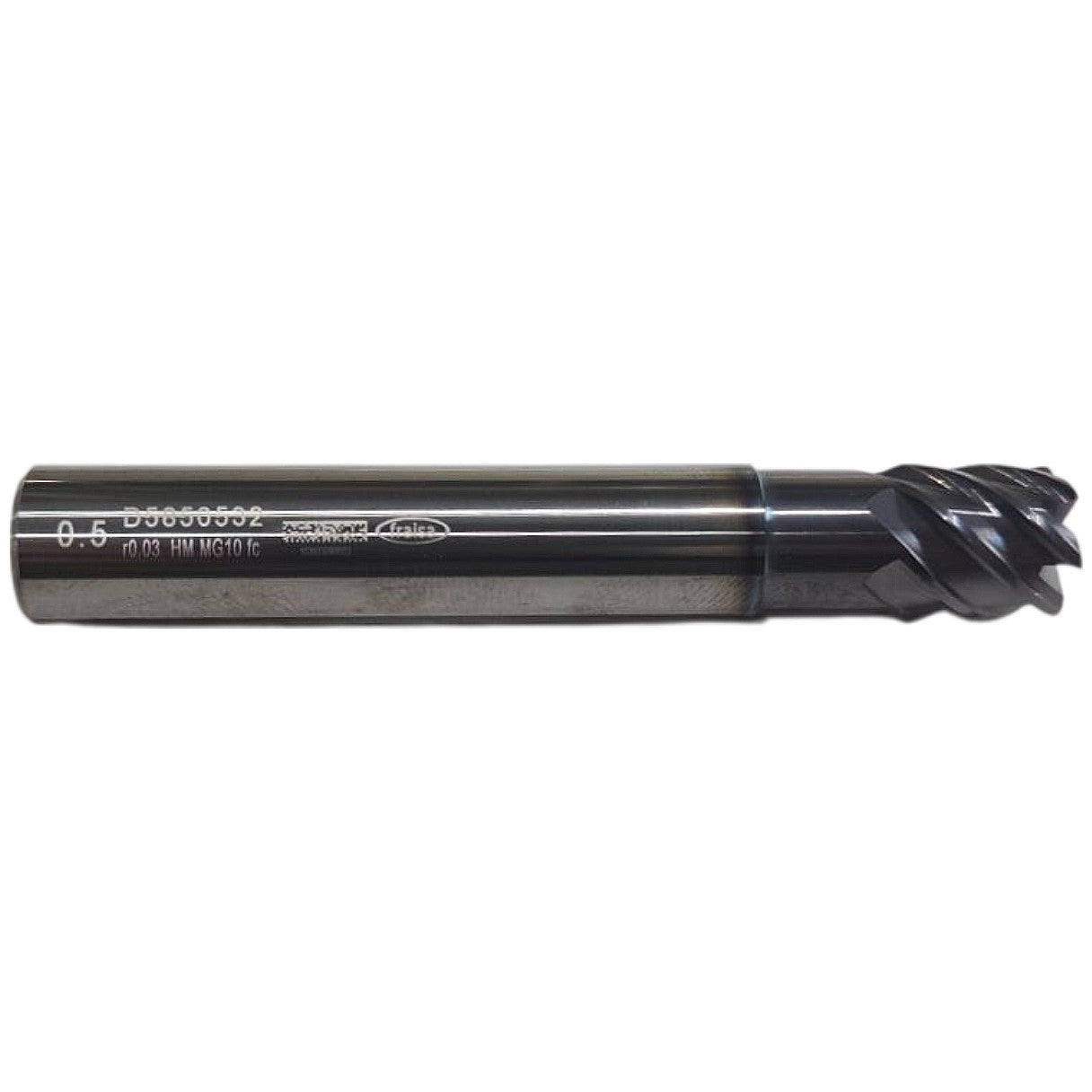

The Fraisa D5850532 is a new, solid carbide corner-radius end mill with a 1/2 in (0.5000 in) cutting diameter, 1/2 in shank diameter, 1/2 in length of cut, and 3-1/4 in overall length, as confirmed by the product label (ø0.5000/0.500 r0.030) and the engraved shank markings (0.5, r0.03, HM MG10 fc). The tool features six flutes ground from a submicron-grain tungsten carbide substrate (HM grade MG10), delivering exceptional toughness and wear resistance for high-feed finishing and semi-finishing passes. The dark AlTiN (aluminum titanium nitride) PVD coating — indicated by the "fc" (fraisa-coat) designation on the shank and the visually dark body — provides high surface hardness, oxidation resistance up to approximately 900 °C, and suitability for dry or minimal-lubricant cutting in hardened steels, stainless steels, cast iron, and nickel-based superalloys. The 0.030 in corner radius reduces stress concentration at the cutting edge, extending tool life in demanding contour milling, pocket milling, and finishing operations on CNC machining centers using standard 1/2 in ER, Weldon, or shrink-fit toolholders.
Product Specifications
| Brand | Fraisa |
| MPN | D5850532 |
| Cutting Diameter | 0.5000 in (1/2 in) |
| Shank Diameter | 0.500 in (1/2 in) |
| Corner Radius | 0.030 in (r0.03) |
| Number of Flutes | 6 |
| Length of Cut | 1/2 in |
| Overall Length | 3-1/4 in |
| End Style | Corner Radius (Bull Nose) |
| Substrate | Solid Carbide, Submicron-Grain (HM MG10) |
| Coating | AlTiN (fraisa-coat / fc) |
| Shank Style | Straight, Cylindrical |
| Hand of Cut | Right-Hand |
| Compatible Materials | Hardened steel, stainless, cast iron, superalloys |
| Condition | New |
