Fraisa P15946432 3/8x2-1/2in 4-Flute R.02 Carbide End Mill

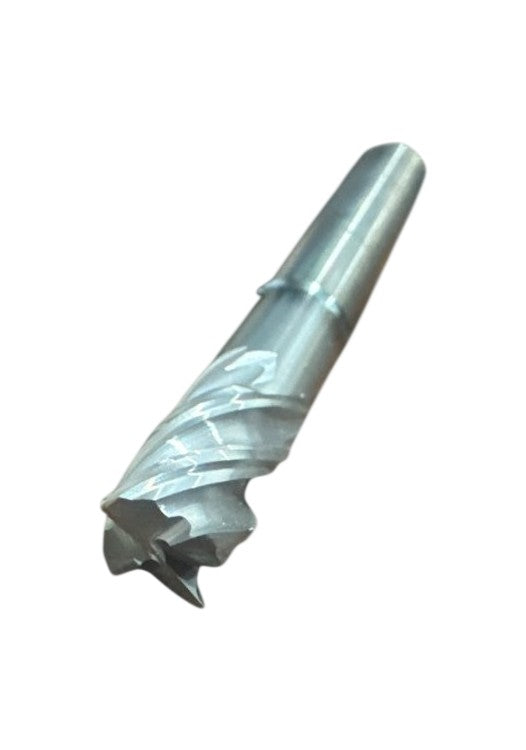

This is a new Fraisa P15946432 solid carbide corner radius end mill measuring 3/8 in (0.375 in) cutting diameter with a 7/16 in shank diameter, 2-1/2 in overall length, and a 0.02 in (R.02) corner radius on each cutting edge. The tool features 4 flutes with a right-hand helix and right-hand cut geometry, visible in the photo as a standard spiral end mill profile with center-cutting capability at the tip. Fraisa is a Swiss precision tooling manufacturer known for micro-grain solid carbide substrates; the uncoated bright finish visible in the photo is consistent with their standard carbide offerings for non-ferrous and general-purpose milling applications. The 7/16 in shank diameter is larger than the 3/8 in cutting diameter, providing enhanced rigidity and reduced runout when held in a standard ER collet, milling chuck, or hydraulic toolholder with 7/16 in bore capacity. The corner radius geometry reduces stress concentration at the cutting edge, extending tool life in profiling, slotting, and peripheral milling operations.

Product Specifications
