Fraisa P5810186 1/8in x 3-1/8in R1/16 Carbide Ball End Mill

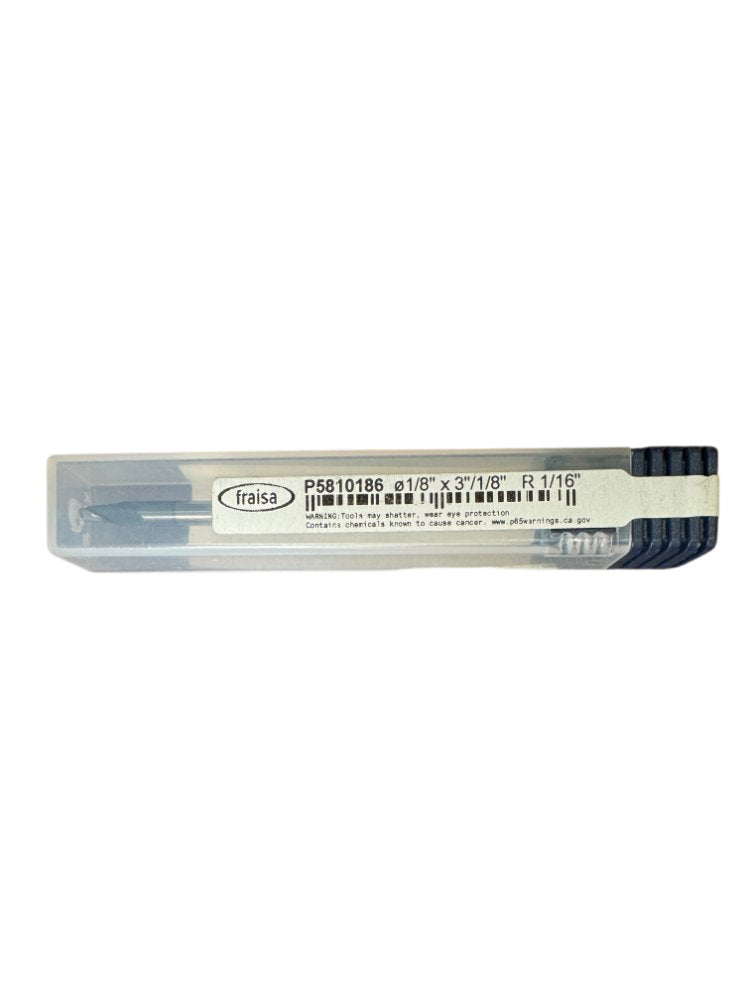

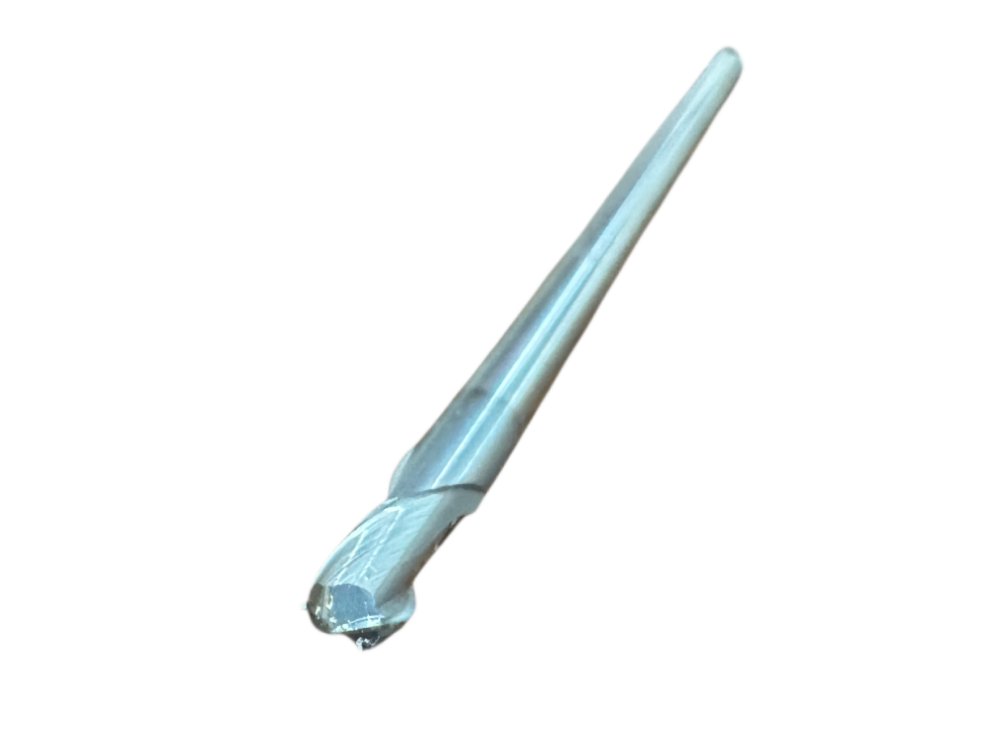

This is a new Fraisa P5810186 solid carbide ball end mill with a 1/8 in (3.175 mm) cutting diameter, 1/16 in ball nose radius, and 3-1/8 in overall length, as read directly from the factory label. Fraisa is a Swiss precision cutting tool manufacturer known for fine-grain submicron carbide substrates; the uncoated silver appearance visible in the photos is consistent with Fraisa's polished carbide finish used for non-ferrous and composite machining applications. The ball nose geometry produces hemispherical radii and is suited for 3D contouring, die/mold work, and finishing passes in aluminum, copper, brass, graphite, and plastics where an uncoated substrate prevents built-up edge. The 1/8 in straight shank is compatible with standard collet chucks (ER8, ER11, ER16) and precision toolholders accepting 1/8 in shanks; the long 3-1/8 in overall length provides extended reach for deep-cavity milling.

Product Specifications
