Fraisa P5852530 1/2in 6-Flute 0.015in Corner Rad Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

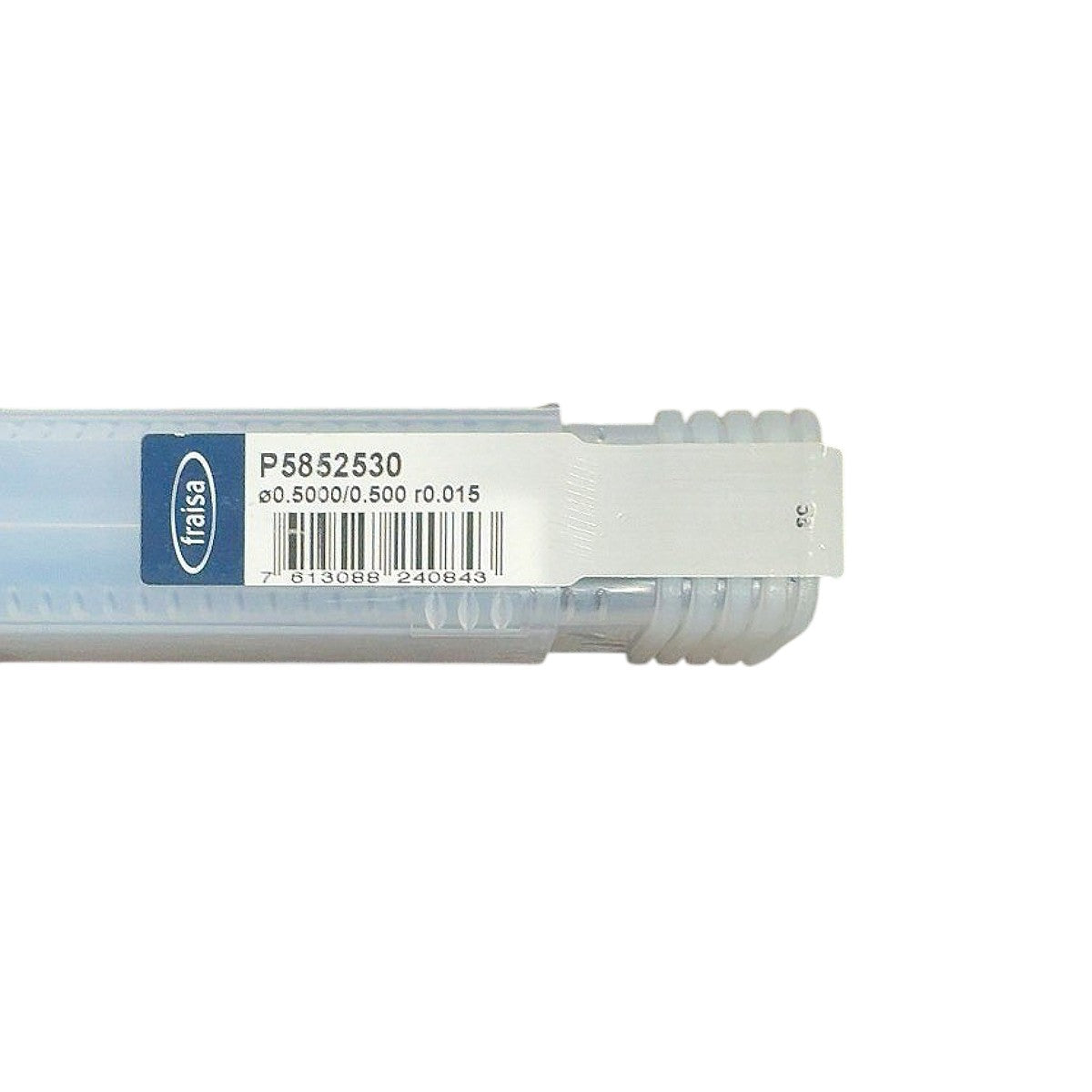

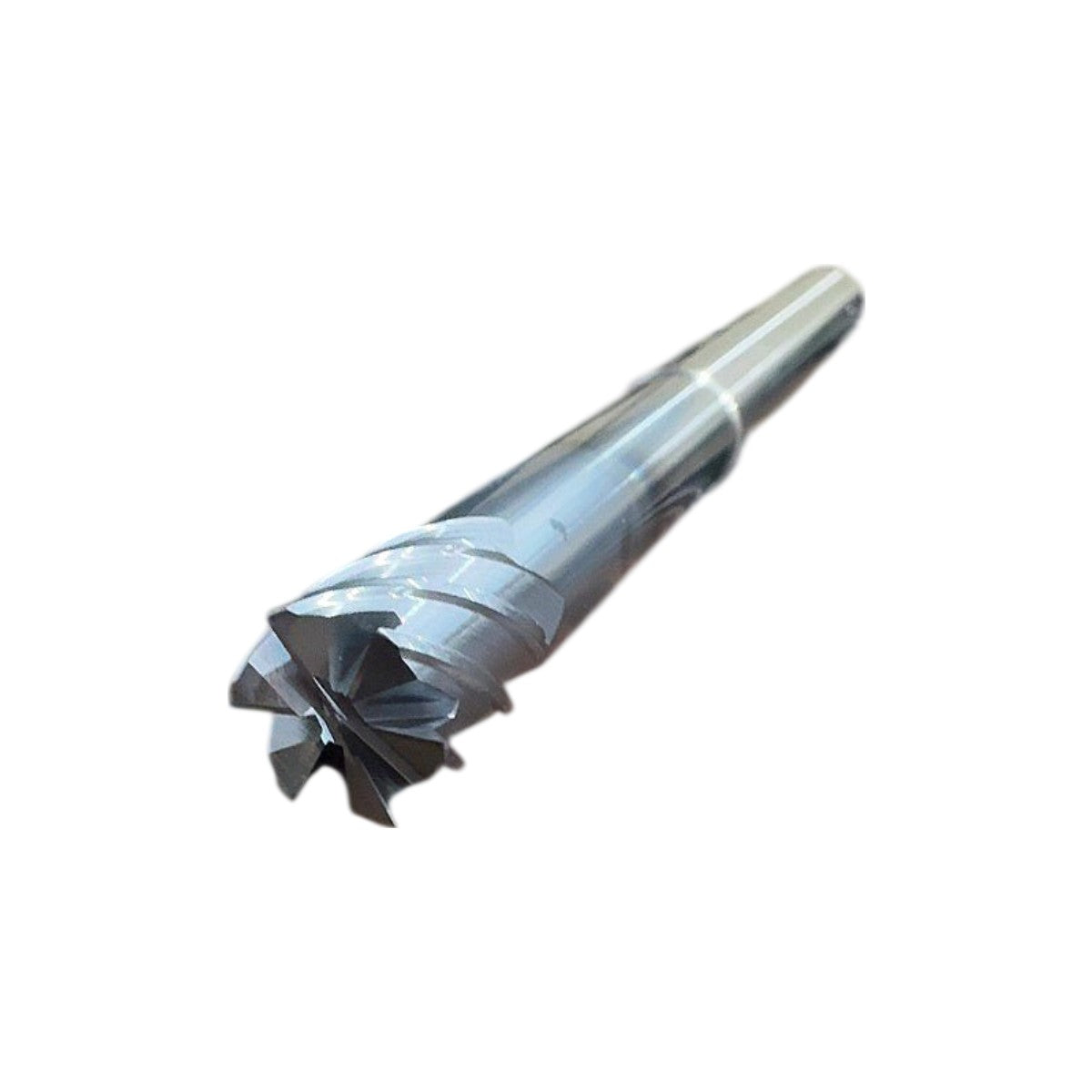

The Fraisa P5852530 is a new, solid carbide corner-radius end mill with a 0.5000 in (1/2 in) cutting diameter, 0.500 in shank diameter, and a 0.015 in corner radius, as read directly from the product label. Fraisa's P-series end mills are manufactured from ultra-fine grain carbide and are designed for finishing and semi-finishing operations in steel, stainless steel, and hardened materials, delivering exceptional surface finish and extended tool life. The 6-flute geometry, visible in the product photos, maximizes radial engagement and chip-thinning effect, enabling higher feed rates and superior surface quality in full-slot and peripheral milling applications on CNC machining centers using standard 1/2 in collet or end mill holders.
Product Specifications
| Brand | Fraisa |
| Part Number (MPN) | P5852530 |
| Cutting Diameter | 0.5000 in (1/2 in) |
| Shank Diameter | 0.500 in (1/2 in) |
| Corner Radius | 0.015 in |
| Number of Flutes | 6 |
| End Mill Type | Corner Radius End Mill |
| Shank Type | Straight Shank |
| Material | Solid Carbide |
| Series | P-Series |
| Condition | New |
