Fraisa X7200260 5mm/6mm Shank r0.5mm 4-Flute Carbide Corner Radius End Mill

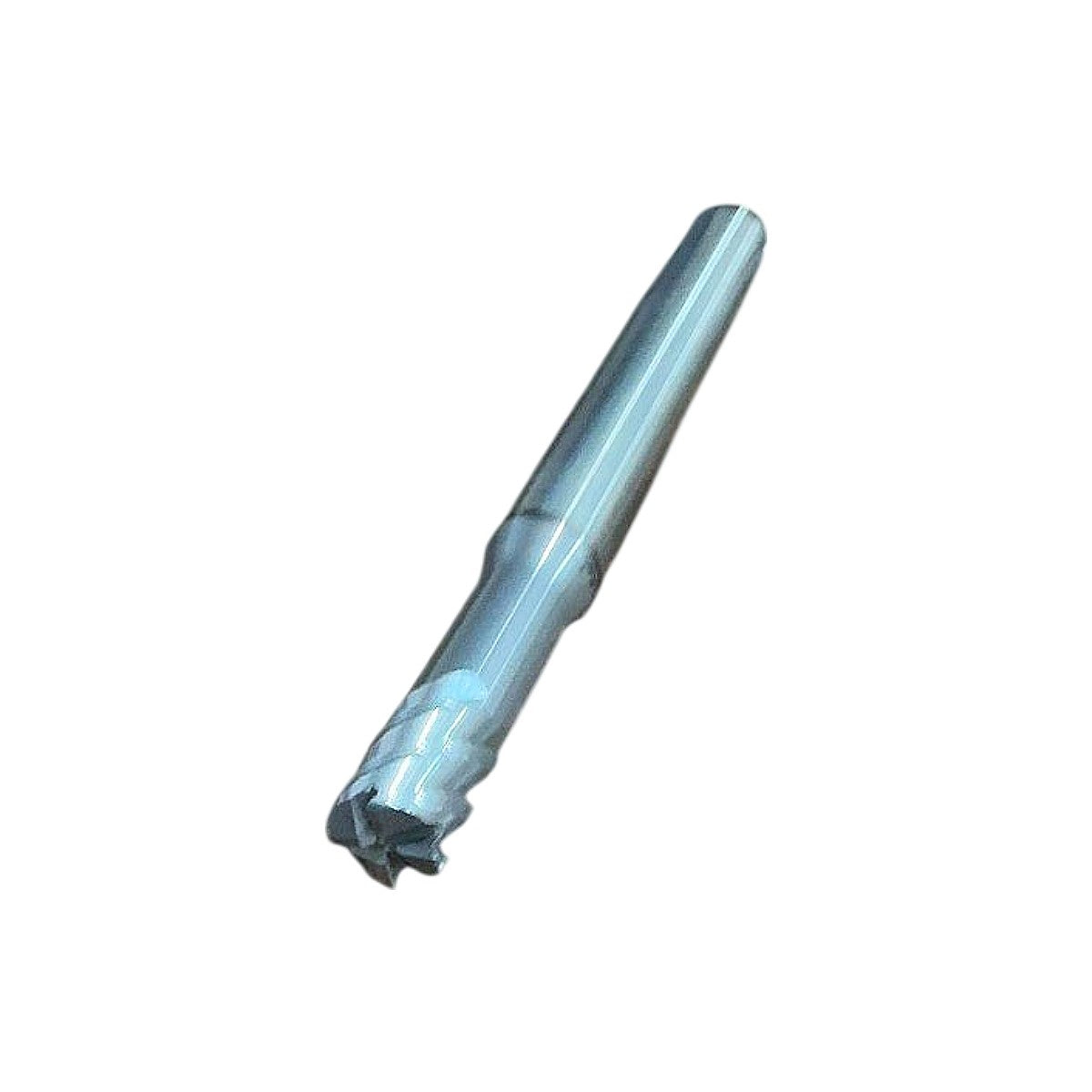

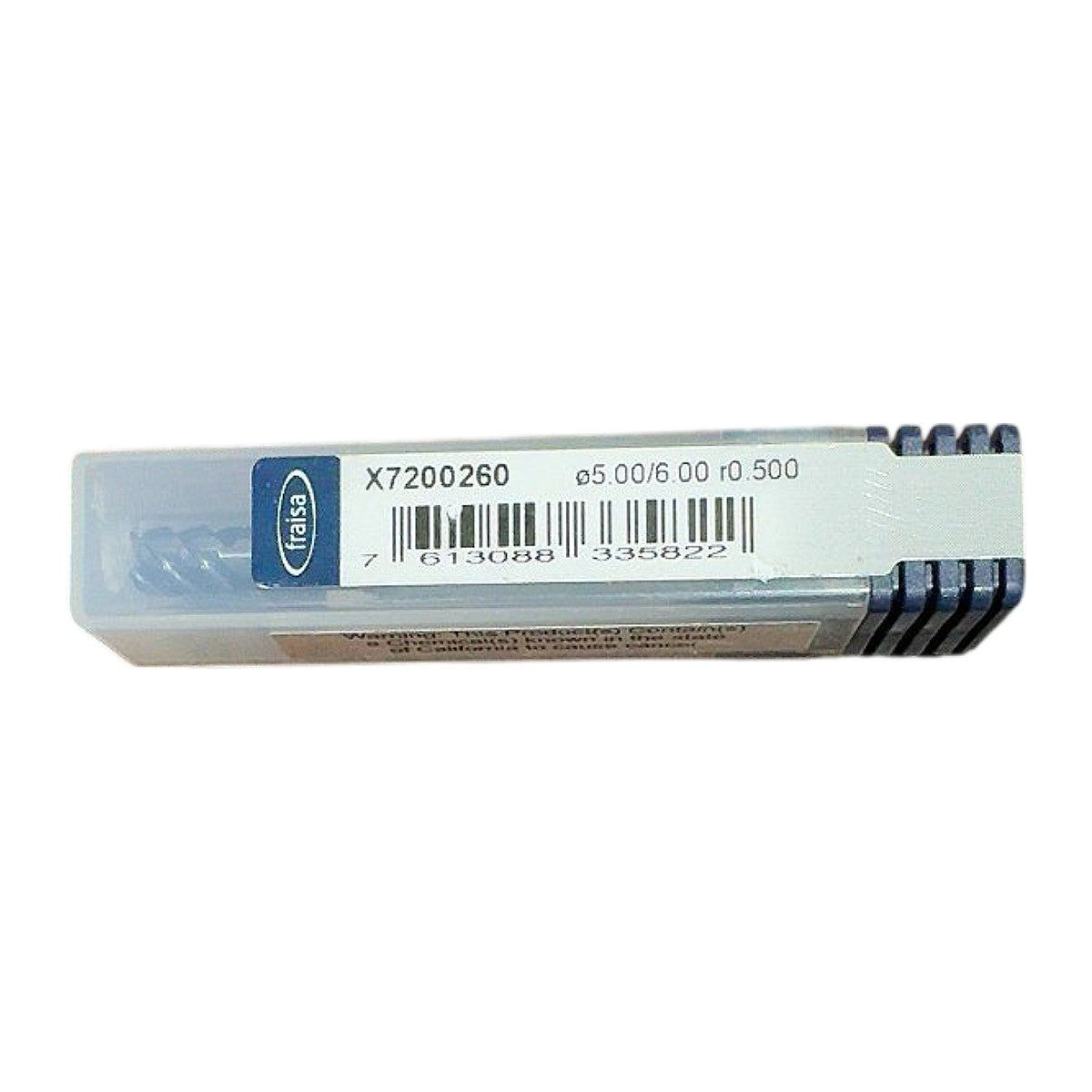

The Fraisa X7200260 is a new solid carbide corner radius end mill with a 5.00 mm cutting diameter, 6.00 mm cylindrical shank, and 0.500 mm corner radius, as read directly from the label (ø5.00/6.00 r0.500). The tool features 4 flutes visible in the photograph, with a bright/uncoated or lightly coated finish consistent with Fraisa's X-series geometry designed for precision finishing of hardened steels and non-ferrous materials. The reduced-neck configuration — where the cutting diameter (5 mm) is smaller than the shank diameter (6 mm) — allows for deep-reach milling in pockets and cavities while maintaining rigidity via the larger 6 mm shank, compatible with standard ER collet chucks and shrink-fit holders bored to 6 mm. Fraisa is a Swiss precision cutting tool manufacturer; this tool is supplied new in its original plastic case with the factory barcode label intact (UPC 7613088335822).

Product Specifications
