Fraisa X7200450 10mm Cut / 11mm Shank r0.5 Carbide Roughing End Mill

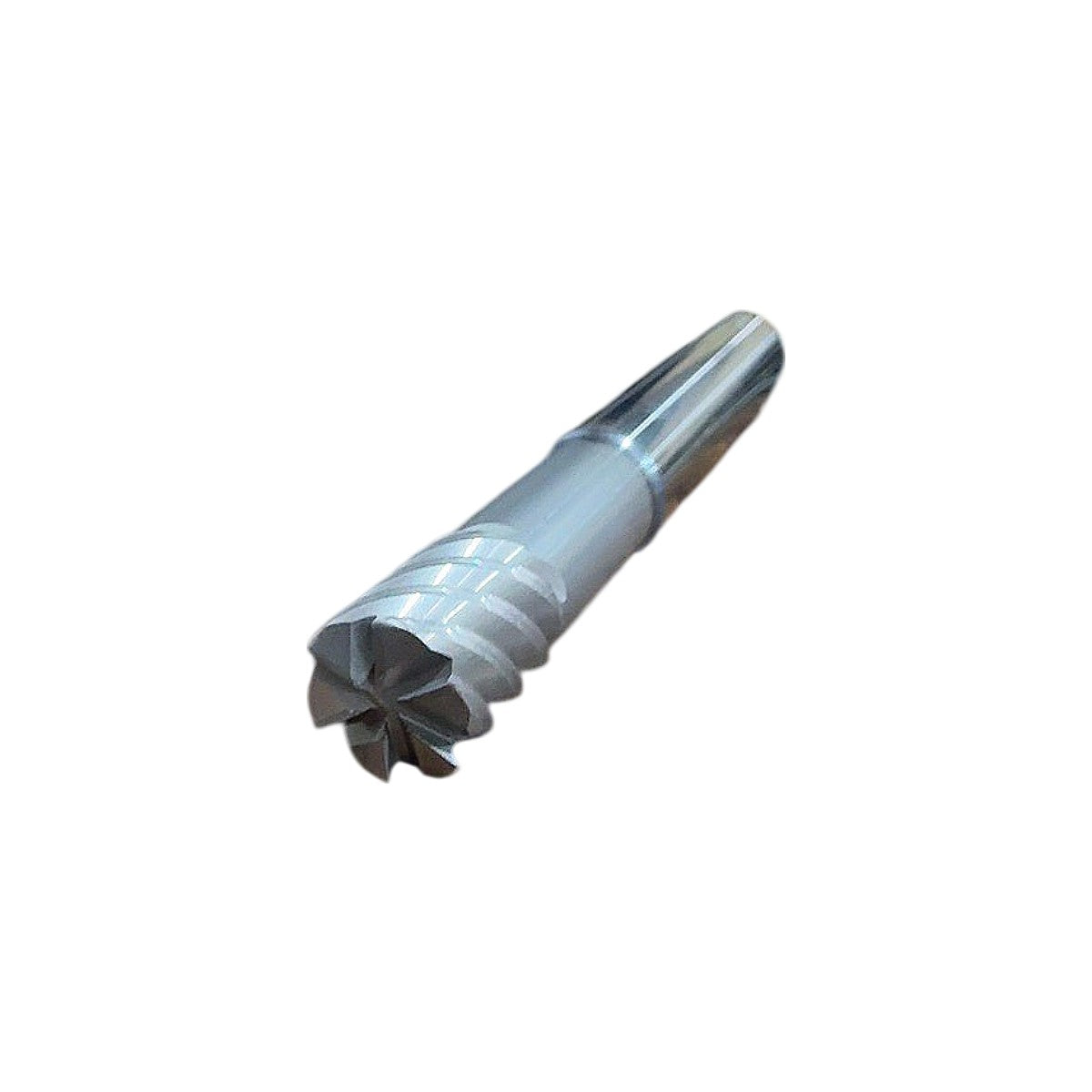

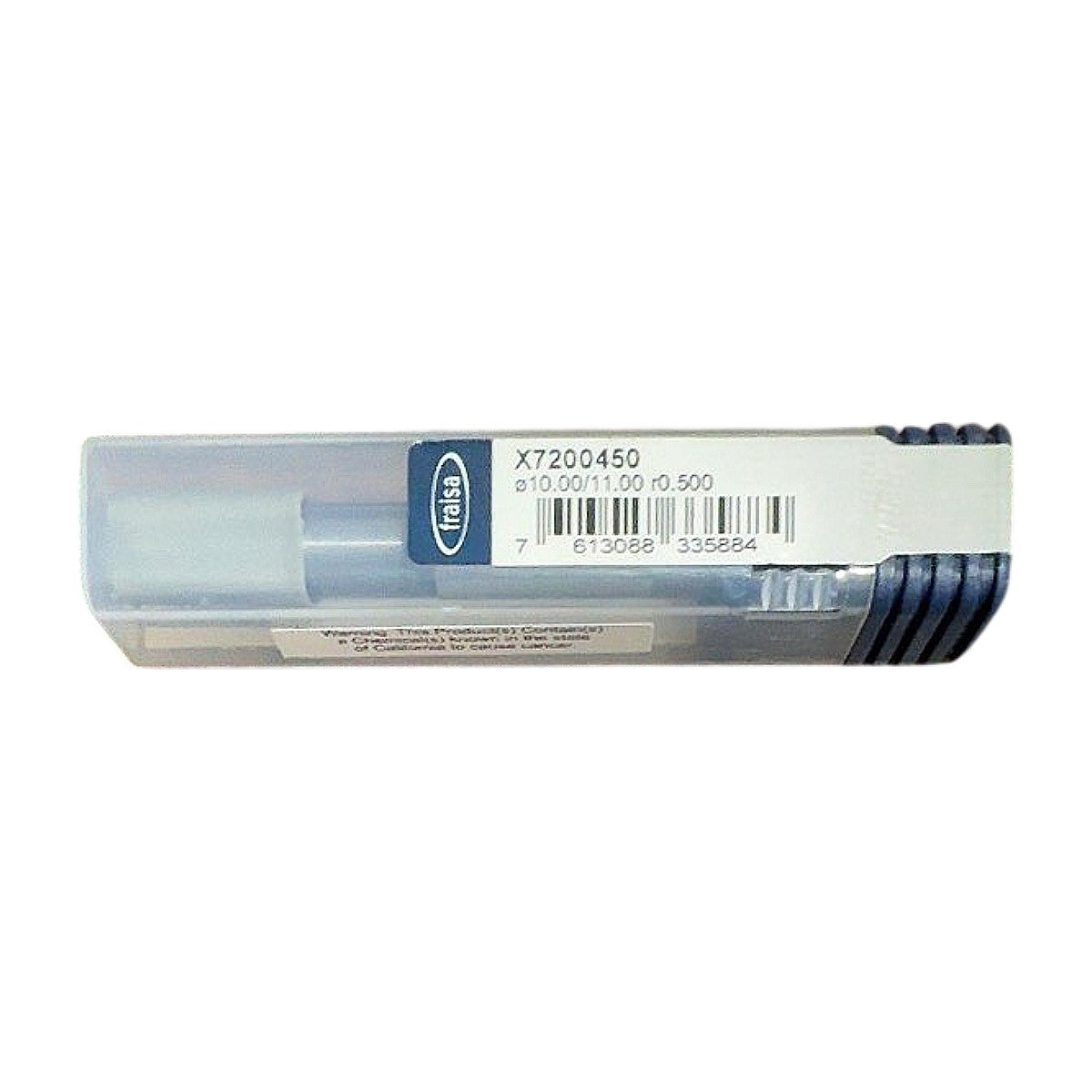

The Fraisa X7200450 is a solid carbide roughing end mill (wave/serrated flute geometry) featuring a 10.00 mm cutting diameter, 11.00 mm shank diameter, and 0.500 mm corner radius, as decoded directly from the label designation "ø10.00/11.00 r0.500." Fraisa's X72 series are multi-flute (6-flute) roughing end mills ground from sub-micron grain solid carbide, designed for high-volume material removal in steel, stainless, cast iron, and aluminum alloys; the serrated cutting edge geometry breaks chips into short segments to reduce cutting forces and improve chip evacuation. The uncoated bright finish visible in the photos is consistent with Fraisa's standard uncoated variant in this series, suited for applications where re-sharpening is anticipated or where coating is not required. This tool is new in its original Fraisa plastic case and is compatible with standard ER collet chucks or shrink-fit toolholders accepting an 11 mm shank.

Product Specifications
