Fraisa X7204496 12/13mm r1.0 Solid Carbide Torus End Mill

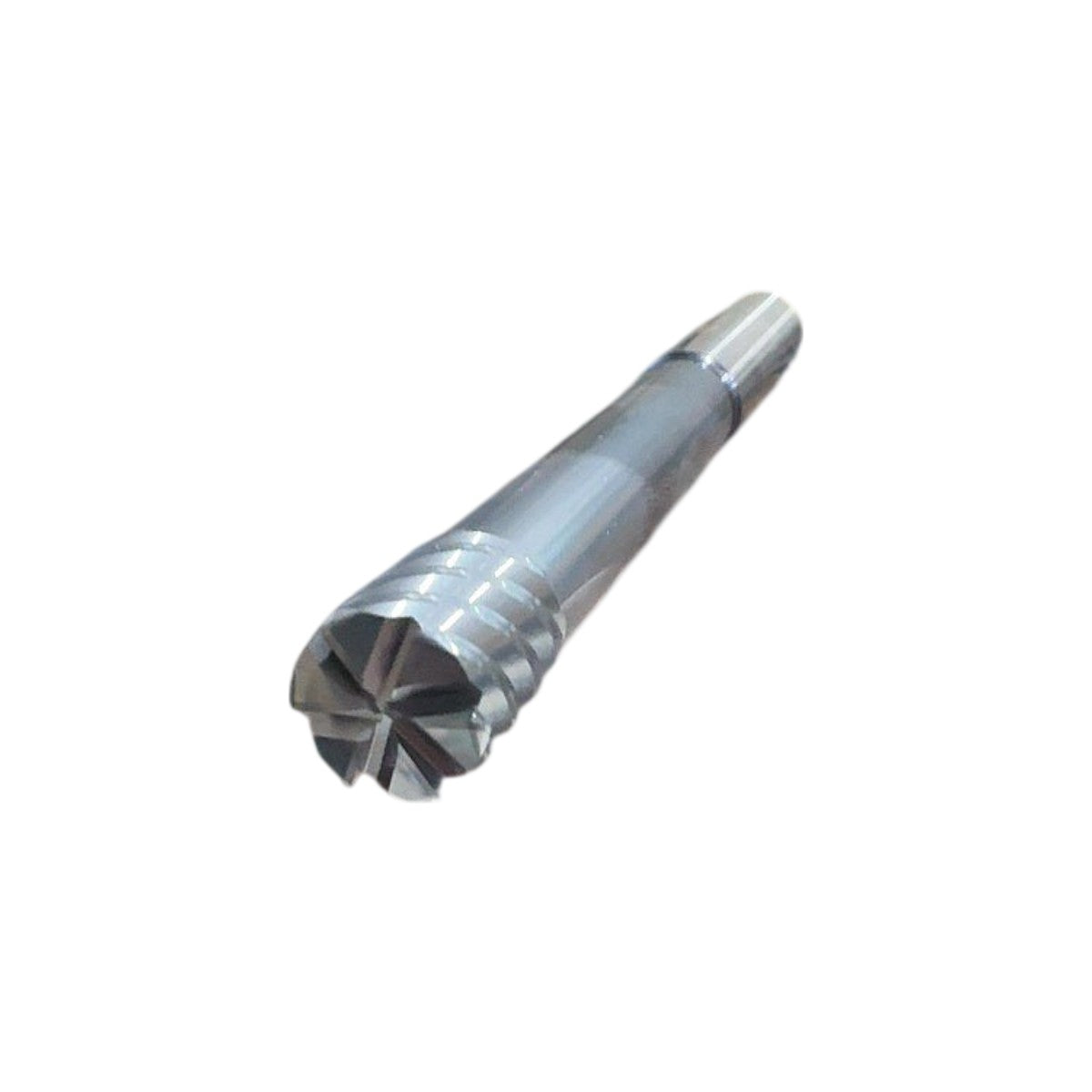

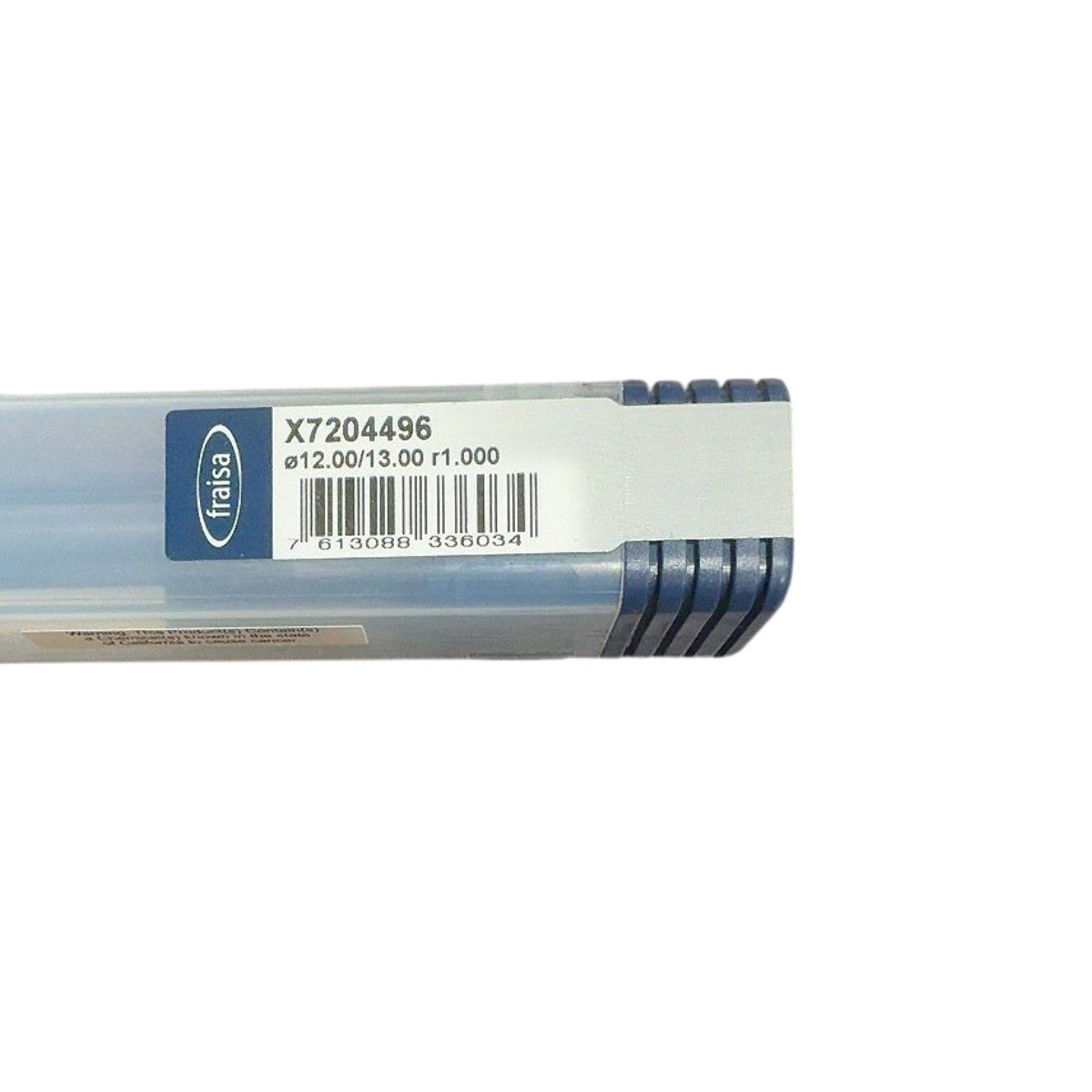

The Fraisa X7204496 is a new, solid carbide torus (bull-nose / corner-radius) end mill with a 12.00 mm cutting diameter, 13.00 mm shank diameter, and a 1.000 mm corner radius, all read directly from the label (ø12.00/13.00 r1.000). Fraisa X-series solid carbide end mills are ground from sub-micron carbide blanks and are designed for high-performance finishing and semi-finishing of hardened steels, stainless steels, titanium, and heat-resistant alloys, delivering tight tolerances and superior surface finishes in die-and-mold as well as aerospace applications. The torus geometry distributes cutting forces across the corner radius, reducing chipping and extending tool life compared to a square-end mill in 3D contouring operations; the 13 mm shank is compatible with standard ER32 collets, shrink-fit chucks, and hydraulic chucks sized for 13 mm shanks.

Product Specifications
