Fraisa X7600300 6mm/3mm Shank Solid Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

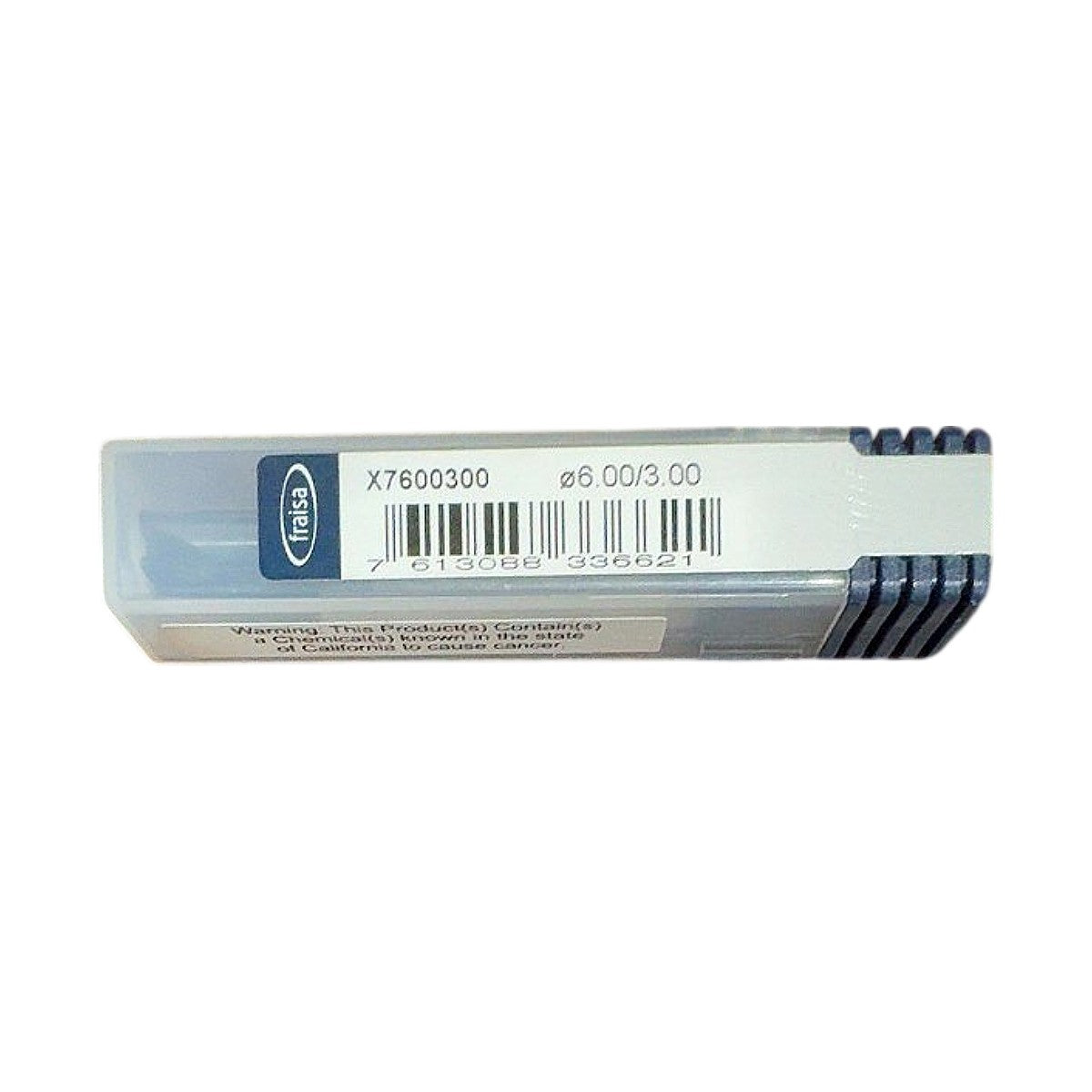

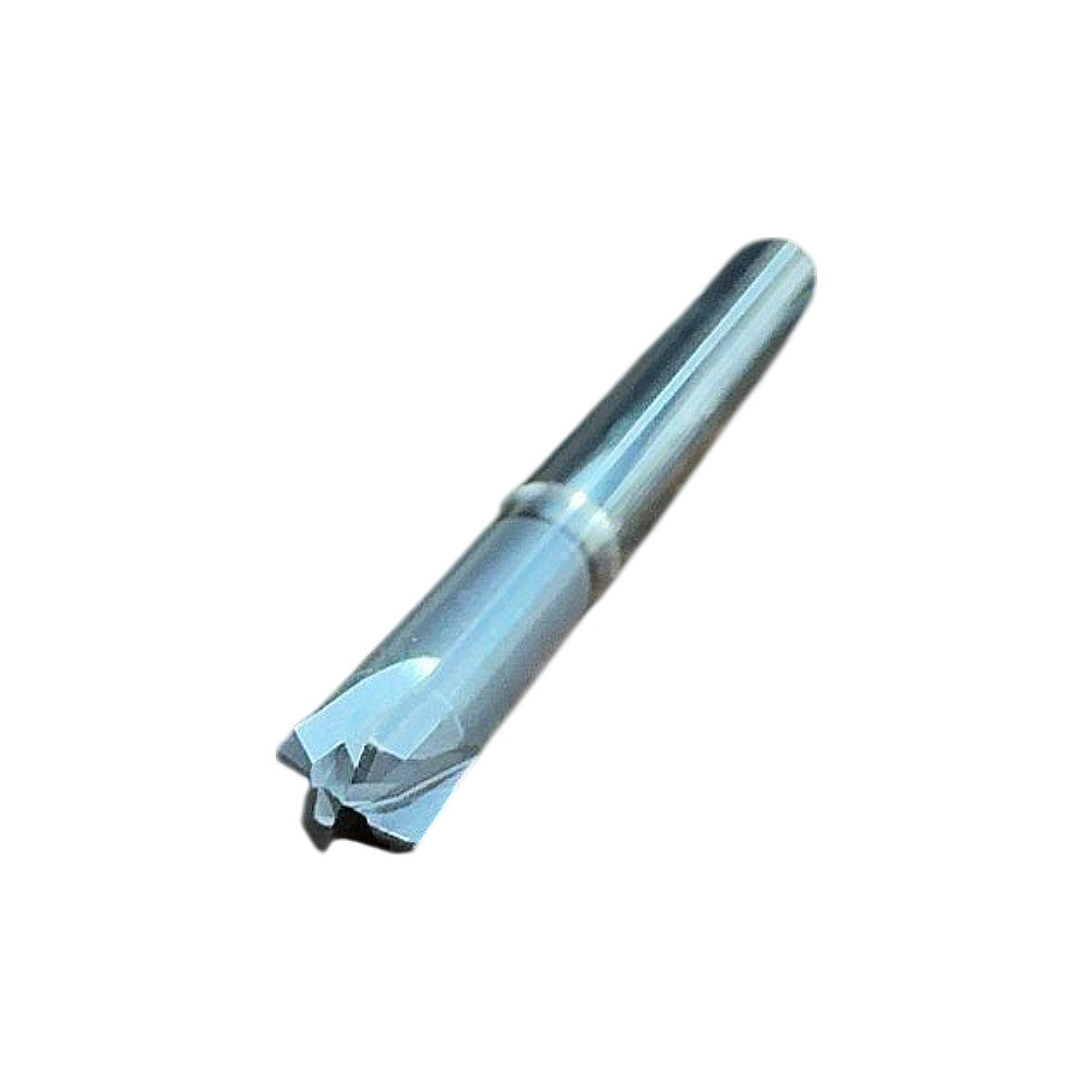

The Fraisa X7600300 is a new solid carbide end mill from Fraisa's X76 series, featuring a 6.00 mm cutting diameter with a reduced 3.00 mm shank diameter — both values confirmed directly from the package label (ø6.00/3.00). The X76 series from Fraisa is a 4-flute solid carbide end mill line engineered for finishing and semi-finishing operations in steel, stainless steel, cast iron, and hardened materials, produced from submicron-grain carbide substrate with a bright (uncoated) finish consistent with the silver appearance visible in the product photo. The reduced shank (neck relief) geometry allows deep-cavity and die/mold machining with reduced tool deflection when extension is required beyond standard reach. This tool is compatible with any ER collet chuck, shrink-fit holder, or hydraulic toolholder accepting a 3 mm shank, and is manufactured in Switzerland by Fraisa SA to tight dimensional tolerances.
Product Specifications
| Brand | Fraisa |
| MPN | X7600300 |
| Series | X76 |
| Cutting Diameter | 6.00 mm |
| Shank Diameter | 3.00 mm |
| Shank Type | Reduced/Neck Shank (long reach) |
| Number of Flutes | 4 |
| End Geometry | Square (flat) end |
| Substrate | Solid Carbide |
| Grain Size | Submicron-grain carbide |
| Coating | Uncoated (bright) |
| Country of Origin | Switzerland |
| Condition | New |
