Fraisa X7600450 10x10x72mm 4FL X-AL Hi-Feed Carbide End Mill

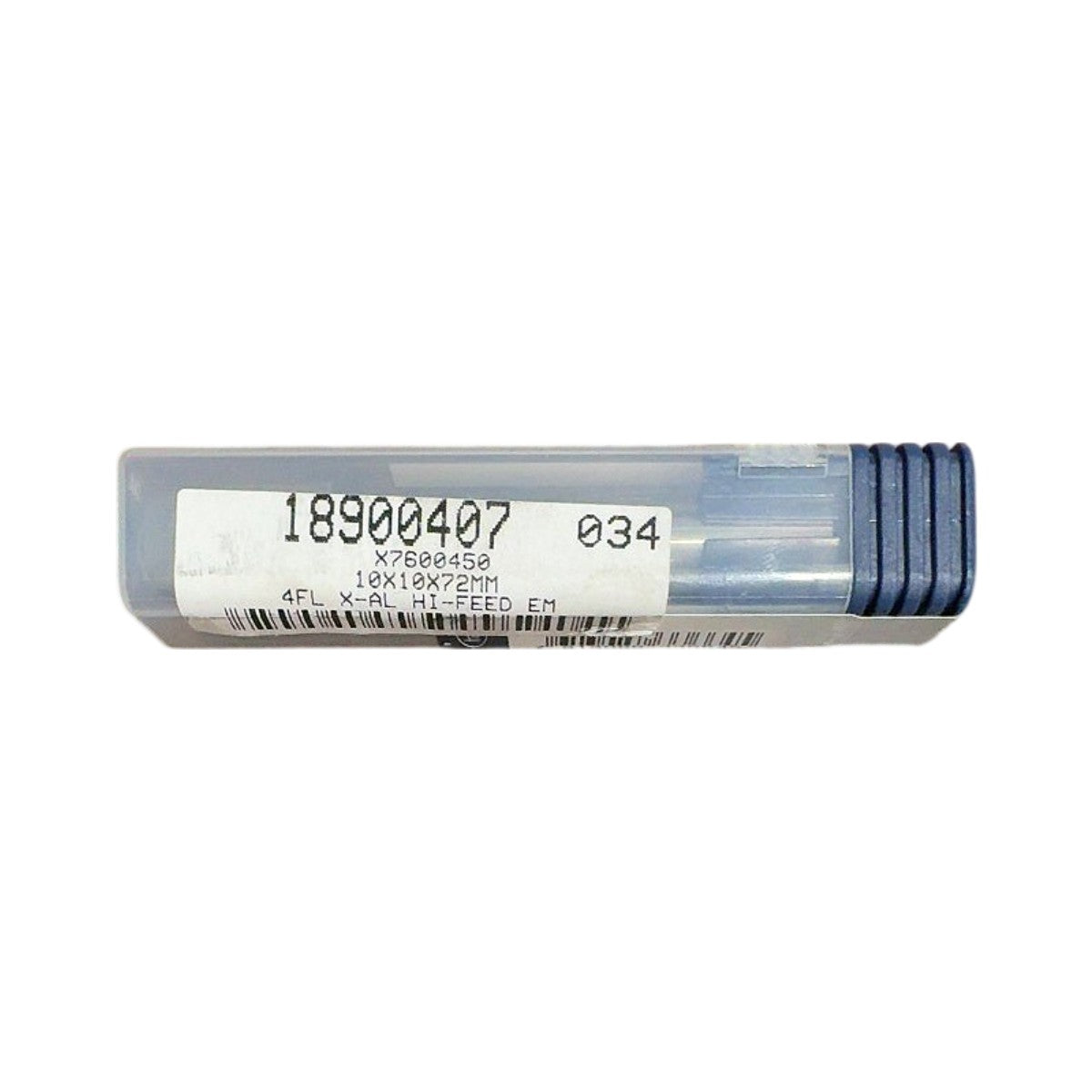

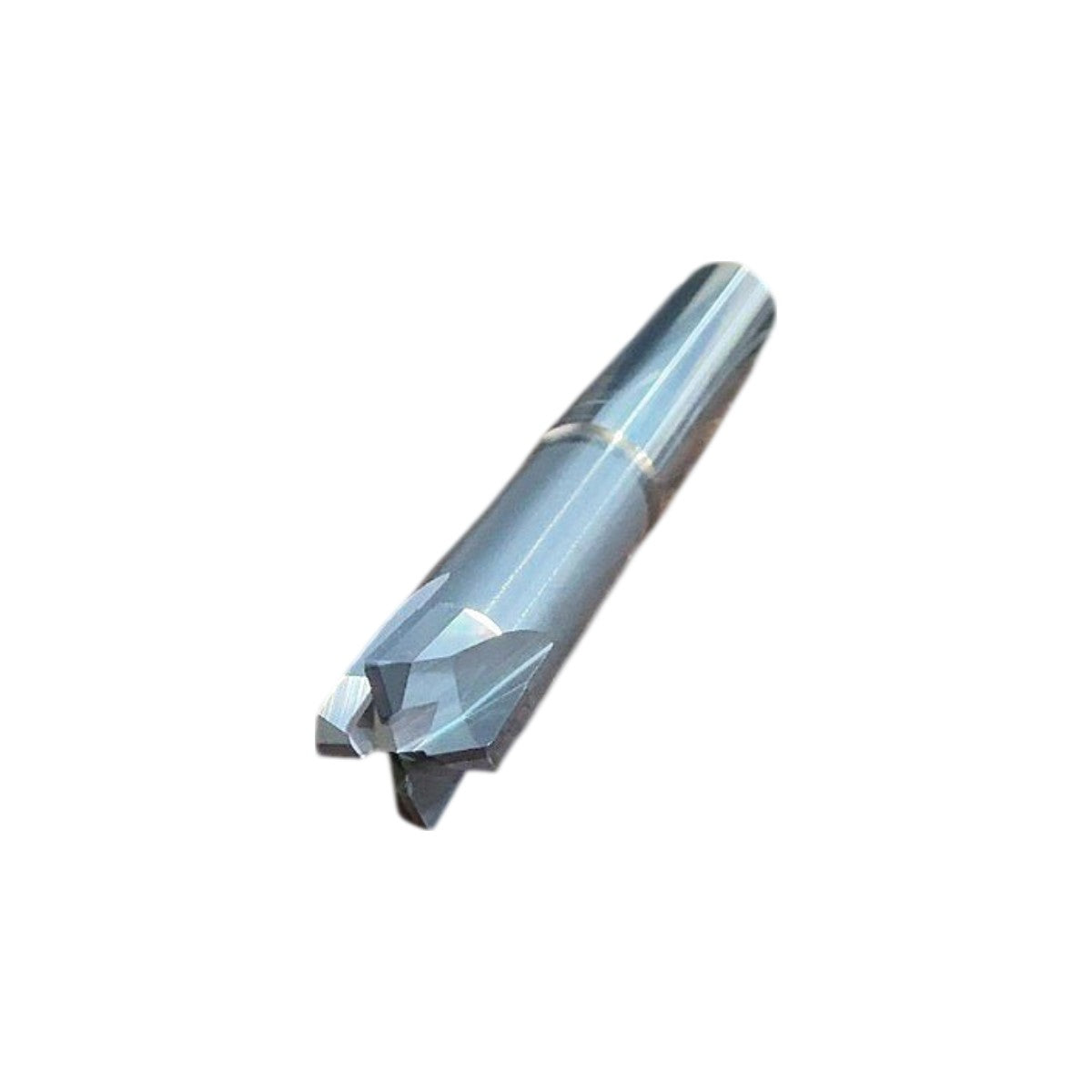

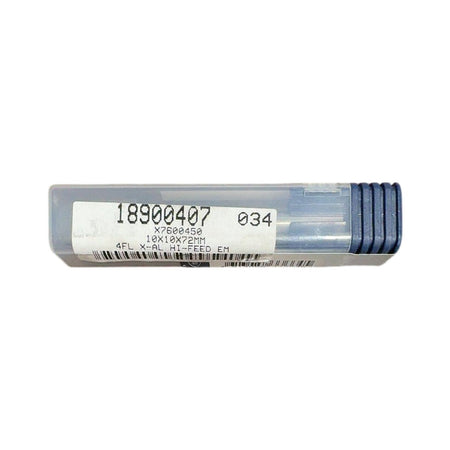

The Fraisa X7600450 is a new, solid carbide 4-flute hi-feed end mill from Fraisa's X-AL product line, purpose-engineered for high-efficiency milling of aluminum and non-ferrous materials. Measuring 10 mm cutting diameter × 10 mm shank diameter × 72 mm overall length, it features an uncoated (bright) solid carbide substrate optimized for the low friction and sharp cutting edges demanded by aluminum machining, with a geometry designed to maximize chip evacuation and surface finish at aggressive feed rates. The hi-feed geometry produces a shallow axial depth of cut with high radial engagement, enabling very high table feeds and reduced cutting forces — particularly effective in 3-axis and high-speed machining centers with HSK or ER collet toolholding systems accepting a 10 mm shank. The X-AL series designation confirms the tool is specifically ground for aluminum, magnesium, and other non-ferrous alloys, where uncoated sharp-edge carbide outperforms coated alternatives by preventing built-up edge. This end mill is supplied new in its original Fraisa plastic tube packaging with full manufacturer labeling (MPN X7600450, internal batch 18900407-034). Product Specifications MPN X7600450 Brand Fraisa Number Of Flutes 4 Internal Part Number 18900407 Product Line X-AL Hi-Feed Cutting Diameter 10 mm Shank Diameter 10 mm Overall Length (OAL) 72 mm End Geometry Hi-Feed (high-feed milling) Material Solid Carbide Coating Uncoated (bright) Application Aluminum & non-ferrous alloys Shank Style Cylindrical (straight)
