Fullerton Tool 3211B 3/8in Ball 3-Flute Tapered Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

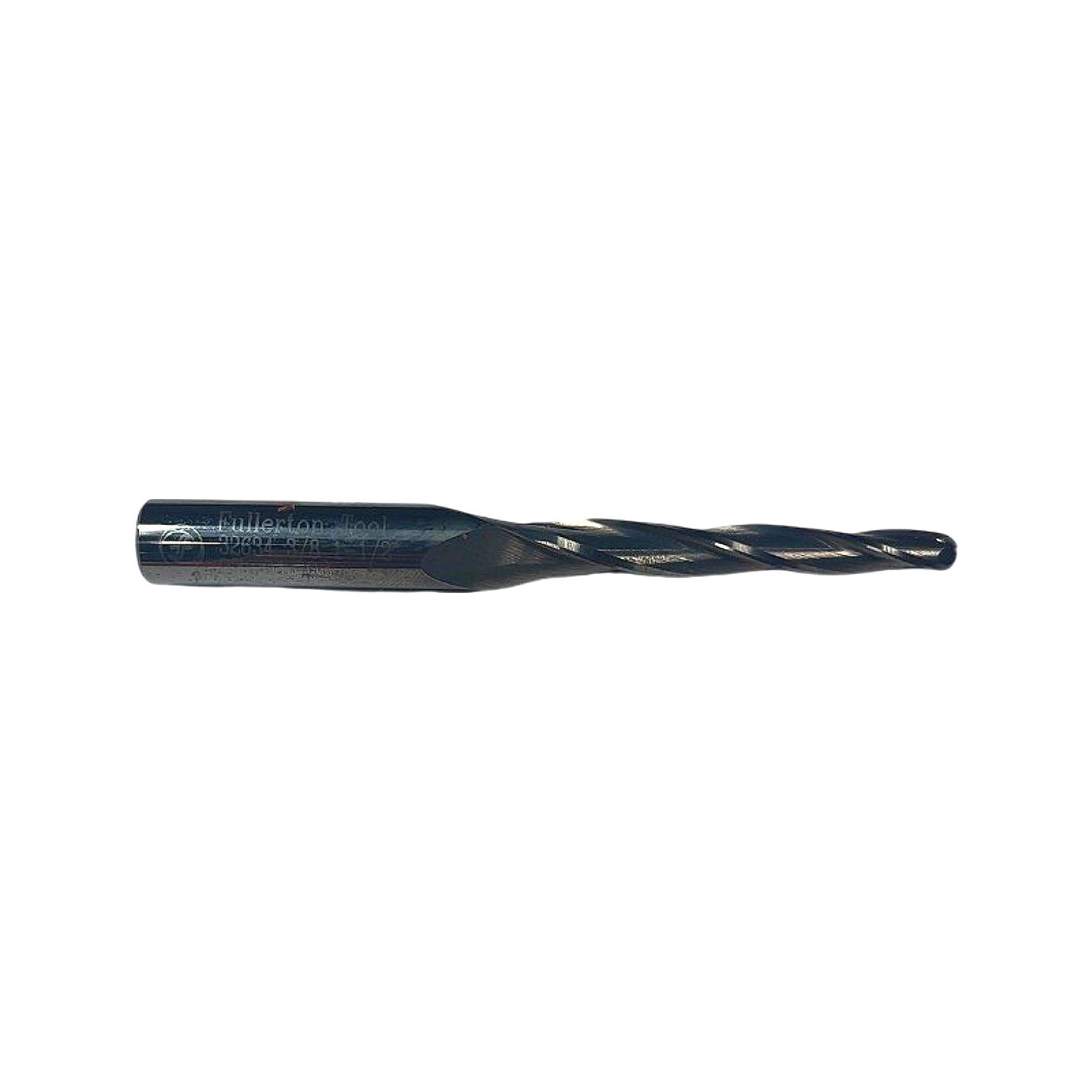

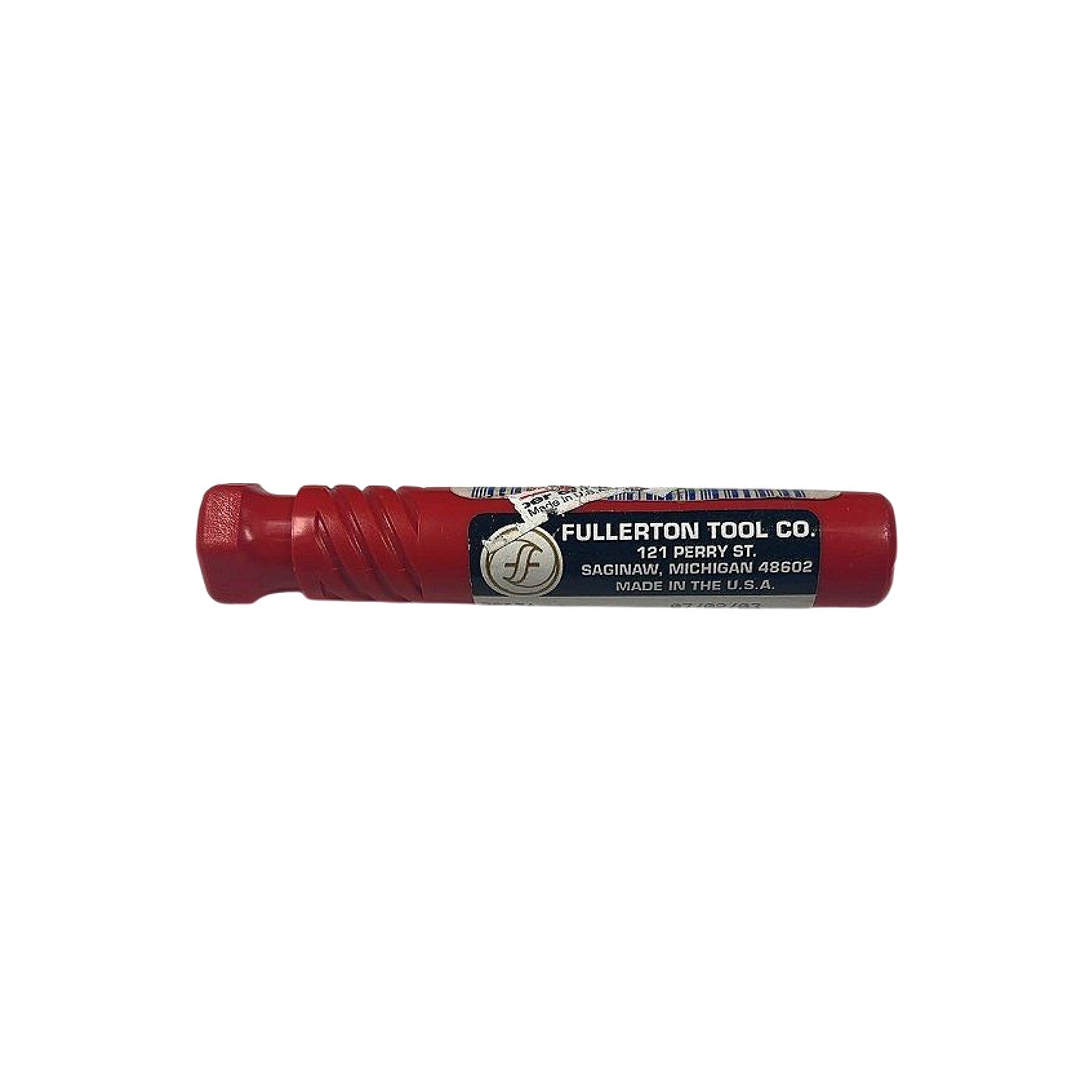

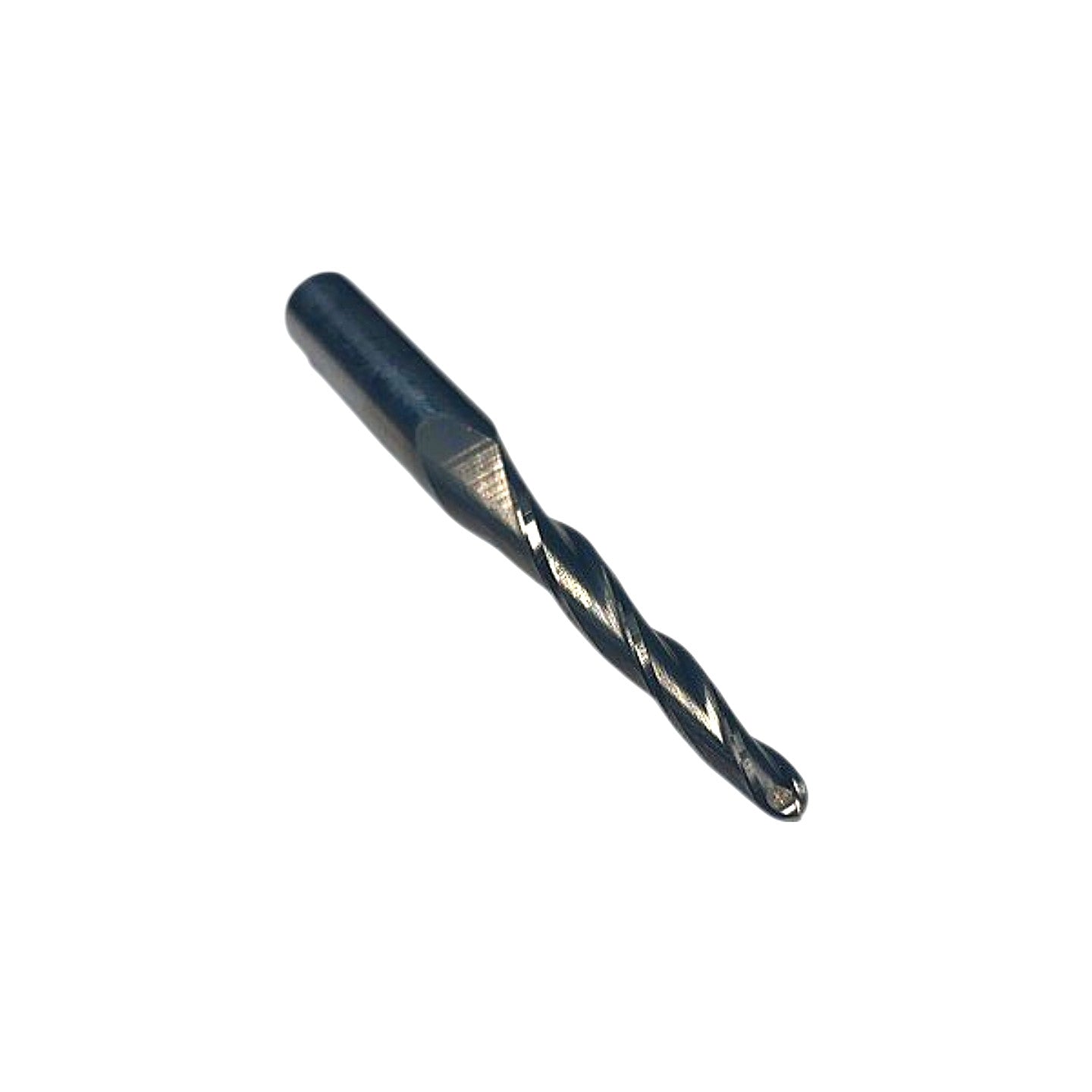

This is a new Fullerton Tool Co. (Saginaw, Michigan, USA) solid carbide ball nose end mill, part number 3211B, with a 3/8 in (0.3750 in) shank diameter, 3/8 in ball nose cutting diameter, and 1-1/2 in length of cut. The tool features a tapered flute profile with 3 flutes and a 30° helix angle, as encoded in the secondary label designation '3/32 RADx3/8SH-1D30° BL 3FL TAPERED ENDMILL' — indicating a 3/32 in ball radius on a tapered body — and carries a dark (black) TiN or similar PVD-style coating visible in the photos. Fullerton's 3211B series tapered ball end mills are manufactured from submicron grain solid carbide and are suited for die/mold finishing, 3D contouring, and rib-slotting in steels, tool steels, and hardened materials where the tapered geometry provides clearance in deep-cavity work. The 3/8 in round shank is compatible with standard ER collet chucks, milling chucks, and Weldon-flat holders in that bore size.
Product Specifications
| Brand | Fullerton Tool Co. |
| Part Number | 3211B |
| Series / Order Number | 32634 |
| End Type | Ball Nose |
| Profile | Tapered |
| Number of Flutes | 3 |
| Helix Angle | 30° |
| Ball Radius | 3/32 in (0.09375 in) |
| Cutting Diameter | 3/16 in (0.1875 in) |
| Shank Diameter | 3/8 in (0.3750 in) |
| Length of Cut (LOC) | 1-1/2 in |
| Material | Solid Carbide |
| Coating | Black PVD (dark finish visible in photos) |
| Shank Type | Cylindrical (round) |
| Country of Origin | USA |
| Condition | New |

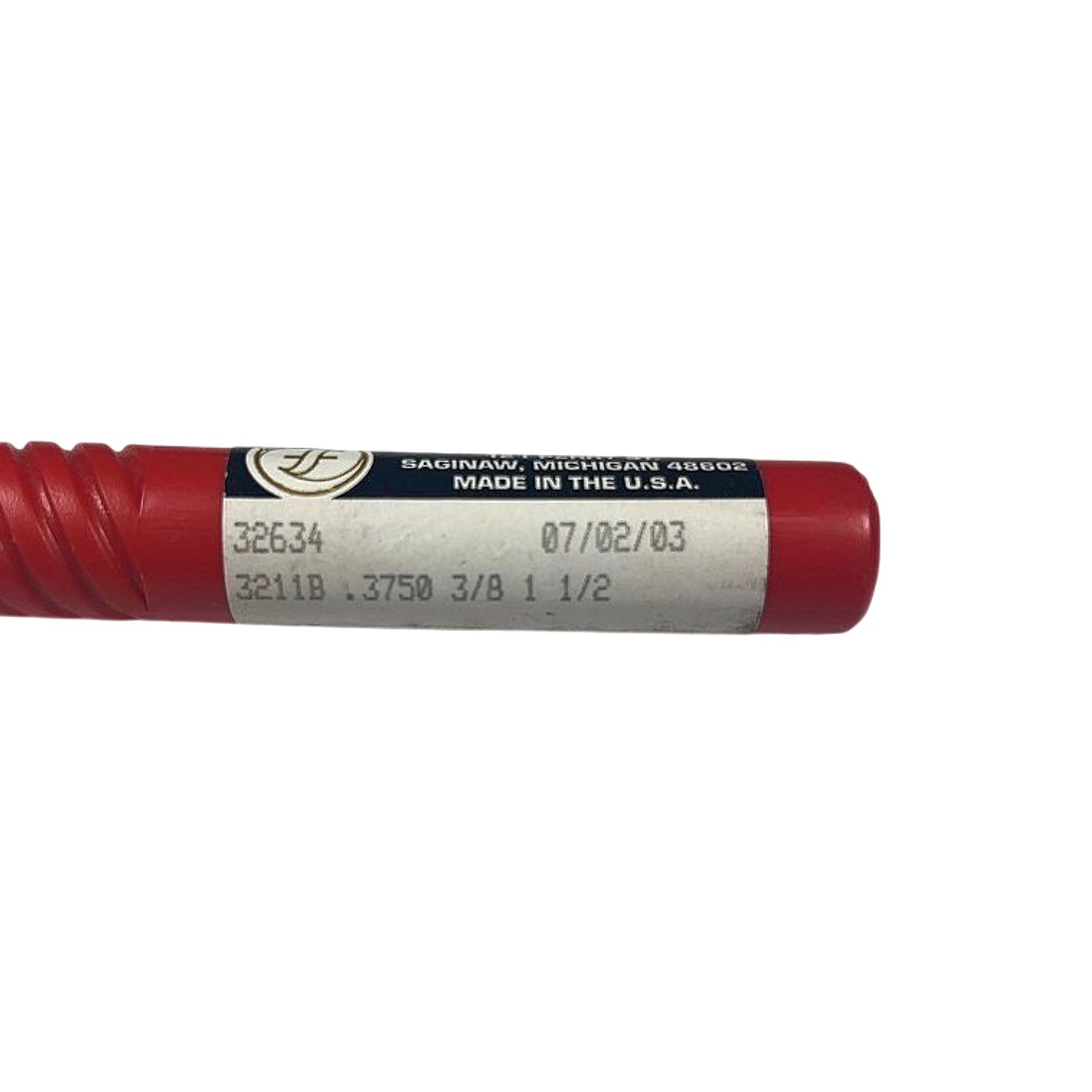

| Manufacture Date | 07/02/03 |
