G5 Tooling 531424C CAT40 ER32 3.13" Gage Length Collet Chuck
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

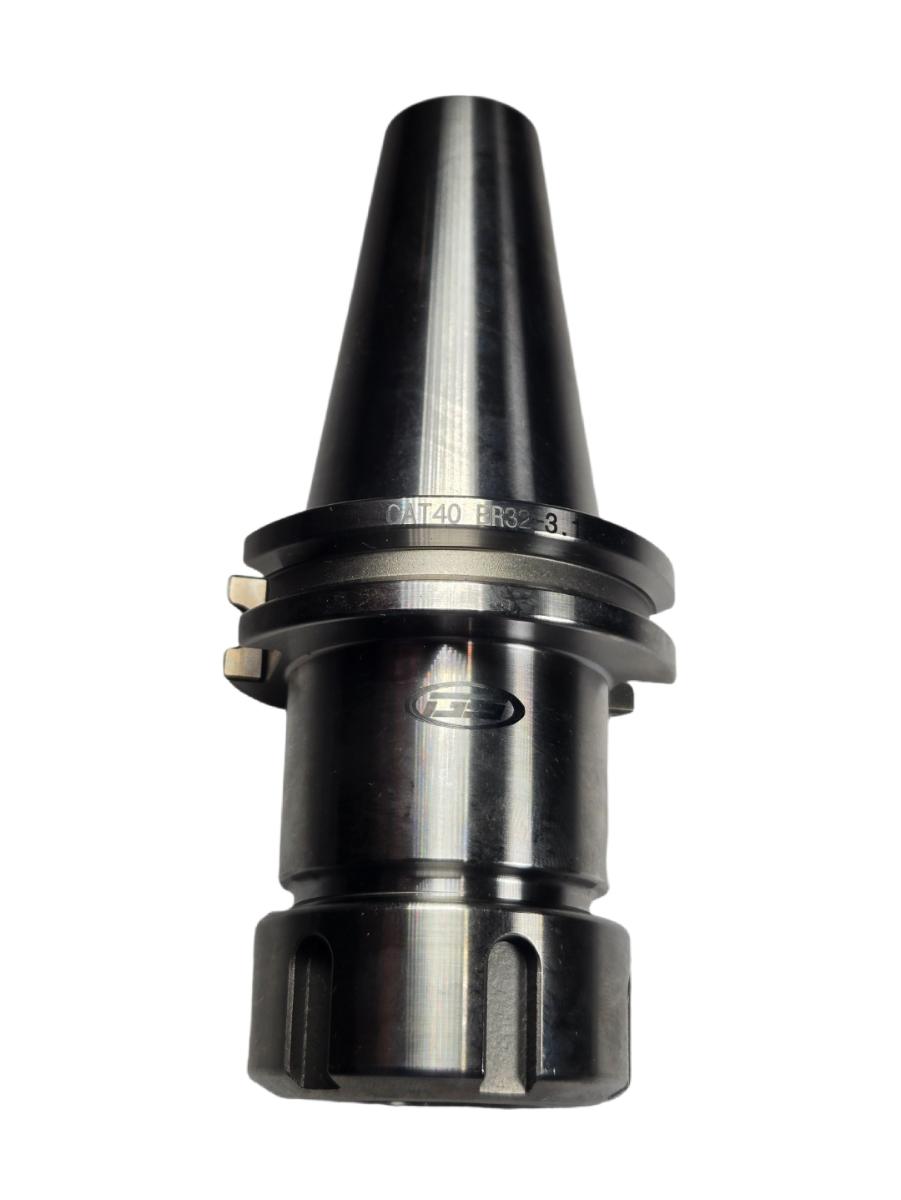

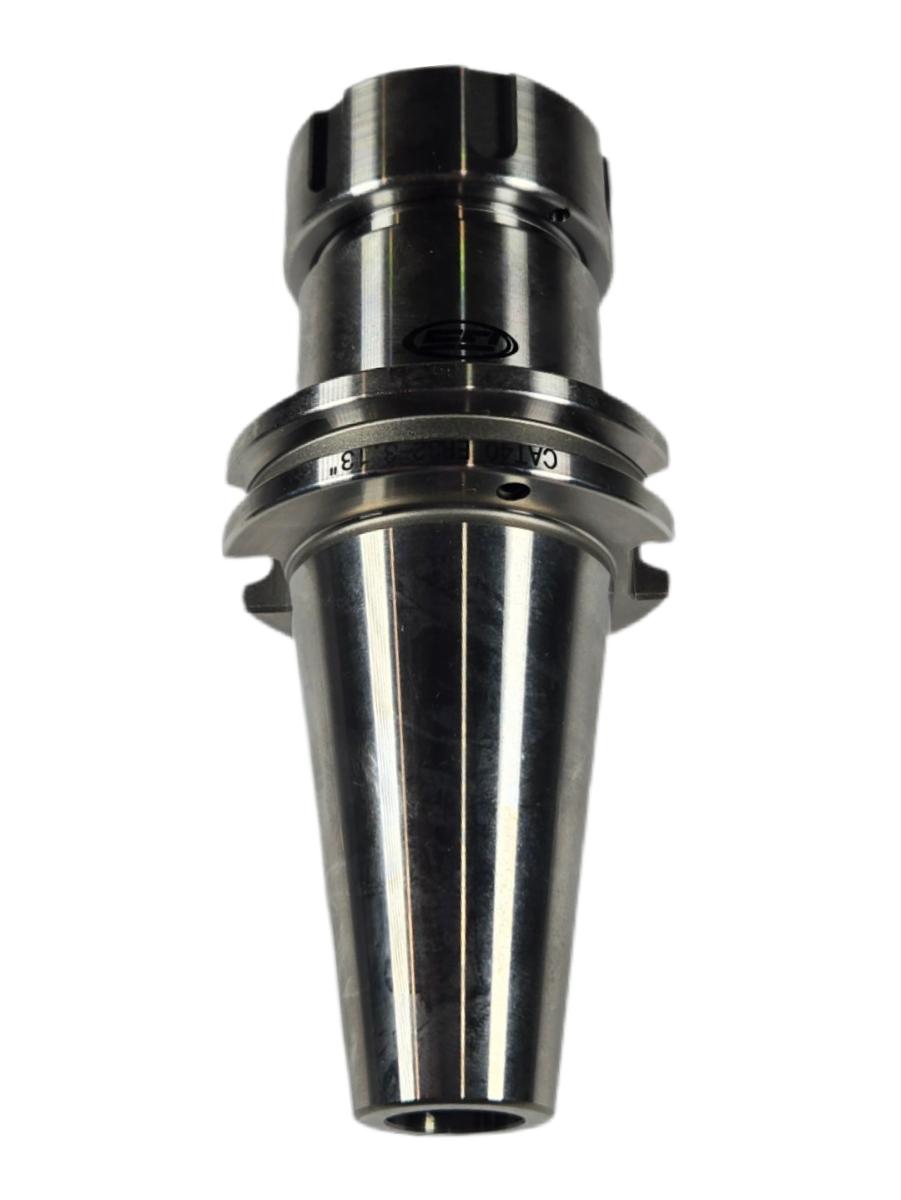

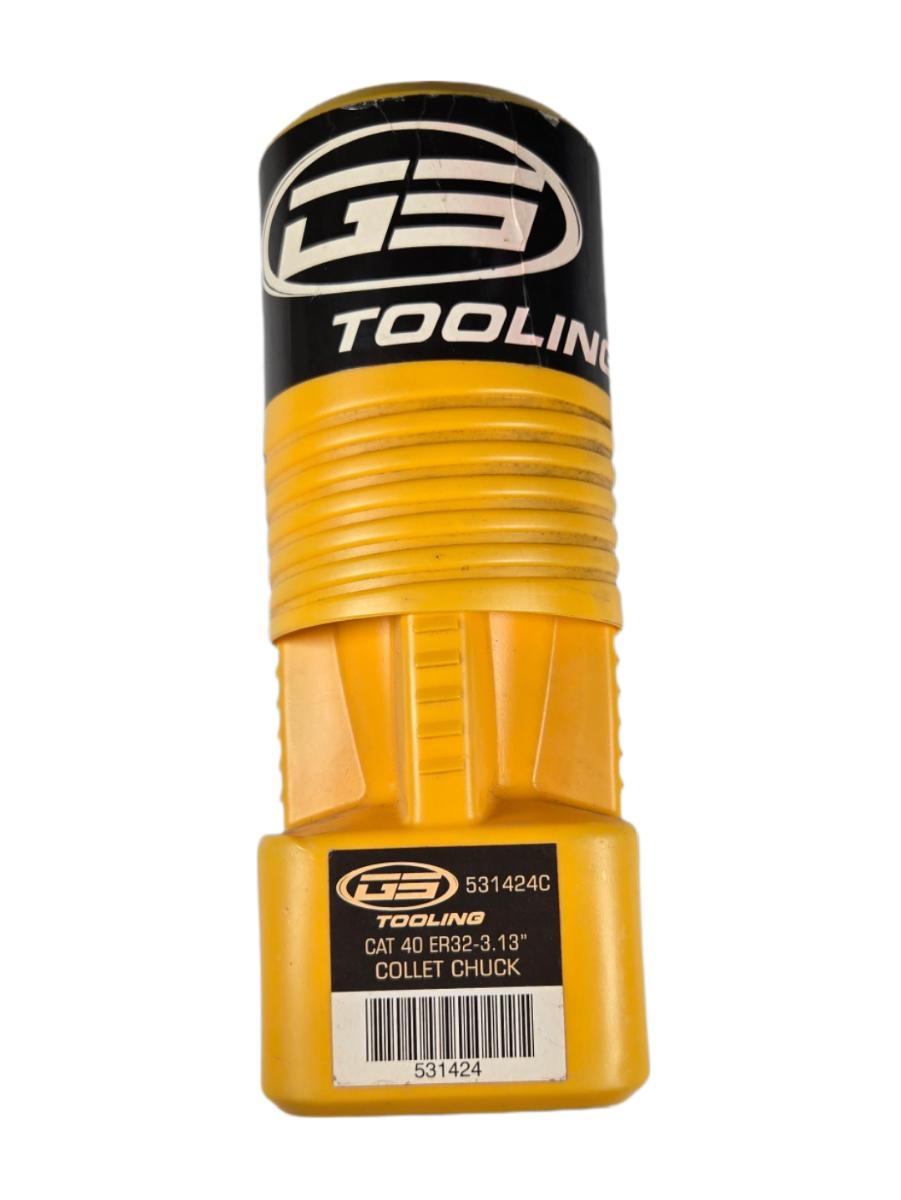

The G5 Tooling 531424C is a new CAT40 ER32 collet chuck with a 3.13" (79.5 mm) gage length, designed for use in CAT40-spindle CNC machining centers. The CAT40 taper shank conforms to ANSI/ASME V-flange toolholder standards and features the dual drive slots and retention knob thread (7/16-20) characteristic of the V-flange system; the ER32 collet nose accepts ER32-series collets with a clamping range of 1–20 mm (up to 3/4" in inch collets). The body carries a black oxide/nitride surface treatment visible in the photos, and the precision-ground gage surface and collet nose are left in bright finish for dimensional accuracy. This holder is suited for milling, drilling, reaming, and tapping operations on CAT40 VMCs; ER32 collets must be sourced separately. Part number 531424C is confirmed on the G5 Tooling label visible on the packaging; the barcode reads 531424.
Product Specifications
| Brand | G5 Tooling |
| Manufacturer Part Number | 531424C |
| Spindle Taper | CAT40 (ANSI V-flange, 7/24 taper) |
| Collet System | ER32 |
| Gage Length | 3.13 in (79.5 mm) |
| Collet Clamping Range (Metric) | 1–20 mm |
| Collet Clamping Range (Inch) | 1/16 – 3/4 in |
| Retention Knob Thread | 7/16-20 UNF |
| Surface Treatment | Black oxide / nitride on shank body; bright finish on gage and collet nose |
| Condition | New |
