Garr 42247 1/2 x 4 x 1 in 4FL TiAlN Square End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

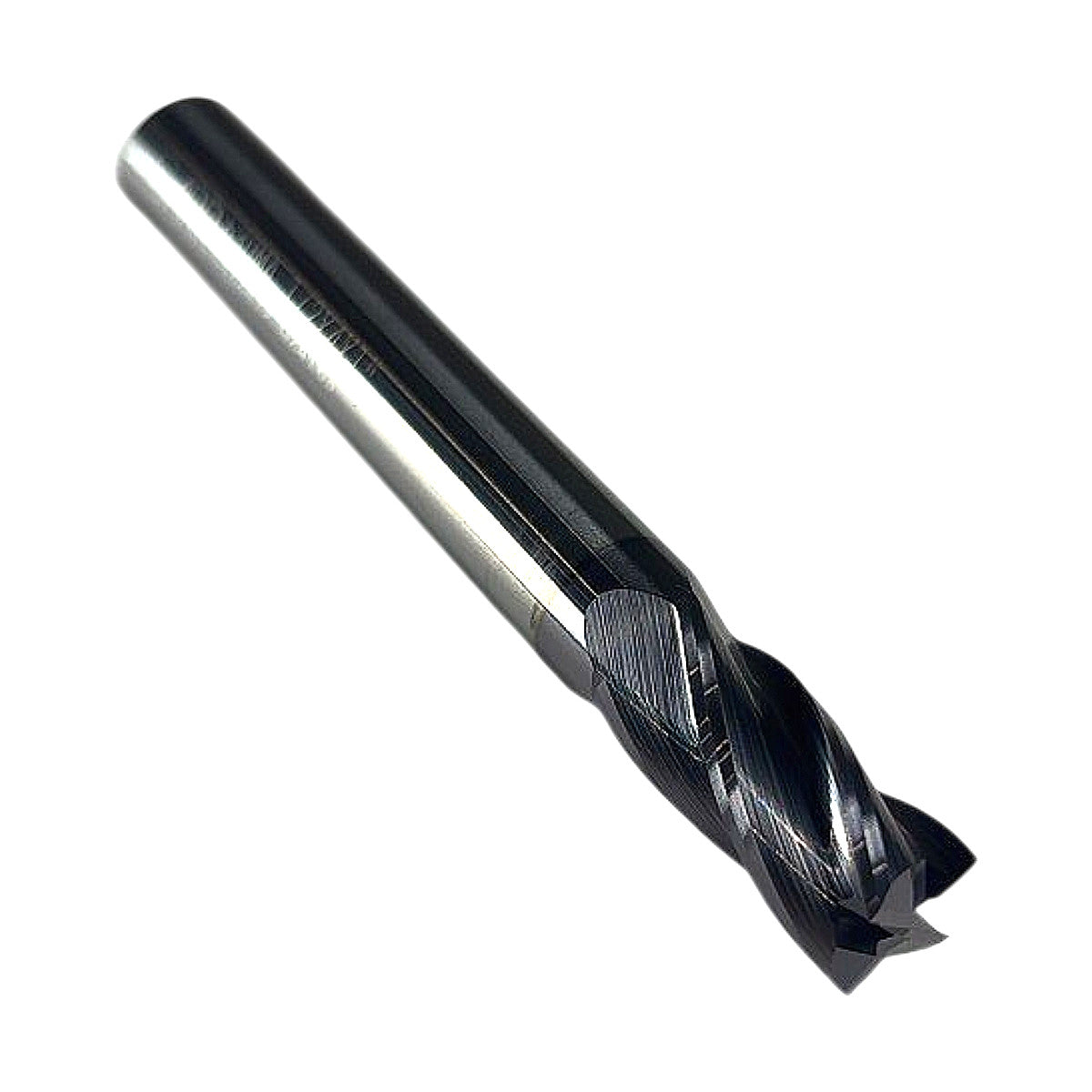

The Garr Tool 42247 is a new, solid micrograin carbide square (flat) end mill from the 630MA series, 1/2 in cutting diameter with a 1 in shank diameter, 1 in length of cut, and 4 in overall length, ground to standard tolerances. It carries four flutes in a right-hand helix/right-hand cut configuration and is finished with a TiAlN (Titanium Aluminum Nitride) PVD coating, which provides superior hardness, oxidation resistance up to ~1,800°F, and extended tool life compared to uncoated or TiN-coated alternatives. The 630MA series is purpose-built for high-speed machining of hardened steels, stainless steels, alloy steels, cast iron, and titanium alloys in CNC machining centers using standard straight-shank ER or side-lock toolholders accepting a 1/2 in bore. Made in the USA at Garr Tool's Adrian, Michigan facility, this end mill is suited for slotting, profiling, and peripheral milling operations where heat resistance and wear resistance are critical.
Product Specifications
| Brand | Garr Tool |
| Part Number (MPN) | 42247 |
| Series | 630MA |
| Cutting Diameter | 1/2 in (0.500 in) |
| Shank Diameter | 1/2 in (0.500 in) |
| Overall Length (OAL) | 4 in |
| Length of Cut (LOC) | 1 in |
| Number of Flutes | 4 |
| End Geometry | Square (Flat) |
| Coating | TiAlN (Titanium Aluminum Nitride) |
| Substrate | Solid Micrograin Carbide |
| Cut Direction | Right-Hand Cut, Right-Hand Helix |
| Shank Type | Straight Shank |
| Country of Origin | USA (Adrian, MI) |
| Condition | New |
