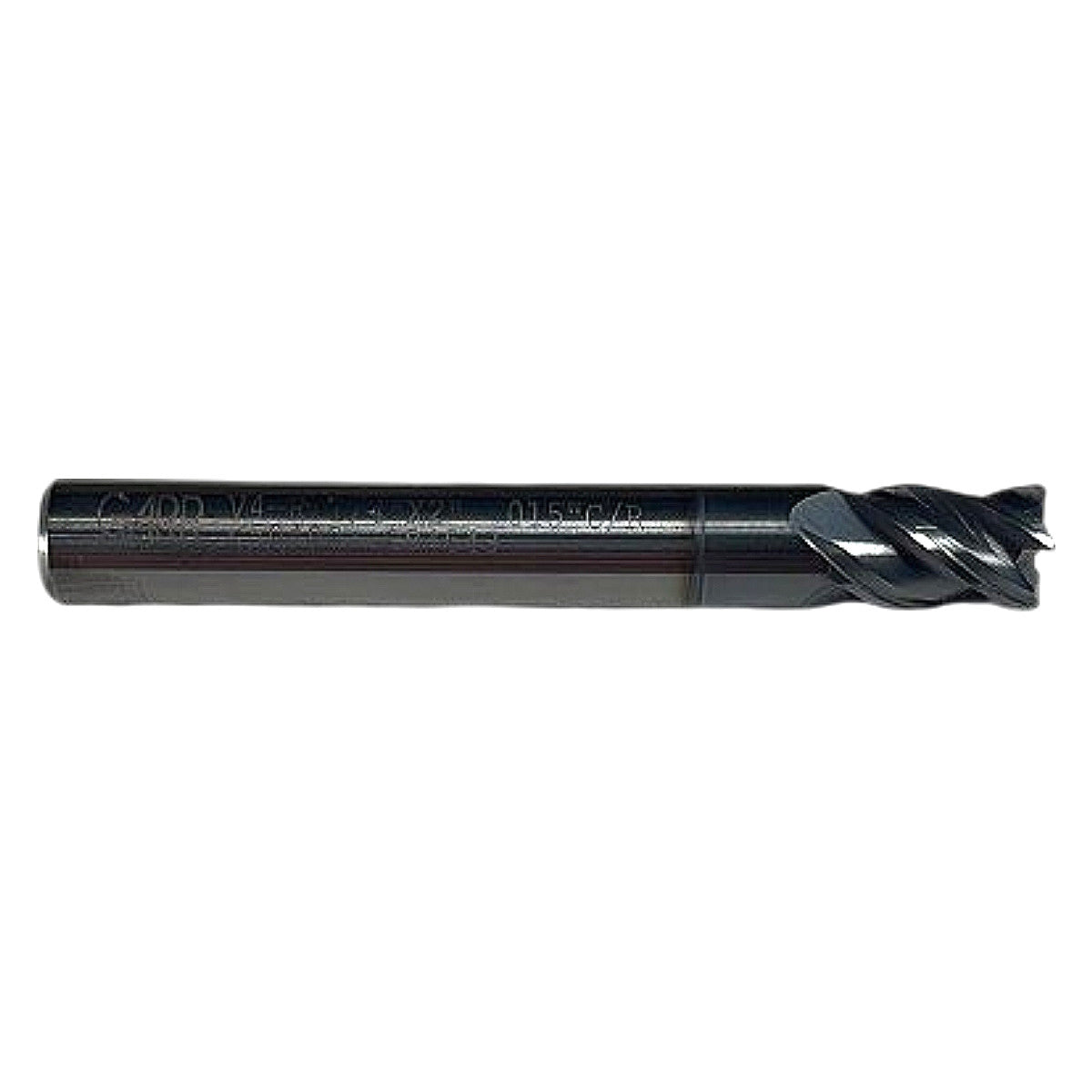

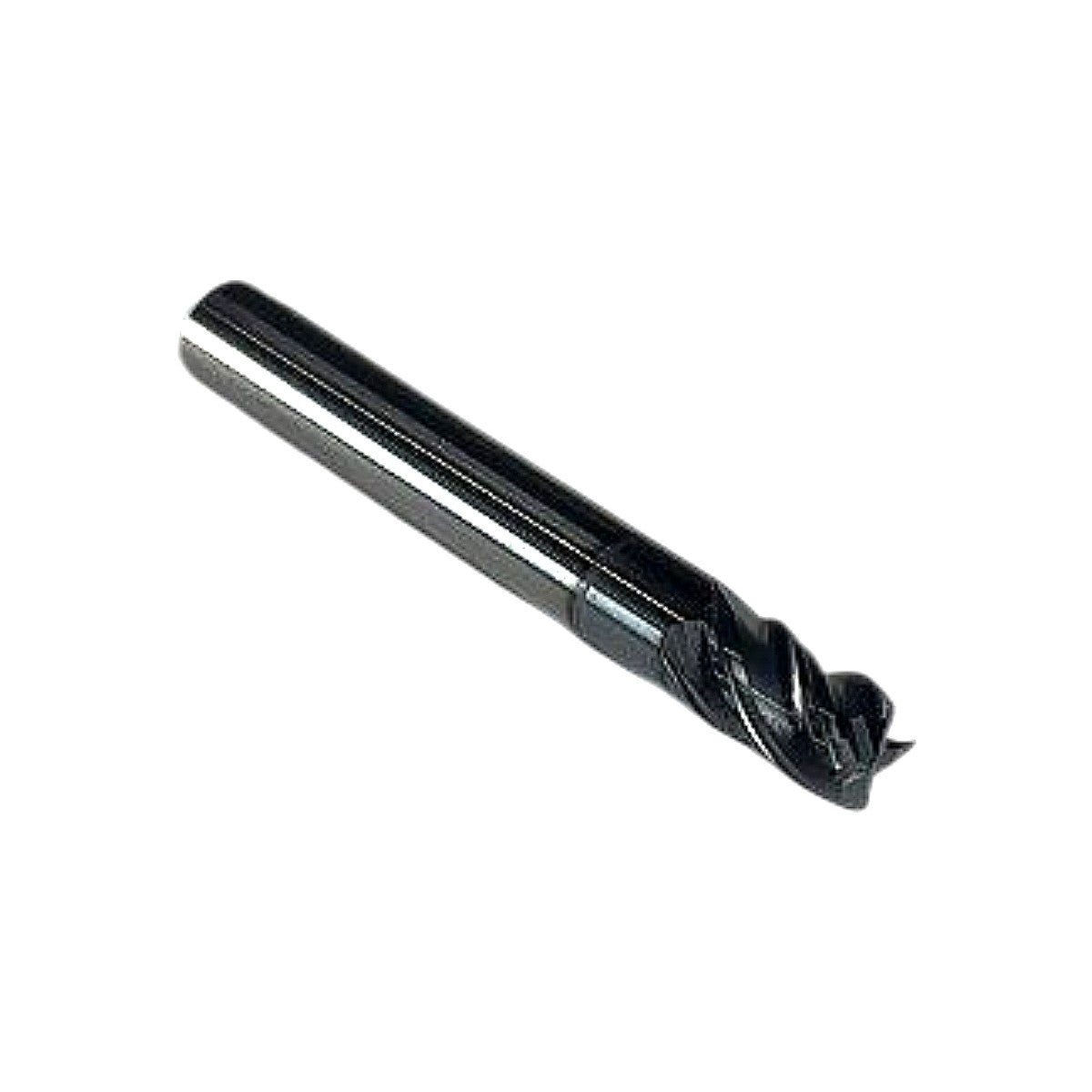

Garr 50490 V4-R 1/4x2 4FL 3/8 F/L .015 CR AlCrN Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

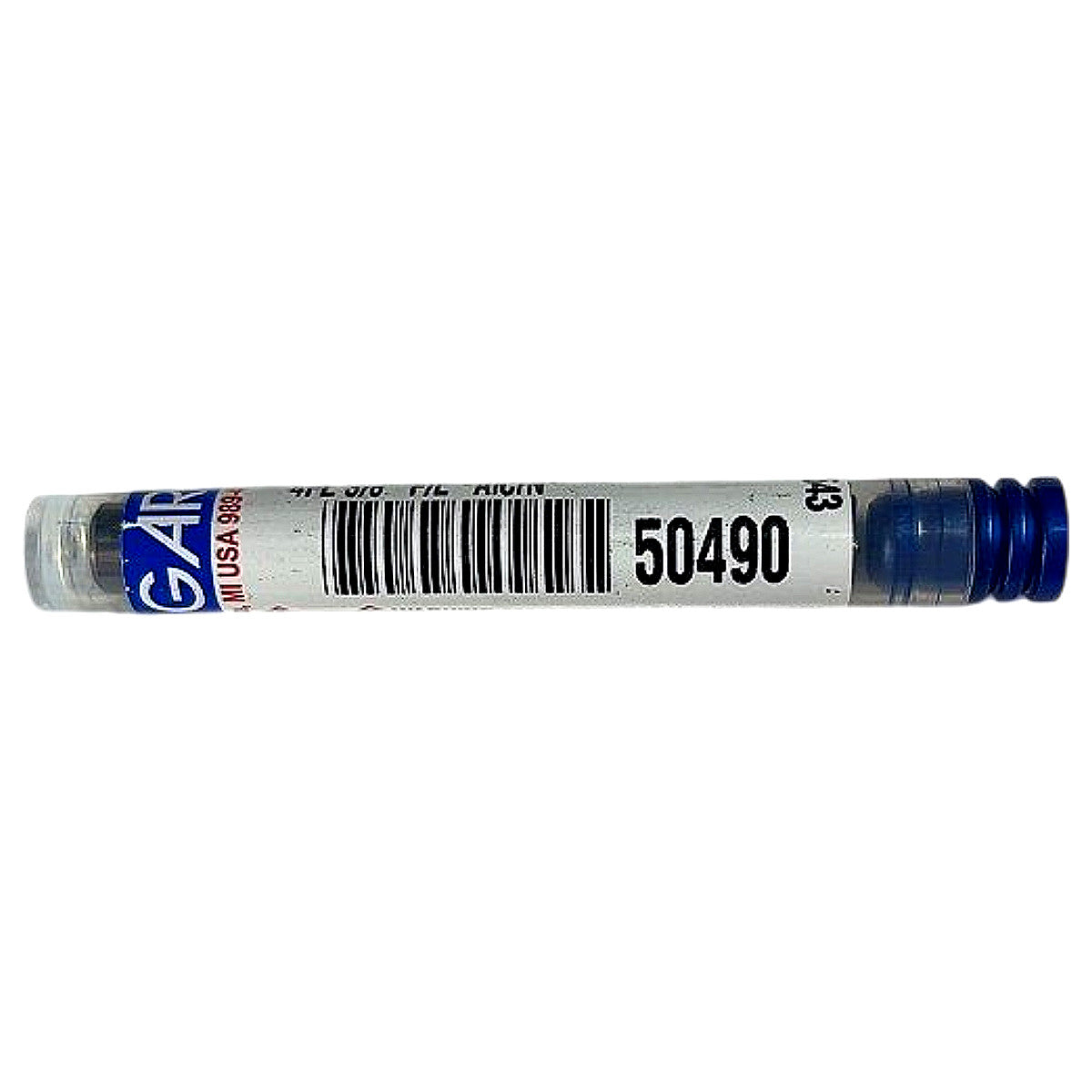

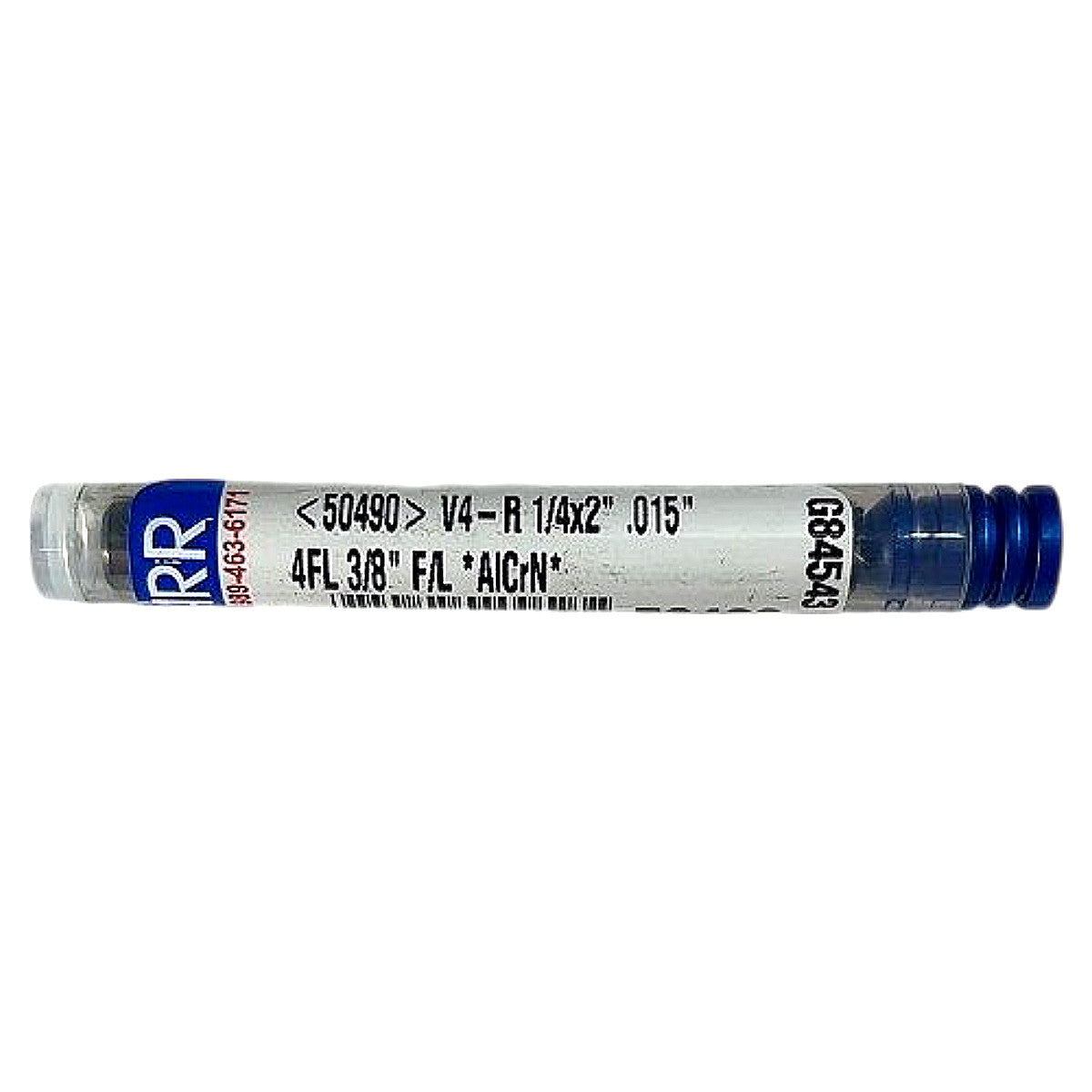

This is a new Garr Tool V4-R Series solid carbide corner radius end mill, part number 50490, with a 1/4 in cutting diameter, 3/8 in flute length, 2 in overall length, and a 0.015 in corner radius, featuring 4 flutes with variable helix geometry for chatter reduction. The tool is coated with AlCrN (Aluminum Chromium Nitride), a premium PVD coating that provides excellent thermal stability and oxidation resistance up to approximately 1100°C, making it well-suited for machining hardened steels, stainless steels, and high-temperature alloys. The 1/4 in shank diameter mates directly with standard 1/4 in ER collets, shrink-fit holders, and milling chucks; the variable flute geometry of the V4-R series reduces harmonic resonance during aggressive side milling and slotting operations. Made in the USA at Garr Tool's Alma, Michigan facility, this end mill is offered in factory-new condition in the original Garr packaging tube.
Product Specifications
| Brand | Garr Tool |
| Part Number (MPN) | 50490 |
| Series | V4-R |
| Cutting Diameter | 1/4 in (0.2500 in) |
| Shank Diameter | 1/4 in (0.2500 in) |
| Overall Length | 2 in |
| Flute Length | 3/8 in (0.375 in) |
| Number of Flutes | 4 |
| Corner Radius | 0.015 in |
| Coating | AlCrN (Aluminum Chromium Nitride) |
| End Style | Corner Radius |
| Material | Solid Carbide |
| Helix Type | Variable (V4-R series) |
| Shank Type | Straight |
| Country of Origin | USA (Alma, MI) |
| Condition | New |
